Sharp
Countertop Microwave

Model # R-320FQ Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-320FQ microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Power Cord FACCDA083WRE0
#1-5

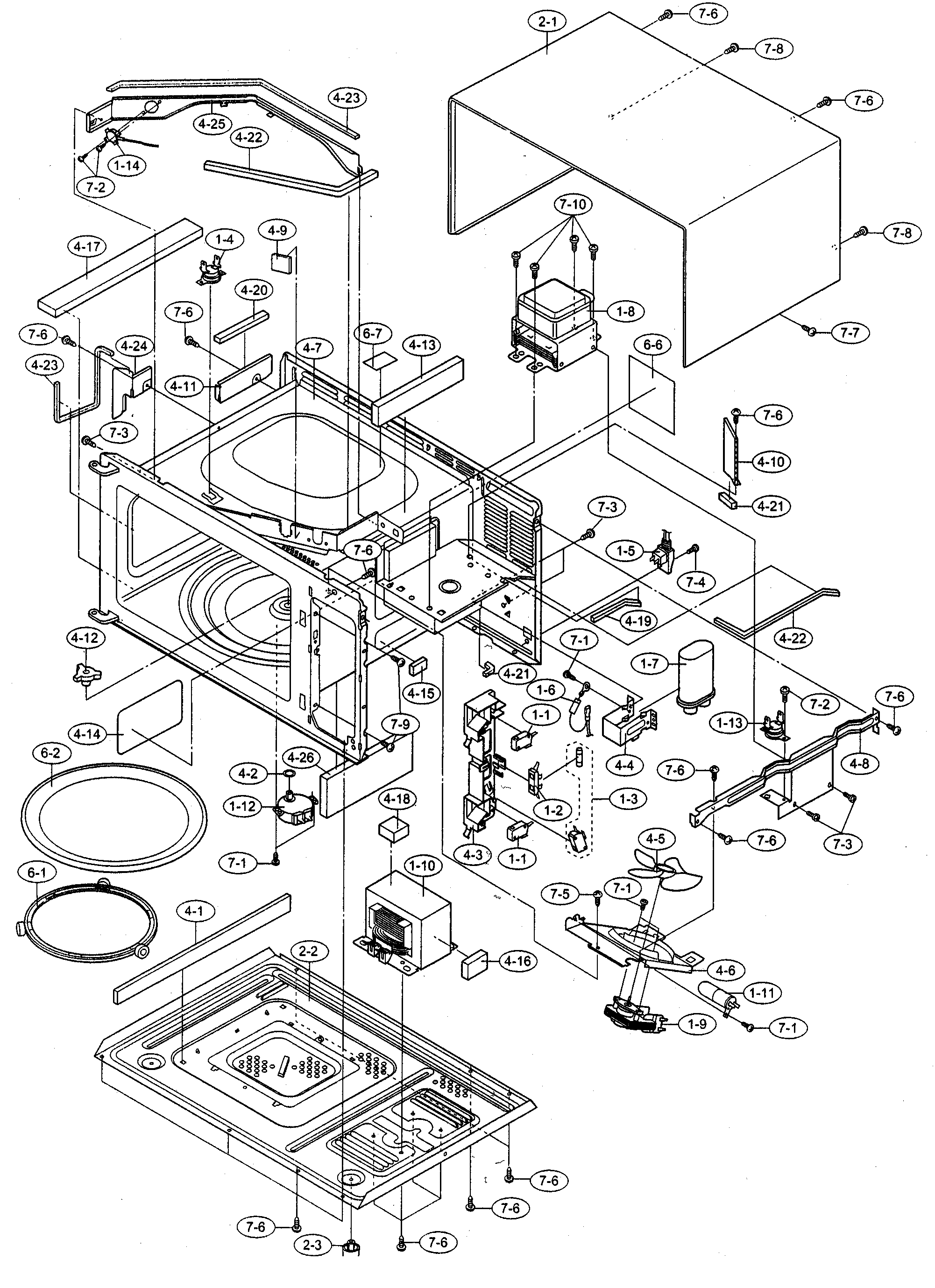

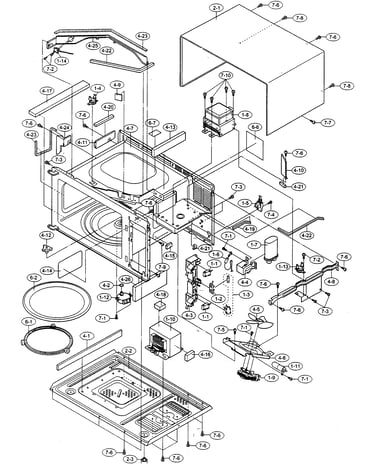

Oven/cabinet parts diagram

Power cord

Part #FACCDA083WRE0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Lamp RLMPTA082WRZZ
#1-11

Oven/cabinet parts diagram

Microwave lamp

Part #RLMPTA082WRZZ

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual TINSEA928WRRZ
#NI

Oven/cabinet parts diagram

Owner's manual

Part #TINSEA928WRRZ

The manufacturer no longer makes this part, and there's no substitute part

Magnetron RV-MZA291WRE0
#1-8

Oven/cabinet parts diagram

Magnetron

Part #RV-MZA291WRE0

The manufacturer no longer makes this part, and there's no substitute part

Sheet PSHEPA382WRE0
#5-2

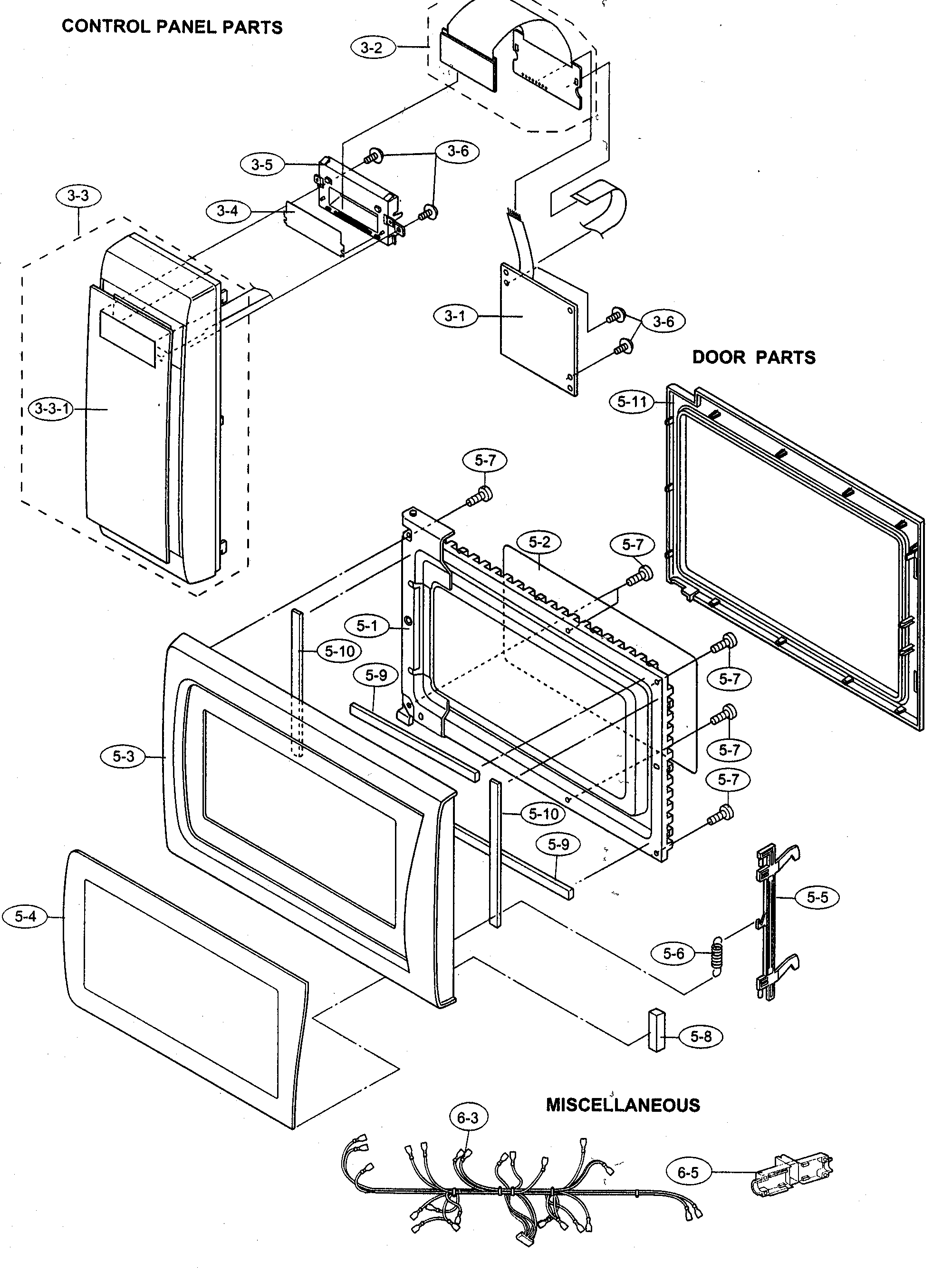

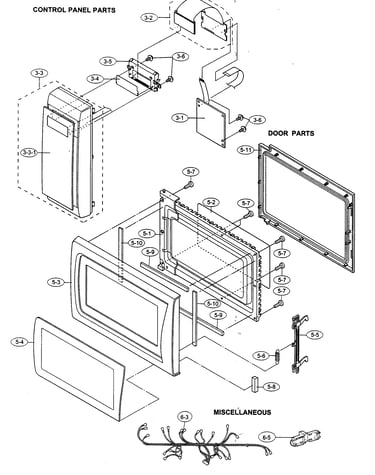

Control panel/door parts/miscellaneous diagram

Sheet

Part #PSHEPA382WRE0

The manufacturer no longer makes this part, and there's no substitute part

Cushion PCUSUA461WRP0
#5-8

Control panel/door parts/miscellaneous diagram

Cushion

Part #PCUSUA461WRP0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Motor RMOTDA211WRE0
#112B

Oven/cabinet parts diagram

Microwave turntable motor

Part #RMOTDA211WRE0

The manufacturer no longer makes this part, and there's no substitute part

Switch QSW-MA137WRE0
#1-1A

Oven/cabinet parts diagram

Switch

Part #QSW-MA137WRE0

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder QFSHDA009WRE0
#1-2

Oven/cabinet parts diagram

Fuse holder

Part #QFSHDA009WRE0

The manufacturer no longer makes this part, and there's no substitute part

Sensor FDTCTA197WRK0
#1-14

Oven/cabinet parts diagram

Sensor

Part #FDTCTA197WRK0

The manufacturer no longer makes this part, and there's no substitute part
