Craftsman
Gas Walk-Behind Mower

Model # 917387225 Official Craftsman rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 917387225 rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

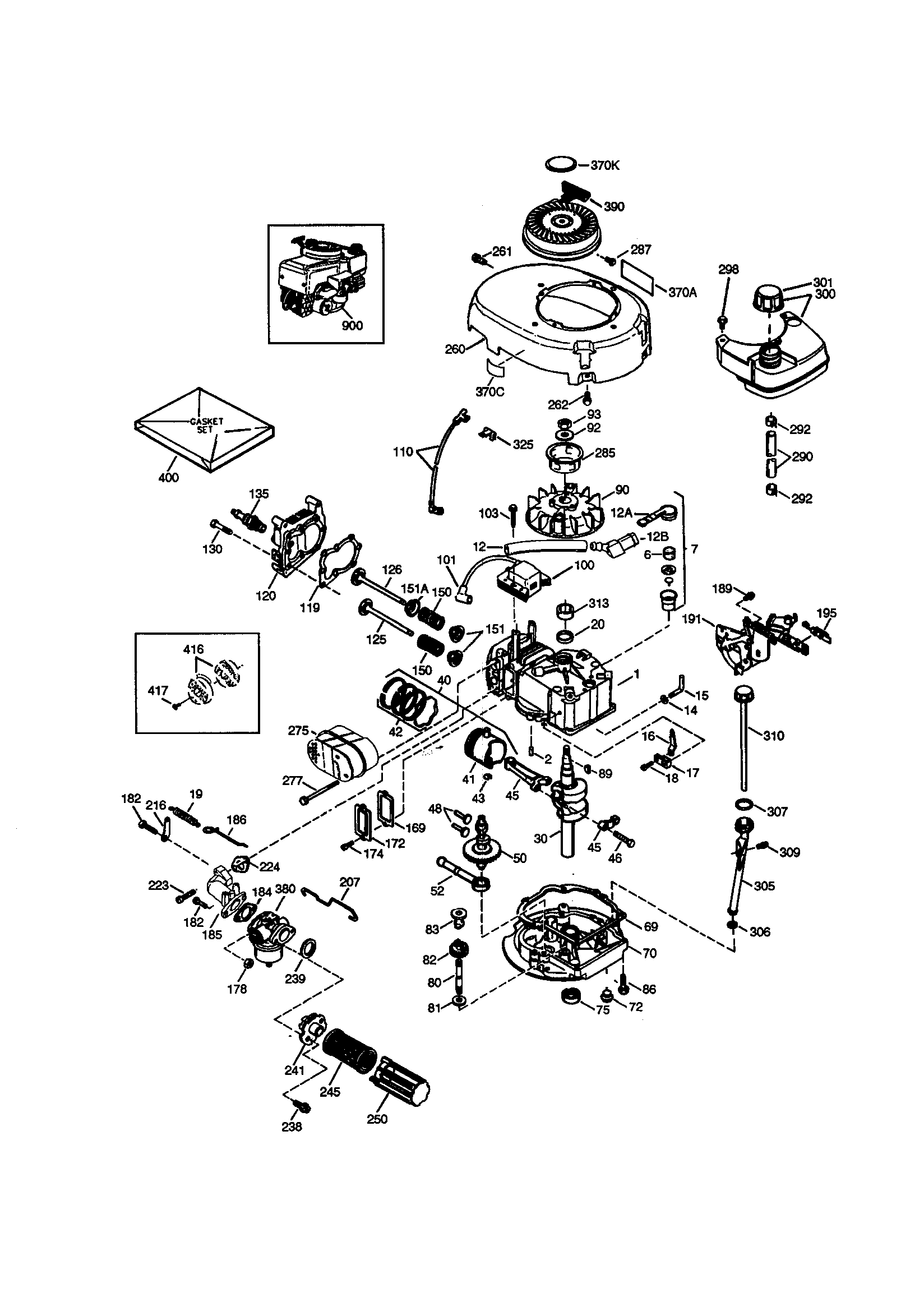

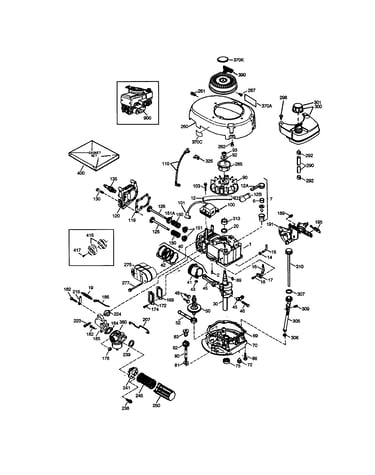

  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 205 parts  |
Lock Nut 83923
#26

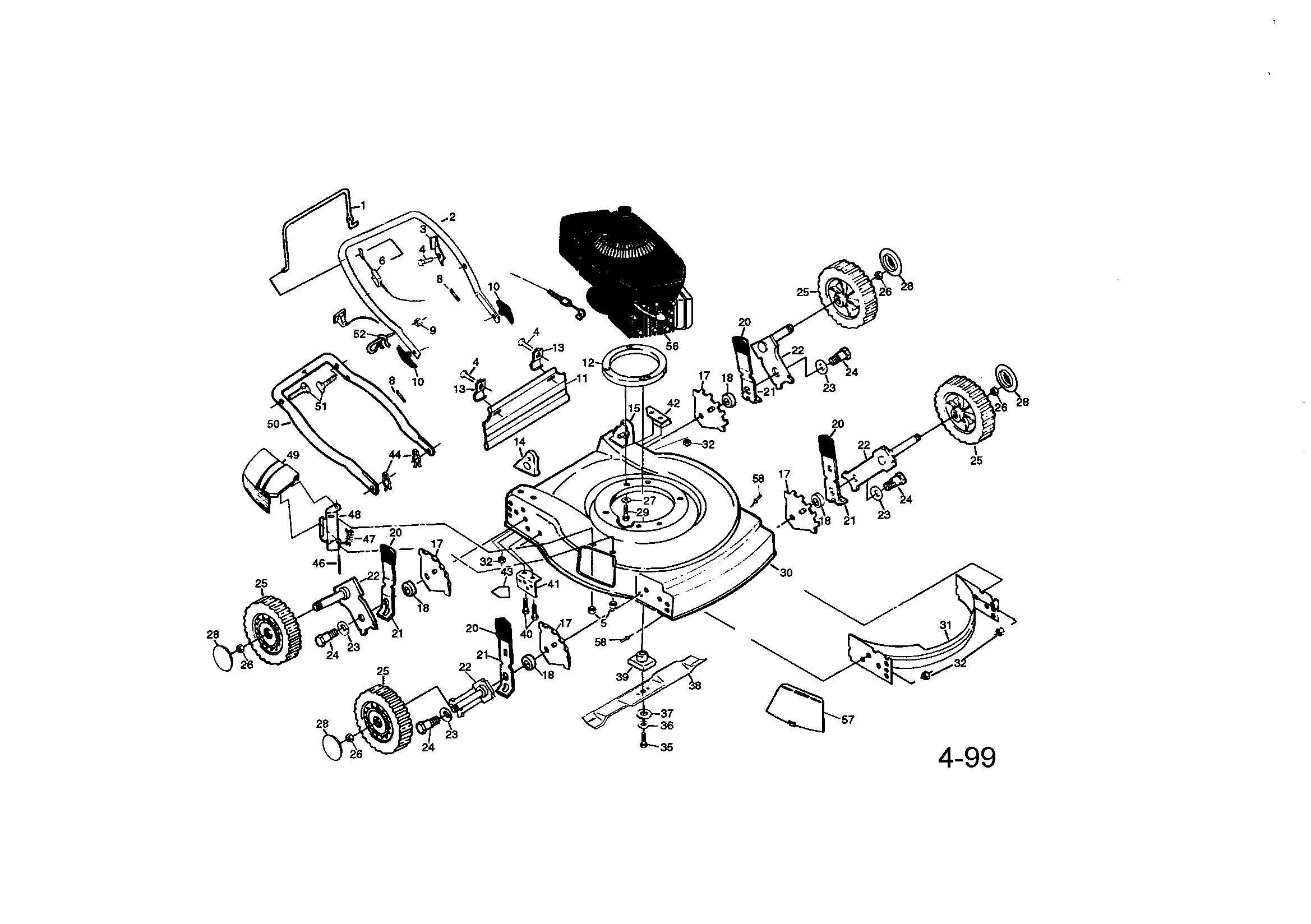

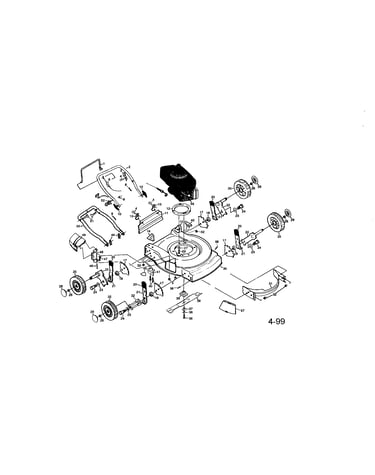

Rotary lawn mower diagram

Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lock Nut 751592
#32

Rotary lawn mower diagram

Lock nut

Part #751592

Replaced by #596322601

?
Manufacturer substitution
This part replaces 751592. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.11
In Stock
Lawn Mower Blade Adapter 850977
#39

Rotary lawn mower diagram

Lawn mower blade adapter

Part #850977

Replaced by #581547901

?
Manufacturer substitution
This part replaces 850977. Substitute parts can look different from the original.
BEST SELLER
$18.44 |
10% OFF Phone Price : $20.44
In Stock
Rod.hinge.co 147286
#46

Rotary lawn mower diagram

Rod.hinge.co

Part #147286

Replaced by #532147286

?
Manufacturer substitution
This part replaces 147286. Substitute parts can look different from the original.
This item is not returnable
$9.31 |
10% OFF Phone Price : $10.31
In Stock
Height Spacer 146630
#18

Rotary lawn mower diagram

Height spacer

Part #146630

Replaced by #532401629

?
Manufacturer substitution
This part replaces 146630. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Upstop Bracket 850733X004
#3

Rotary lawn mower diagram

Upstop bracket

Part #850733X004

Replaced by #532850733

?
Manufacturer substitution
This part replaces 850733X004. Substitute parts can look different from the original.
This item is not returnable
$8.54
In Stock
Baffle 87576X479

#NI

All parts diagram

Baffle

Part #87576X479

This item is not returnable
$3.89
In Stock
Handle Bolt 131959
#51

Rotary lawn mower diagram

Handle bolt

Part #131959

Replaced by #532191574

?
Manufacturer substitution
This part replaces 131959. Substitute parts can look different from the original.
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Rope Guide 153638
#52

Rotary lawn mower diagram

Rope guide

Part #153638

Replaced by #586122501

?
Manufacturer substitution
This part replaces 153638. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
Bolt 142748
#24

Rotary lawn mower diagram

Bolt

Part #142748

Replaced by #532174719

?
Manufacturer substitution
This part replaces 142748. Substitute parts can look different from the original.
This item is not returnable
$13.69
In Stock
