GE
Gas Cooktop

Model # JGP5036DL1BB Official GE counter unit

Here are the diagrams and repair parts for Official GE JGP5036DL1BB counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

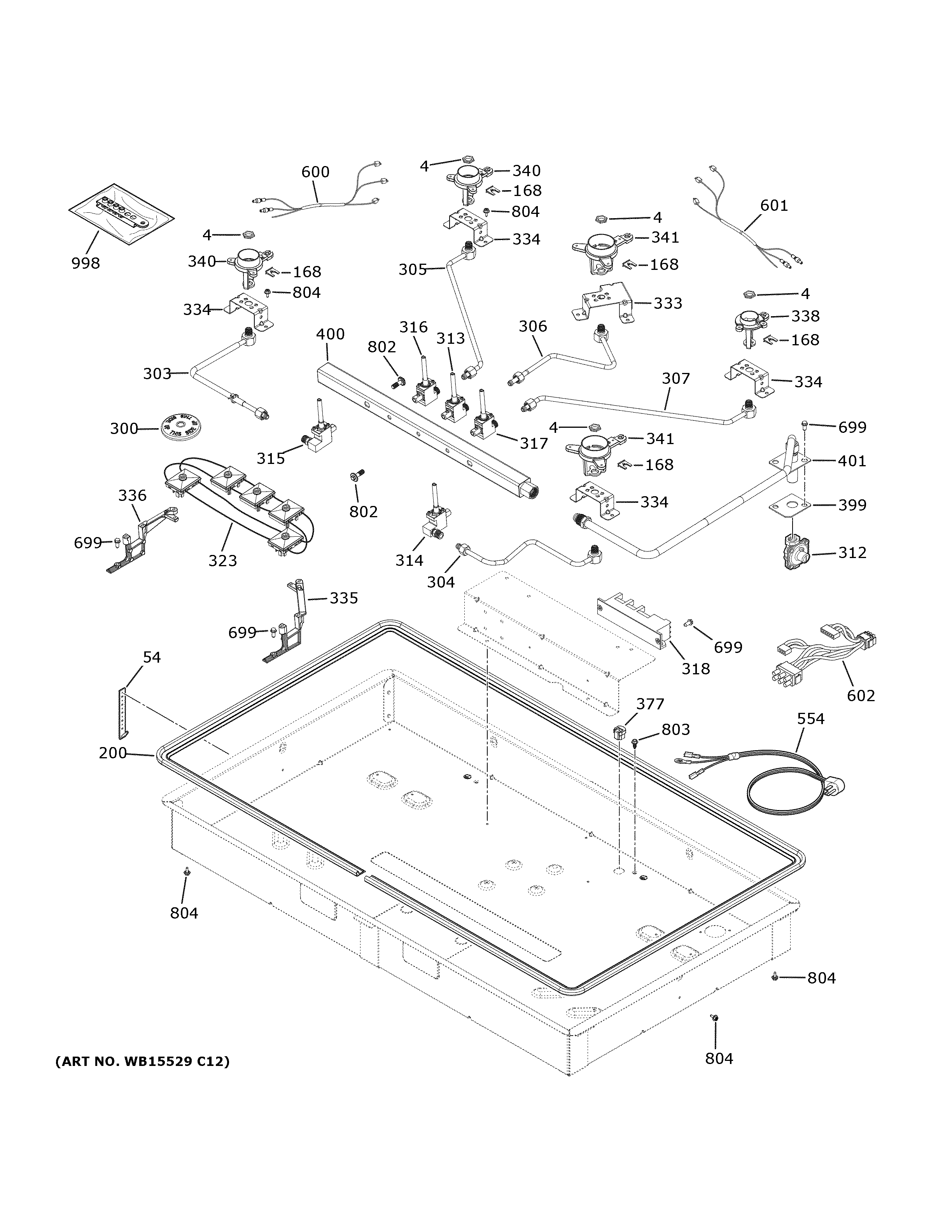

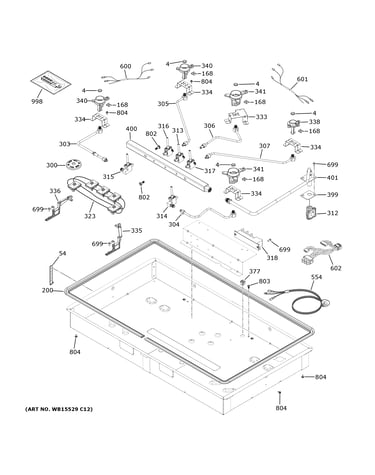

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Range Surface Burner Cap WB28K10222
Range surface burner cap

Part #WB28K10222

BEST SELLER
$17.80 |
10% OFF Phone Price : $19.80
In Stock
Cooktop Spark Module WB13T10047
Cooktop spark module

Part #WB13T10047

Replaced by #WB13X32509

?
Manufacturer substitution
This part replaces WB13T10047. Substitute parts can look different from the original.
BEST SELLER
$89.10 |
6% OFF Phone Price : $95.10
In Stock
Range Surface Burner Grate Bumper WB02X24790
Range surface burner grate bumper

Part #WB02X24790

$7.87 |
11% OFF Phone Price : $8.87
In Stock
Range Surface Burner, Medium WB16X24724
Range surface burner, medium

Part #WB16X24724

This item is not returnable
$24.26 |
20% OFF Phone Price : $30.26
In Stock
Range Surface Burner Cap, Small (replaces Wb29x24720) WB16X28654
Range surface burner cap, small (replaces wb29x24720)

Part #WB16X28654

This item is not returnable
$7.92 |
11% OFF Phone Price : $8.92
In Stock
Range Surface Burner, Small WB16X24721
Range surface burner, small

Part #WB16X24721

This item is not returnable
$17.08 |
10% OFF Phone Price : $19.08
In Stock
Cooktop Burner Orifice Holder, Medium WB02X24727
Cooktop burner orifice holder, medium

Part #WB02X24727

$14.73 |
12% OFF Phone Price : $16.73
In Stock
Range Nut WB01K10037
Range nut

Part #WB01K10037

$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WB01K5150
Screw

Part #WB01K5150

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01K5150. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Injet WB02X24728
Injet

Part #WB02X24728

$10.55 |
16% OFF Phone Price : $12.55
In Stock
