Magic Chef
Gas Range

Model # 11GN-10 Official Magic Chef gas range

Here are the diagrams and repair parts for Official Magic Chef 11GN-10 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Manifold Panel 1G022300MW
#30A

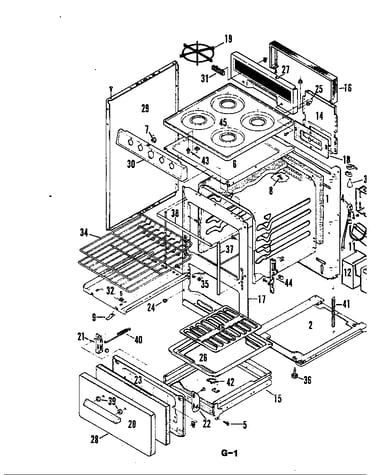

Top assy./body diagram

Manifold panel

Part #1G022300MW

Replaced by #74001080

?
Manufacturer substitution
This part replaces 1G022300MW. Substitute parts can look different from the original.
$28.09 |
18% OFF Phone Price : $34.09
In Stock
Broiler Pan 5G06600253
#26

Top assy./body diagram

Broiler pan

Part #5G06600253

Replaced by #4396923

?
Manufacturer substitution
This part replaces 5G06600253. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Cap Top Bur 9G11927022
#4

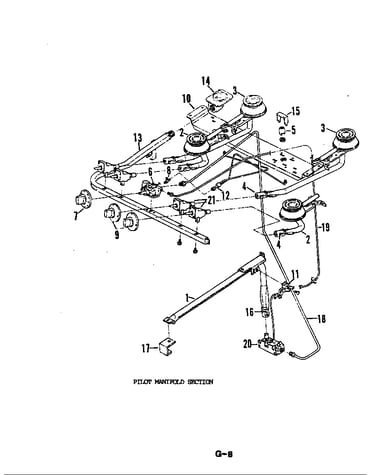

Gas controls diagram

Cap top bur

Part #9G11927022

The manufacturer no longer makes this part, and there's no substitute part

Oven Shutter 4G12401322
#16

Gas controls diagram

Oven shutter

Part #4G12401322

The manufacturer no longer makes this part, and there's no substitute part

Burner Grate 9G21018512
#19

Top assy./body diagram

Burner grate

Part #9G21018512

The manufacturer no longer makes this part, and there's no substitute part

Oven Seal 0S00643599
#37

Top assy./body diagram

Oven seal

Part #0S00643599

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 0P00203716
#31

Top assy./body diagram

Nameplate

Part #0P00203716

The manufacturer no longer makes this part, and there's no substitute part

Burner 1G10103865
#6

Top assy./body diagram

Burner

Part #1G10103865

The manufacturer no longer makes this part, and there's no substitute part

Spacer Broiler Door 0S03500999
#39

Top assy./body diagram

Spacer broiler door

Part #0S03500999

The manufacturer no longer makes this part, and there's no substitute part

End Panel 1G060027MA
#29

Top assy./body diagram

End panel

Part #1G060027MA

The manufacturer no longer makes this part, and there's no substitute part
