Gibson
Gas Range

Model # CGC1M1WXE Official Gibson gas range - 5995221081

Here are the diagrams and repair parts for Official Gibson CGC1M1WXE gas range - 5995221081, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

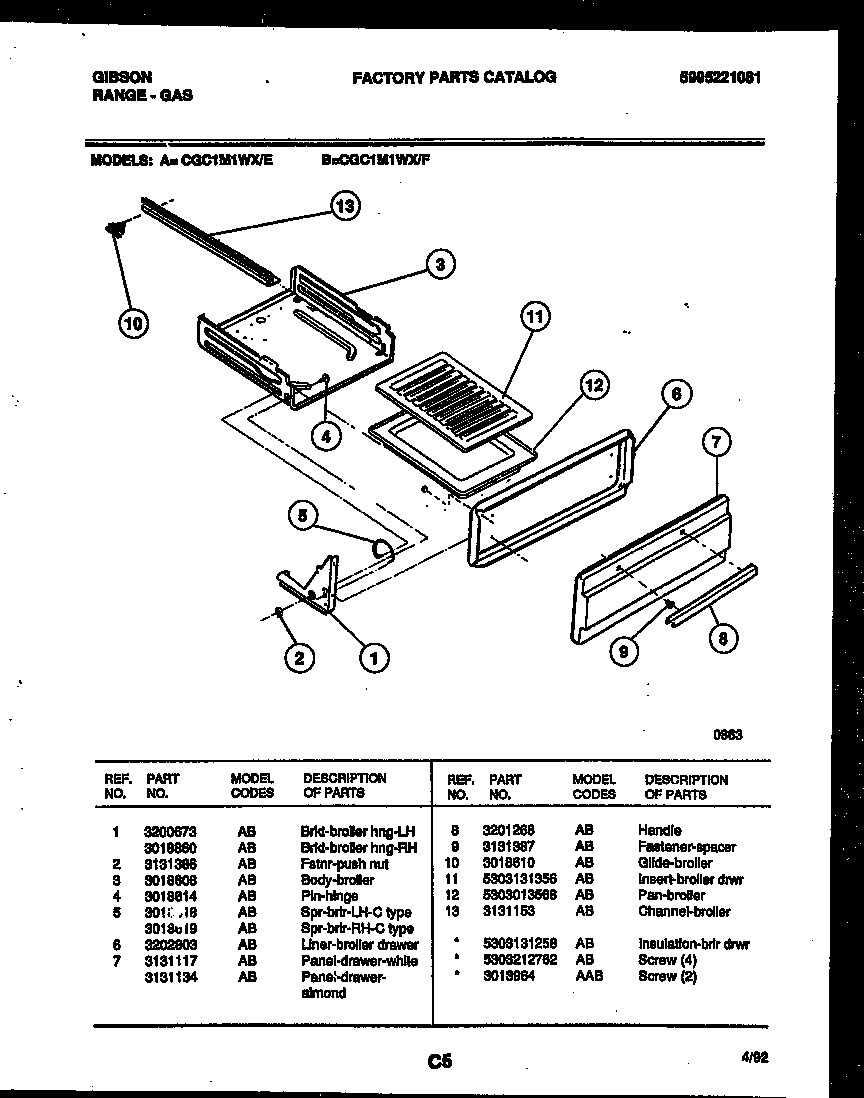

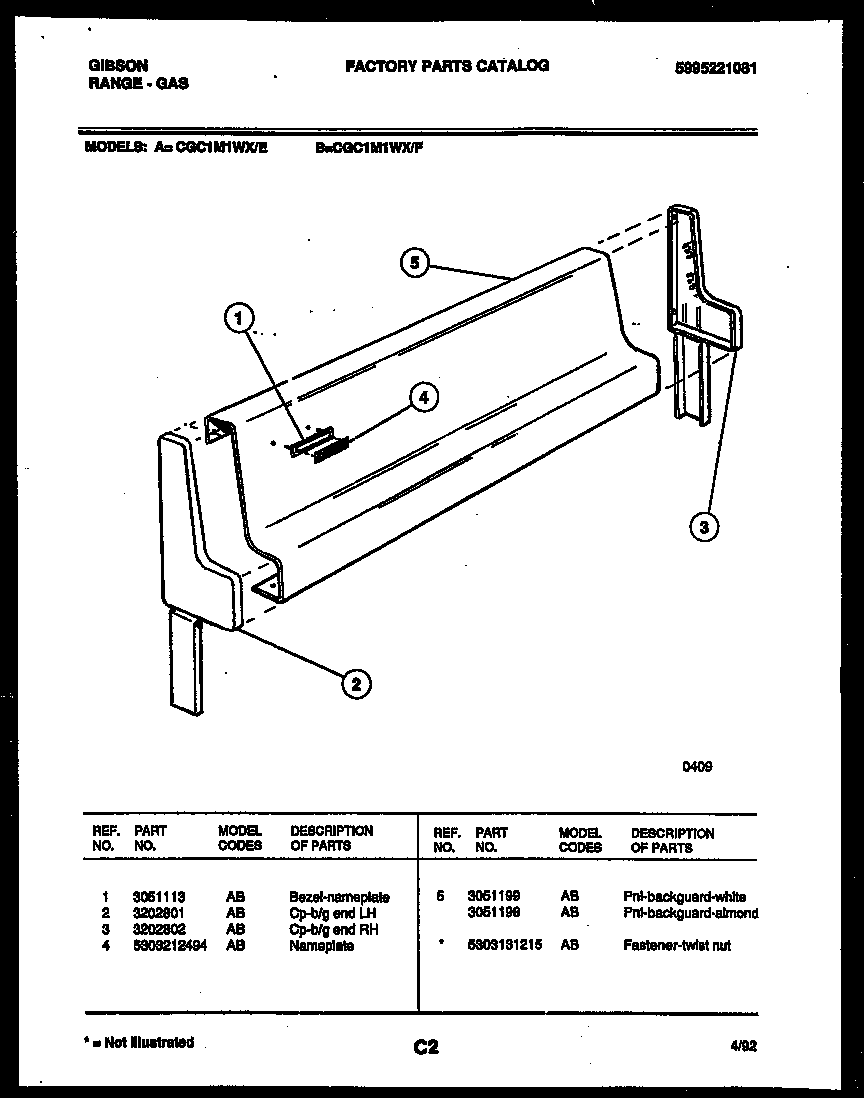

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Burner 3204958
#17

Burner parts diagram

Burner

Part #3204958

Replaced by #5304506427

?
Manufacturer substitution
This part replaces 3204958. Substitute parts can look different from the original.
$60.08 |
9% OFF Phone Price : $66.08
In Stock
Screw 5303212762

#NI

All parts diagram

Screw

Part #5303212762

Replaced by #5303300265

?
Manufacturer substitution
This part replaces 5303212762. Substitute parts can look different from the original.
This item is not returnable
$16.63
In Stock
Gasket 08067965
#8

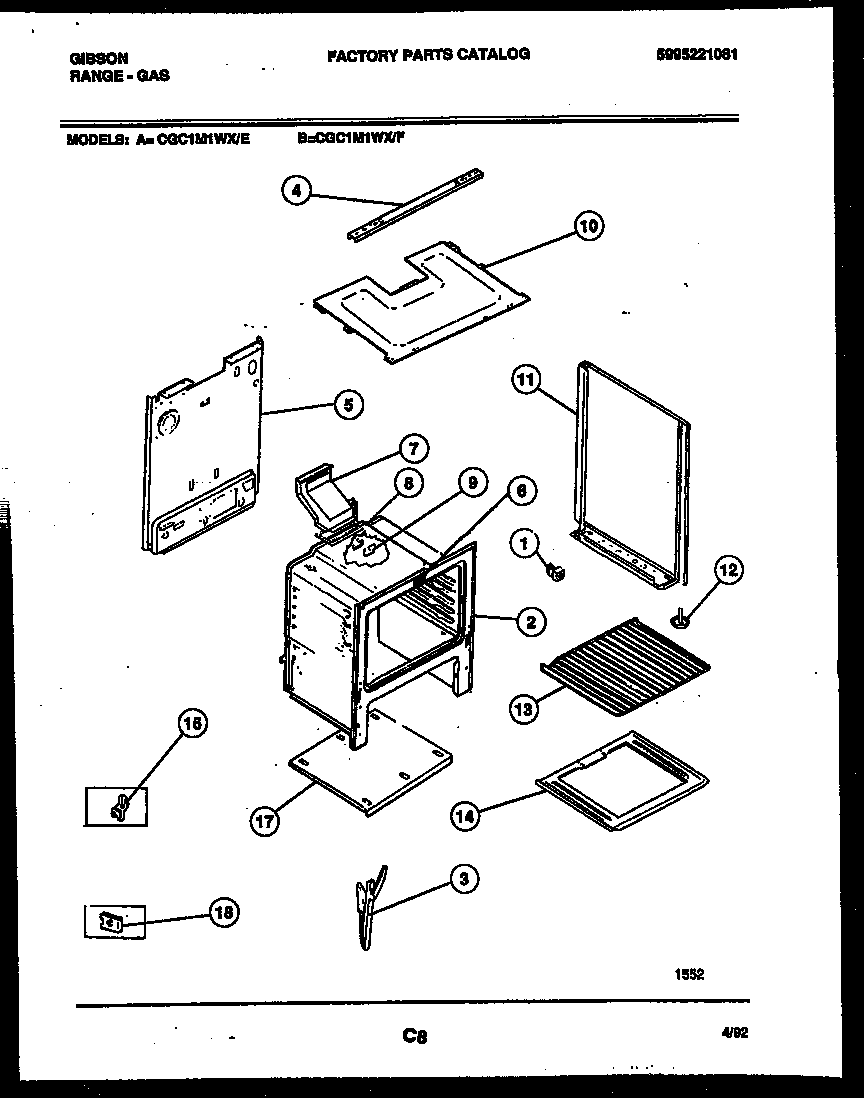

Body parts diagram

Gasket

Part #08067965

Replaced by #316542102

?
Manufacturer substitution
This part replaces 08067965. Substitute parts can look different from the original.
$12.51 |
14% OFF Phone Price : $14.51
In Stock
Grate 5303012700
#4

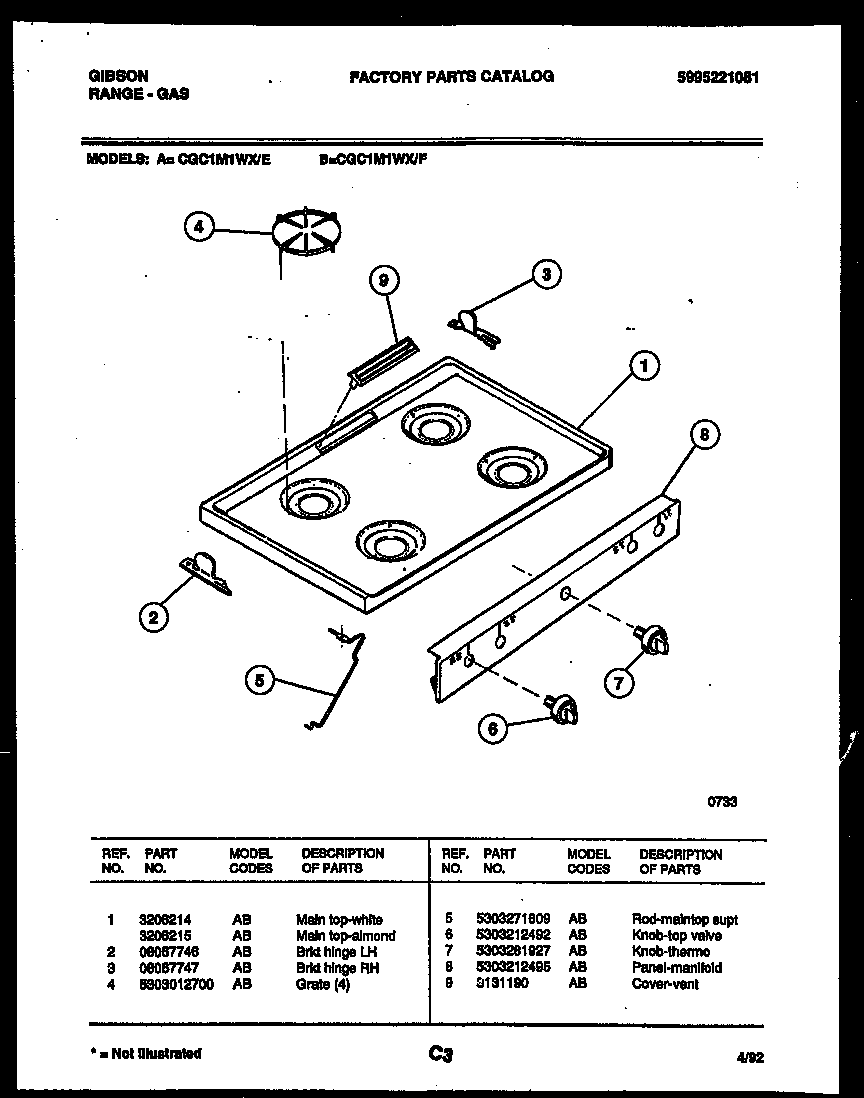

Cooktop parts diagram

Grate

Part #5303012700

Replaced by #316055800

?
Manufacturer substitution
This part replaces 5303012700. Substitute parts can look different from the original.
$37.00 |
14% OFF Phone Price : $43.00
In Stock
Range Oven Burner Pilot Assembly 5303280589
#10

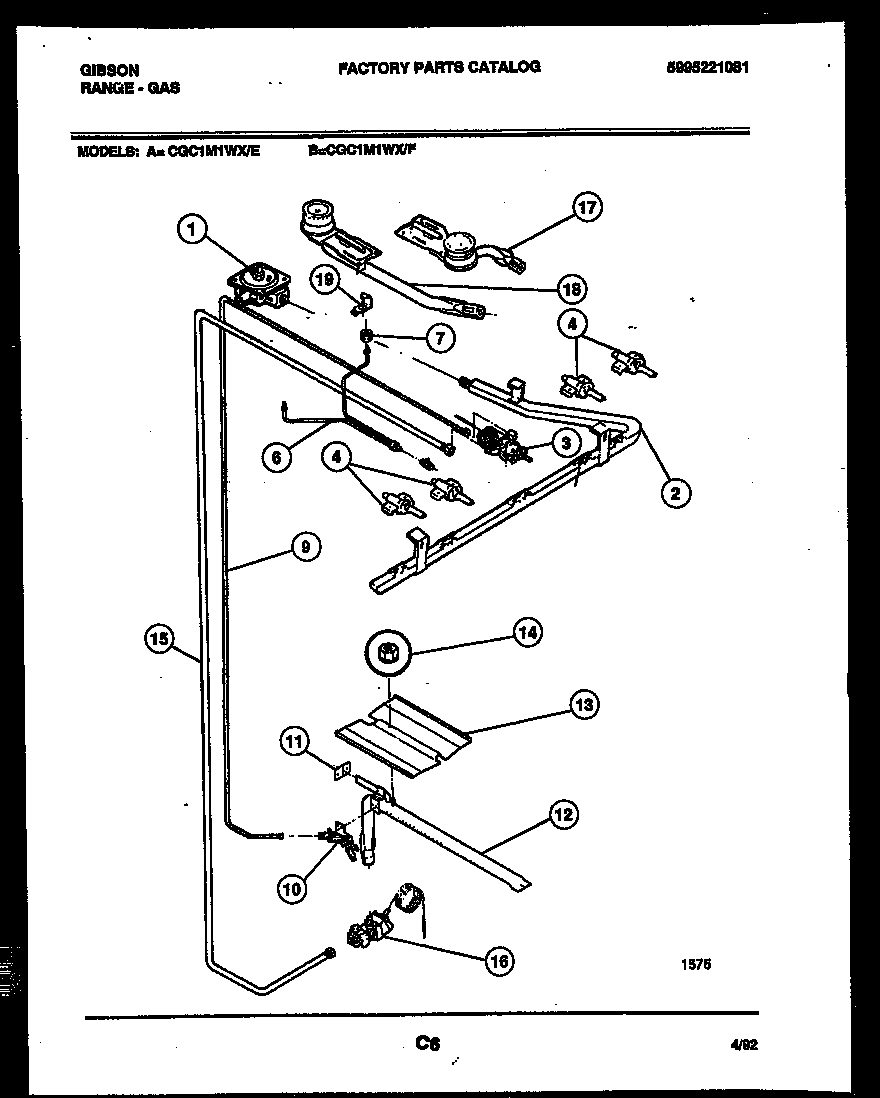

Burner parts diagram

Range oven burner pilot assembly

Part #5303280589

$95.59
In Stock
Range Oven Burner Pilot Tube 3203398
#9

Burner parts diagram

Range oven burner pilot tube

Part #3203398

$103.82
In Stock
Cover-flue 3131191
#15A

Body parts diagram

Cover-flue

Part #3131191

This item is not returnable
$3.99
In Stock
Plate-oven L 3051218

#NI

All parts diagram

Plate-oven l

Part #3051218

$54.42
In Stock
Range Oven Door Seal 5303202011
#8

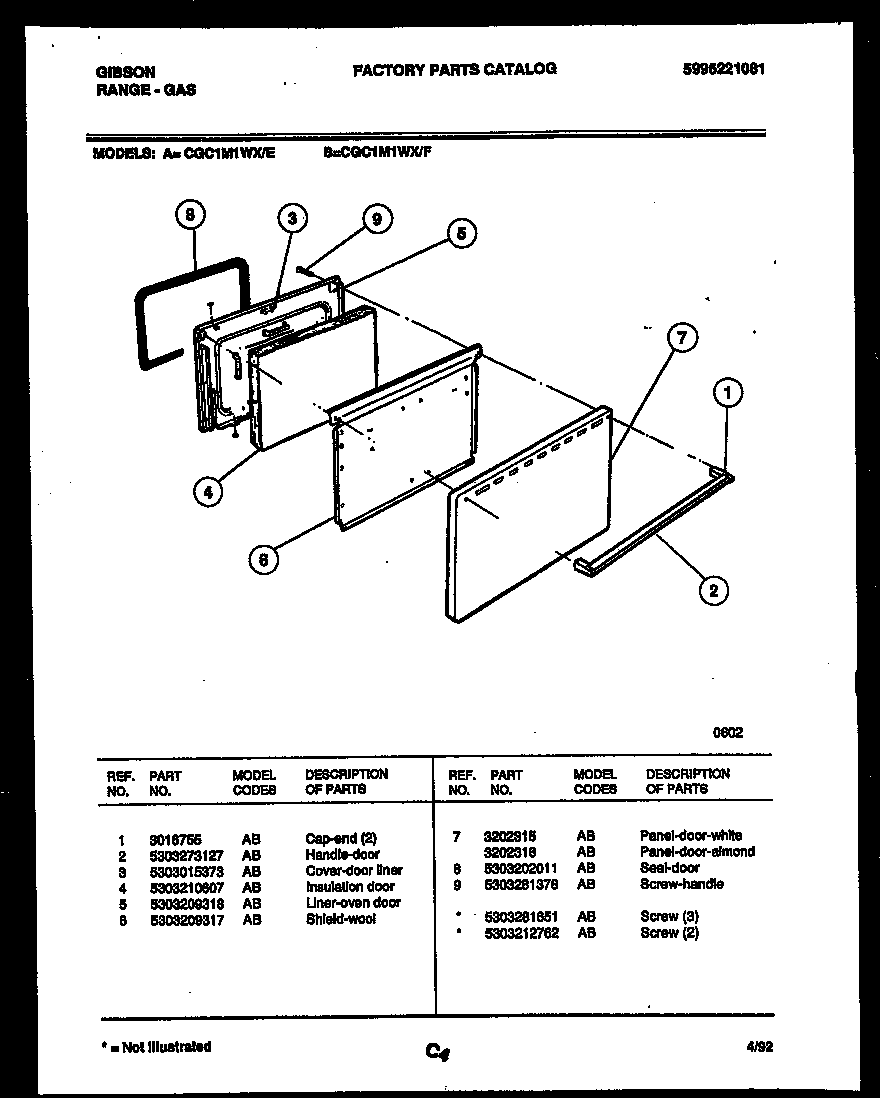

Door parts diagram

Range oven door seal

Part #5303202011

$91.55 |
6% OFF Phone Price : $97.55
In Stock
Range Hex Nut 5303013272
#14

Burner parts diagram

Range hex nut

Part #5303013272

This item is not returnable
$18.59 |
10% OFF Phone Price : $20.59
In Stock
