Thermador
Electric Range

Model # ESC30CVB Official Thermador range

Here are the diagrams and repair parts for Official Thermador ESC30CVB range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

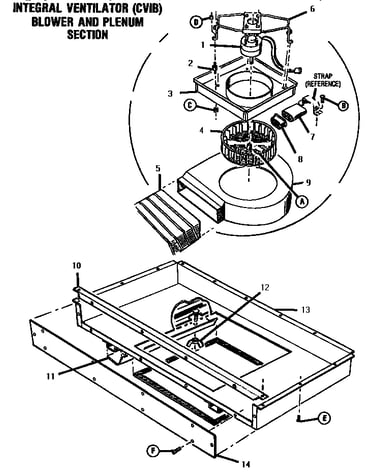

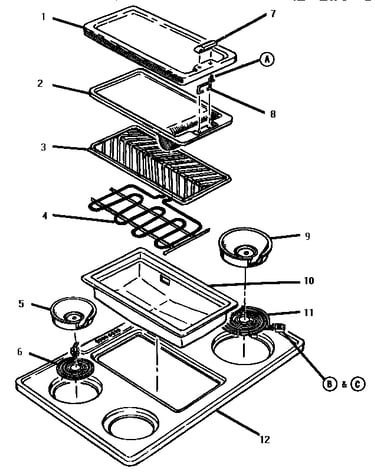

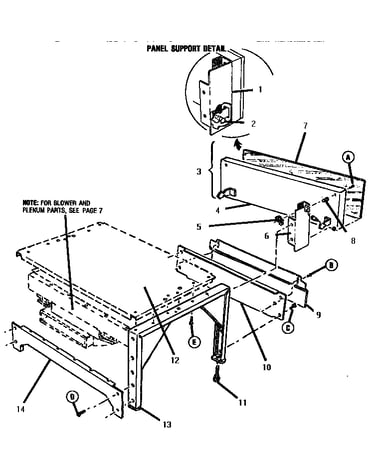

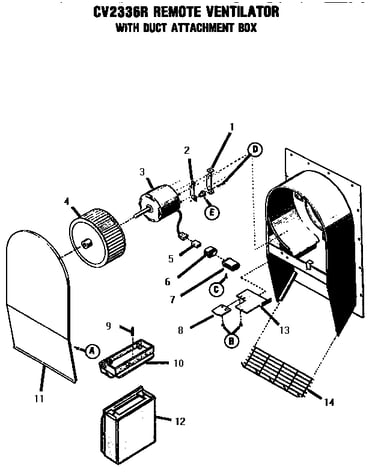

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 224 parts  |
Screw 14-91-010
#G

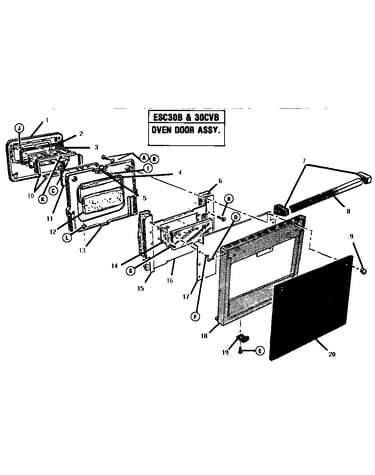

Oven door assembly diagram

Screw

Part #14-91-010

This item is not returnable
$2.16
In Stock
Grid 14-39-072
#4

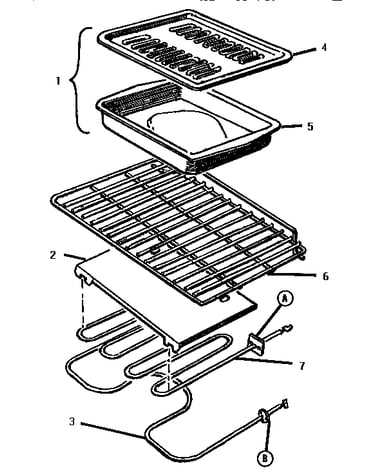

Racks, elements & pan assembly diagram

Grid

Part #14-39-072

$64.99
In Stock
Cover Plate 14-31-228
#10

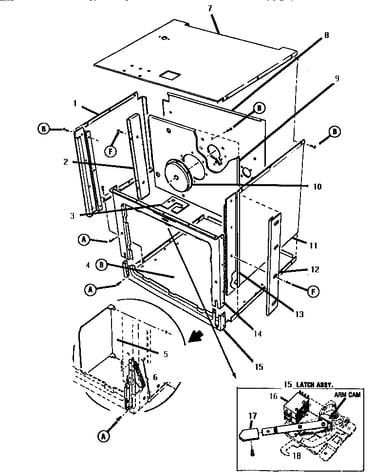

Oven body assembly, front view diagram

Cover plate

Part #14-31-228

This item is not returnable
$4.99
In Stock
Deflector 14-31-240
#2

Racks, elements & pan assembly diagram

Deflector

Part #14-31-240

$35.49
In Stock
Frame 14-12-393
#10

Oven door assembly diagram

Frame

Part #14-12-393

This item is not returnable
$2.99
In Stock
Air Shield 14-31-236
#17

Oven door assembly diagram

Air shield

Part #14-31-236

$53.99
In Stock
Conduit 14-34-958
#7

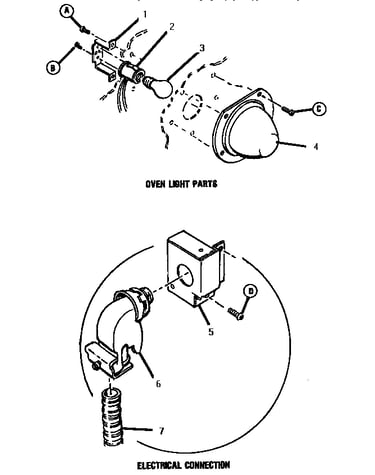

Oven light diagram

Conduit

Part #14-34-958

$29.49
In Stock
Channel 14-31-175
#7

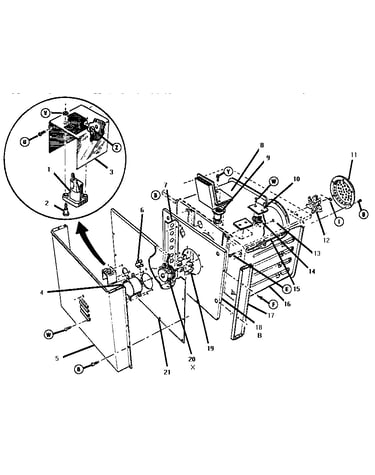

Body, rear view diagram

Channel

Part #14-31-175

$68.49
In Stock
Control Panel 14-31-219
#21

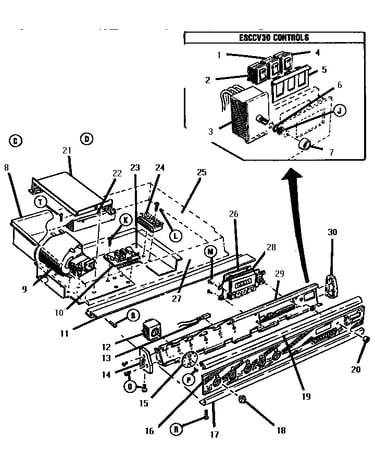

Burner box & control panel diagram

Control panel

Part #14-31-219

$55.49
In Stock
Filter 19-11-326-03
#8

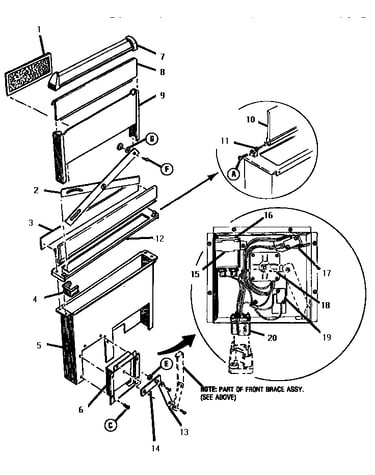

Snorkel assembly, rear view diagram

Filter

Part #19-11-326-03

$32.49
In Stock
