Model # 84224075 Official Craftsman snow thrower attachment

Here are the diagrams and repair parts for Official Craftsman 84224075 snow thrower attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 157 parts  |

Bolt STD533107
#8

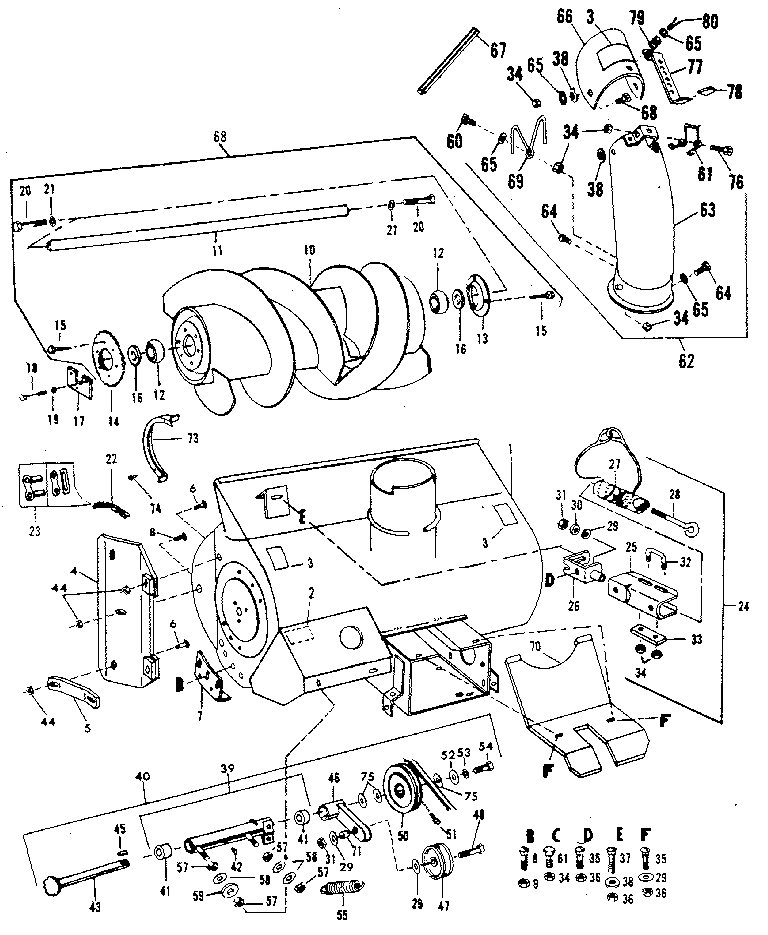

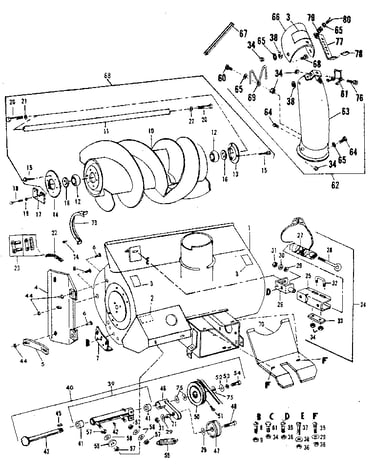

Auger assembly diagram

Bolt

Part #STD533107

The manufacturer no longer makes this part, and there's no substitute part

Pin 3341
#48

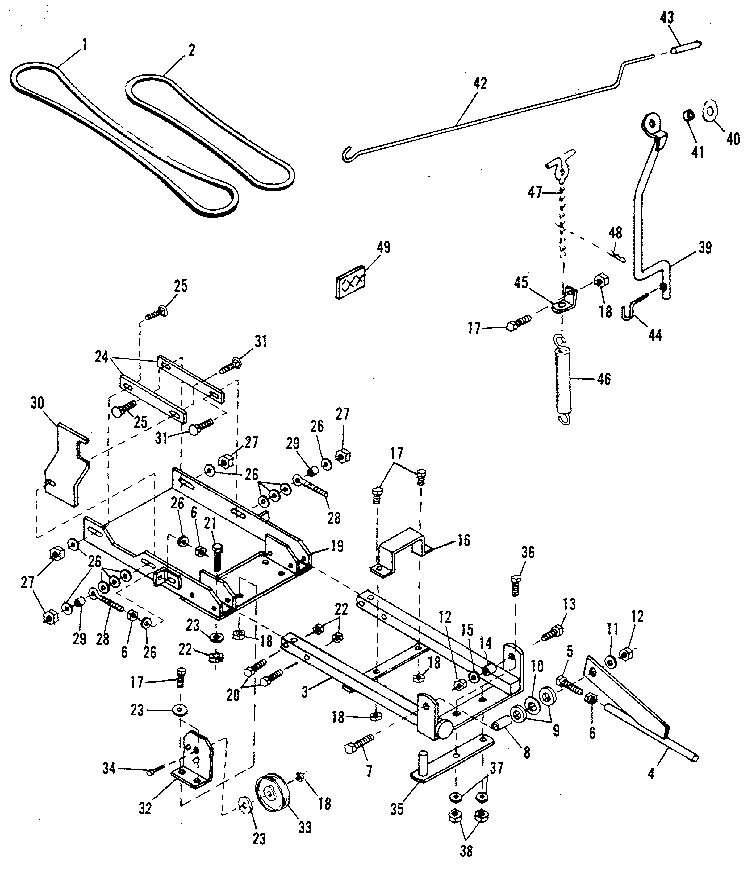

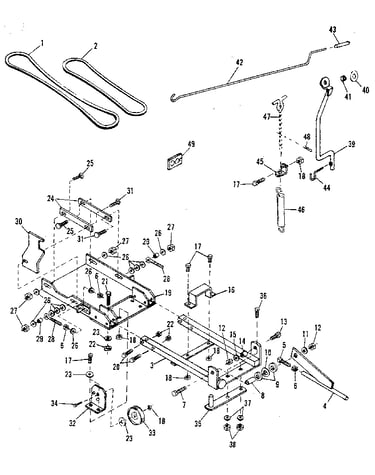

Main frame diagram

Pin

Part #3341

The manufacturer no longer makes this part, and there's no substitute part

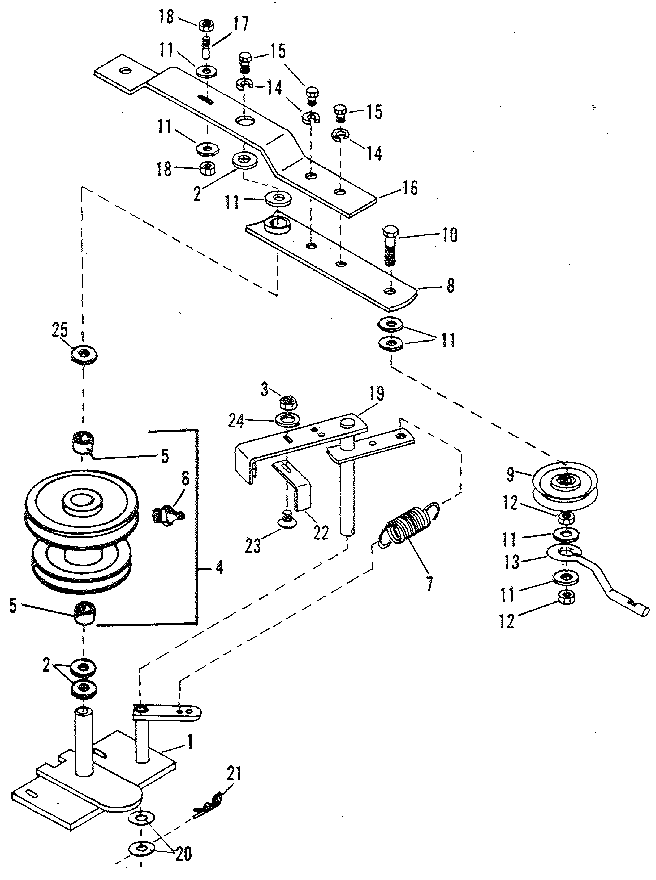

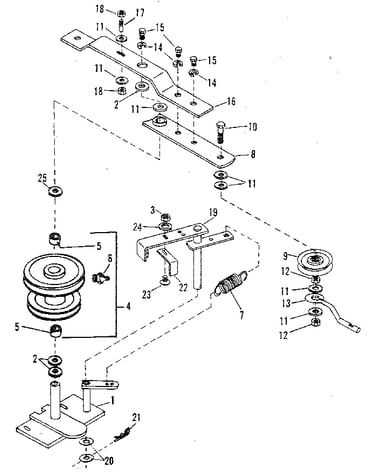

Pulley 11496
Pulley

Part #11496

The manufacturer no longer makes this part, and there's no substitute part

Nut Washer GM-271190
Nut washer

Part #GM-271190

The manufacturer no longer makes this part, and there's no substitute part

Murray Snowblower Chain Guard 3036
#73

Auger assembly diagram

Murray snowblower chain guard

Part #3036

The manufacturer no longer makes this part, and there's no substitute part

Nut Washer GM-271184
Nut washer

Part #GM-271184

The manufacturer no longer makes this part, and there's no substitute part

Spring 3059
Spring

Part #3059

The manufacturer no longer makes this part, and there's no substitute part

Washer 4143
#16

Auger assembly diagram

Washer

Part #4143

The manufacturer no longer makes this part, and there's no substitute part

Handle Grip 3339
#42

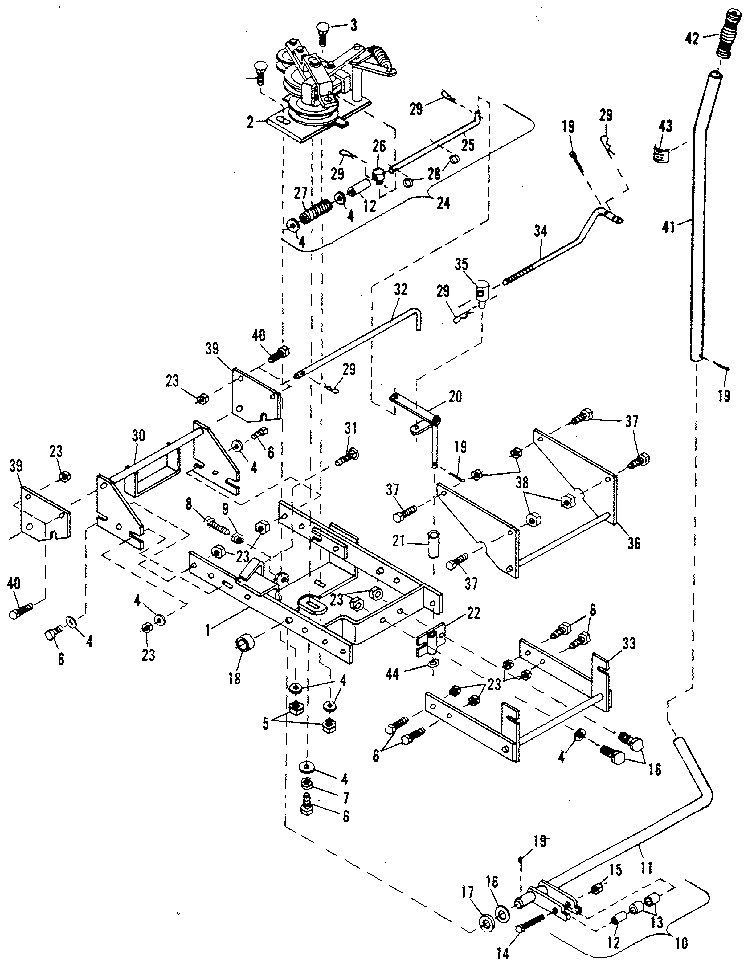

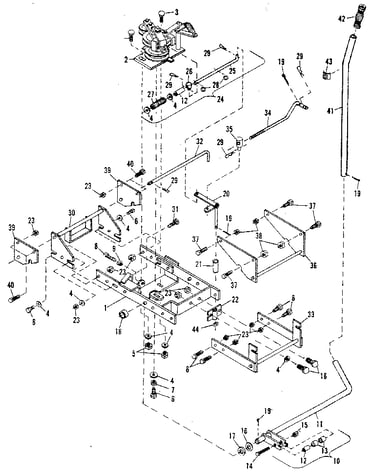

Lift assembly diagram

Handle grip

Part #3339

The manufacturer no longer makes this part, and there's no substitute part

Plate Washer 6979
#59

Auger assembly diagram

Plate washer

Part #6979

The manufacturer no longer makes this part, and there's no substitute part
