Craftsman
Tiller

Model # 486253053 Official Craftsman cultivator

Here are the diagrams and repair parts for Official Craftsman 486253053 cultivator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Retainer Plate H-002023
Retainer plate

Part #H-002023

This item is not returnable
$4.31
In Stock
Bracket H-002051
#10

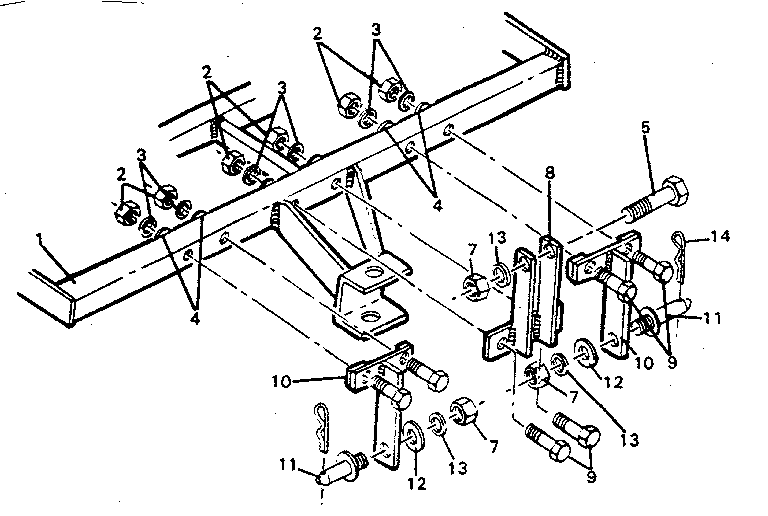

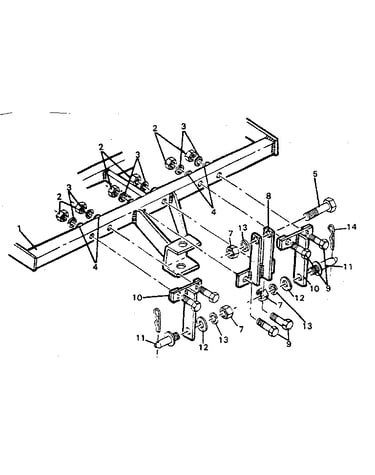

Cat "o" hitch diagram

Bracket

Part #H-002051

$34.71
In Stock
U-bolt H-002029
#7

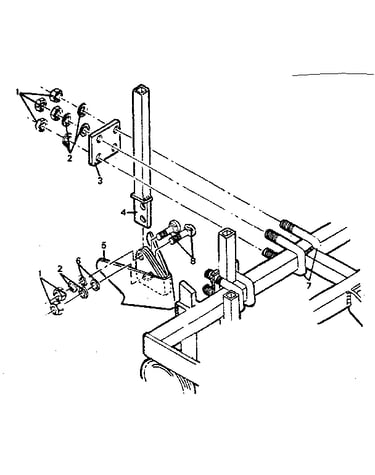

Furrower attachment diagram

U-bolt

Part #H-002029

This item is not returnable
$7.46
In Stock
Gauge Wheel FS-001028
#11

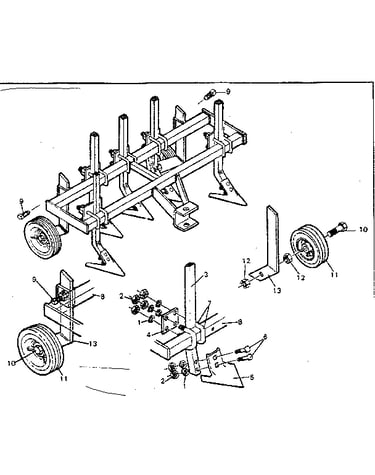

Cultivator diagram

Gauge wheel

Part #FS-001028

$11.00
In Stock
U-bolt H-002028
#7

Cultivator diagram

U-bolt

Part #H-002028

This item is not returnable
$6.29
In Stock
Bolt H-002060
#6

Cultivator diagram

Bolt

Part #H-002060

This item is not returnable
$2.16
In Stock
Sweep H-002057
#5

Cultivator diagram

Sweep

Part #H-002057

$19.66
In Stock
Frame Assembly H-002038
Frame assembly

Part #H-002038

$104.70
In Stock
Clip H-002069
#14

Cat "o" hitch diagram

Clip

Part #H-002069

This item is not returnable
$2.16
In Stock
Bolt H-002071
#10

Cultivator diagram

Bolt

Part #H-002071

This item is not returnable
$2.16
In Stock
