Model # A120 Official Jenn-Air glass cartridge (black)

Here are the diagrams and repair parts for Official Jenn-Air A120 glass cartridge (black), as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

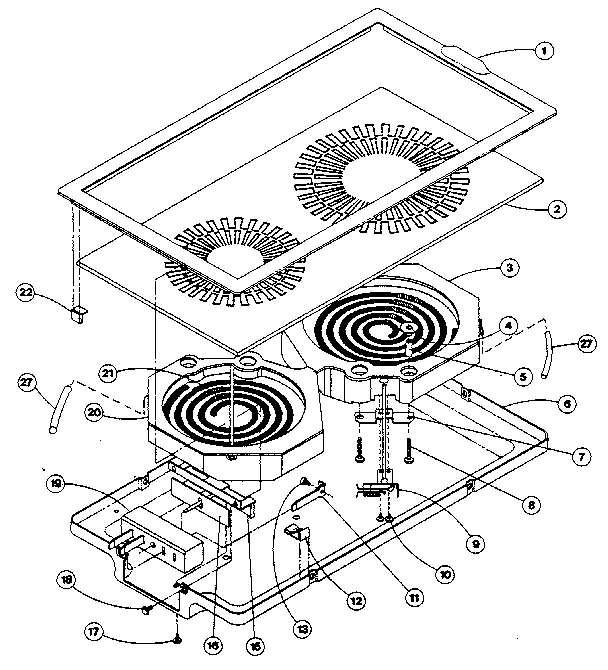

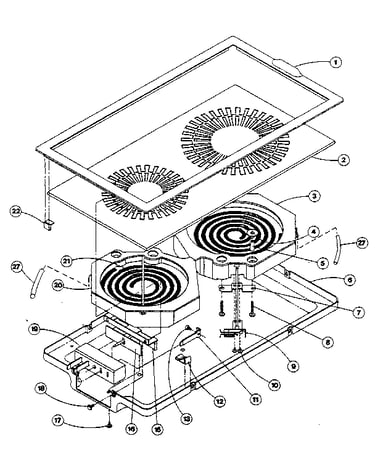

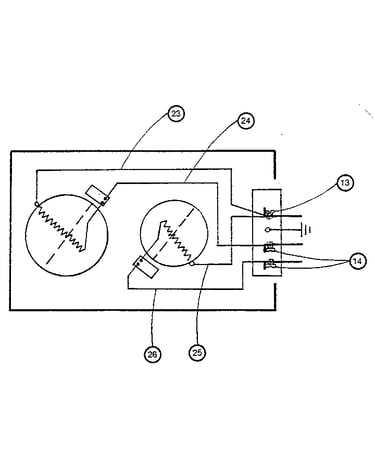

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |

Terminal Block 708730

#19

All parts diagram

Terminal block

Part #708730

The manufacturer no longer makes this part, and there's no substitute part

Cont Spade 708572

#11

All parts diagram

Cont spade

Part #708572

Replaced by #Y708572

?
Manufacturer substitution
This part replaces 708572. Substitute parts can look different from the original.
This item is not returnable
$9.09
10% OFF Phone Price : $10.09
In Stock
Insulator 708834

#16

All parts diagram

Insulator

Part #708834

Replaced by #708834

?
Manufacturer substitution
This part replaces 708834. Substitute parts can look different from the original.
In Stock
Screw 708955

#18

All parts diagram

Screw

Part #708955

Replaced by #WP12990527

?
Manufacturer substitution
This part replaces 708955. Substitute parts can look different from the original.
This item is not returnable
$4.37
19% OFF Phone Price : $5.37
In Stock
Screw 707172

#17

All parts diagram

Screw

Part #707172

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 707172. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Screw 708861

#14

All parts diagram

Screw

Part #708861

Replaced by #708861

?
Manufacturer substitution
This part replaces 708861. Substitute parts can look different from the original.
This item is not returnable
In Stock
Screw 700448

#13

All parts diagram

Screw

Part #700448

Replaced by #708861

?
Manufacturer substitution
This part replaces 700448. Substitute parts can look different from the original.
This item is not returnable
In Stock
Screw 708359

#10

All parts diagram

Screw

Part #708359

Replaced by #WP74004005

?
Manufacturer substitution
This part replaces 708359. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Limiter 700955

#21

All parts diagram

Limiter

Part #700955

The manufacturer no longer makes this part, and there's no substitute part

Bracket Assembly 700648

#15

All parts diagram

Bracket assembly

Part #700648

The manufacturer no longer makes this part, and there's no substitute part
