Grass Catcher Attachment

Model # 502269290 Official Craftsman grass catcher assembly

Here are the diagrams and repair parts for Official Craftsman 502269290 grass catcher assembly, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
502269290 Lawn Tractor Attachments
Hairpin Pin 23070
#36

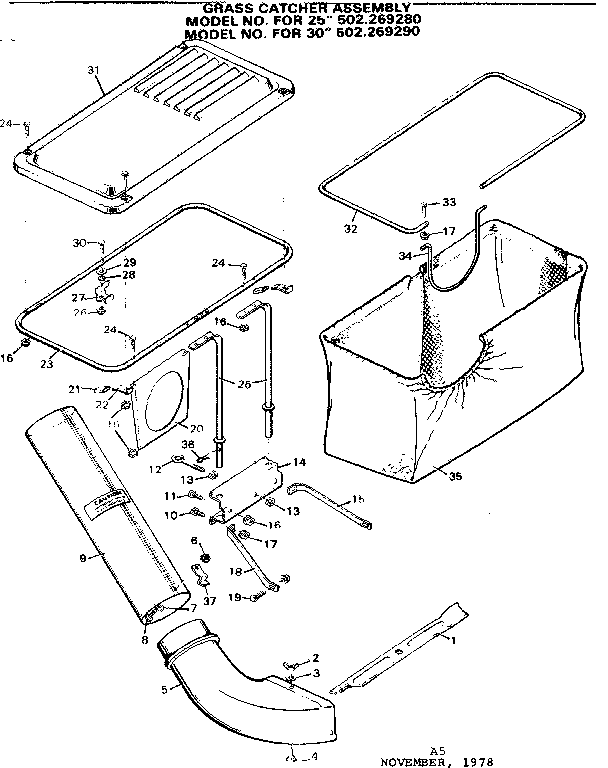

Replacement parts diagram

Hairpin pin

Part #23070

Replaced by #532003146

?
Manufacturer substitution
This part replaces 23070. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.44 |
18% OFF Phone Price : $5.44
In Stock
Lock Nut 15X88
#26

Replacement parts diagram

Lock nut

Part #15X88

Replaced by #704067

?
Manufacturer substitution
This part replaces 15X88. Substitute parts can look different from the original.
This item is not returnable
$6.46
In Stock
Lock Nut 15X85
#13

Replacement parts diagram

Lock nut

Part #15X85

Replaced by #703333

?
Manufacturer substitution
This part replaces 15X85. Substitute parts can look different from the original.
This item is not returnable
$8.09 |
11% OFF Phone Price : $9.09
In Stock
Hex Nut 15X82
#17

Replacement parts diagram

Hex nut

Part #15X82

Replaced by #15X82MA

?
Manufacturer substitution
This part replaces 15X82. Substitute parts can look different from the original.
This item is not returnable
$6.03
In Stock
Washer 17X45
#29

Replacement parts diagram

Washer

Part #17X45

Replaced by #17X45MA

?
Manufacturer substitution
This part replaces 17X45. Substitute parts can look different from the original.
This item is not returnable
$6.63
In Stock
Bracket 23657E
#15

Replacement parts diagram

Bracket

Part #23657E

The manufacturer no longer makes this part, and there's no substitute part

Tube 23678
#9

Replacement parts diagram

Tube

Part #23678

The manufacturer no longer makes this part, and there's no substitute part

Extension 23679
#5

Replacement parts diagram

Extension

Part #23679

The manufacturer no longer makes this part, and there's no substitute part

Catch 23641
#22

Replacement parts diagram

Catch

Part #23641

The manufacturer no longer makes this part, and there's no substitute part

Bolt 23664
#12

Replacement parts diagram

Bolt

Part #23664

The manufacturer no longer makes this part, and there's no substitute part
