Roper
Electric Range

Model # 2492X0A Official Roper electric range

Here are the diagrams and repair parts for Official Roper 2492X0A electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

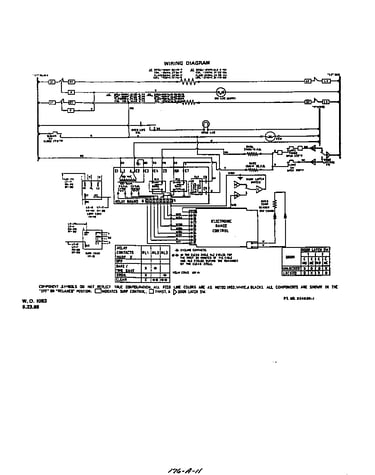

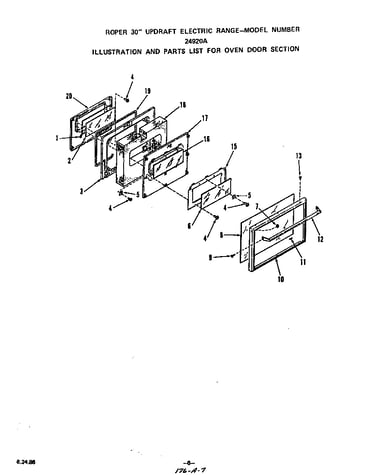

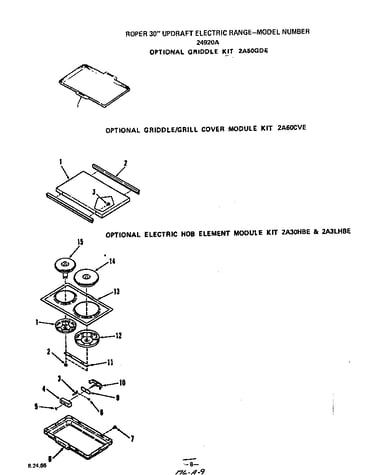

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 193 parts  |
Screw 327320
Screw

Part #327320

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces 327320. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Bowl 296481
#4

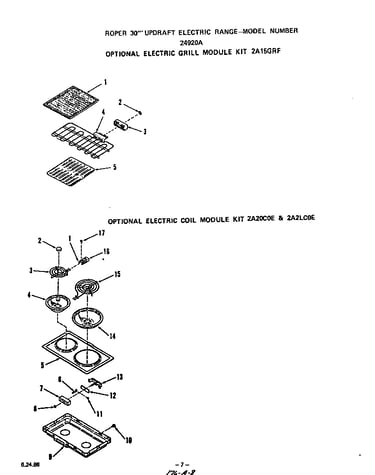

^electric grill diagram

Bowl

Part #296481

Replaced by #WB32X107

?
Manufacturer substitution
This part replaces 296481. Substitute parts can look different from the original.
$9.80 |
10% OFF Was : $10.89
In Stock
Screw 102430
#41

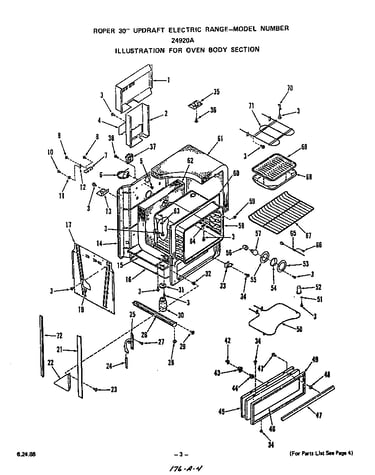

Oven body diagram

Screw

Part #102430

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 102430. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Broiler Pan 331592
#68

Oven body diagram

Broiler pan

Part #331592

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces 331592. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock
Grid Broil 326297
#69

Oven body diagram

Grid broil

Part #326297

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces 326297. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock
Screw 303820
#49

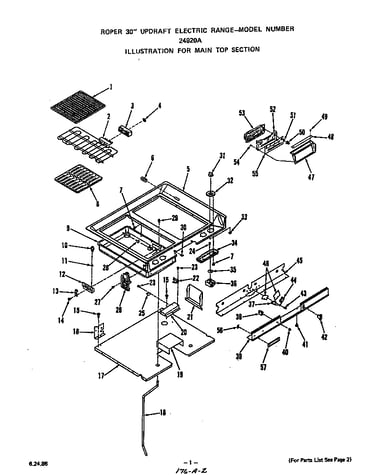

Main top diagram

Screw

Part #303820

Replaced by #WB1X1118

?
Manufacturer substitution
This part replaces 303820. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Screw (black) 329382
#4

Door lock diagram

Screw (black)

Part #329382

Replaced by #WB1X1118

?
Manufacturer substitution
This part replaces 329382. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Screw (white) 327621
Screw (white)

Part #327621

Replaced by #WB1X1118

?
Manufacturer substitution
This part replaces 327621. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Wire Harness 334686
#1B

^rotisserie kit diagram

Wire harness

Part #334686

$29.99
In Stock
Clock Plate 333220
#48

Main top diagram

Clock plate

Part #333220

This item is not returnable
$2.16
In Stock
