Maytag
Gas Range

Model # GA3277WUWM Official Maytag gas range

Here are the diagrams and repair parts for Official Maytag GA3277WUWM gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

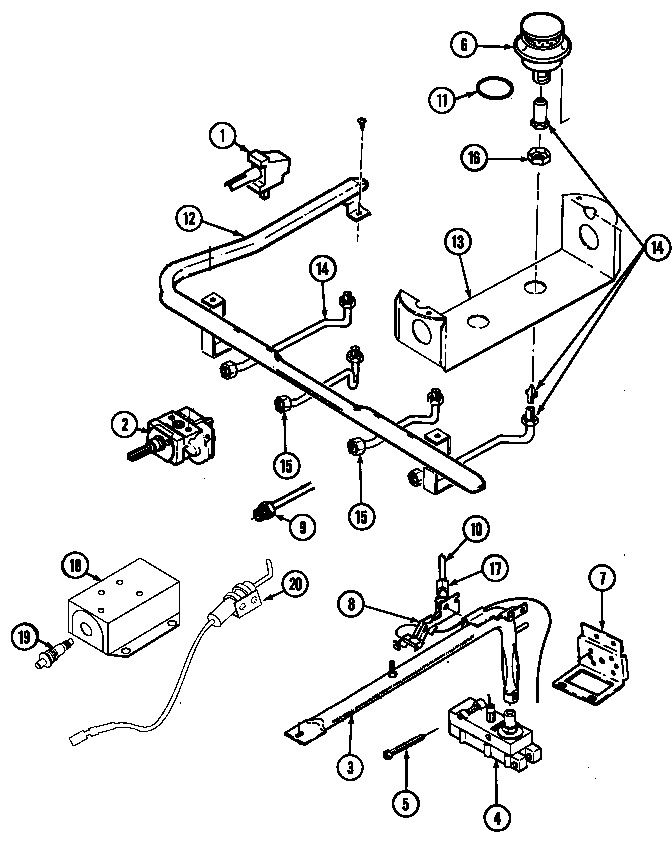

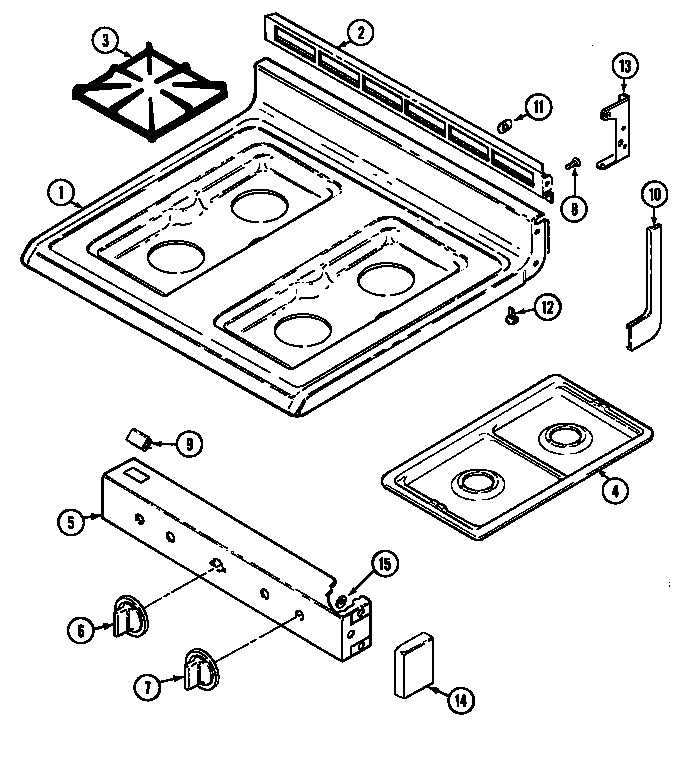

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 150 parts  |
Screw 7101P331-60
#3A

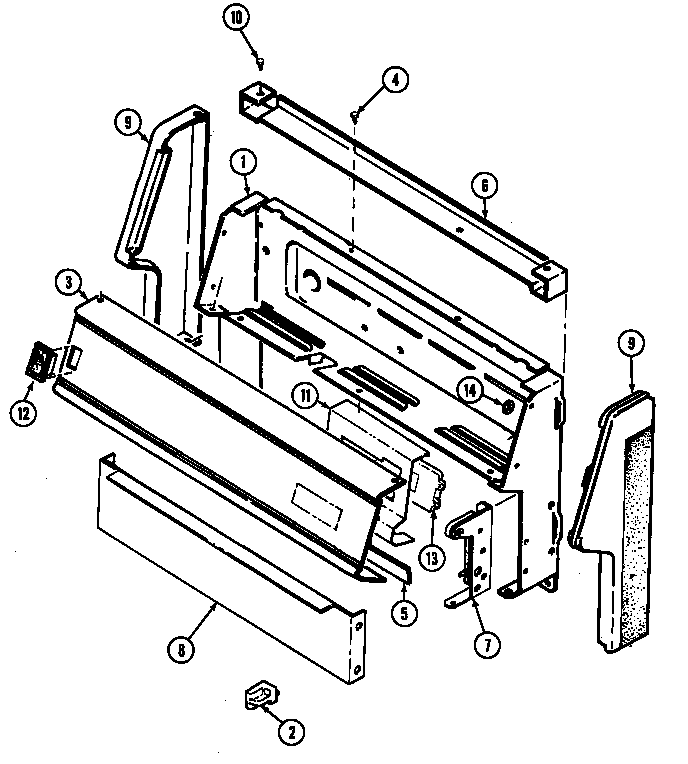

Control panel diagram

Screw

Part #7101P331-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P331-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 7101P290-60
Screw

Part #7101P290-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P290-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 7101P338-60
#9B

Control panel diagram

Screw

Part #7101P338-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7101P338-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 74001530
#12

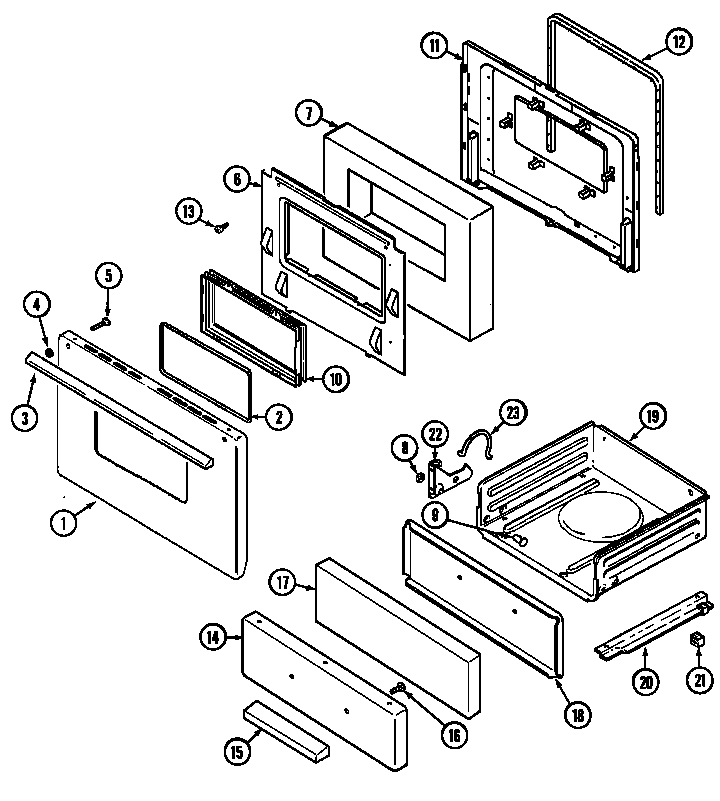

Door/drawer (ga3277xu*m) (ga3277xuam) (ga3277xuwm) diagram

Screw

Part #74001530

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 74001530. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw, Housi 7118P015-60
#4A

Control panel diagram

Screw, housi

Part #7118P015-60

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 7118P015-60. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Hinge Screw 7101P017-60
#22

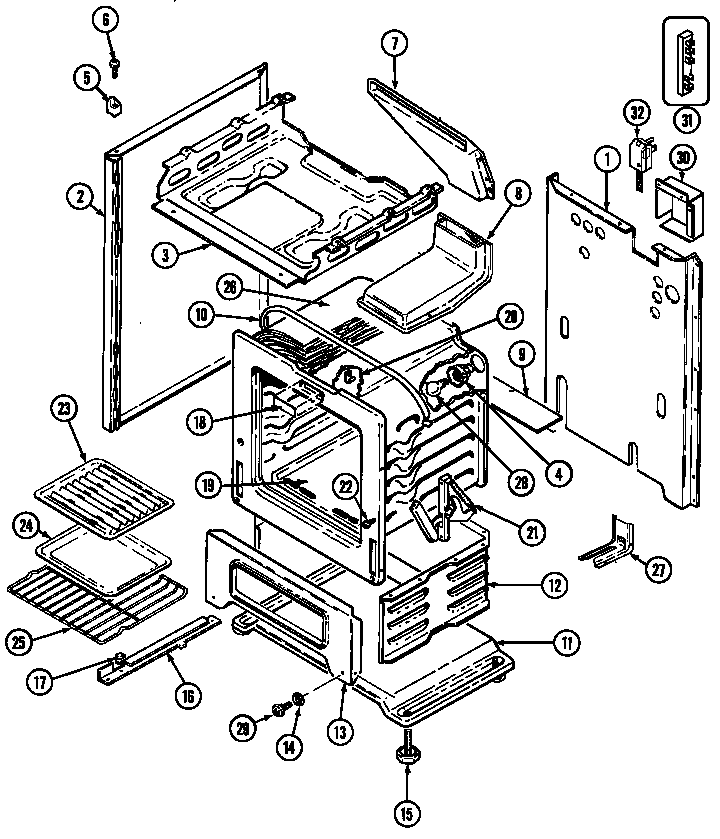

Oven/body diagram
