Model # DH26-H/P54341-4R Official Amana dehumidifier

Here are the diagrams and repair parts for Official Amana DH26-H-P54341-4R dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 96 parts  |
Screw M0211016
#6

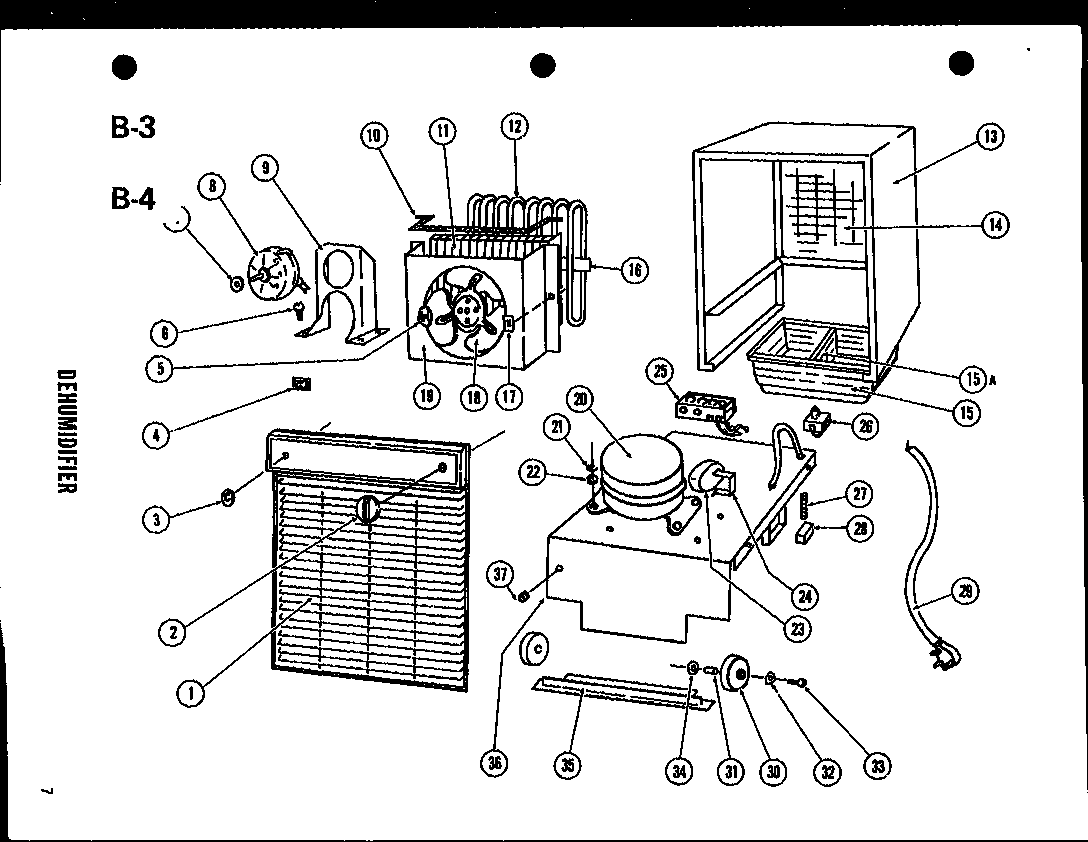

Dehumidifier diagram

Screw

Part #M0211016

Replaced by #M0211016

?
Manufacturer substitution
This part replaces M0211016. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Screw M0211317

#NI

All parts diagram

Screw

Part #M0211317

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0211317. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Knob D4964203
#2

Dehumidifier diagram

Knob

Part #D4964203

The manufacturer no longer makes this part, and there's no substitute part

Wire Jumper (hum. To Relay) B4796401

#NI

All parts diagram

Wire jumper (hum. to relay)

Part #B4796401

The manufacturer no longer makes this part, and there's no substitute part

Rod Switch A4585901
#27B

Dehumidifier diagram

Rod switch

Part #A4585901

The manufacturer no longer makes this part, and there's no substitute part

Spacer, Evaporator B4787301

#NI

All parts diagram

Spacer, evaporator

Part #B4787301

The manufacturer no longer makes this part, and there's no substitute part

Motor B4767402
#5

Dehumidifier diagram

Motor

Part #B4767402

The manufacturer no longer makes this part, and there's no substitute part

Humidistat B4766501
#25

Dehumidifier diagram

Humidistat

Part #B4766501

The manufacturer no longer makes this part, and there's no substitute part

Relay C5215601
#26A

Dehumidifier diagram

Relay

Part #C5215601

The manufacturer no longer makes this part, and there's no substitute part

Screw, #6-32 X 7/8", Overflow Switch M0251007

#NI

All parts diagram

Screw, #6-32 x 7/8", overflow switch

Part #M0251007

The manufacturer no longer makes this part, and there's no substitute part
