Model # 106175181 Official Craftsman two-stage two-cylinder air compressor

Here are the diagrams and repair parts for Official Craftsman 106175181 two-stage two-cylinder air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

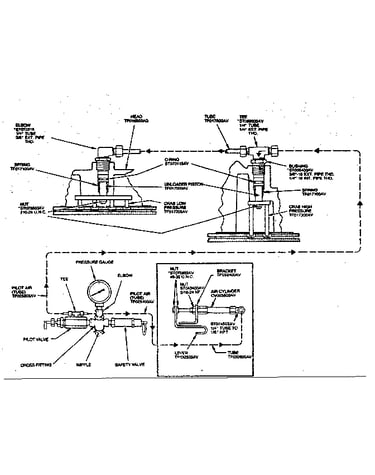

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 104 parts |

#63

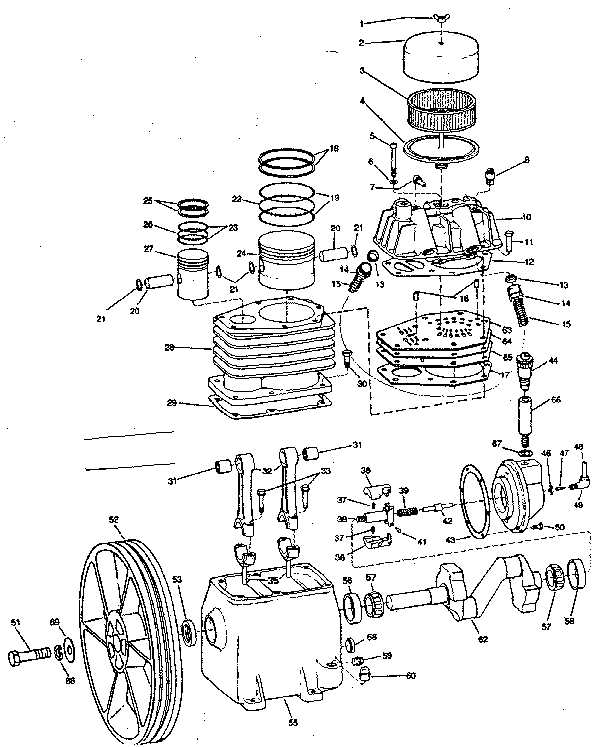

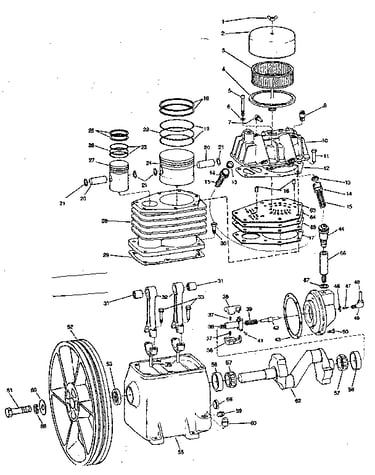

Crankcase assembly diagram

Up vlve plte

Part #TF046000AV

The manufacturer no longer makes this part, and there's no substitute part

#21

Crankcase assembly diagram

Snap ring

Part #ST059400AV

The manufacturer no longer makes this part, and there's no substitute part

#67

Crankcase assembly diagram

O-ring

Part #ST070176AV

The manufacturer no longer makes this part, and there's no substitute part

#57

Crankcase assembly diagram

Bearing cone

Part #ST067000AV

The manufacturer no longer makes this part, and there's no substitute part

#16

Crankcase assembly diagram

Spring pin

Part #ST070044AV

The manufacturer no longer makes this part, and there's no substitute part

#30

Crankcase assembly diagram

Hex screw

Part #ST067200AV

The manufacturer no longer makes this part, and there's no substitute part

#29

Crankcase assembly diagram

Gasket

Part #XA006200AV

The manufacturer no longer makes this part, and there's no substitute part

#12

Crankcase assembly diagram

Gasket

Part #XA006400AV

The manufacturer no longer makes this part, and there's no substitute part

#43A

Crankcase assembly diagram

Gasket

Part #XA006102AV

The manufacturer no longer makes this part, and there's no substitute part

#19

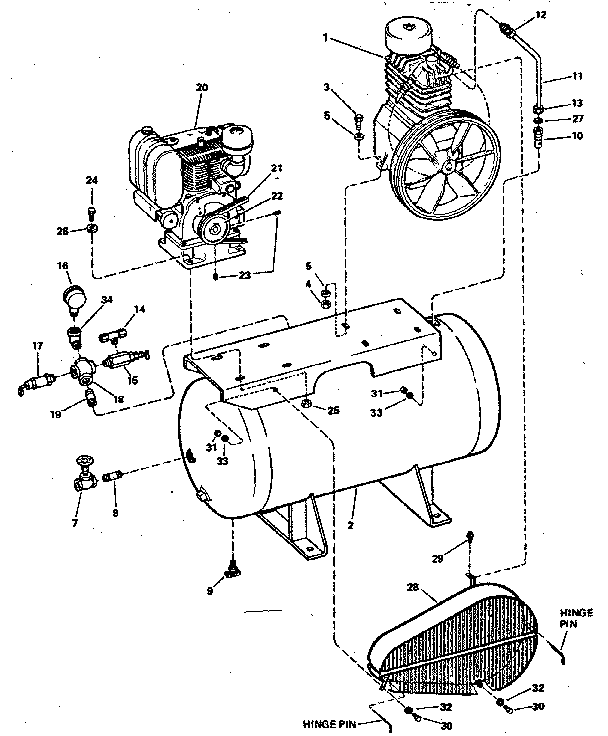

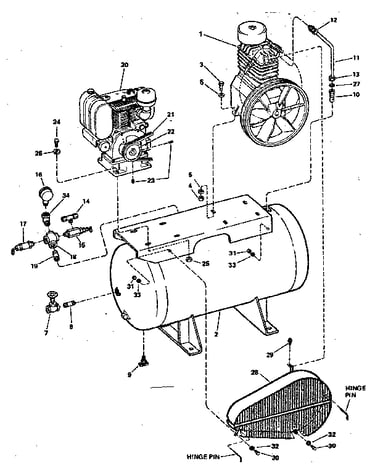

Air compressor diagram

Pipe nipple

Part #ST070307AV

The manufacturer no longer makes this part, and there's no substitute part
