Model # JBS30GV4AD Official GE electric range

Here are the diagrams and repair parts for Official GE JBS30GV4AD electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |
Range Oven Light Bulb WX12X1510
#1024

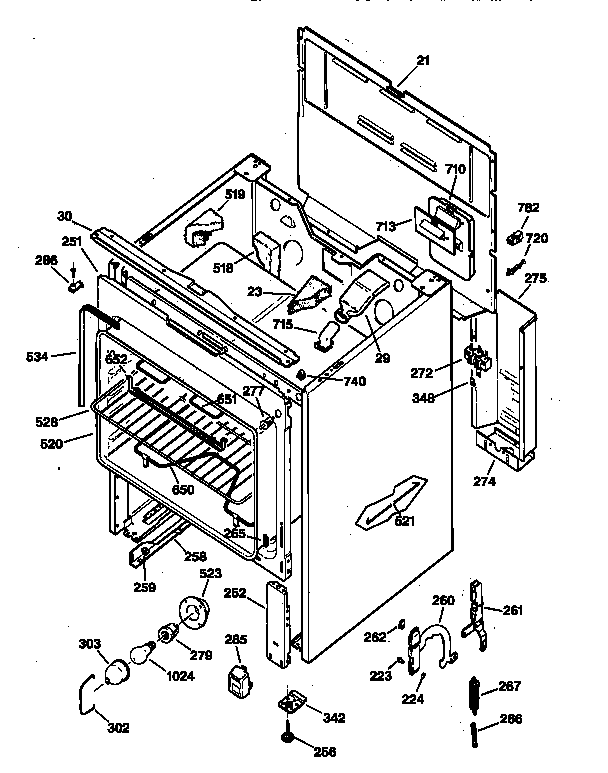

Body parts diagram

Range oven light bulb

Part #WX12X1510

Replaced by #40A15

?
Manufacturer substitution
This part replaces WX12X1510. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Range Bake Element (replaces 8030, Wb44x10003, Wb44x5061, Wb44x5072, Wb44x5082r, Wb44x5083) WB44X5082
#650

Body parts diagram

Range bake element (replaces 8030, wb44x10003, wb44x5061, wb44x5072, wb44x5082r, wb44x5083)

Part #WB44X5082

BEST SELLER
$51.57 |
10% OFF Phone Price : $57.57
In Stock
Halogen Element WB30K5031
#58

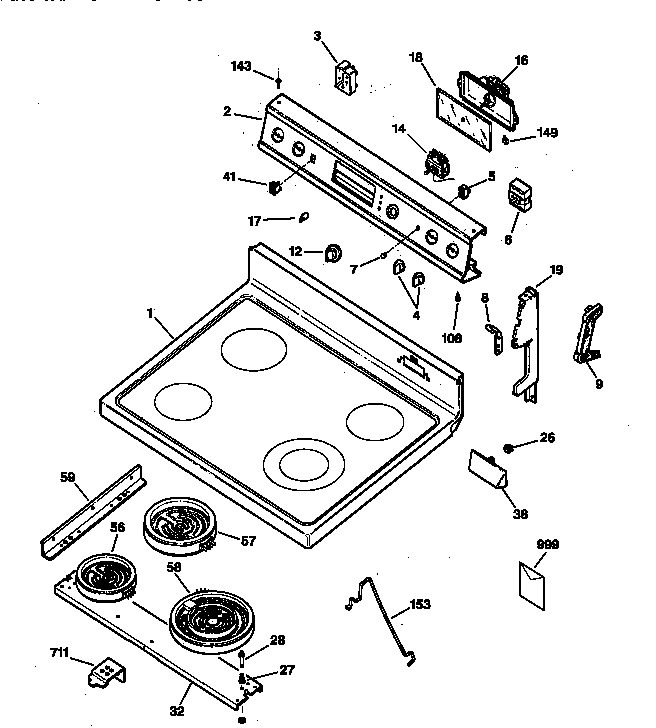

Control panel & cooktop diagram

Halogen element

Part #WB30K5031

Replaced by #WB30T10045

?
Manufacturer substitution
This part replaces WB30K5031. Substitute parts can look different from the original.
BEST SELLER
$134.96 |
8% OFF Phone Price : $146.96
In Stock
Broil Unit F WB44X0185
#651

Body parts diagram

Broil unit f

Part #WB44X0185

Replaced by #WB44X173

?
Manufacturer substitution
This part replaces WB44X0185. Substitute parts can look different from the original.
$27.42 |
18% OFF Phone Price : $33.42
In Stock
Wall Oven Light Lens WB36X0389
#303

Body parts diagram

Wall oven light lens

Part #WB36X0389

Replaced by #WB36X192

?
Manufacturer substitution
This part replaces WB36X0389. Substitute parts can look different from the original.
This item is not returnable
$9.54 |
9% OFF Phone Price : $10.54
In Stock
Trim WB07X7195
#359

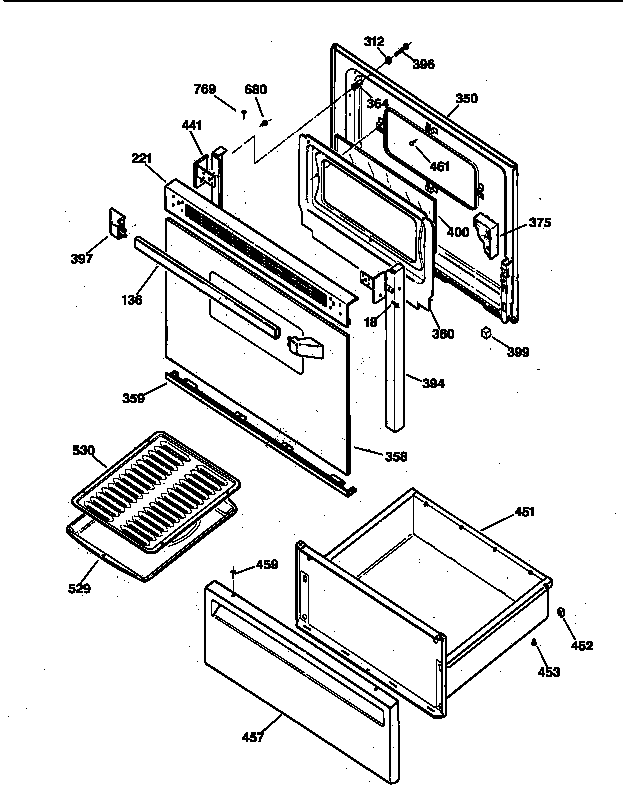

Door & drawer parts diagram

Trim

Part #WB07X7195

Replaced by #WB07K10232

?
Manufacturer substitution
This part replaces WB07X7195. Substitute parts can look different from the original.
This item is not returnable
$22.56 |
21% OFF Phone Price : $28.56
In Stock
Microwave Door Handle (replaces Wb15x5203) WB15K5076
#136

Door & drawer parts diagram

Microwave door handle (replaces wb15x5203)

Part #WB15K5076

$33.13 |
15% OFF Phone Price : $39.13
In Stock
Screw WB01X0593
#461

Door & drawer parts diagram

Screw

Part #WB01X0593

Replaced by #WB1X536

?
Manufacturer substitution
This part replaces WB01X0593. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Wb3x5699 WB03X5814
#17

Control panel & cooktop diagram

Wb3x5699

Part #WB03X5814

Replaced by #WB3X5699

?
Manufacturer substitution
This part replaces WB03X5814. Substitute parts can look different from the original.
This item is not returnable
$14.13 |
12% OFF Phone Price : $16.13
In Stock
Terminal Block WB17X5123
#272

Body parts diagram

Terminal block

Part #WB17X5123

Replaced by #WB17X5095

?
Manufacturer substitution
This part replaces WB17X5123. Substitute parts can look different from the original.
$69.94 |
8% OFF Phone Price : $75.94
In Stock
