Model # BT18NN-4TZ Official Magic Chef rv range

Here are the diagrams and repair parts for Official Magic Chef BT18NN-4TZ rv range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Door Hinge 3418A058-34
#6

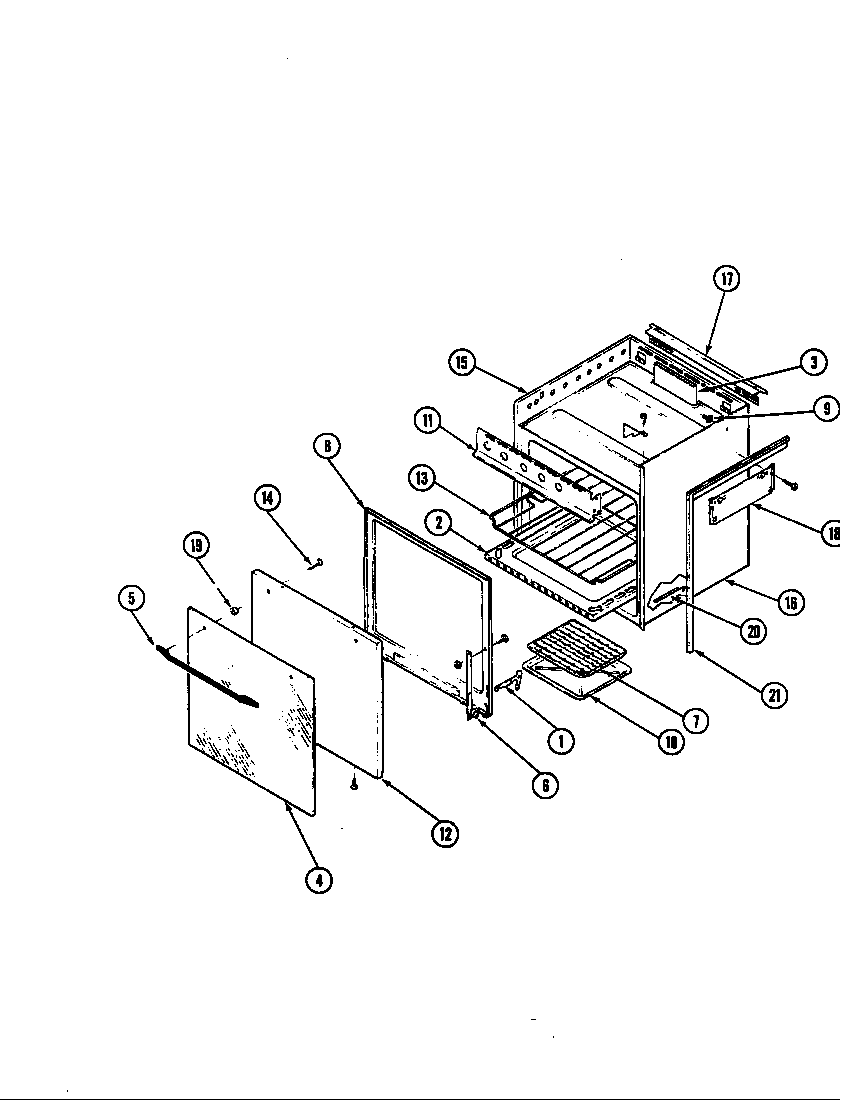

Cavity & door diagram

Door hinge

Part #3418A058-34

Replaced by #12400029

?
Manufacturer substitution
This part replaces 3418A058-34. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Seal 50-20317-1
#14A

Cavity & door diagram

Seal

Part #50-20317-1

The manufacturer no longer makes this part, and there's no substitute part

Oven Panel 2401F074-70
#12

Cavity & door diagram

Oven panel

Part #2401F074-70

The manufacturer no longer makes this part, and there's no substitute part

Oven Spring 7803P052-60
#20

Cavity & door diagram

Oven spring

Part #7803P052-60

The manufacturer no longer makes this part, and there's no substitute part

Burner, L 50-21516
#4

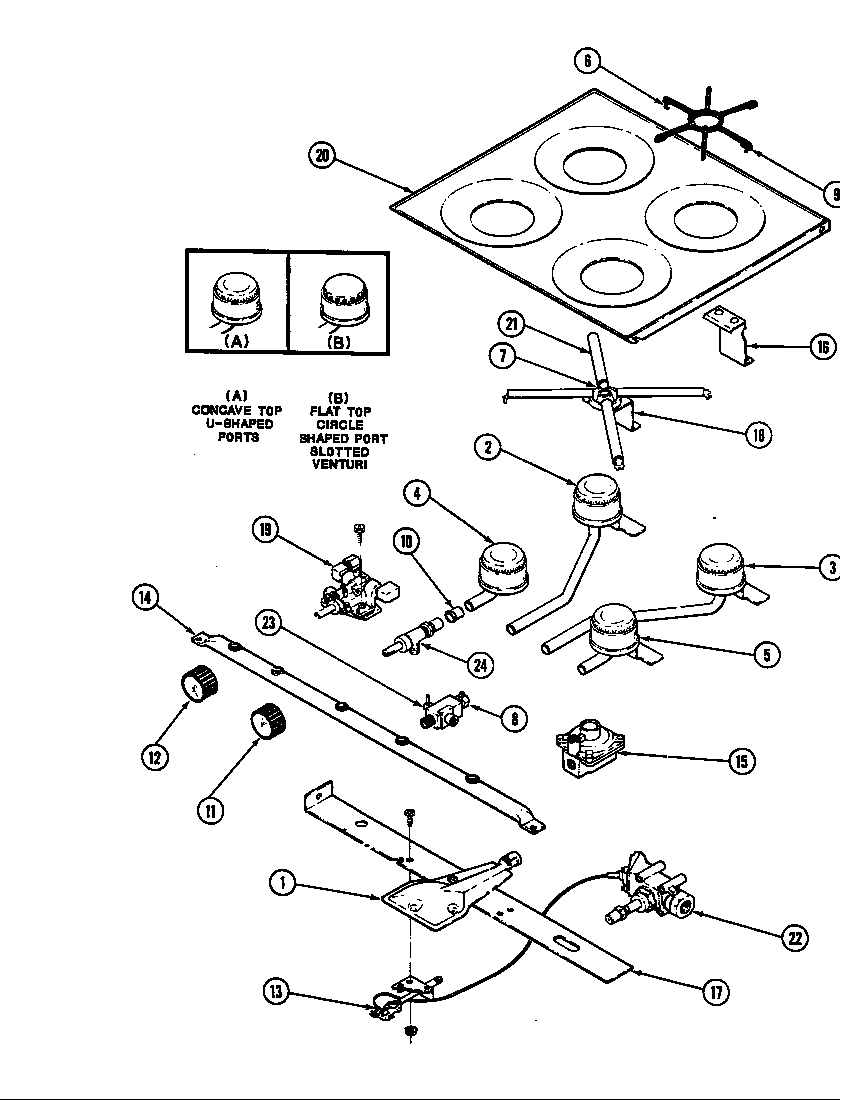

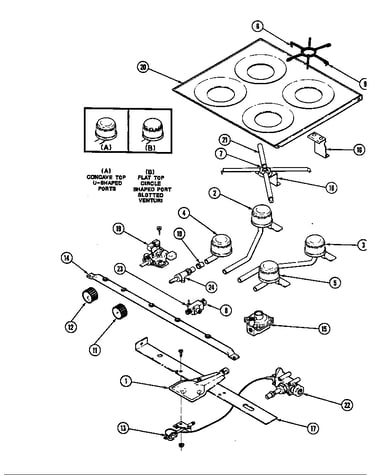

Main top & burner assembly diagram

Burner, l

Part #50-21516

The manufacturer no longer makes this part, and there's no substitute part

Half Union 7507P045-60
#8A

Main top & burner assembly diagram

Half union

Part #7507P045-60

The manufacturer no longer makes this part, and there's no substitute part

Seal Door Si 50-20318-2
#14B

Cavity & door diagram

Seal door si

Part #50-20318-2

The manufacturer no longer makes this part, and there's no substitute part

Top, Main Al 2001F057-74
#20B

Main top & burner assembly diagram

Top, main al

Part #2001F057-74

The manufacturer no longer makes this part, and there's no substitute part

Main 50-25048
#1C

Cavity & door diagram

Main

Part #50-25048

The manufacturer no longer makes this part, and there's no substitute part

Burner 50-20216
#1

Main top & burner assembly diagram

Burner

Part #50-20216

The manufacturer no longer makes this part, and there's no substitute part
