Model # AJCQ12DCBM1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AJCQ12DCBM1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

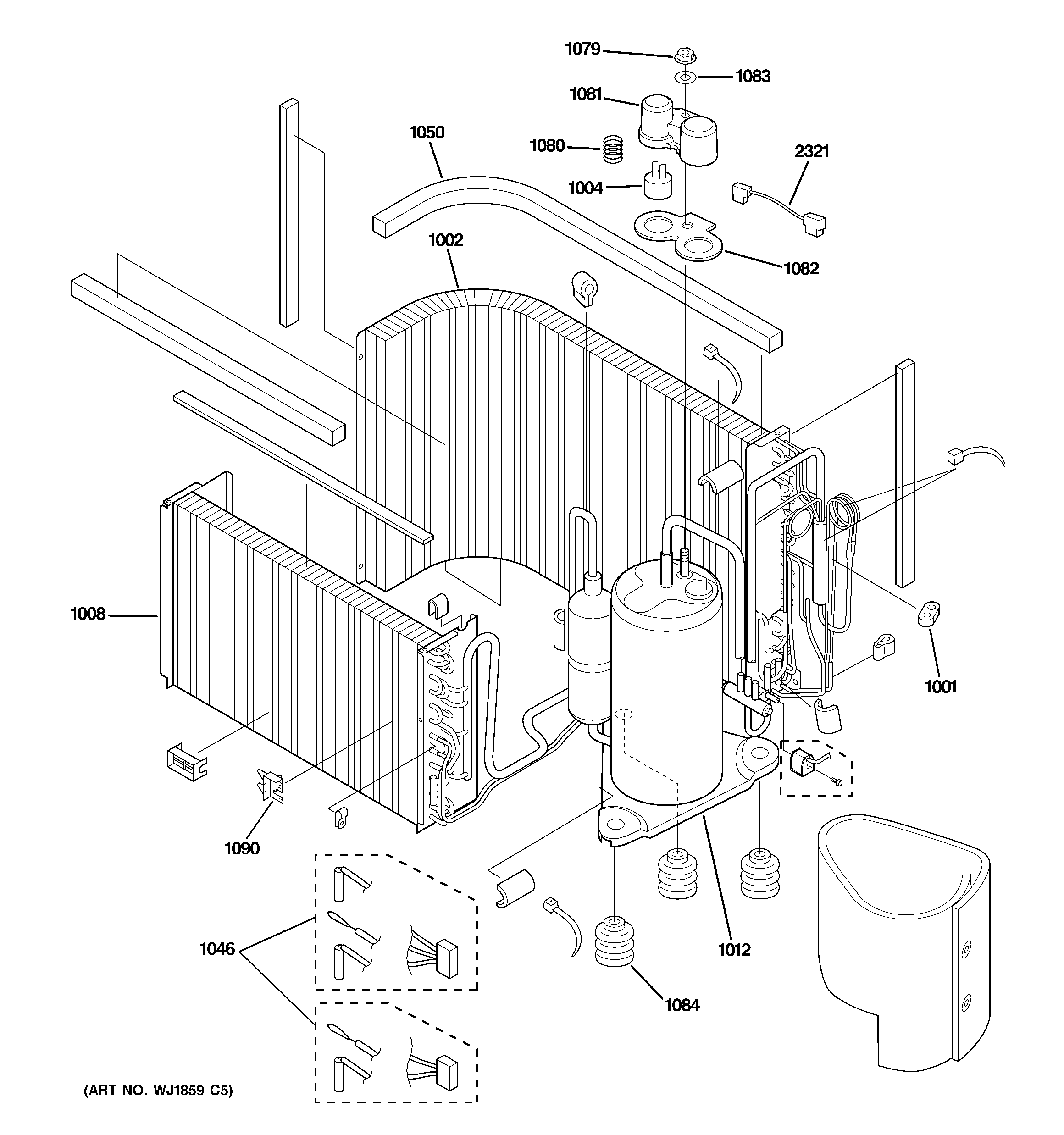

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Louver Holder WJ01X10142
#1169

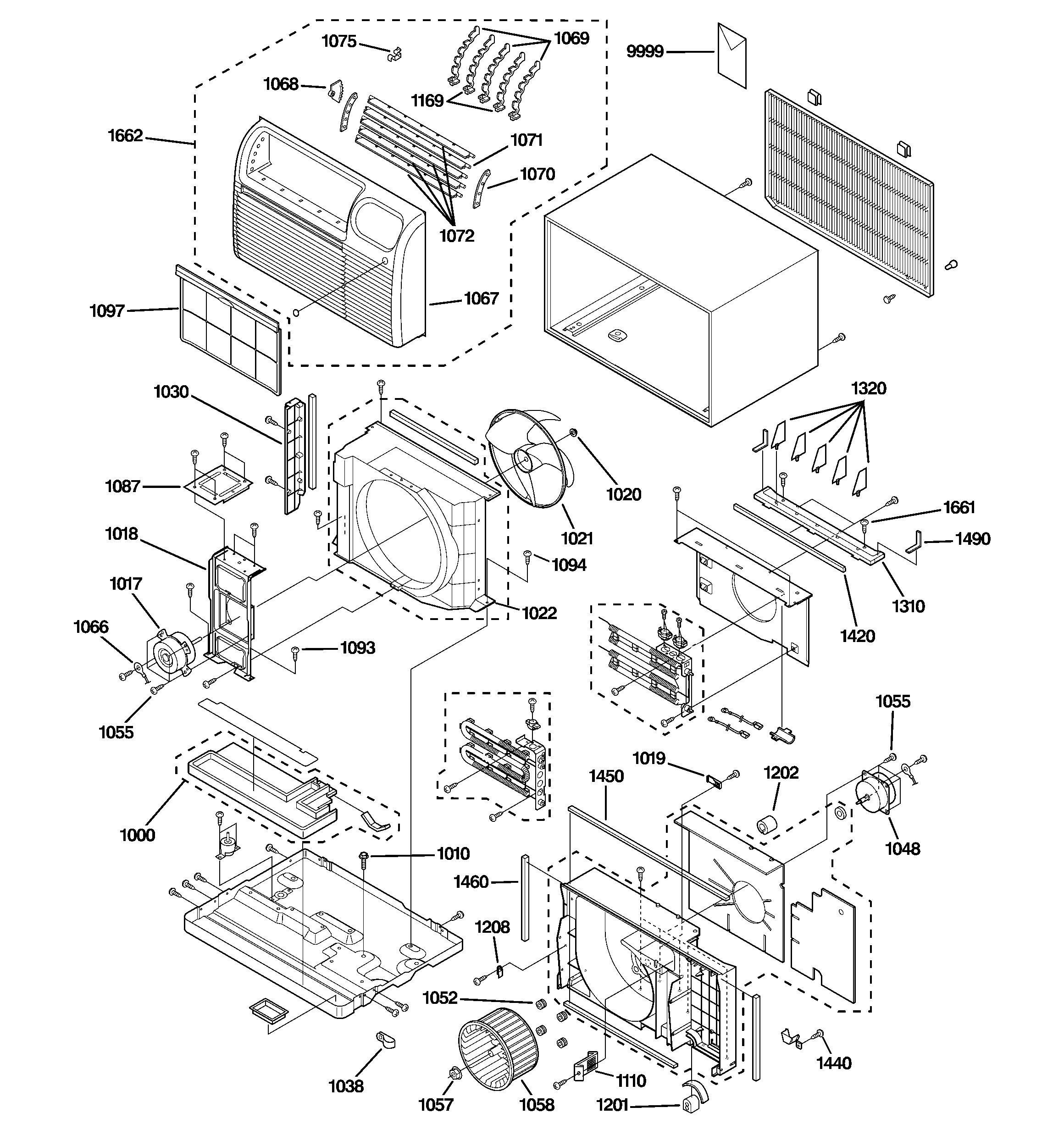

Cabinet & components diagram

Louver holder

Part #WJ01X10142

This item is not returnable
$5.00
In Stock
Special Screw WP01X10021
#1440

Cabinet & components diagram

Special screw

Part #WP01X10021

$8.11
In Stock
Room Air Conditioner Air Filter WJ85X10041
#1097

Cabinet & components diagram

Room air conditioner air filter

Part #WJ85X10041

$32.44 |
16% OFF Phone Price : $38.44
In Stock
Special Nut WJ01X0981
#1020

Cabinet & components diagram

Special nut

Part #WJ01X0981

Replaced by #WJ01X10041

?
Manufacturer substitution
This part replaces WJ01X0981. Substitute parts can look different from the original.
This item is not returnable
$8.50 |
11% OFF Phone Price : $9.50
In Stock
Power Cord WJ35X10095
#1042

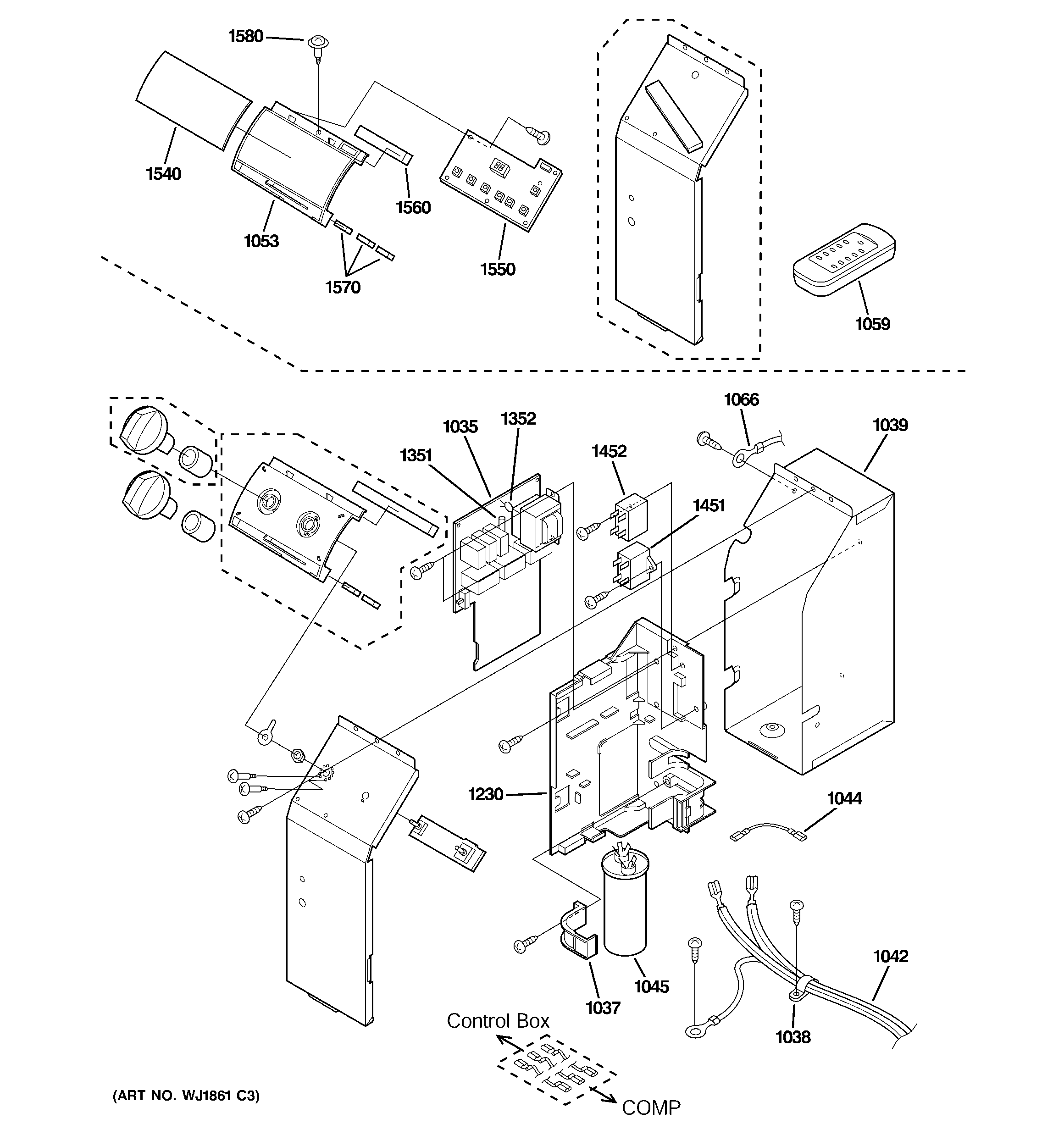

Control parts diagram

Power cord

Part #WJ35X10095

Replaced by #WJ35X10143

?
Manufacturer substitution
This part replaces WJ35X10095. Substitute parts can look different from the original.
$123.24 |
9% OFF Phone Price : $135.24
In Stock
Id Fan Motor WJ94X10181
#1048

Cabinet & components diagram

Id fan motor

Part #WJ94X10181

The manufacturer no longer makes this part, and there's no substitute part

Shroud Condenser WJ76X10171
#1022

Cabinet & components diagram

Shroud condenser

Part #WJ76X10171

The manufacturer no longer makes this part, and there's no substitute part

Special Screw WJ01X10035
#1055

Cabinet & components diagram

Special screw

Part #WJ01X10035

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor WJ73X10116
#1017

Cabinet & components diagram

Fan motor

Part #WJ73X10116

The manufacturer no longer makes this part, and there's no substitute part

Motor Cushion WJ01X10232
#1052

Cabinet & components diagram

Motor cushion

Part #WJ01X10232

The manufacturer no longer makes this part, and there's no substitute part
