GE
Top-Mount Refrigerator

Model # TBE25PASLRWW Official GE refrigerator

Here are the diagrams and repair parts for Official GE TBE25PASLRWW refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

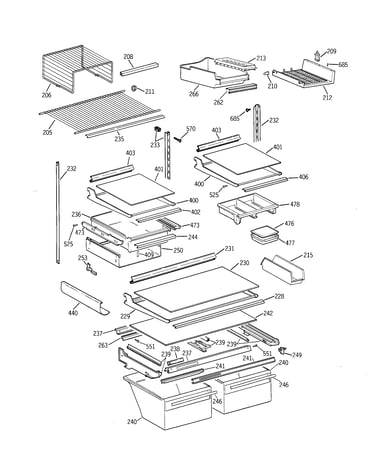

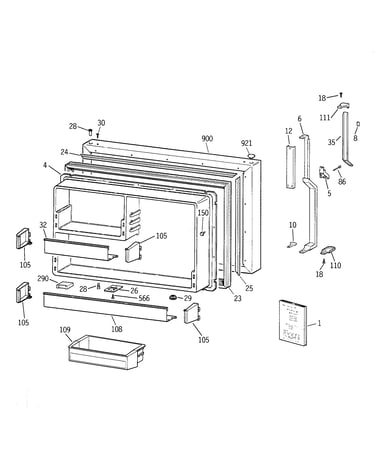

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 215 parts  |
Dryer Assembly WR86X0086
#740

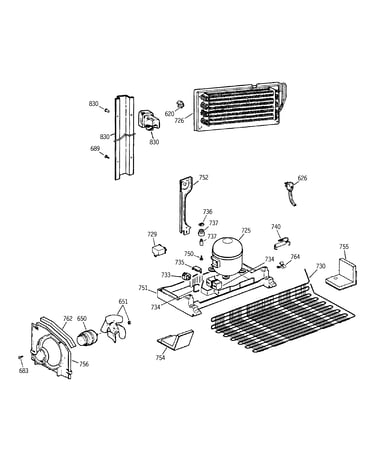

Unit parts diagram

Dryer assembly

Part #WR86X0086

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0086. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
40a15/22 STD372402
40a15/22

Part #STD372402

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372402. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Fan Motor WR60X0187
#650

Unit parts diagram

Fan motor

Part #WR60X0187

Replaced by #WR60X187

?
Manufacturer substitution
This part replaces WR60X0187. Substitute parts can look different from the original.
BEST SELLER
$207.94 |
5% OFF Phone Price : $219.94
In Stock
Refrigerator Door Gasket WR24X0437
#104

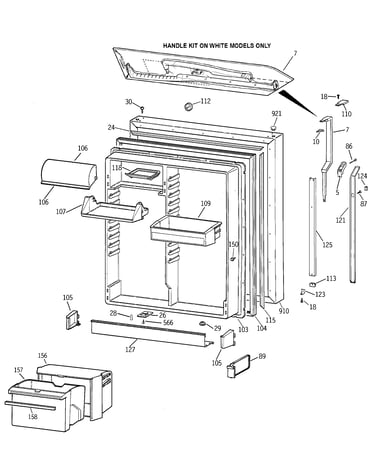

Fresh food door diagram

Refrigerator door gasket

Part #WR24X0437

Replaced by #WR24X437

?
Manufacturer substitution
This part replaces WR24X0437. Substitute parts can look different from the original.
$65.79 |
8% OFF Phone Price : $71.79
In Stock
Ring/fan Bld WR02X3198
#613

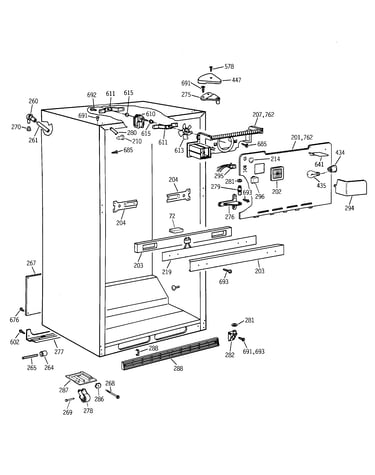

Cabinet parts diagram

Ring/fan bld

Part #WR02X3198

Replaced by #WR60X114

?
Manufacturer substitution
This part replaces WR02X3198. Substitute parts can look different from the original.
This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
Refrigerator Relay WR07X0200
#733

Unit parts diagram

Refrigerator relay

Part #WR07X0200

Replaced by #WR07X10055

?
Manufacturer substitution
This part replaces WR07X0200. Substitute parts can look different from the original.
This item is not returnable
$21.30 |
22% OFF Phone Price : $27.30
In Stock
Refrigerator Screw WR01X1728
Refrigerator screw

Part #WR01X1728

Replaced by #WR01X10590

?
Manufacturer substitution
This part replaces WR01X1728. Substitute parts can look different from the original.
This item is not returnable
$7.09 |
12% OFF Phone Price : $8.09
In Stock
Drive Reversible Plug WR02X8693
#112

Fresh food door diagram

Drive reversible plug

Part #WR02X8693

Replaced by #WR01X21159

?
Manufacturer substitution
This part replaces WR02X8693. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Refrigerator Screw WR01X1762
#257

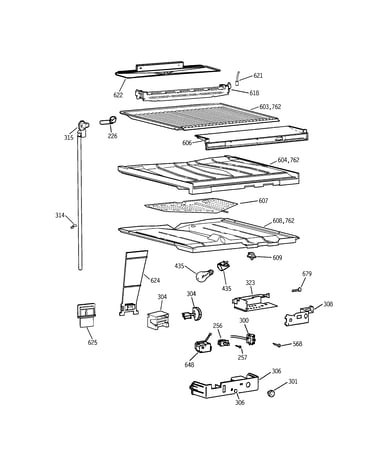

Compartment separator parts diagram

Refrigerator screw

Part #WR01X1762

Replaced by #WZ5X158D

?
Manufacturer substitution
This part replaces WR01X1762. Substitute parts can look different from the original.
$34.63 |
15% OFF Phone Price : $40.63
In Stock
Refrigerator Defrost Thermostat WR50X0127
#620

Unit parts diagram

Refrigerator defrost thermostat

Part #WR50X0127

Replaced by #WR50X129

?
Manufacturer substitution
This part replaces WR50X0127. Substitute parts can look different from the original.
$25.91 |
19% OFF Phone Price : $31.91
In Stock
