Model # 48XTN042090300 Official Carrier package unit

Here are the diagrams and repair parts for Official Carrier 48XTN042090300 package unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

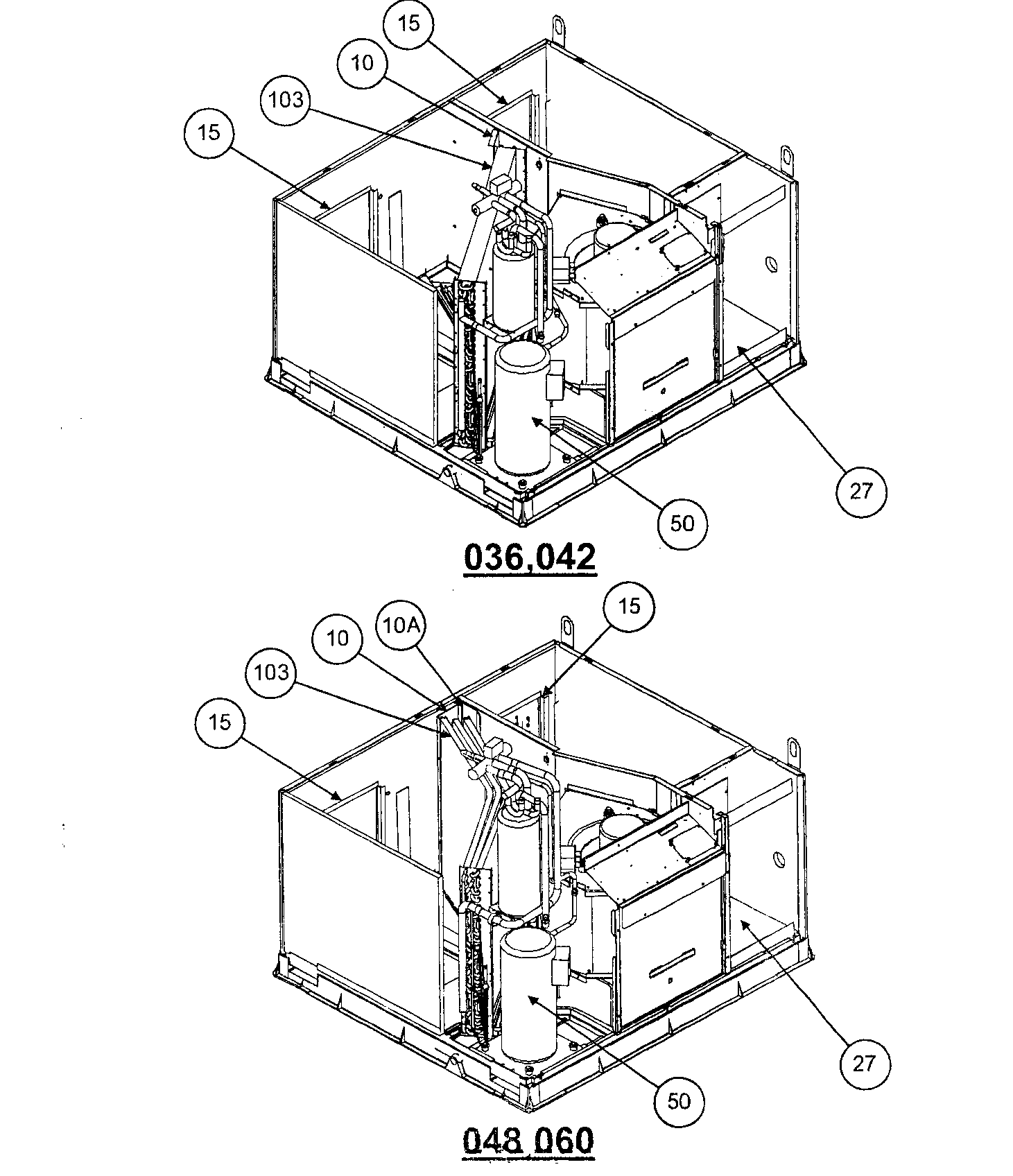

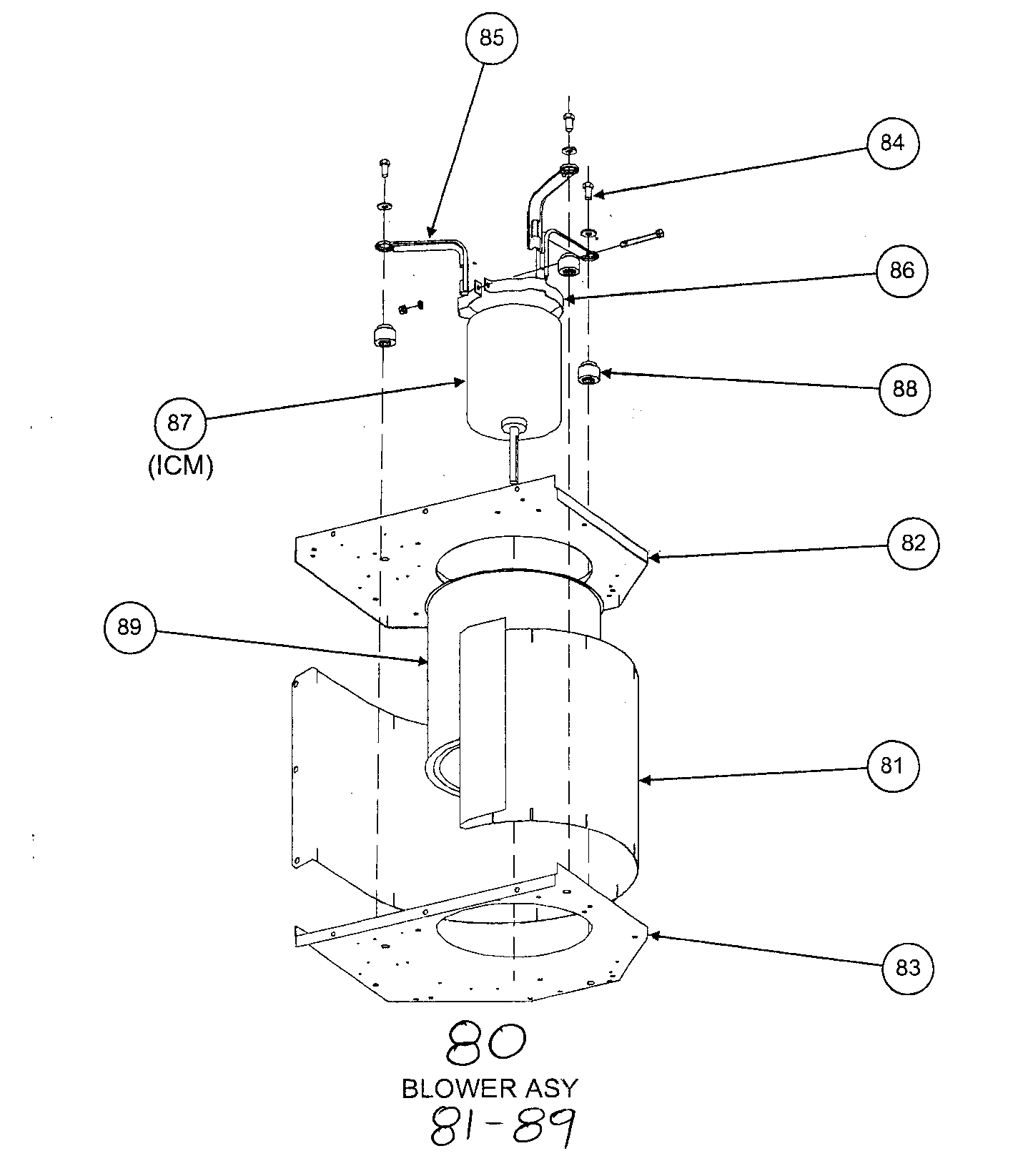

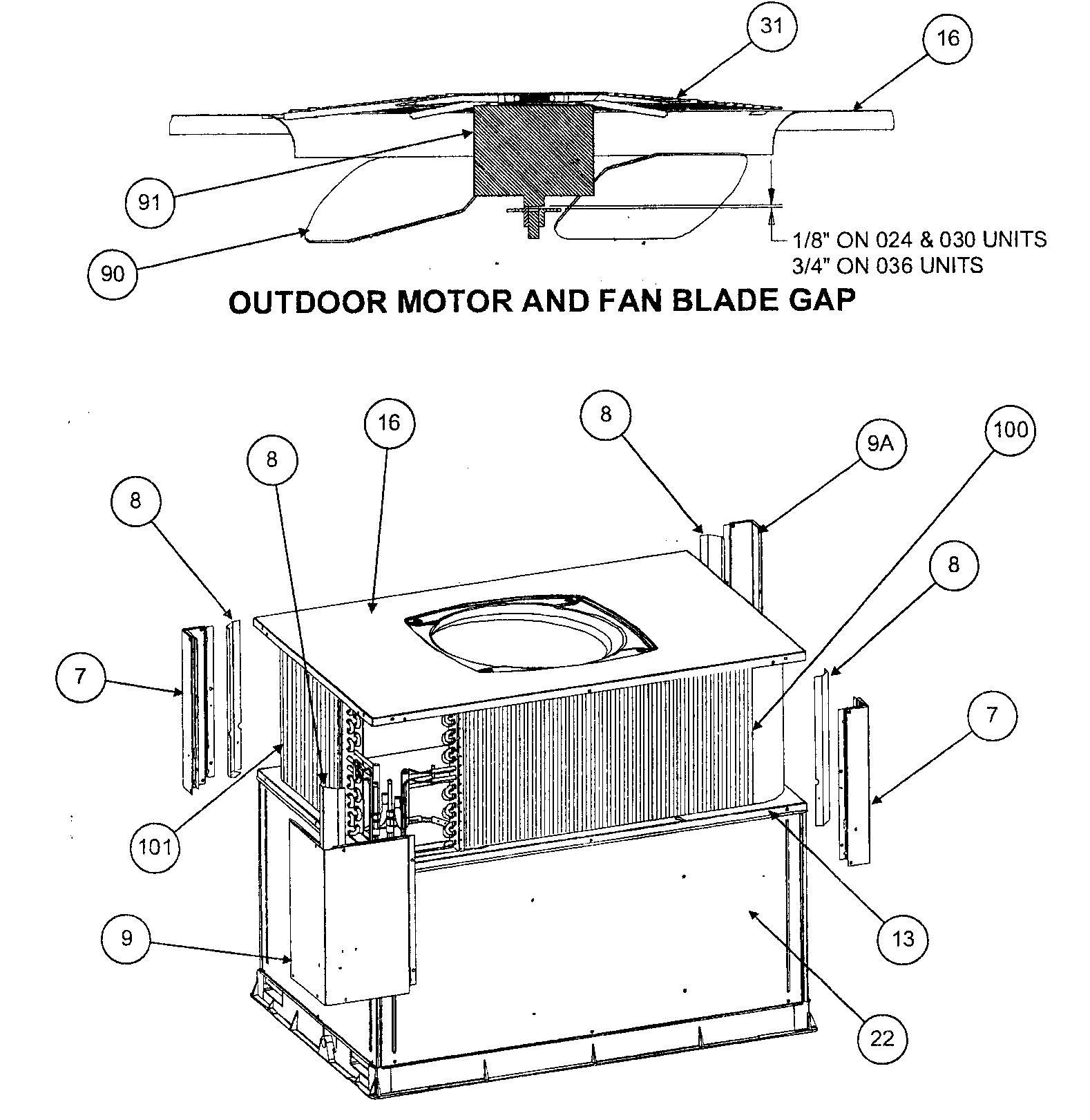

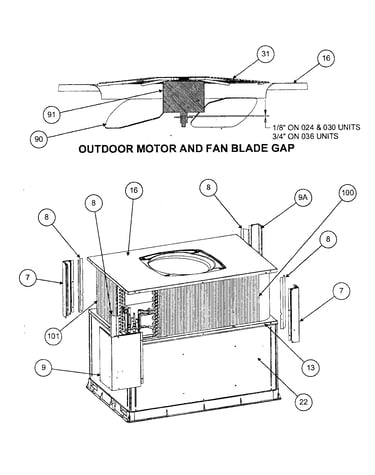

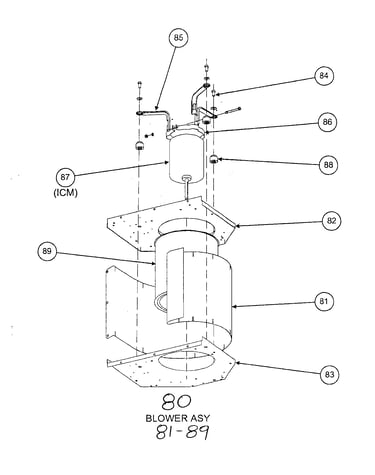

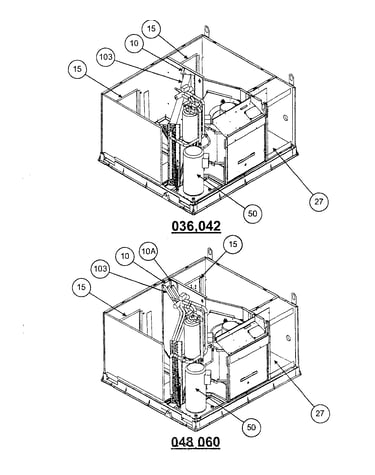

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 146 parts  |
Pcb Assembly HK38EA008
Pcb assembly

Part #HK38EA008

Replaced by #HK38EA023

?
Manufacturer substitution
This part replaces HK38EA008. Substitute parts can look different from the original.
$971.19 |
$12.00 OFF Phone Price : $983.19
In Stock

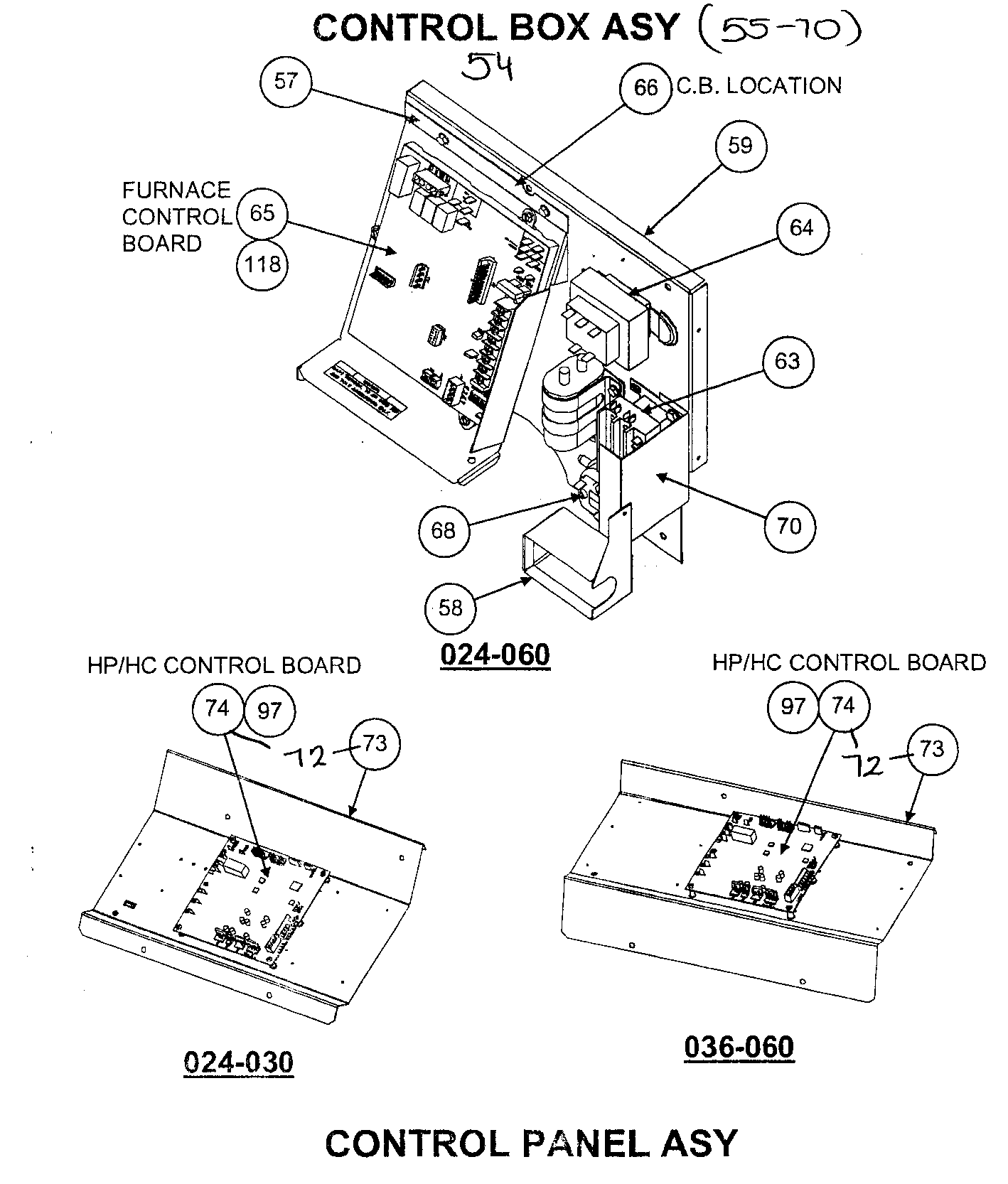

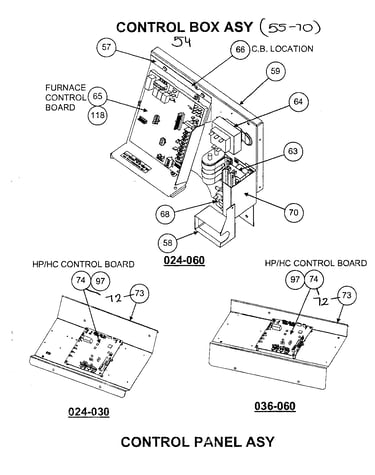

Control Board HK42FZ024
#65

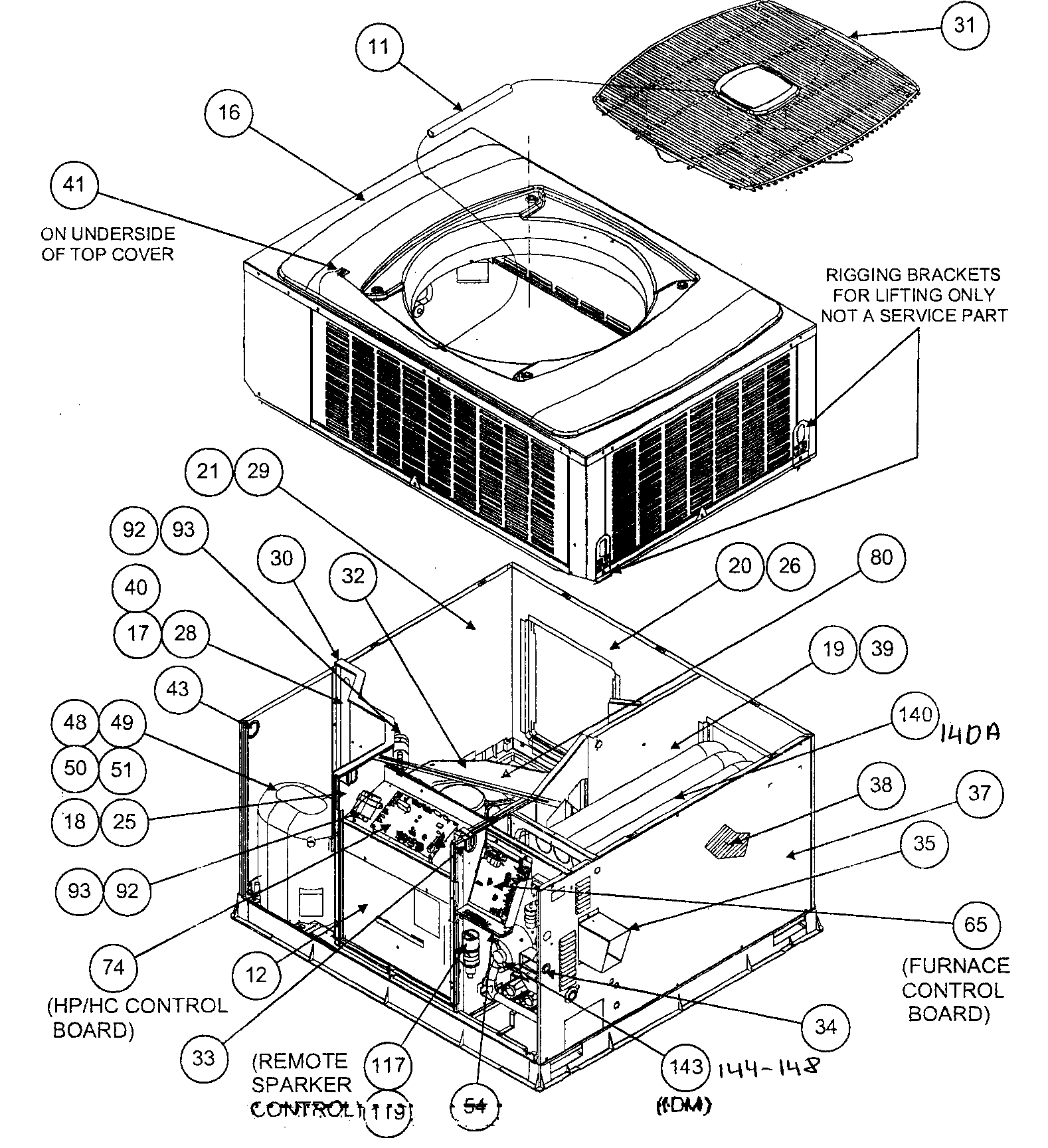

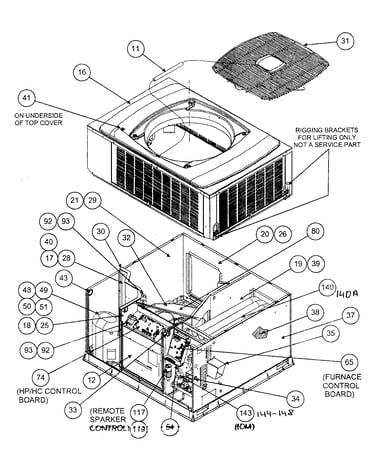

Inside view diagram

Control board

Part #HK42FZ024

Replaced by #HK42FZ035

?
Manufacturer substitution
This part replaces HK42FZ024. Substitute parts can look different from the original.
$809.30 |
$12.00 OFF Phone Price : $821.30
In Stock
Plate 50SS500879
#36

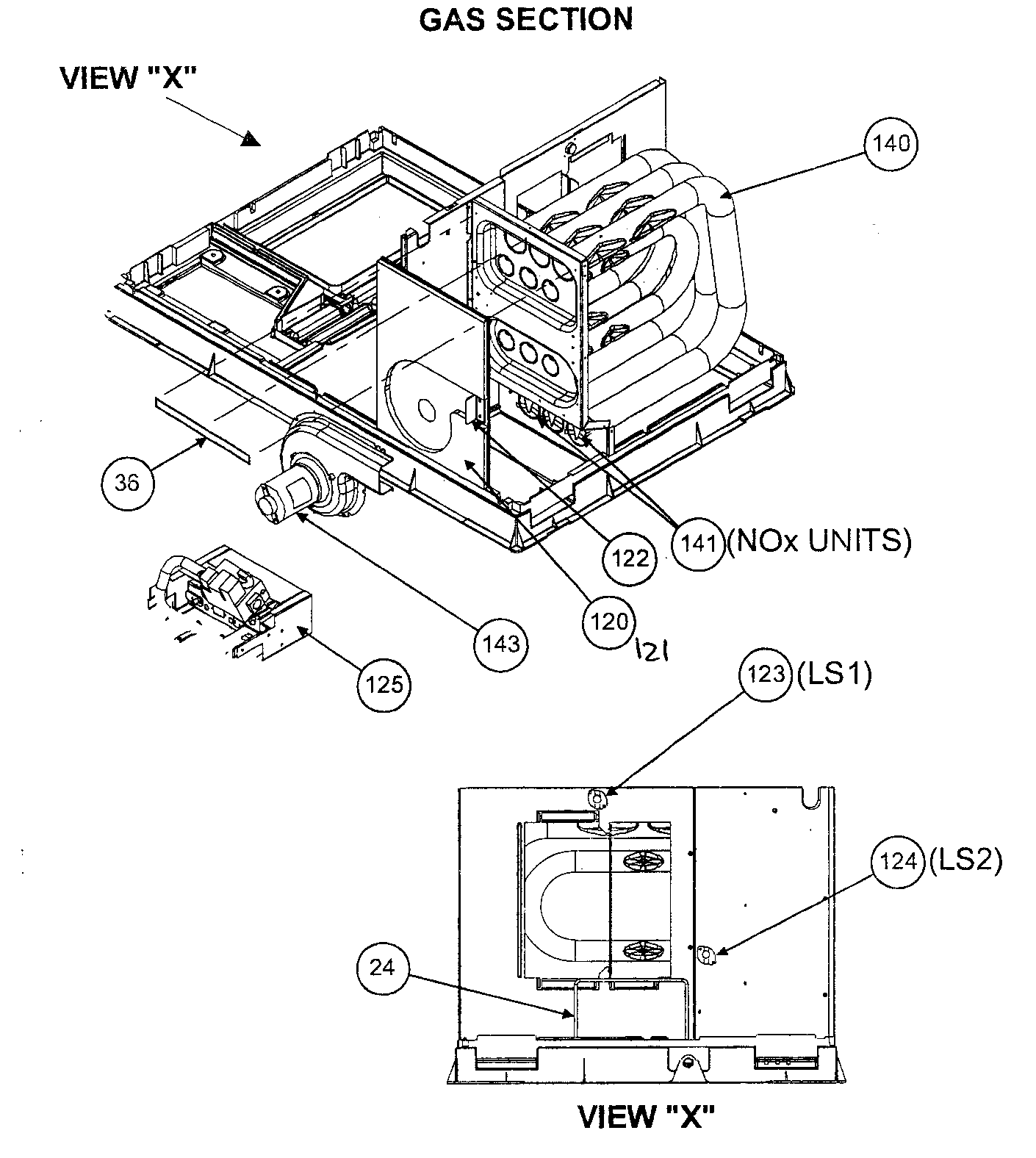

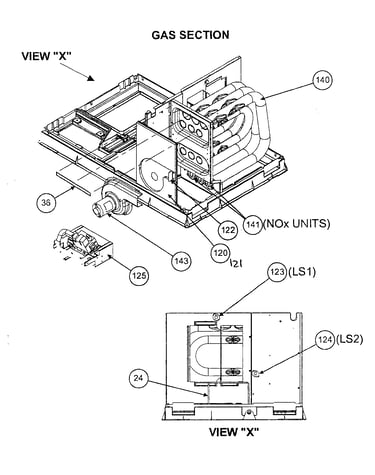

Gas section diagram

Plate

Part #50SS500879

$558.65
In Stock
Insulation 48GS500302
#38

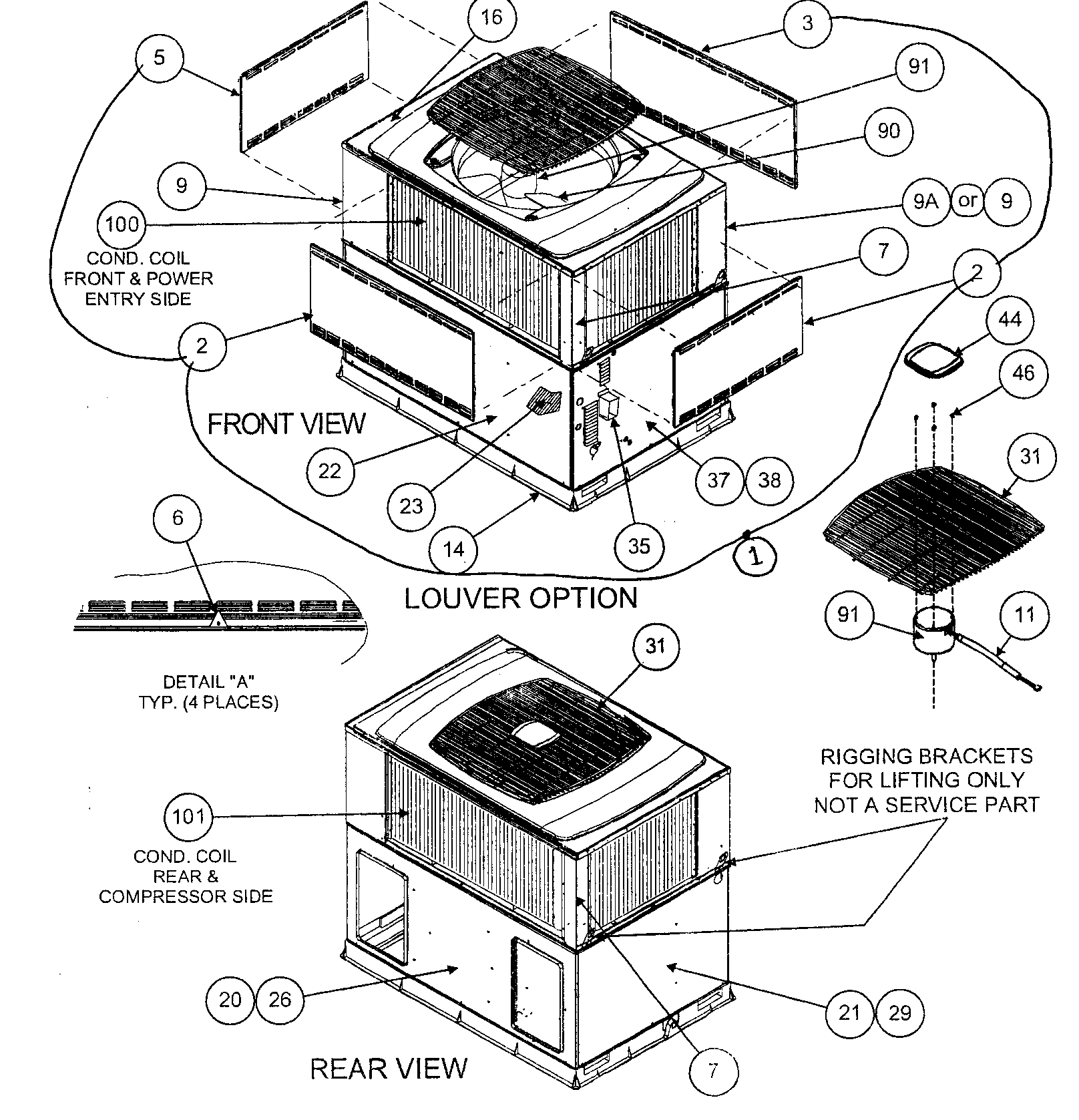

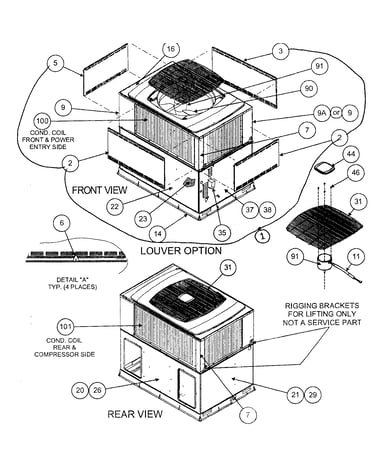

Front view/rear view diagram

Insulation

Part #48GS500302

$103.78
In Stock
Core,valve EC39EZ067
#111

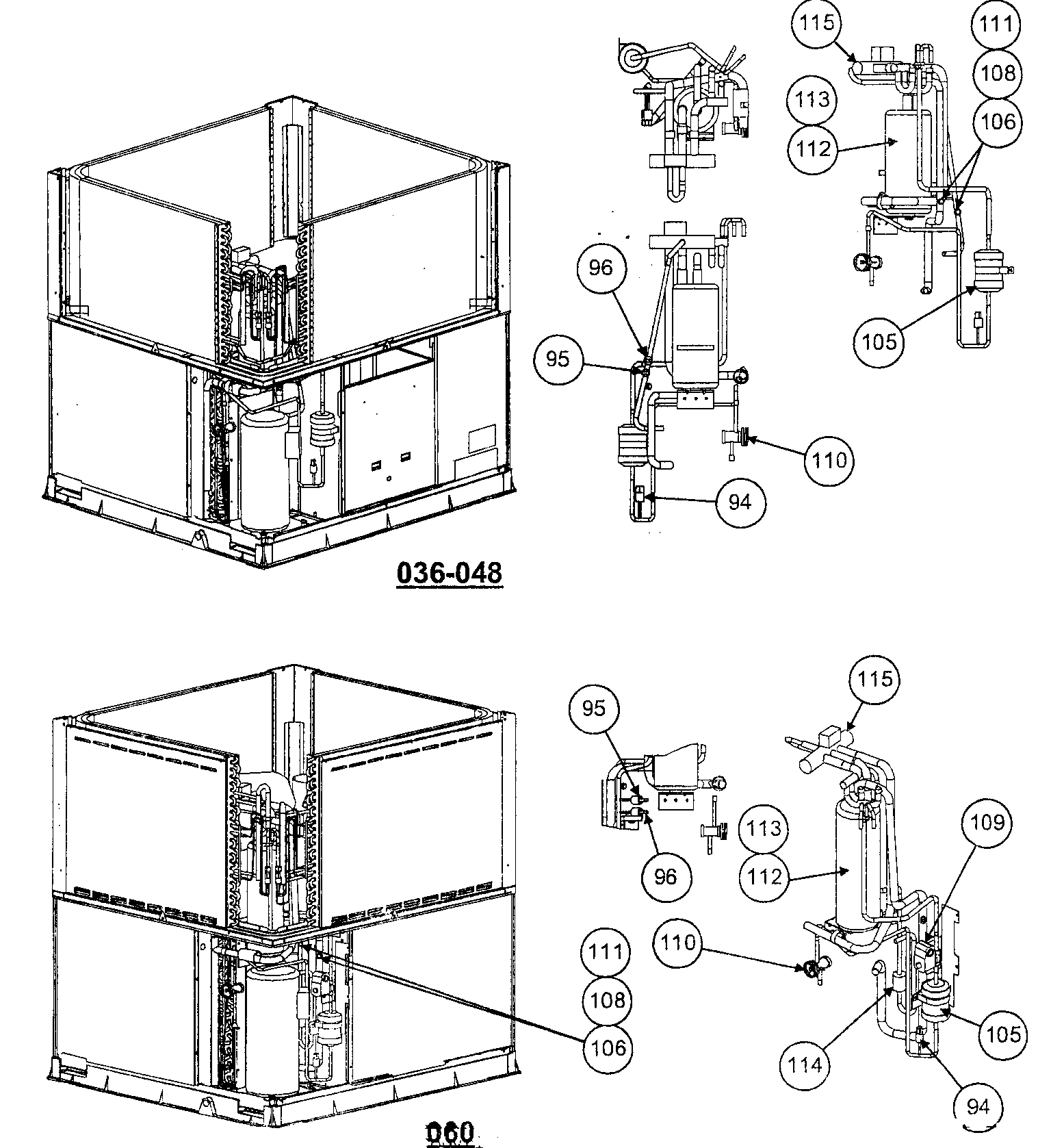

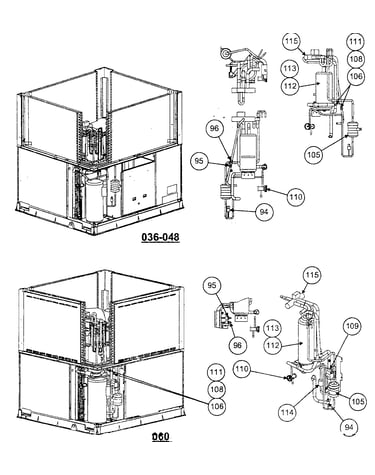

Switch assy diagram

Core,valve

Part #EC39EZ067

$22.03
In Stock
Hood Cap 48GS500121
#35

Front view/rear view diagram

Hood cap

Part #48GS500121

$64.40
In Stock
Grommet KA56DS001
#33

Inside view diagram

Grommet

Part #KA56DS001

This item is not returnable
$2.63
In Stock
Insulation 48GS500307
#26

Front view/rear view diagram

Insulation

Part #48GS500307

$63.60
In Stock
Support 48GS500243
#41

Inside view diagram

Support

Part #48GS500243

$47.16
In Stock
Sensor 48GS400192
#128

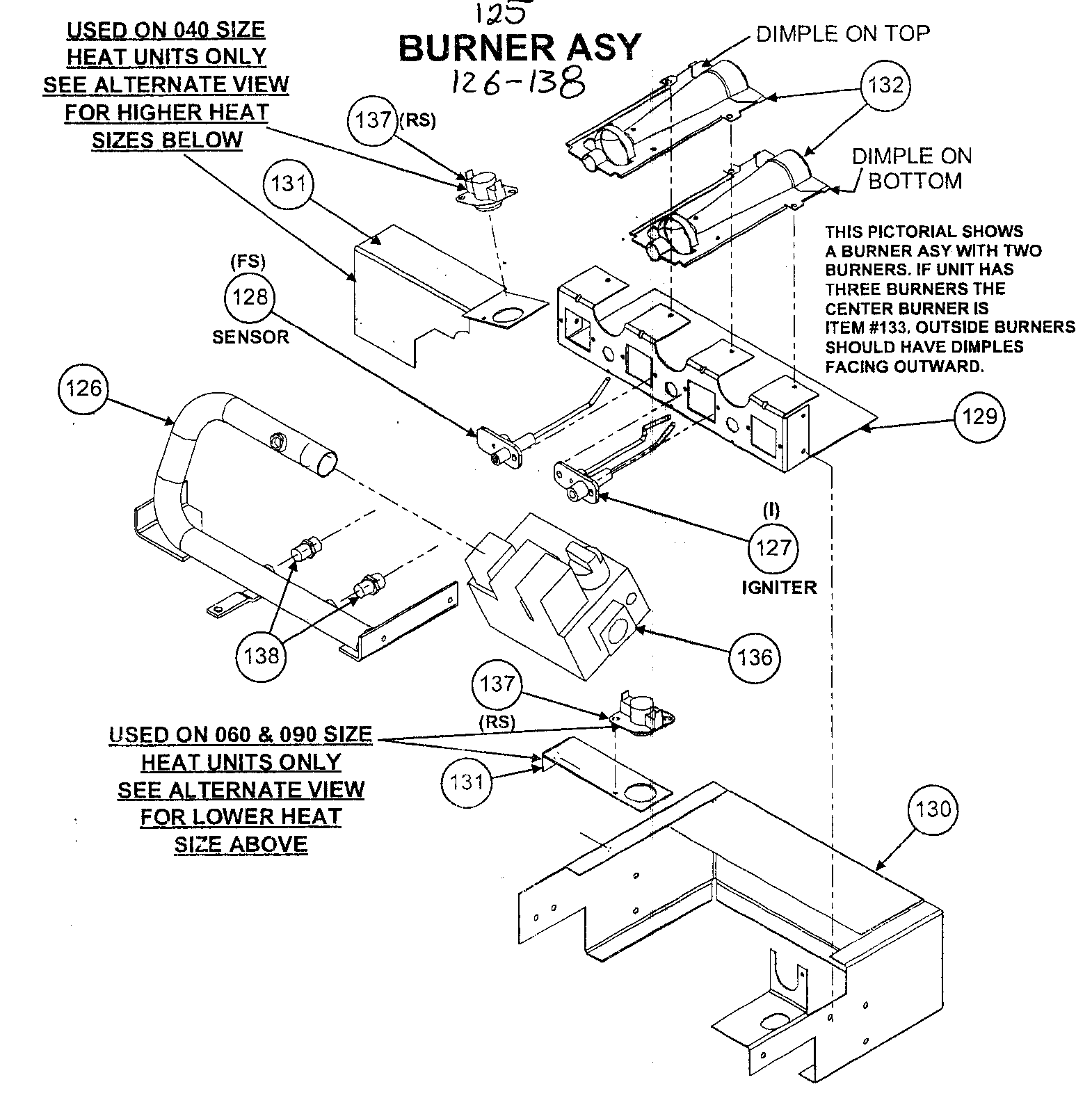

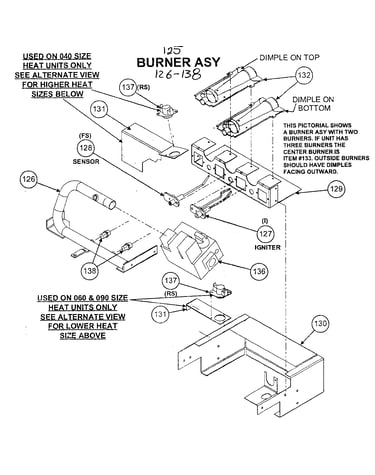

Burner assy diagram

Sensor

Part #48GS400192

$26.54
In Stock
