Model # 58031243 Official Craftsman alternator

Here are the diagrams and repair parts for Official Craftsman 58031243 alternator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

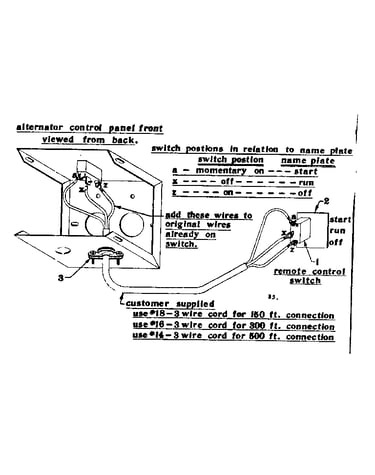

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Cap Screw 22287
#4

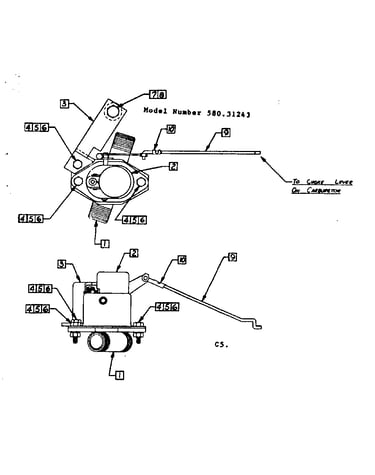

Choke assembly diagram

Cap screw

Part #22287

The manufacturer no longer makes this part, and there's no substitute part

3-inch Drill Press Vise 24071
#17

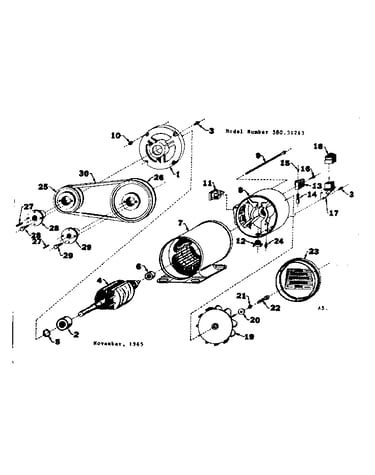

Stator assembly diagram

3-inch drill press vise

Part #24071

The manufacturer no longer makes this part, and there's no substitute part

Screw 24489
#3

Stator assembly diagram

Screw

Part #24489

The manufacturer no longer makes this part, and there's no substitute part

Mt Sup Brace 25428
#3

Choke assembly diagram

Mt sup brace

Part #25428

The manufacturer no longer makes this part, and there's no substitute part

Screw 24488
#16

Stator assembly diagram

Screw

Part #24488

The manufacturer no longer makes this part, and there's no substitute part

Fan Cover 24487
#23

Stator assembly diagram

Fan cover

Part #24487

The manufacturer no longer makes this part, and there's no substitute part

Machine Screw 22387
#18

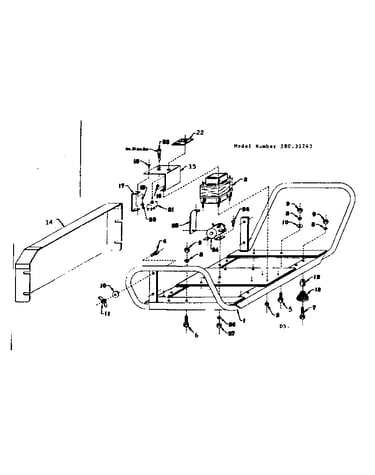

Mounting base diagram

Machine screw

Part #22387

The manufacturer no longer makes this part, and there's no substitute part

Solenoid 24492
#24

Mounting base diagram

Solenoid

Part #24492

The manufacturer no longer makes this part, and there's no substitute part

Rectifier A-22695
#18

Stator assembly diagram

Rectifier

Part #A-22695

The manufacturer no longer makes this part, and there's no substitute part

Rotor Assembly A-25130
#4

Stator assembly diagram

Rotor assembly

Part #A-25130

The manufacturer no longer makes this part, and there's no substitute part
