Model # FFU17C4CW0 Official Frigidaire freezer

Here are the diagrams and repair parts for Official Frigidaire FFU17C4CW0 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Filter Drier 216634500
#4

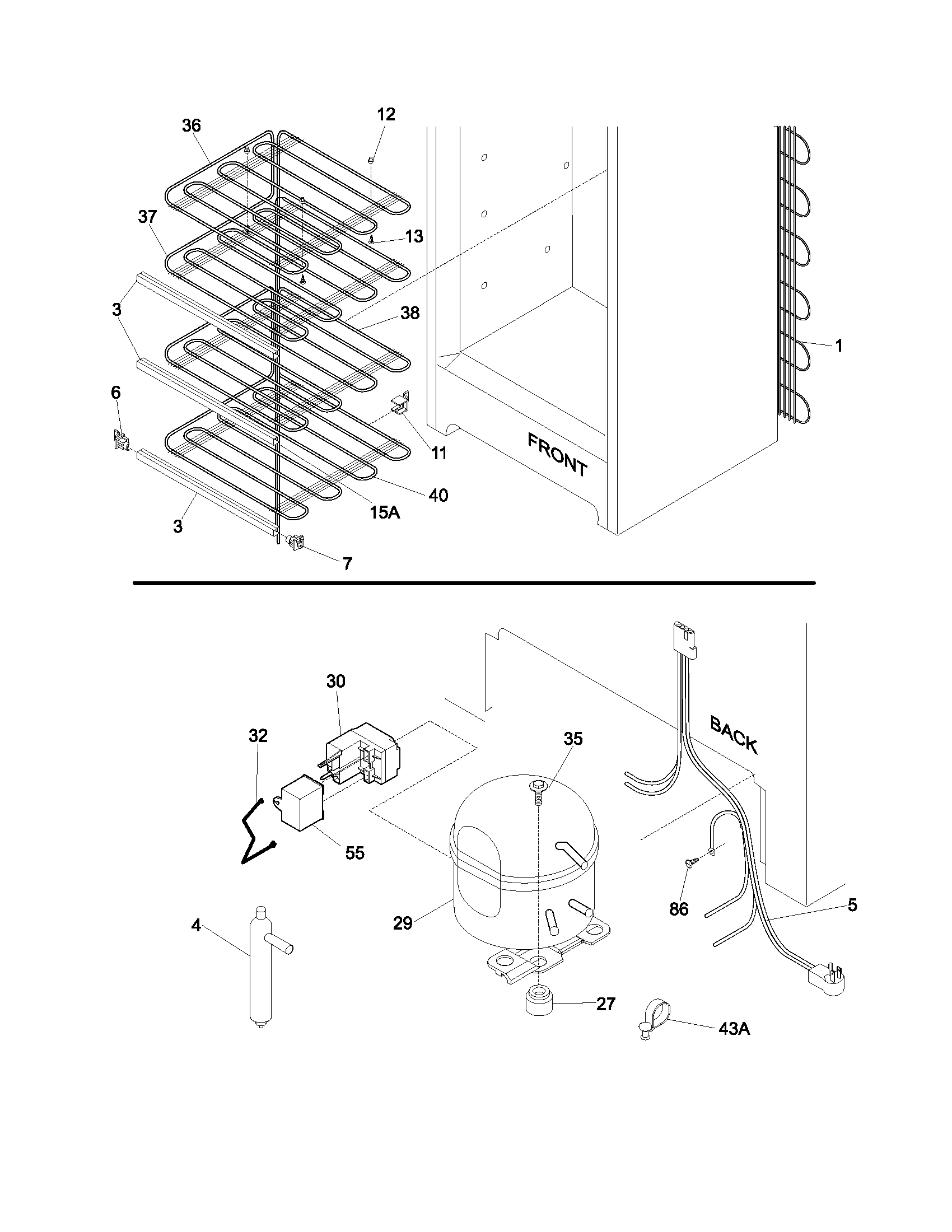

System diagram

Filter drier

Part #216634500

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 216634500. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Freezer Door Key 216702900
#5

Door diagram

Freezer door key

Part #216702900

Replaced by #297147700

?
Manufacturer substitution
This part replaces 216702900. Substitute parts can look different from the original.
BEST SELLER
$9.25 |
10% OFF Phone Price : $10.25
In Stock
Freezer Door Gasket 216522309
#1

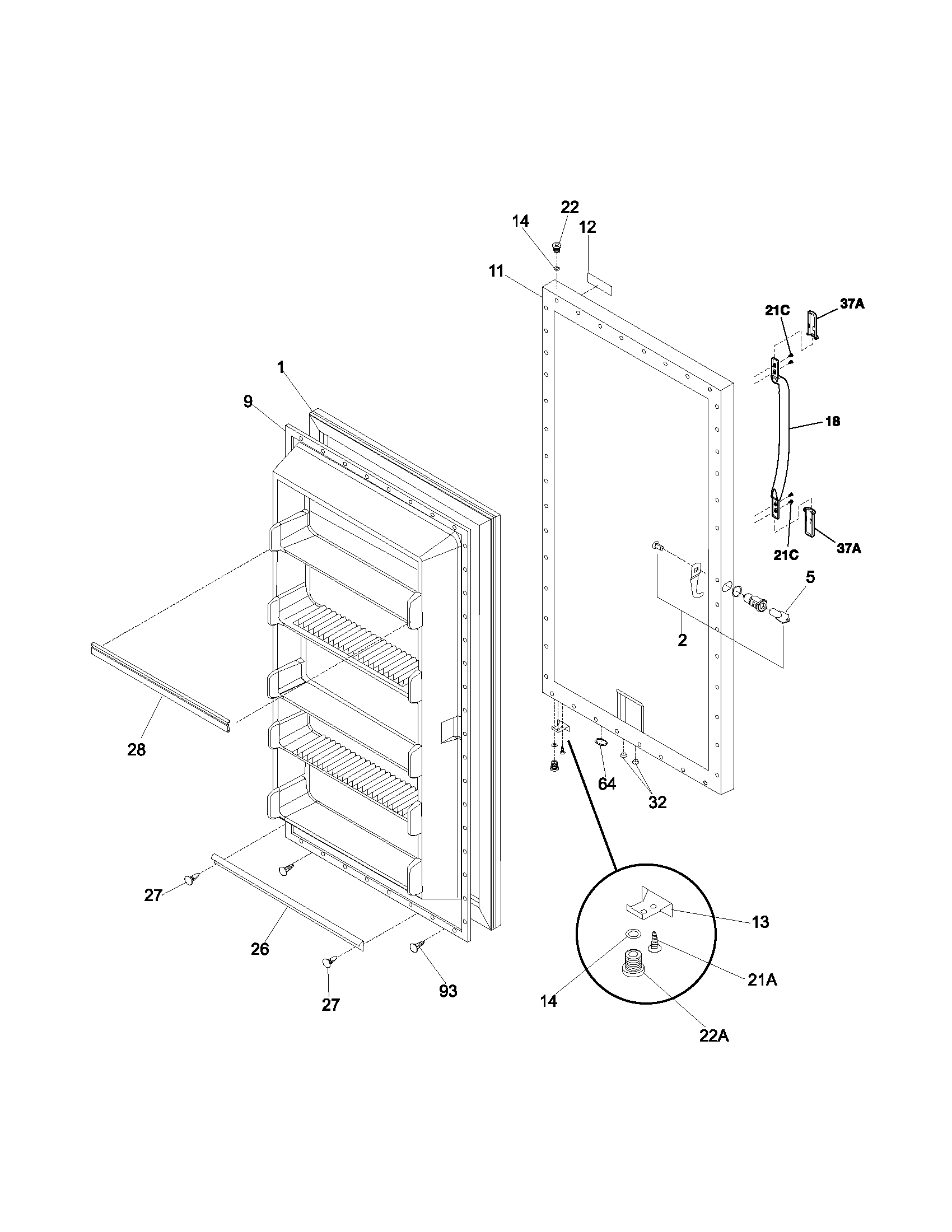

Door diagram

Freezer door gasket

Part #216522309

Replaced by #5304507200

?
Manufacturer substitution
This part replaces 216522309. Substitute parts can look different from the original.
BEST SELLER
$116.27 |
9% OFF Phone Price : $128.27
In Stock
Chest Freezer Run Capacitor 218909901
#55

System diagram

Chest freezer run capacitor

Part #218909901

Replaced by #5304464438

?
Manufacturer substitution
This part replaces 218909901. Substitute parts can look different from the original.
BEST SELLER
$47.29 |
11% OFF Phone Price : $53.29
In Stock
Controller 216649316
#30

System diagram

Controller

Part #216649316

Replaced by #5304491941

?
Manufacturer substitution
This part replaces 216649316. Substitute parts can look different from the original.
BEST SELLER
$94.81 |
6% OFF Phone Price : $100.81
In Stock
Freezer Door Closer Bearing 216503300
#26

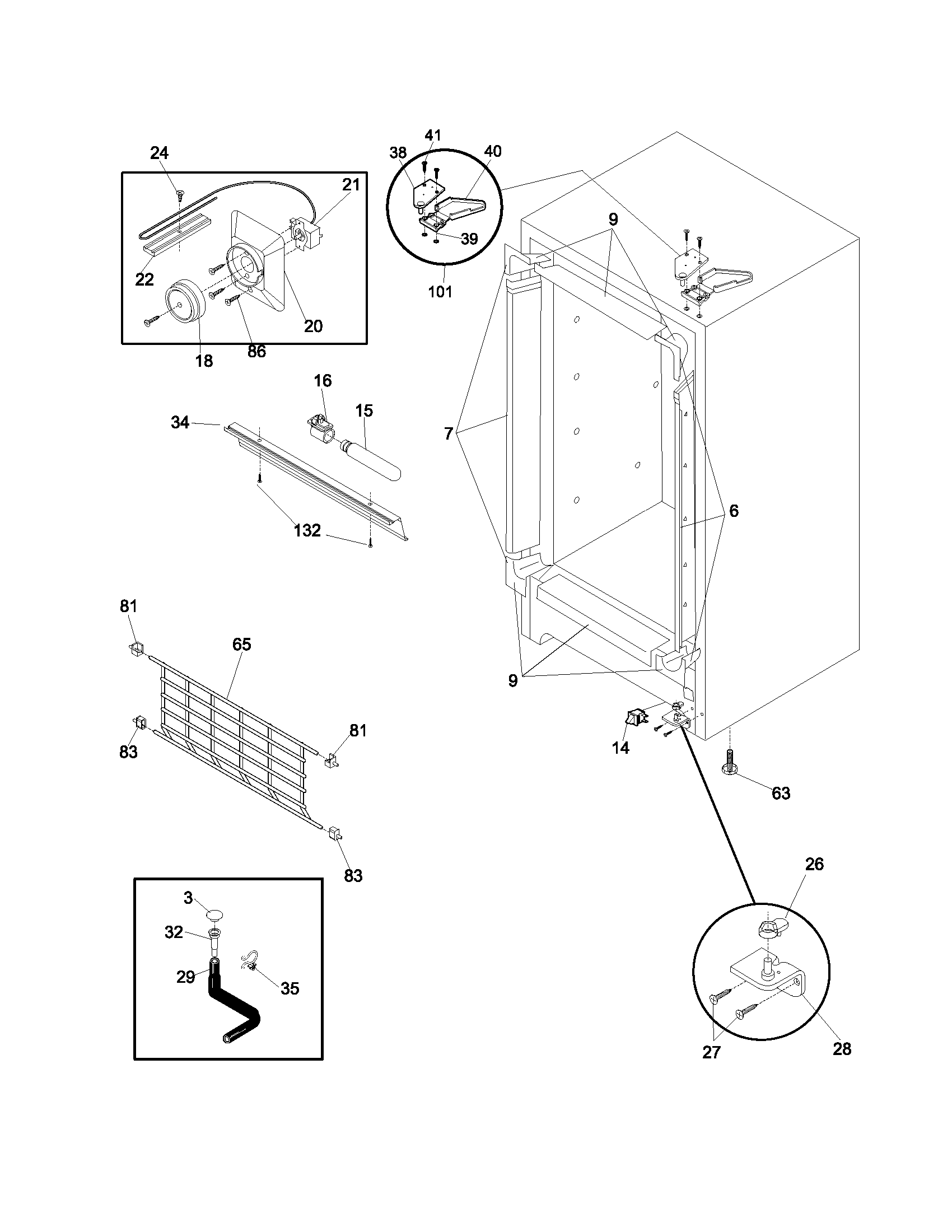

Cabinet diagram

Freezer door closer bearing

Part #216503300

BEST SELLER
This item is not returnable
$8.49 |
11% OFF Phone Price : $9.49
In Stock
Appliance Leveling Leg (replaces 134158000, 7216396900) 216396900
#63

Cabinet diagram

Appliance leveling leg (replaces 134158000, 7216396900)

Part #216396900

BEST SELLER
$20.04 |
23% OFF Phone Price : $26.04
In Stock
Hinge Bearing 216503200
#22A

Door diagram

Hinge bearing

Part #216503200

Replaced by #297006800

?
Manufacturer substitution
This part replaces 216503200. Substitute parts can look different from the original.
This item is not returnable
$12.59 |
14% OFF Phone Price : $14.59
In Stock
Sec, Gasket 216524200
#26

Door diagram

Sec, gasket

Part #216524200

Replaced by #216524201

?
Manufacturer substitution
This part replaces 216524200. Substitute parts can look different from the original.
This item is not returnable
$36.81 |
14% OFF Phone Price : $42.81
In Stock
Shelf Trim 216847805
#3

System diagram

Shelf trim

Part #216847805

Replaced by #5304509723

?
Manufacturer substitution
This part replaces 216847805. Substitute parts can look different from the original.
This item is not returnable
$25.18 |
19% OFF Phone Price : $31.18
In Stock
