Model # 875199320 Official Craftsman ratchet wrench

Here are the diagrams and repair parts for Official Craftsman 875199320 ratchet wrench, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 45 parts |

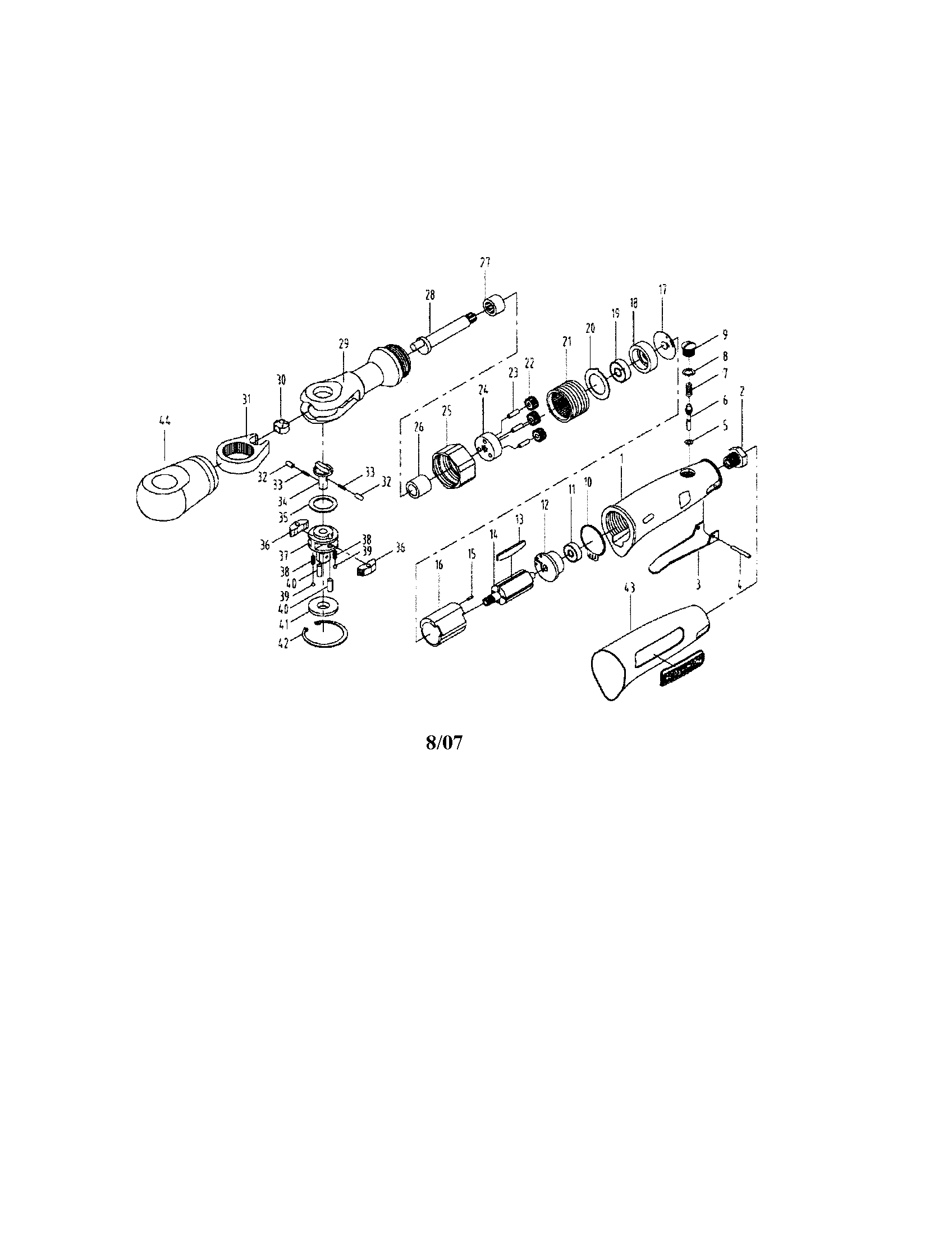

Ratchet wrench diagram

Valve stem

Part #9106464

The manufacturer no longer makes this part, and there's no substitute part

Ratchet wrench diagram

Lever

Part #9106461

The manufacturer no longer makes this part, and there's no substitute part

#34

Ratchet wrench diagram

Reverse switch

Part #9106492

The manufacturer no longer makes this part, and there's no substitute part

#42

Ratchet wrench diagram

Ret.ring

Part #9106500

The manufacturer no longer makes this part, and there's no substitute part

Ratchet wrench diagram

Valve plug

Part #9106467

The manufacturer no longer makes this part, and there's no substitute part

#25

Ratchet wrench diagram

Nut

Part #9106483

The manufacturer no longer makes this part, and there's no substitute part

#30

Ratchet wrench diagram

Drive bushing

Part #9106488

The manufacturer no longer makes this part, and there's no substitute part

#44

Ratchet wrench diagram

Ratchet cover

Part #9106502

The manufacturer no longer makes this part, and there's no substitute part

#12

Ratchet wrench diagram

Rear plate

Part #9106470

The manufacturer no longer makes this part, and there's no substitute part

#18

Ratchet wrench diagram

Front plate

Part #9106476

The manufacturer no longer makes this part, and there's no substitute part
