Model # FH50230 SERIES B Official Hoover carpet cleaner

Here are the diagrams and repair parts for Official Hoover FH50230-SERIES-B carpet cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
Vacuum Motor Cover 440001359
#25

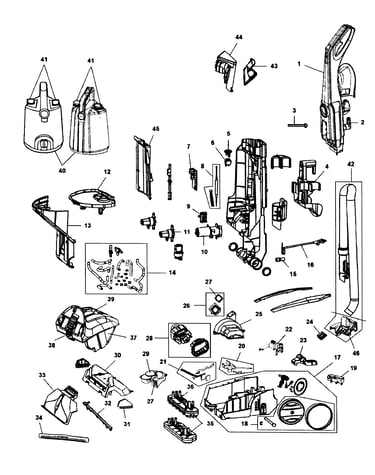

Main assy diagram

Vacuum motor cover

Part #440001359

The manufacturer no longer makes this part, and there's no substitute part

Recovery Tank 440003874
#37

Main assy diagram

Recovery tank

Part #440003874

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Recovery Tank Valve 304331001
#38

Main assy diagram

Carpet cleaner recovery tank valve

Part #304331001

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Solution Valve 440001361
#11

Main assy diagram

Carpet cleaner solution valve

Part #440001361

The manufacturer no longer makes this part, and there's no substitute part

Knob With Spring 303783001
#20

Main assy diagram

Knob with spring

Part #303783001

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Solution Tank Base 303806001
#12

Main assy diagram

Carpet cleaner solution tank base

Part #303806001

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Handle Screw 440001355
#3

Main assy diagram

Carpet cleaner handle screw

Part #440001355

The manufacturer no longer makes this part, and there's no substitute part

Seal Kit 440001374
#26

Main assy diagram

Seal kit

Part #440001374

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Brush Block Assembly 304346001
#35

Main assy diagram

Carpet cleaner brush block assembly

Part #304346001

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Solution Valve Seal 563226001
#40B

Main assy diagram

Carpet cleaner solution valve seal

Part #563226001

The manufacturer no longer makes this part, and there's no substitute part
