Model # XB258DM3BB Official GE electric range

Here are the diagrams and repair parts for Official GE XB258DM3BB electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |
Range Surface Element Control Switch, 2,600-watt WB24T10025
#19

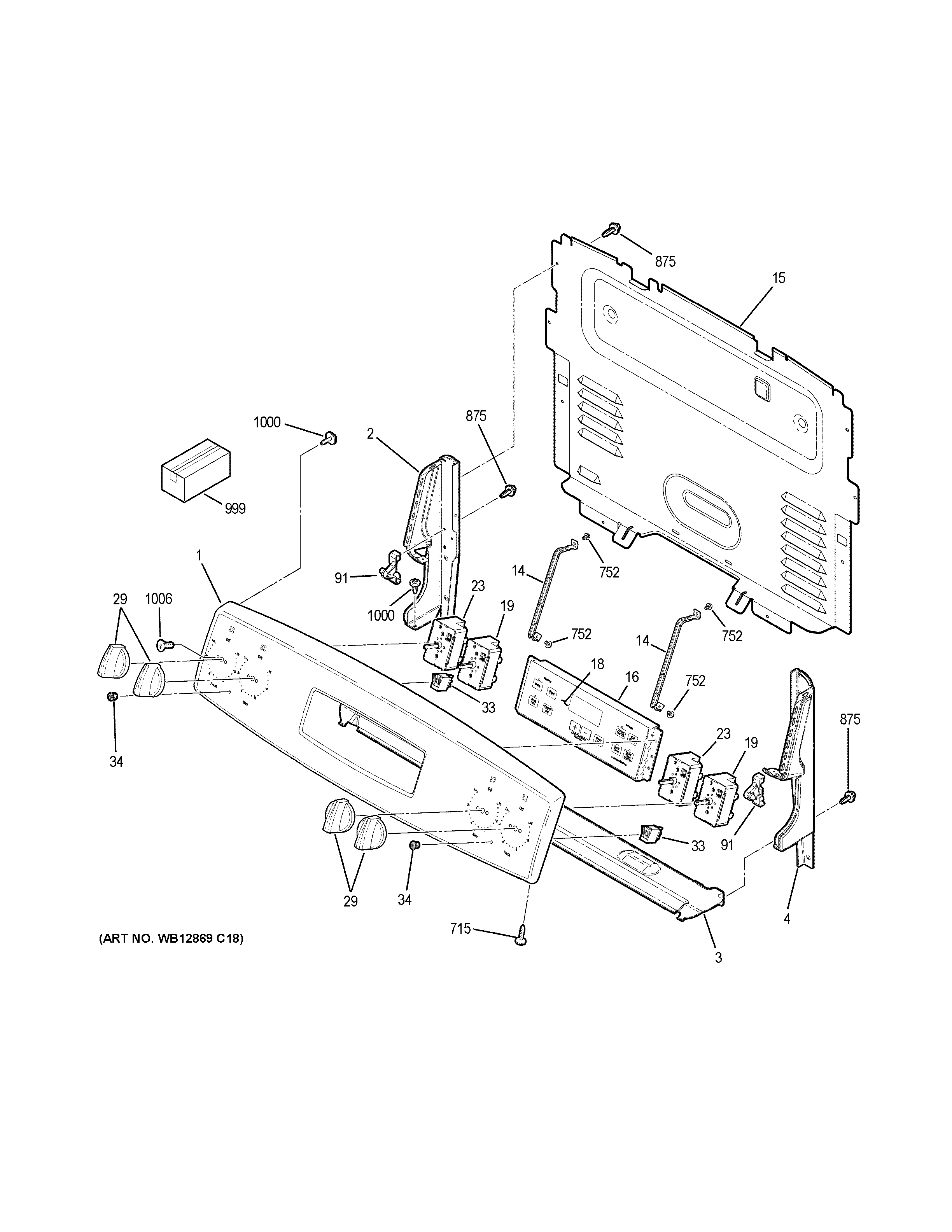

Control panel diagram

Range surface element control switch, 2,600-watt

Part #WB24T10025

BEST SELLER
$36.13 |
14% OFF Phone Price : $42.13
In Stock
Range Led Oven Control Board (white) WB27X29091
#16

Control panel diagram

Range led oven control board (white)

Part #WB27X29091

Replaced by #WB27X45466

?
Manufacturer substitution
This part replaces WB27X29091. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$142.37 |
8% OFF Phone Price : $154.37
In Stock
Kenmore Range Oven Temperature Sensor (replaces Wb21t10007) WB21X22134
#253

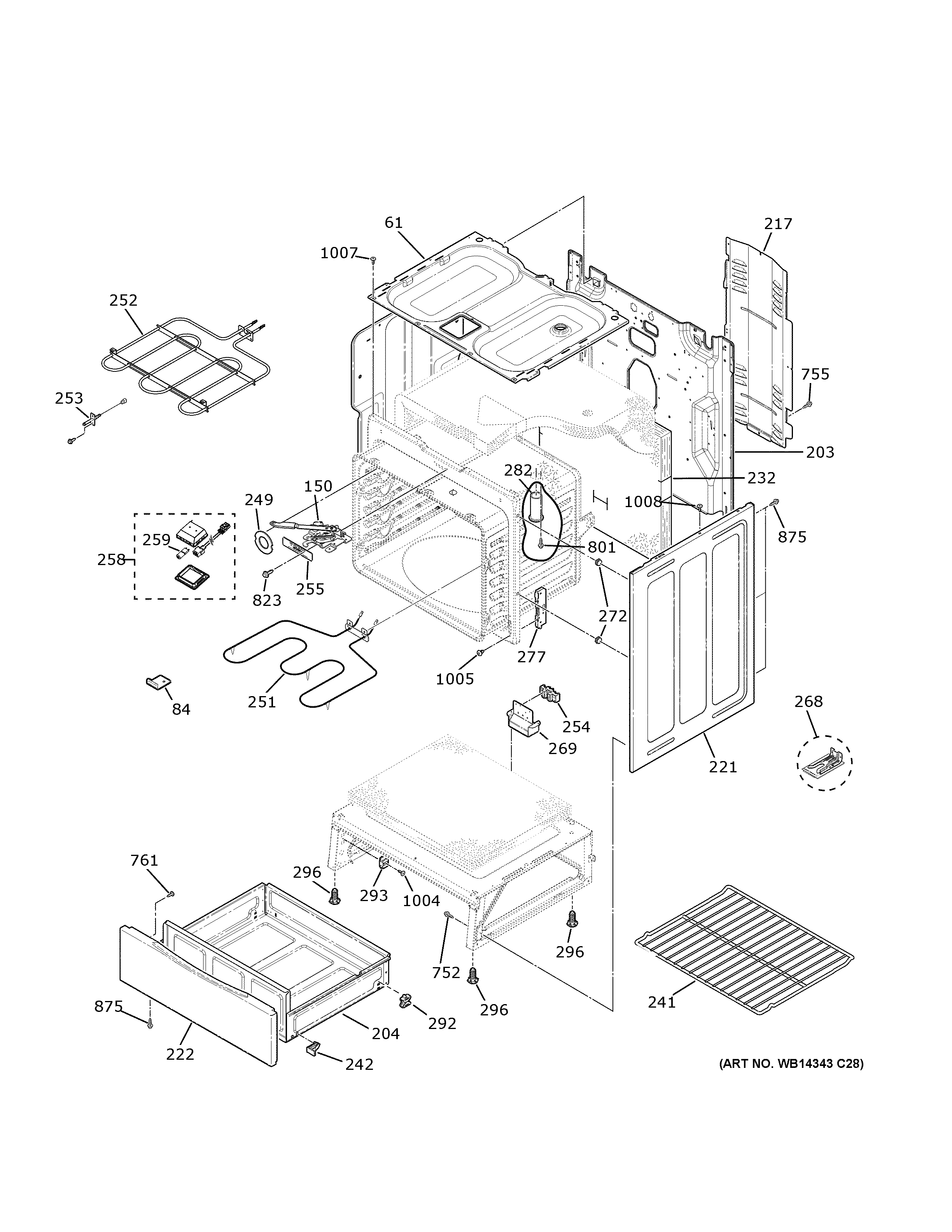

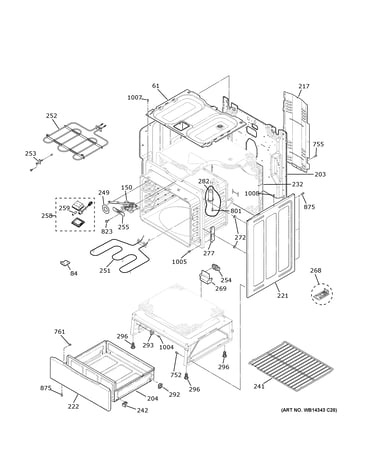

Body parts diagram

Kenmore range oven temperature sensor (replaces wb21t10007)

Part #WB21X22134

BEST SELLER
$24.05 |
20% OFF Phone Price : $30.05
In Stock
Range Bake Element WB44T10059
#251

Body parts diagram

Range bake element

Part #WB44T10059

Replaced by #WB44T10011

?
Manufacturer substitution
This part replaces WB44T10059. Substitute parts can look different from the original.
BEST SELLER
$79.56 |
7% OFF Phone Price : $85.56
In Stock
Range Surface Element Control Switch, 1,250-watt WB24T10022
#23

Control panel diagram

Range surface element control switch, 1,250-watt

Part #WB24T10022

BEST SELLER
$76.69 |
7% OFF Phone Price : $82.69
In Stock
Range Surface Element, 8-in WB30X31057
#57

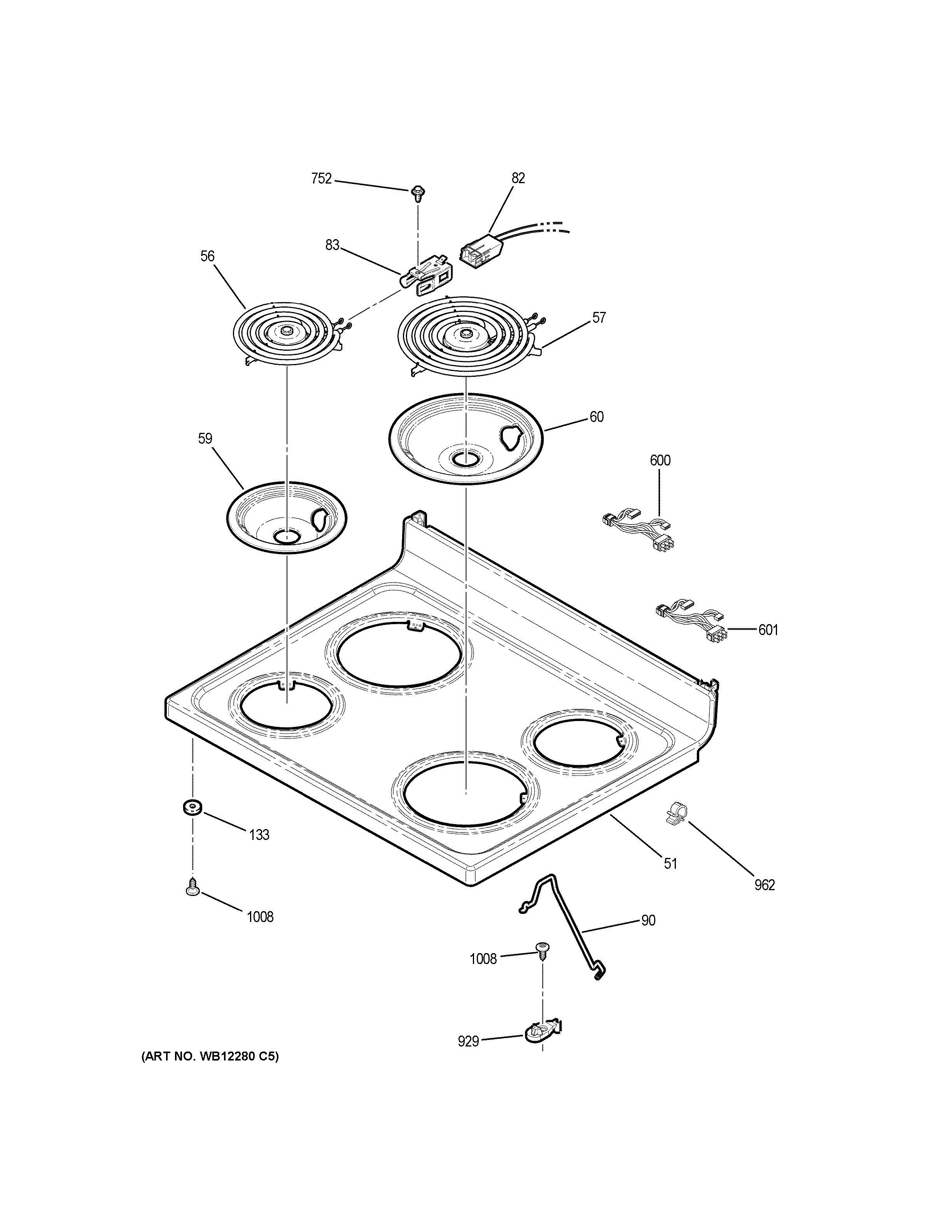

Cooktop diagram

Range surface element, 8-in

Part #WB30X31057

BEST SELLER
$85.77 |
7% OFF Phone Price : $91.77
In Stock
Range Oven Door Inner Glass (replaces Wb55t10154, Wb56t10152, Wb56x26391) WB56X22160
#338

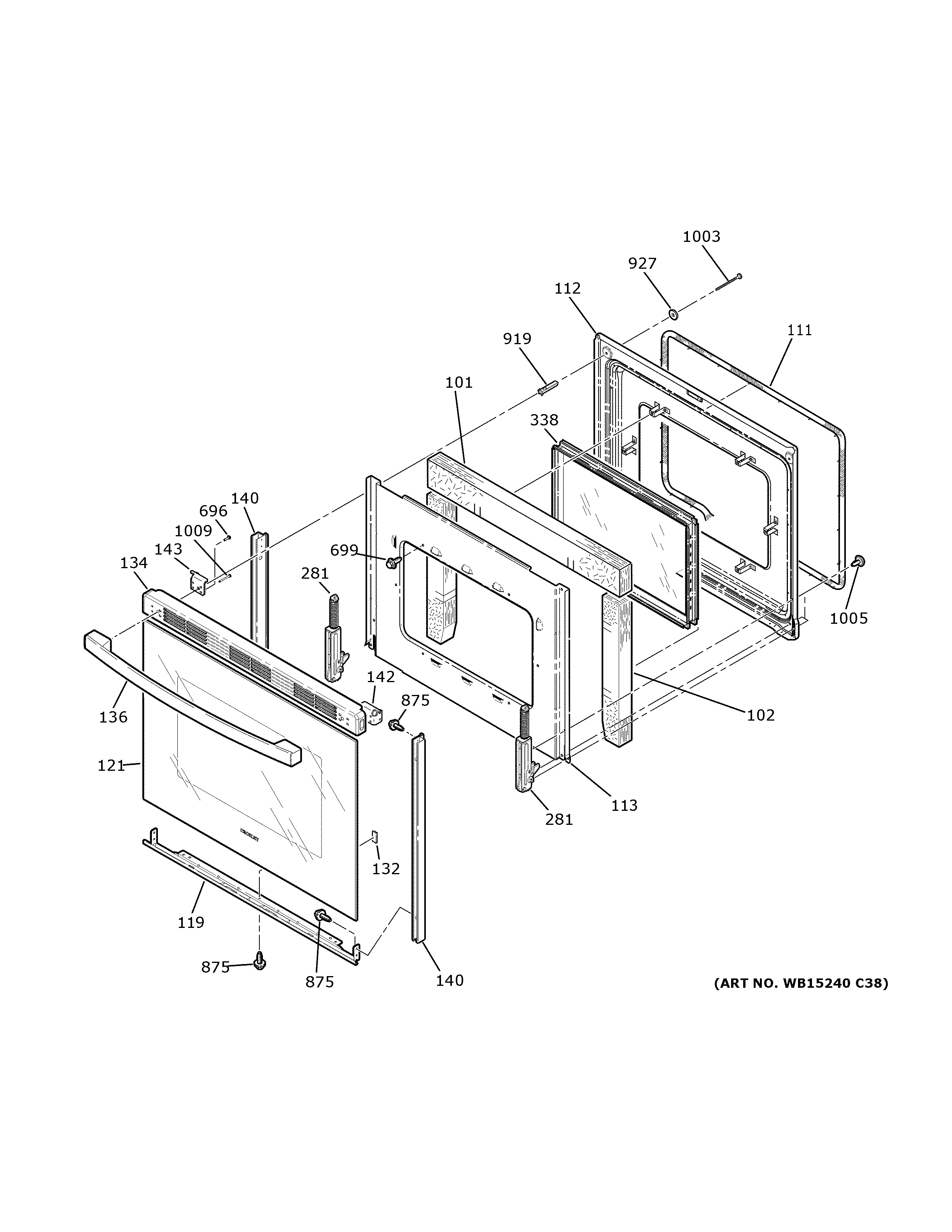

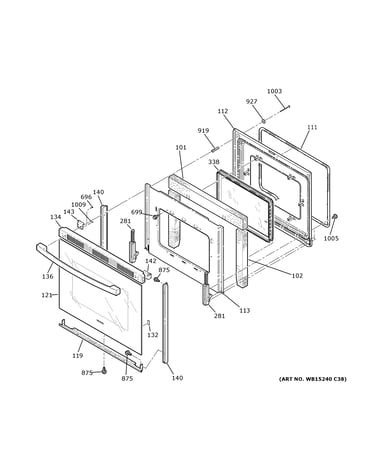

Door diagram

Range oven door inner glass (replaces wb55t10154, wb56t10152, wb56x26391)

Part #WB56X22160

BEST SELLER
$370.15 |
$12.00 OFF Phone Price : $382.15
In Stock
Range Terminal Block (replaces Wb17t10016, Wb17t10023) WB17T10011
#254

Body parts diagram

Range terminal block (replaces wb17t10016, wb17t10023)

Part #WB17T10011

BEST SELLER
$40.67 |
13% OFF Phone Price : $46.67
In Stock
Range Oven Door Gasket (replaces Wb04t10001) WB04T10086
#111

Door diagram

Range oven door gasket (replaces wb04t10001)

Part #WB04T10086

$39.75 |
13% OFF Phone Price : $45.75
In Stock
Range Oven Door Lock Handle And Latch Assembly (replaces Wb14t10092) WB14X41386
#150

Body parts diagram

Range oven door lock handle and latch assembly (replaces wb14t10092)

Part #WB14X41386

$53.71
In Stock
