Model # TC-P55GT50 Official Panasonic plasma television

Here are the diagrams and repair parts for Official Panasonic TC-P55GT50 plasma television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

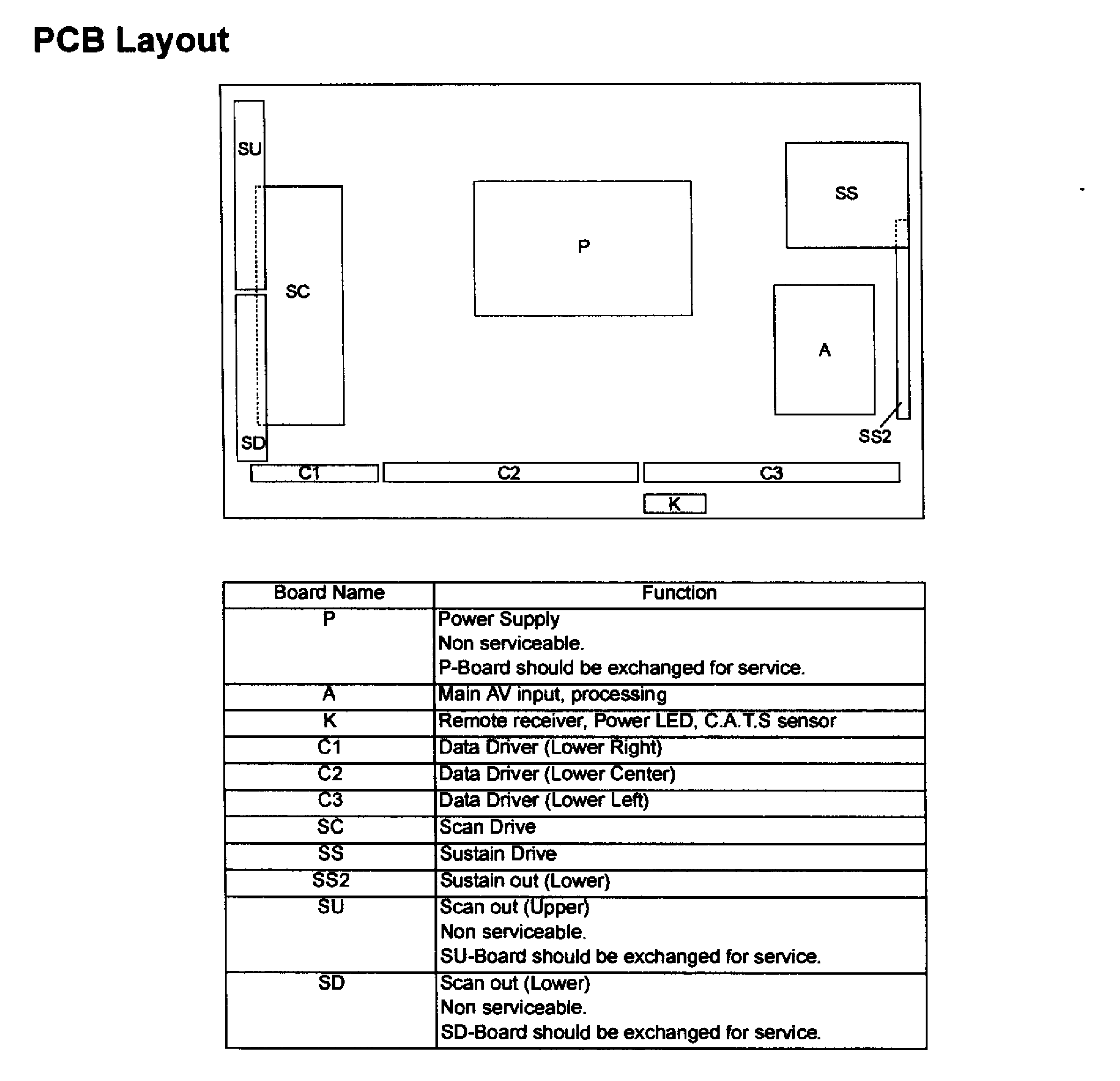

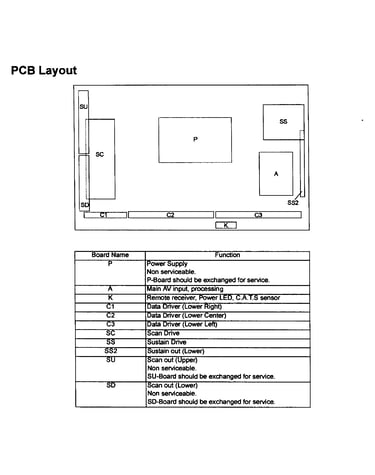

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
Clamp TMXX074
#18

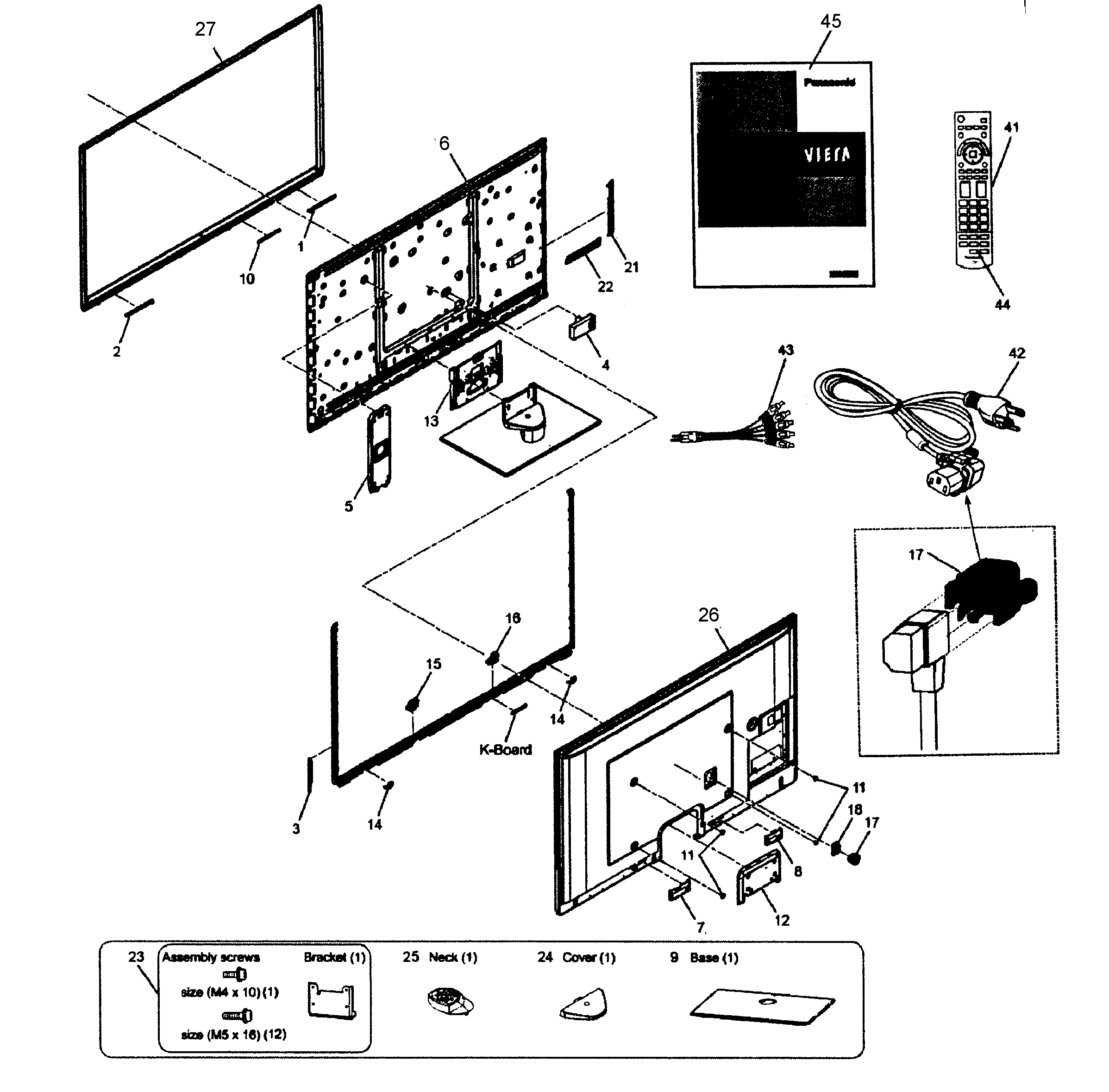

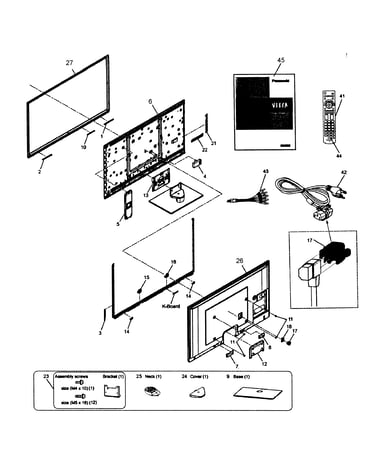

Cabinet parts diagram

Clamp

Part #TMXX074

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C0CBALC00012
#NI

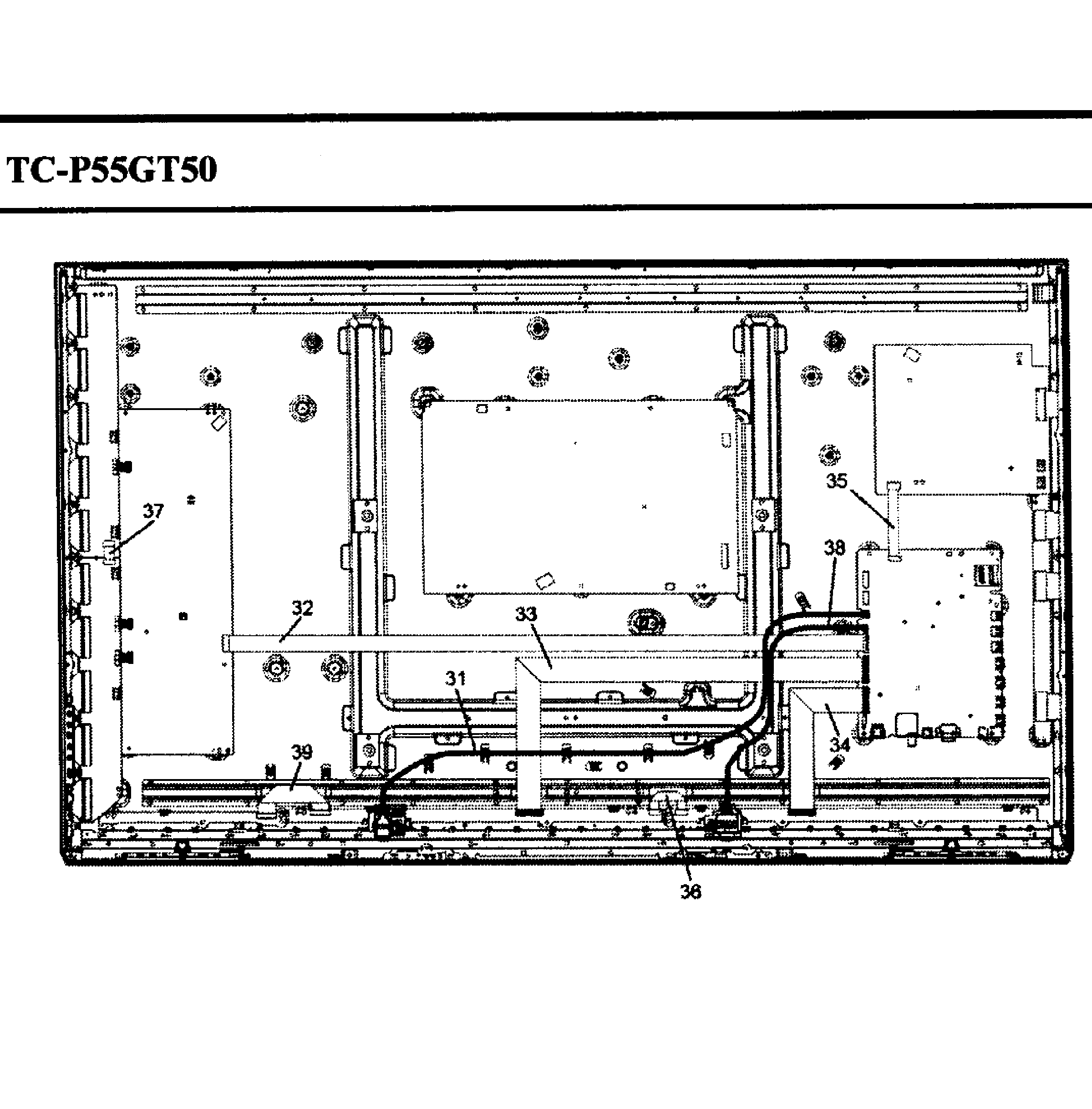

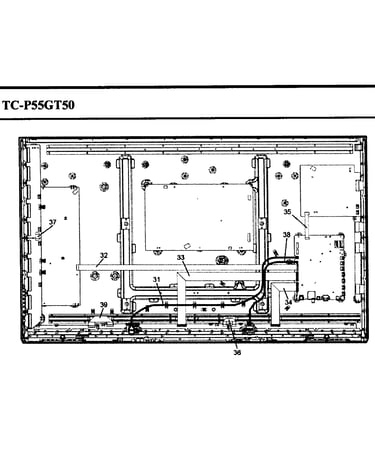

Cabinet parts diagram

Integrated circuit

Part #C0CBALC00012

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C0JBAU000088
#NI

Cabinet parts diagram

Integrated circuit

Part #C0JBAU000088

The manufacturer no longer makes this part, and there's no substitute part

Tuner J3ACAAB00007
#NI

Cabinet parts diagram

Tuner

Part #J3ACAAB00007

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C0CBCAG00046
#NI

Cabinet parts diagram

Integrated circuit

Part #C0CBCAG00046

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C0DBAYY01283
#NI

Cabinet parts diagram

Integrated circuit

Part #C0DBAYY01283

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C1CB00003747
#NI

Cabinet parts diagram

Integrated circuit

Part #C1CB00003747

The manufacturer no longer makes this part, and there's no substitute part

Television Speaker Lead TXJA12REUU
#NI

Cabinet parts diagram

Television speaker lead

Part #TXJA12REUU

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C3ABUY000019
#NI

Cabinet parts diagram

Integrated circuit

Part #C3ABUY000019

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C1ZBZ0004559
#NI

Cabinet parts diagram

Integrated circuit

Part #C1ZBZ0004559

The manufacturer no longer makes this part, and there's no substitute part
