GE
Gas Range

Model # EGR3000EP2BB Official GE gas range

Here are the diagrams and repair parts for Official GE EGR3000EP2BB gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 192 parts  |
Oven Igniter WB13K10026
#218

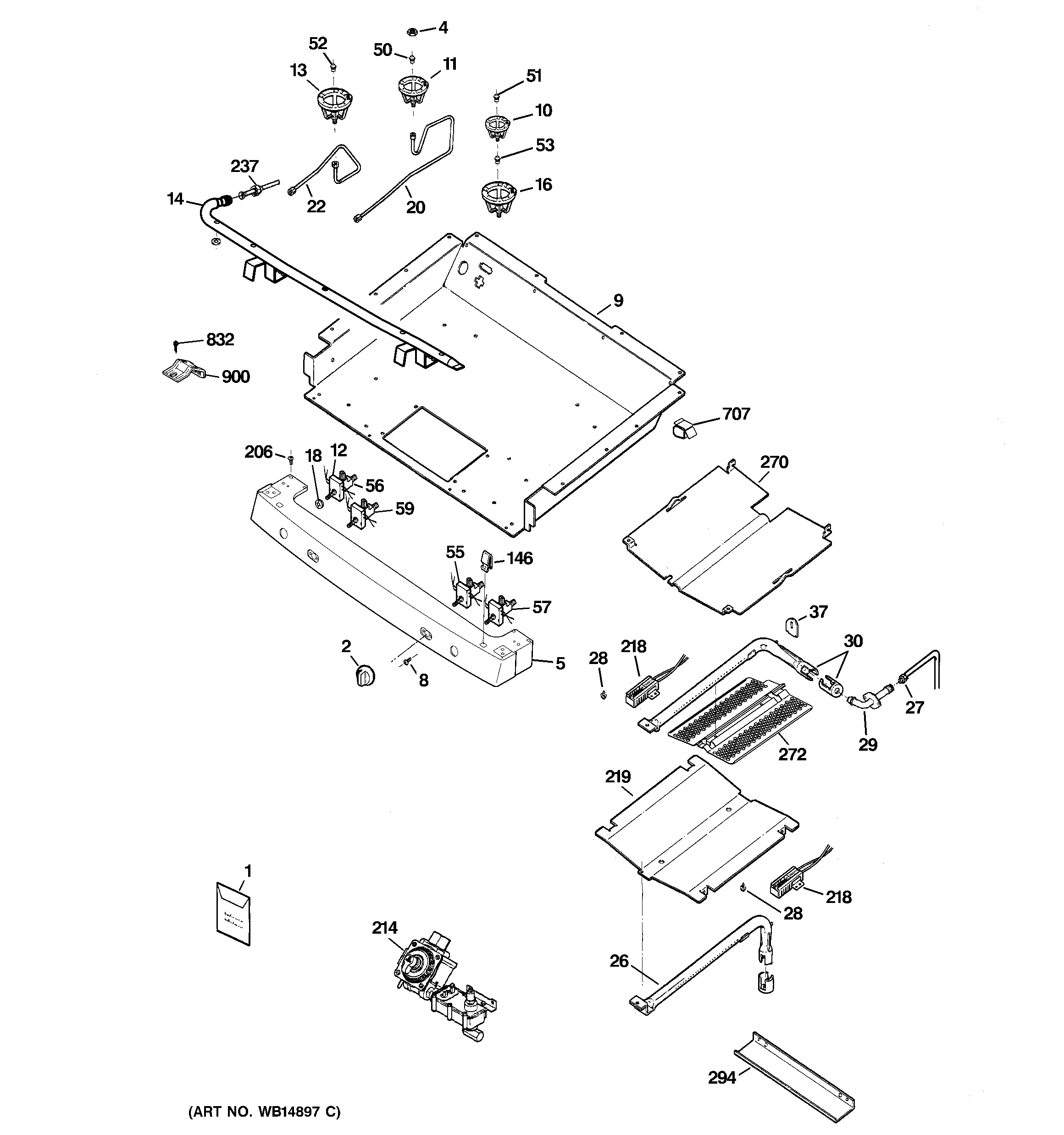

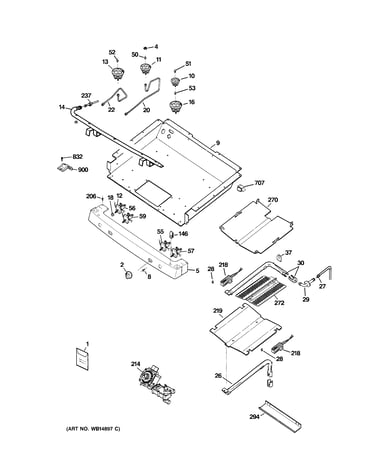

Gas & burner parts diagram

Oven igniter

Part #WB13K10026

Replaced by #WB13K21

?
Manufacturer substitution
This part replaces WB13K10026. Substitute parts can look different from the original.
BEST SELLER
$53.97 |
10% OFF Phone Price : $59.97
In Stock
40a15bulb STD372401
#235

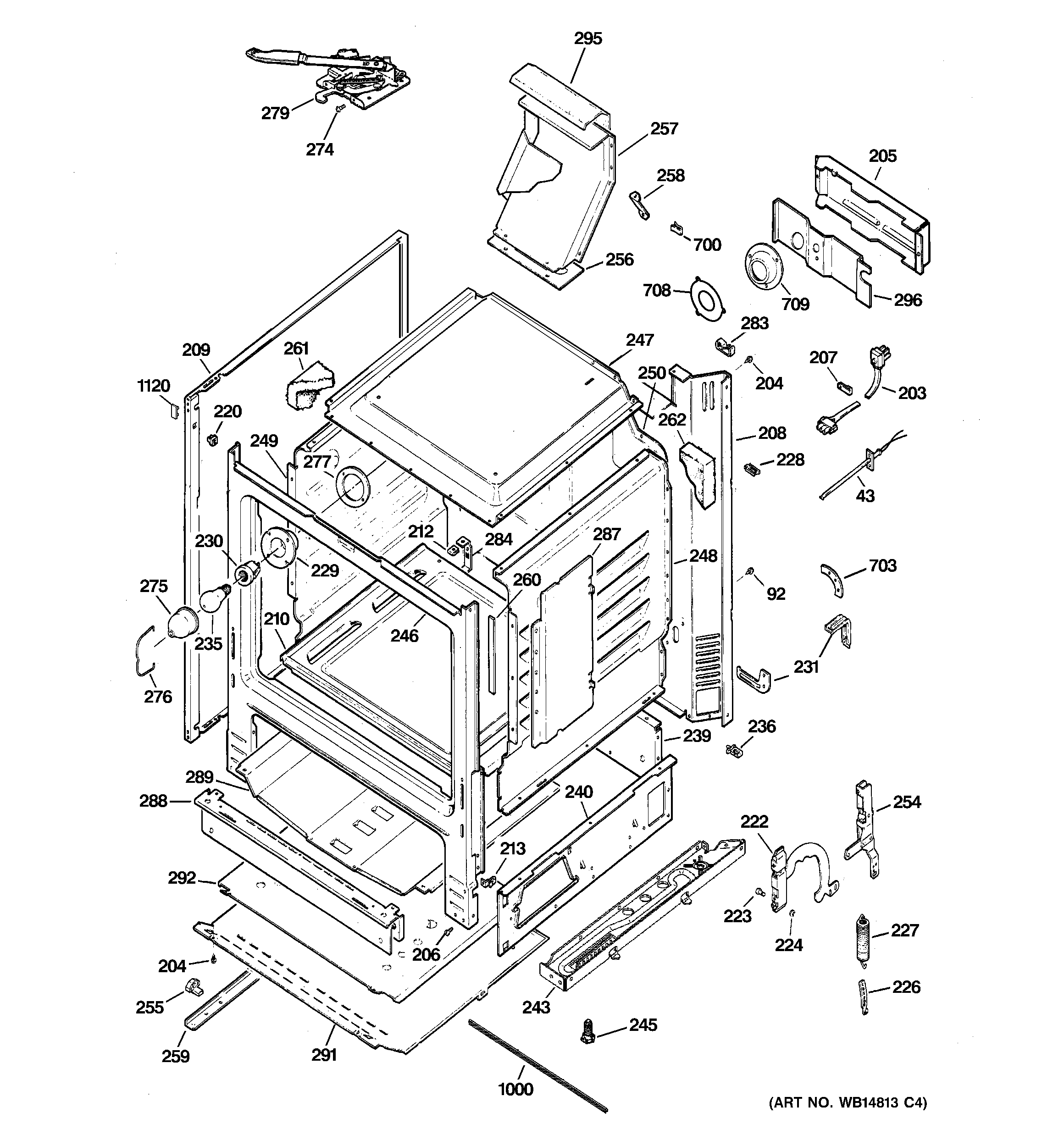

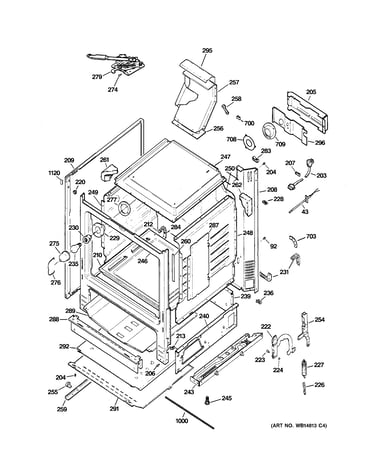

Body parts diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Range Bake Burner (replaces Wb16k0035, Wb16k29) WB16K10035
#26

Gas & burner parts diagram

Range bake burner (replaces wb16k0035, wb16k29)

Part #WB16K10035

BEST SELLER
$108.65 |
10% OFF Phone Price : $120.65
In Stock
Range Surface Burner Cap WB29K10024
#152

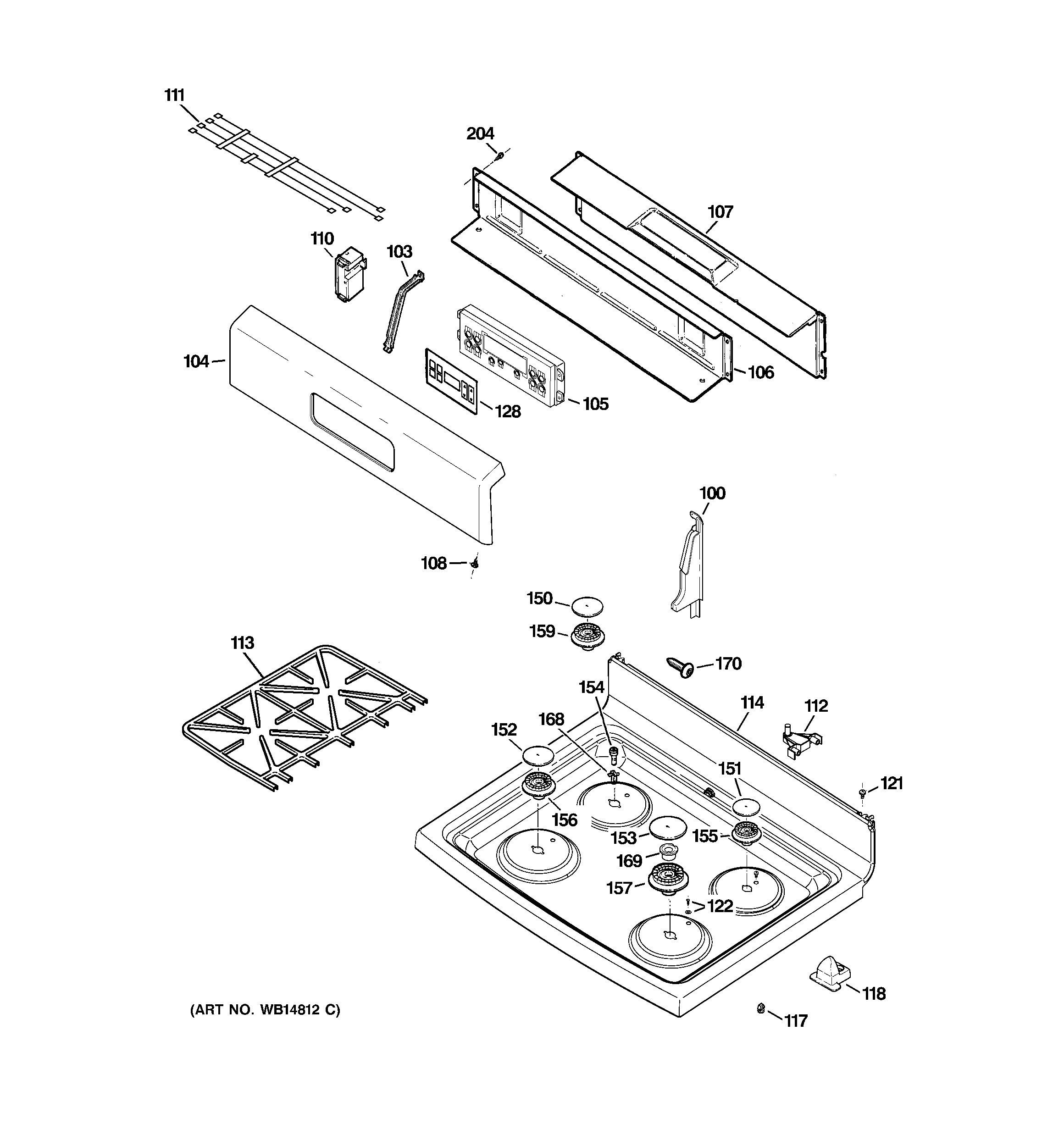

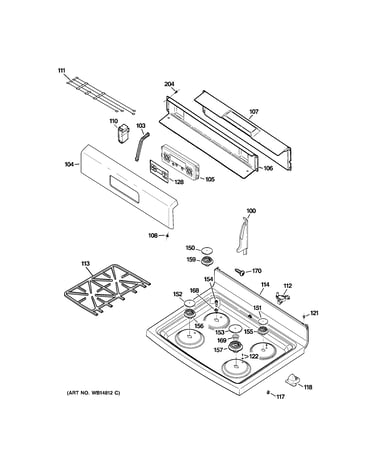

Control panel & cooktop diagram

Range surface burner cap

Part #WB29K10024

BEST SELLER
$11.33 |
15% OFF Phone Price : $13.33
In Stock
Range Oven Burner Igniter WB13K10020
#218

Gas & burner parts diagram

Range oven burner igniter

Part #WB13K10020

Replaced by #WB13X25261

?
Manufacturer substitution
This part replaces WB13K10020. Substitute parts can look different from the original.
BEST SELLER
$81.97 |
7% OFF Phone Price : $87.97
In Stock
Range Surface Burner Cap WB29K10022
#151

Control panel & cooktop diagram

Range surface burner cap

Part #WB29K10022

BEST SELLER
$7.24 |
12% OFF Phone Price : $8.24
In Stock
Range Surface Burner Head WB16T10046
#156

Control panel & cooktop diagram

Range surface burner head

Part #WB16T10046

BEST SELLER
$31.57 |
16% OFF Phone Price : $37.57
In Stock
Range Surface Burner Head (replaces Wb16k10044) WB16K10062
#157

Control panel & cooktop diagram

Range surface burner head (replaces wb16k10044)

Part #WB16K10062

$40.67 |
13% OFF Phone Price : $46.67
In Stock
Range Light Socket (replaces Wb08t10004) WB08T10026
#230

Body parts diagram

Range light socket (replaces wb08t10004)

Part #WB08T10026

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Hex Washer Head Screw WB01K0050
#28

Gas & burner parts diagram

Hex washer head screw

Part #WB01K0050

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces WB01K0050. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
