Frigidaire
Top-Mount Refrigerator

Model # LFHT1831QP4 Official Frigidaire refrigerator

Here are the diagrams and repair parts for Official Frigidaire LFHT1831QP4 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

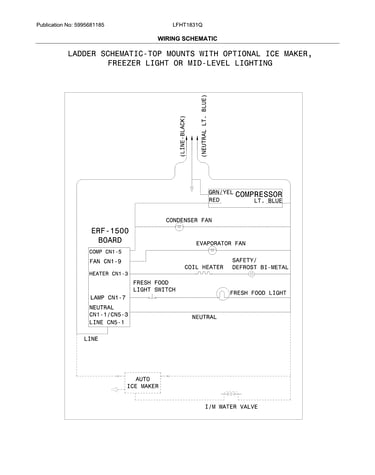

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 149 parts  |
Refrigerator Filter Dryer 242190205
#4

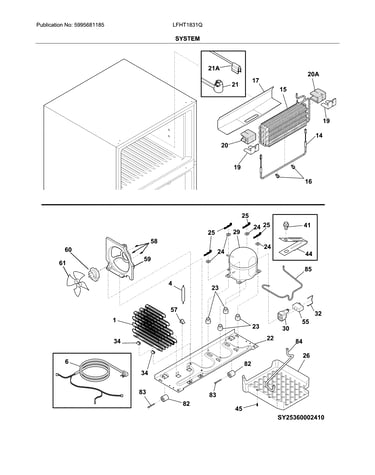

System diagram

Refrigerator filter dryer

Part #242190205

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 242190205. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Refrigerator Crisper Drawer (replaces 240337107, 240337108, 240337109) 240337103
#26

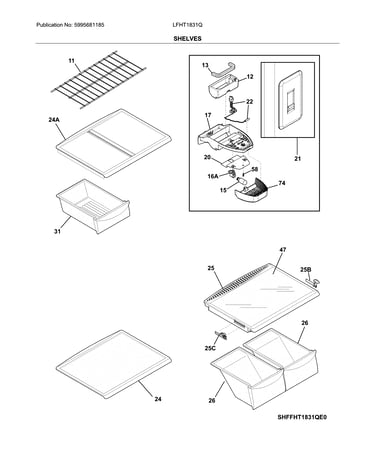

Shelves diagram

Refrigerator crisper drawer (replaces 240337107, 240337108, 240337109)

Part #240337103

BEST SELLER
$112.25 |
10% OFF Phone Price : $124.25
In Stock
Refrigerator Door Gallon Bin 240338001
#48B

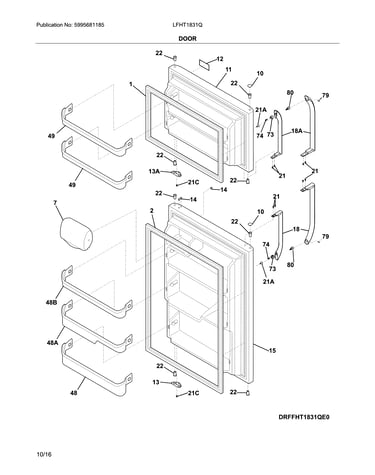

Dooor diagram

Refrigerator door gallon bin

Part #240338001

BEST SELLER
$42.36 |
12% OFF Phone Price : $48.36
In Stock
Refrigerator Door Bin 240337901
#48A

Dooor diagram

Refrigerator door bin

Part #240337901

BEST SELLER
$44.16 |
12% OFF Phone Price : $50.16
In Stock
Gibson Refrigerator Run Capacitor (replaces 216985001, 297286804) 297286803
#55

System diagram

Gibson refrigerator run capacitor (replaces 216985001, 297286804)

Part #297286803

BEST SELLER
$36.46 |
14% OFF Phone Price : $42.46
In Stock
Refrigerator Door Bin (replaces 240338104) 240338101
#48

Dooor diagram

Refrigerator door bin (replaces 240338104)

Part #240338101

BEST SELLER
$49.71 |
11% OFF Phone Price : $55.71
In Stock
Refrigerator Crisper Drawer Cover Frame (replaces 240364714, 240364725, 240364778, 240364794) 240364787
#25

Shelves diagram

Refrigerator crisper drawer cover frame (replaces 240364714, 240364725, 240364778, 240364794)

Part #240364787

BEST SELLER
$86.14 |
7% OFF Phone Price : $92.14
In Stock
Refrigerator Door Hinge Nylon Washer (replaces 240311301) 240311303
#34

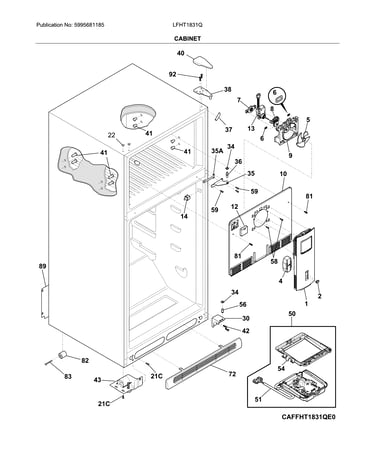

Cabinet diagram

Refrigerator door hinge nylon washer (replaces 240311301)

Part #240311303

BEST SELLER
$8.27 |
11% OFF Phone Price : $9.27
In Stock
Electrolux Refrigerator Condenser Fan Blade (replaces 241639501) 241639502
#61

System diagram

Electrolux refrigerator condenser fan blade (replaces 241639501)

Part #241639502

BEST SELLER
$21.49 |
22% OFF Phone Price : $27.49
In Stock
Refrigerator Door Gasket (black) 242193212
#2

Dooor diagram

Refrigerator door gasket (black)

Part #242193212

BEST SELLER
$126.95 |
9% OFF Phone Price : $138.95
In Stock
