Frigidaire
Upright Freezer

Model # FFU12M5CW0 Official Frigidaire freezer

Here are the diagrams and repair parts for Official Frigidaire FFU12M5CW0 freezer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Refrigerator Filter Dryer 5303305677
#4

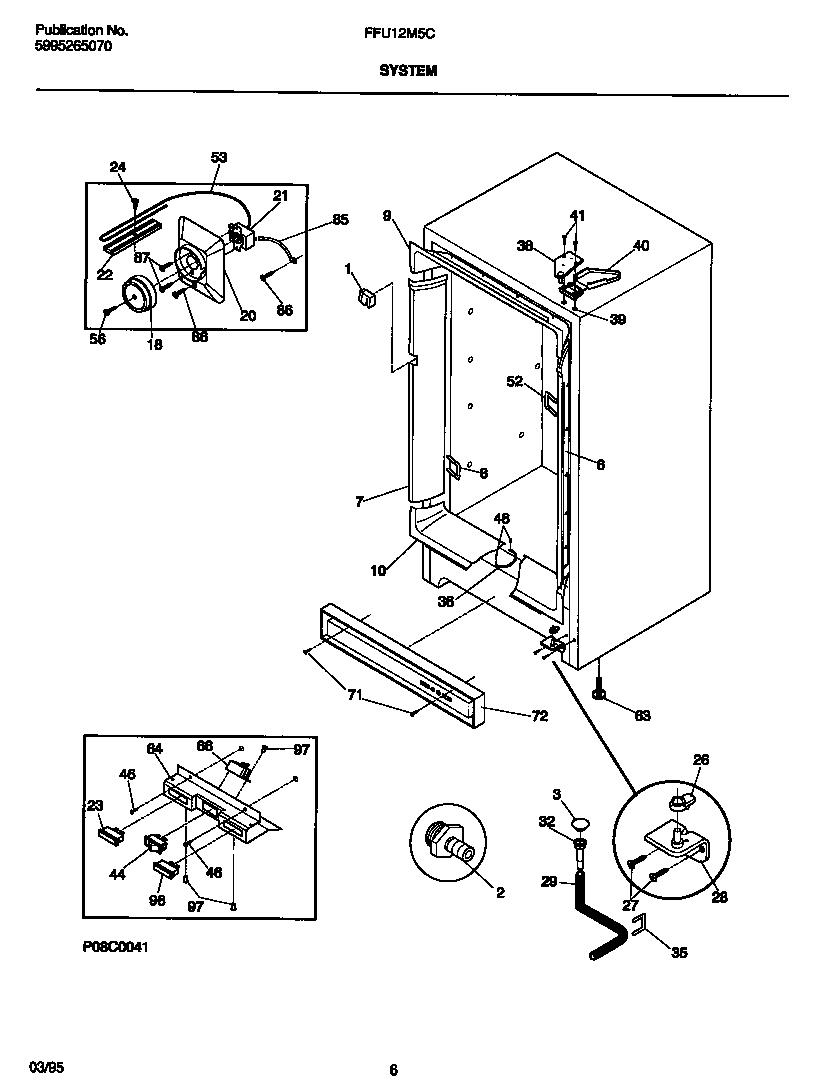

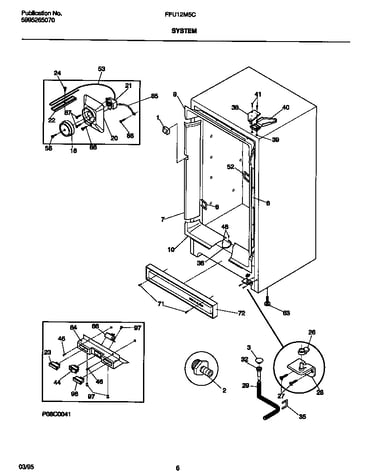

System diagram

Refrigerator filter dryer

Part #5303305677

BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Key 5308037402
#5

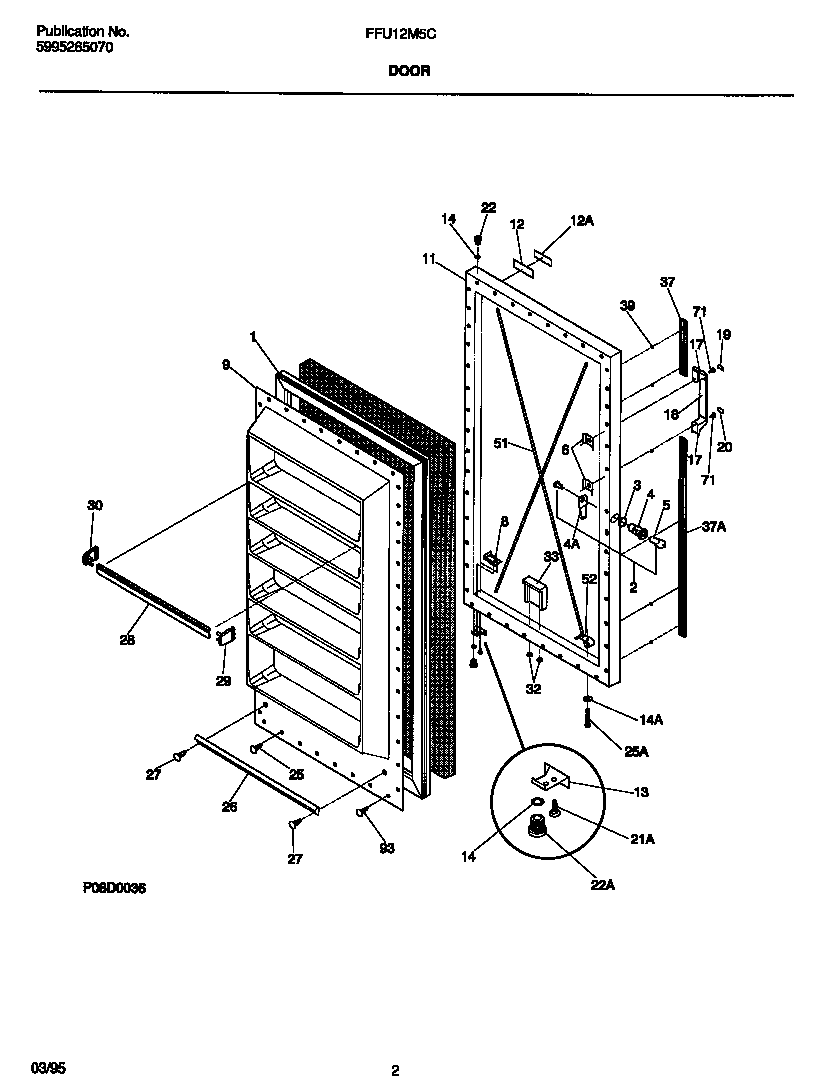

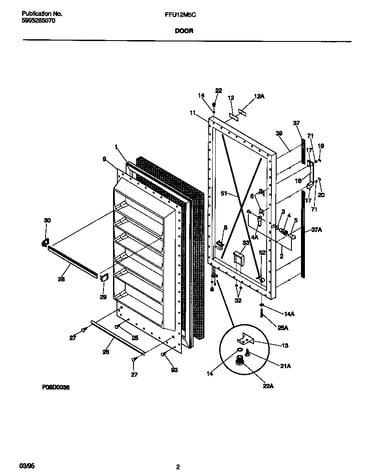

Door diagram

Key

Part #5308037402

Replaced by #297147700

?
Manufacturer substitution
This part replaces 5308037402. Substitute parts can look different from the original.
BEST SELLER
$9.25 |
10% OFF Phone Price : $10.25
In Stock
Capacitor 216236300
#55

System diagram

Capacitor

Part #216236300

Replaced by #5304464438

?
Manufacturer substitution
This part replaces 216236300. Substitute parts can look different from the original.
BEST SELLER
$47.29 |
11% OFF Phone Price : $53.29
In Stock
Hose 216313500
#29

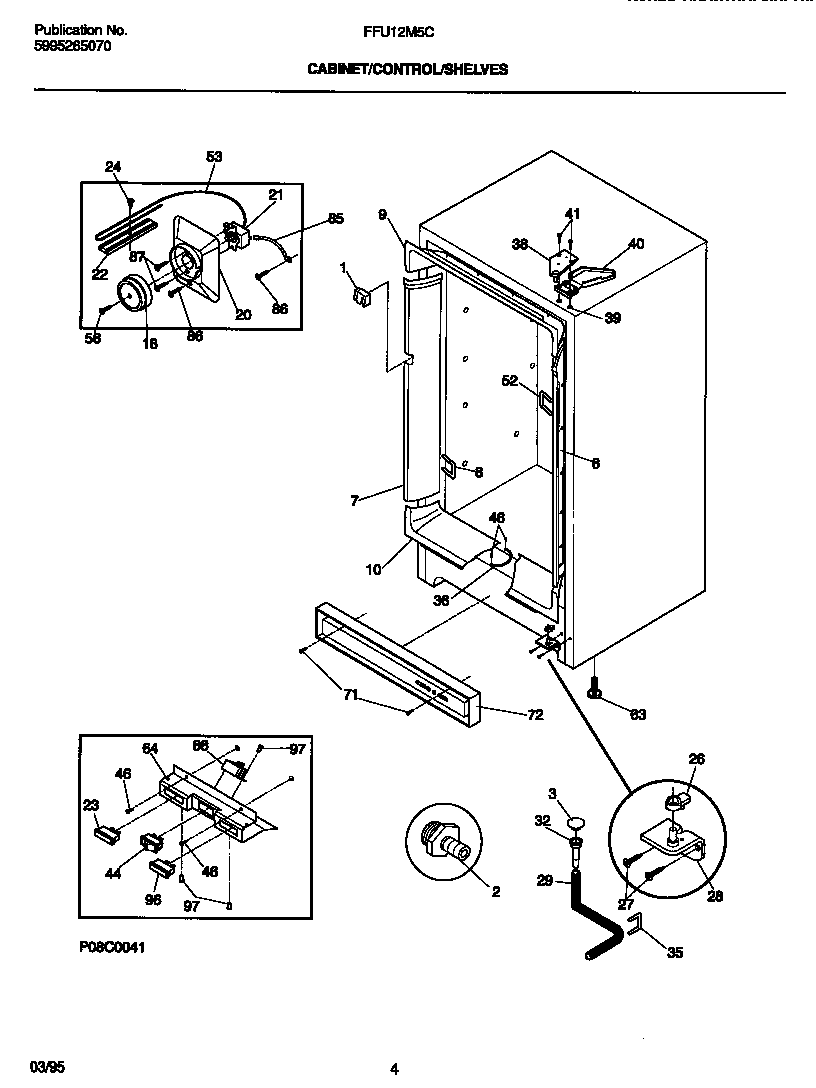

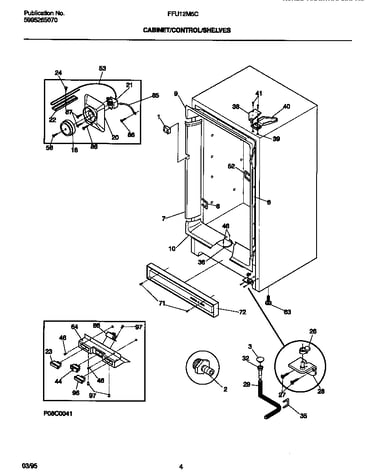

Cabinet/control/shelves diagram

Hose

Part #216313500

Replaced by #5304512272

?
Manufacturer substitution
This part replaces 216313500. Substitute parts can look different from the original.
This item is not returnable
$16.29 |
11% OFF Phone Price : $18.29
In Stock
Refrigerator Thermostat Sensor Barrier 5303916855
#53

System diagram

Refrigerator thermostat sensor barrier

Part #5303916855

$47.89 |
11% OFF Phone Price : $53.89
In Stock
Freezer Breather Valve 5309950074
#32

Door diagram

Freezer breather valve

Part #5309950074

This item is not returnable
$12.29 |
14% OFF Phone Price : $14.29
In Stock
Refrigerator Evaporator Cover Screw 08037851
Refrigerator evaporator cover screw

Part #08037851

This item is not returnable
$3.51
In Stock
Freezer Condenser Coil 5300123788
#1

System diagram

Freezer condenser coil

Part #5300123788

This item is not returnable
$449.87
In Stock
Freezer Breaker Strip Insulation 5303925098

#NI

All parts diagram

Freezer breaker strip insulation

Part #5303925098

$98.69 |
11% OFF Phone Price : $110.69
In Stock
Grommet 5308002681
#27

System diagram

Grommet

Part #5308002681

Replaced by #216498900

?
Manufacturer substitution
This part replaces 5308002681. Substitute parts can look different from the original.
This item is not returnable
$13.39 |
13% OFF Phone Price : $15.39
In Stock
