LXI
Compact Stereo System

Model # 38610050 Official LXI turntable

Here are the diagrams and repair parts for Official LXI 38610050 turntable, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

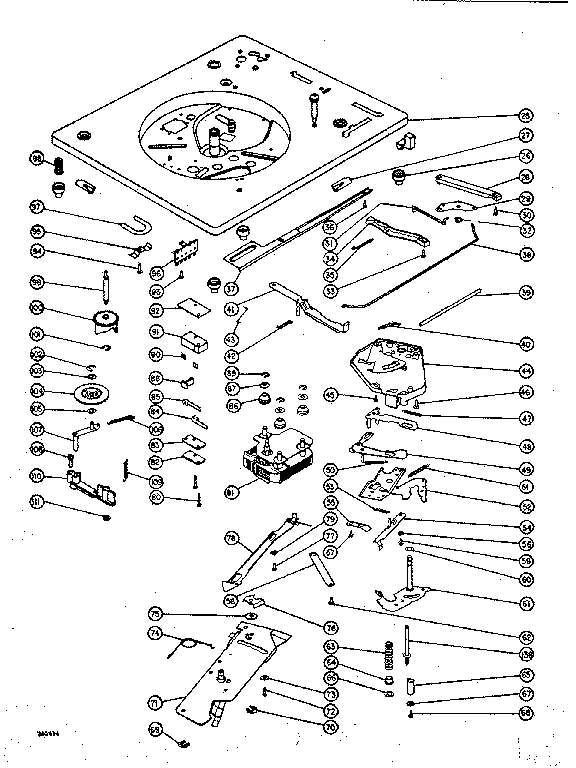

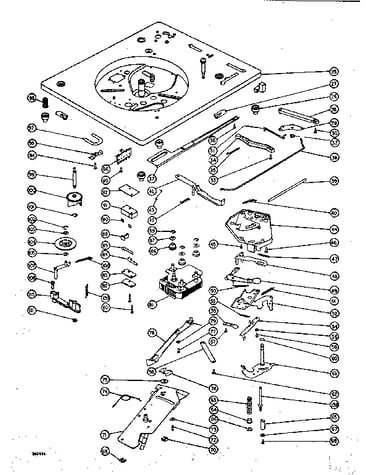

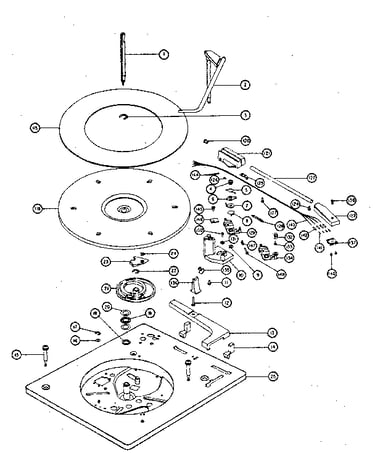

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 121 parts  |
Switch Link B.108152
Switch link

Part #B.108152

The manufacturer no longer makes this part, and there's no substitute part

Speed Change Sprindle A.108115
Speed change sprindle

Part #A.108115

The manufacturer no longer makes this part, and there's no substitute part

Spacer A.107967
Spacer

Part #A.107967

The manufacturer no longer makes this part, and there's no substitute part

Fibre Washer A.102541
Fibre washer

Part #A.102541

The manufacturer no longer makes this part, and there's no substitute part

Pick-up Rest A.107991
Pick-up rest

Part #A.107991

The manufacturer no longer makes this part, and there's no substitute part

Screw, Type 25-4-24 X 5/8" B.hd. (2 Off) A.106512
Screw, type 25-4-24 x 5/8" b.hd. (2 off)

Part #A.106512

The manufacturer no longer makes this part, and there's no substitute part

Retaining Clip (2 Off) A.102166
Retaining clip (2 off)

Part #A.102166

The manufacturer no longer makes this part, and there's no substitute part

Control Spindle Spring A.105985
Control spindle spring

Part #A.105985

The manufacturer no longer makes this part, and there's no substitute part

Screw, Type 25-4-24 X 3/8" C'sunk Hd. A.105268
Screw, type 25-4-24 x 3/8" c'sunk hd.

Part #A.105268

The manufacturer no longer makes this part, and there's no substitute part

Latch Assembly A.108007
Latch assembly

Part #A.108007

The manufacturer no longer makes this part, and there's no substitute part
