Kenmore
Washer

Model # 11074450100 Official Kenmore compact portable washer (white)

Here are the diagrams and repair parts for Official Kenmore 11074450100 compact portable washer (white), as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 126 parts  |
Gasket 96690
#15

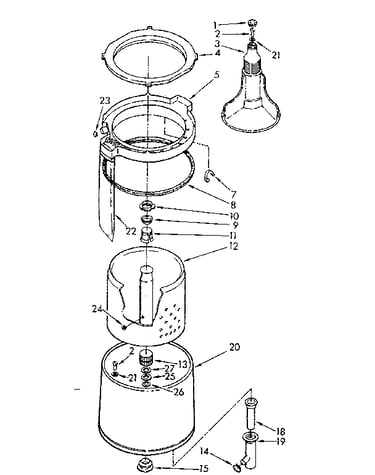

Tub and basket assembly diagram

Gasket

Part #96690

Replaced by #W10814296

?
Manufacturer substitution
This part replaces 96690. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.69 |
21% OFF Phone Price : $4.69
In Stock
Lid Switch 364090
#23

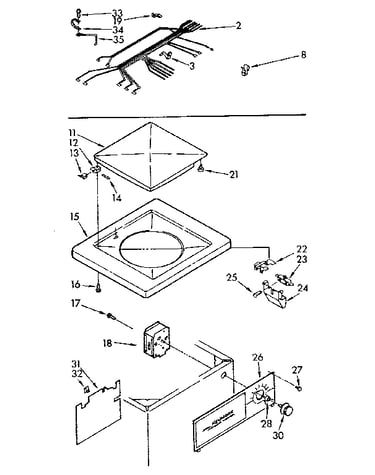

Top and control assembly diagram

Lid switch

Part #364090

Replaced by #W10820036

?
Manufacturer substitution
This part replaces 364090. Substitute parts can look different from the original.
BEST SELLER
$24.95 |
19% OFF Phone Price : $30.95
In Stock
Screw 343641
#31

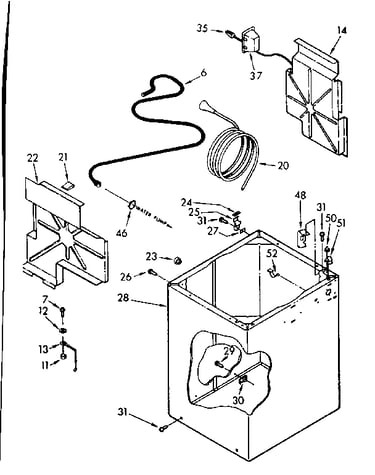

Cabinet parts diagram

Screw

Part #343641

Replaced by #WP681414

?
Manufacturer substitution
This part replaces 343641. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Clip 90016
#3

Top and control assembly diagram

Clip

Part #90016

Replaced by #WP90016

?
Manufacturer substitution
This part replaces 90016. Substitute parts can look different from the original.
This item is not returnable
$7.55 |
12% OFF Phone Price : $8.55
In Stock
Water Pump 370402

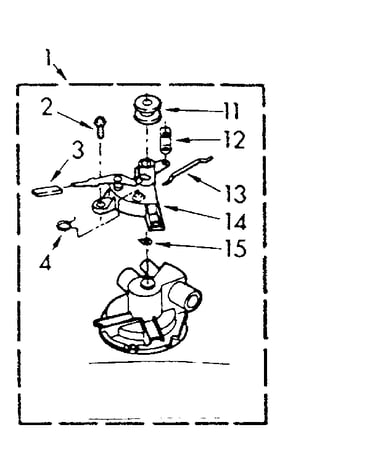

Water pump

Part #370402

Replaced by #350365

?
Manufacturer substitution
This part replaces 370402. Substitute parts can look different from the original.
$96.96 |
11% OFF Phone Price : $108.96
In Stock
Bearing 54207
#32

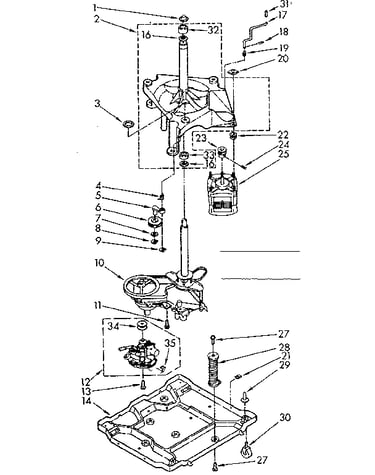

Drive system diagram

Bearing

Part #54207

Replaced by #WP8546455

?
Manufacturer substitution
This part replaces 54207. Substitute parts can look different from the original.
$16.59 |
11% OFF Phone Price : $18.59
In Stock
Washer Lid Hinge Bumper 18849
#24

Cabinet parts diagram

Washer lid hinge bumper

Part #18849

$16.79 |
11% OFF Phone Price : $18.79
In Stock
Washer Drain-off Tube 356398
#22

Tub and basket assembly diagram

Washer drain-off tube

Part #356398

$32.89 |
15% OFF Phone Price : $38.89
In Stock
Screw 90864
#7

Cabinet parts diagram

Screw

Part #90864

Replaced by #WP3351614

?
Manufacturer substitution
This part replaces 90864. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Bearing 354195
#33

Drive system diagram

Bearing

Part #354195

Replaced by #WP359397

?
Manufacturer substitution
This part replaces 354195. Substitute parts can look different from the original.
$11.04
In Stock
