Whirlpool
Side-By-Side Refrigerator

Model # 4YED22PWBW00 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool 4YED22PWBW00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

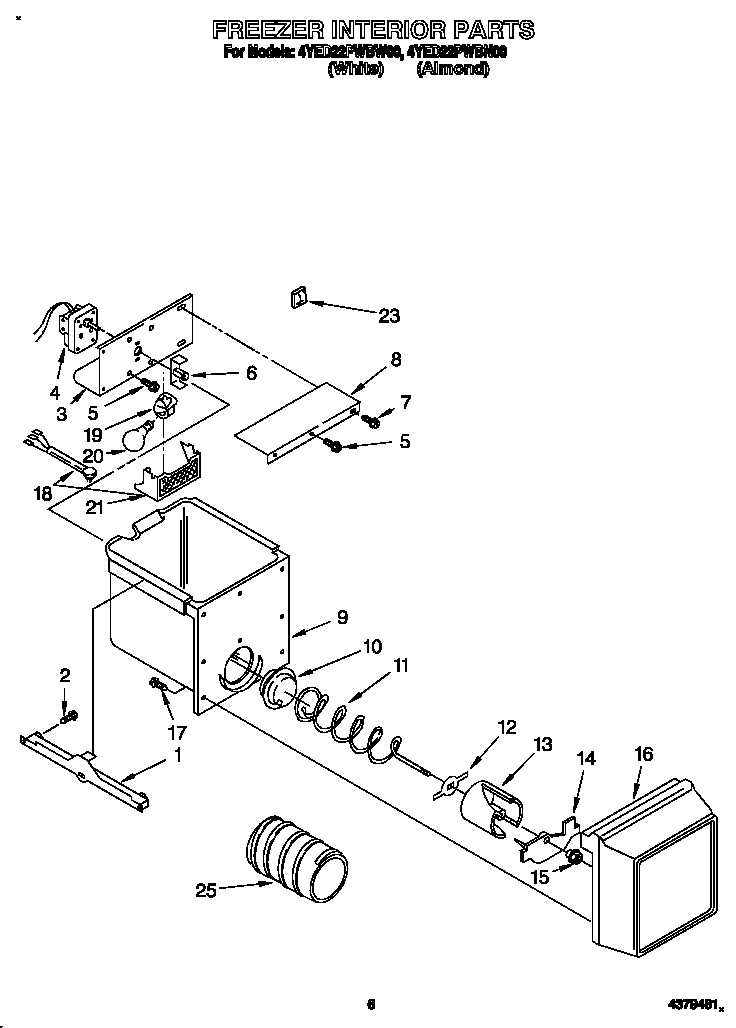

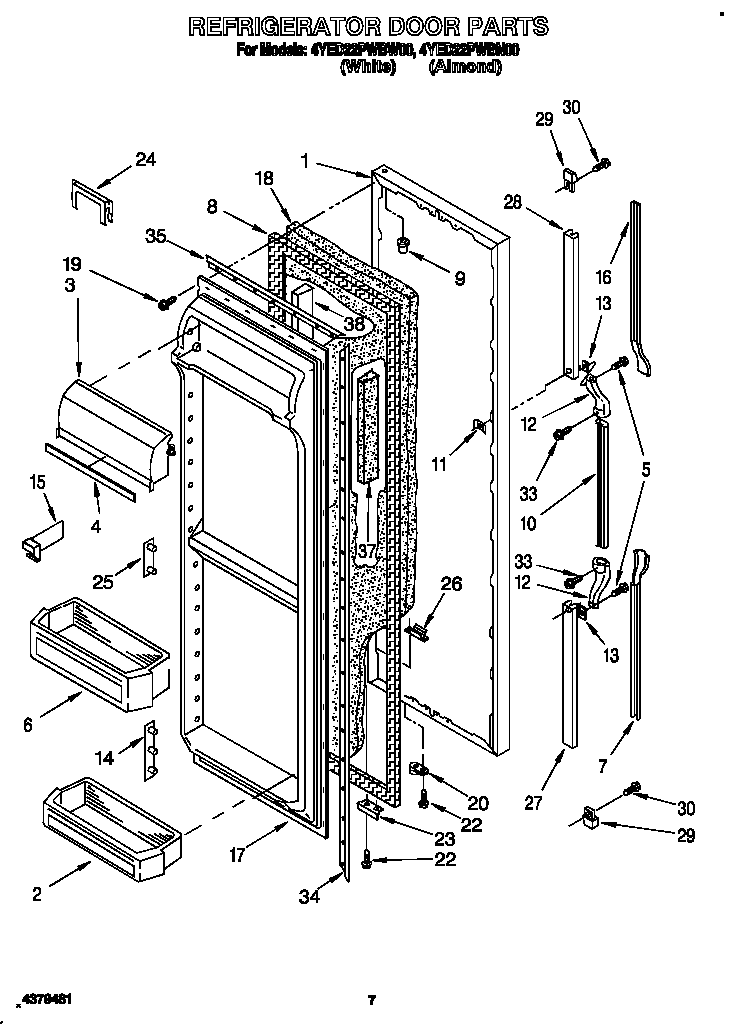

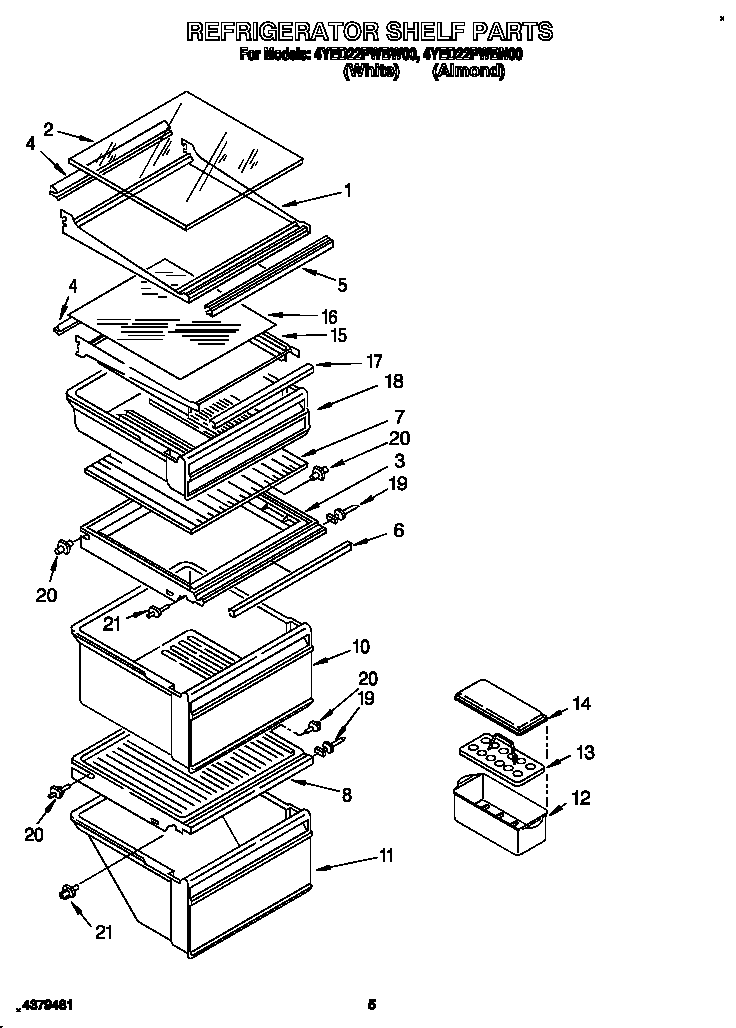

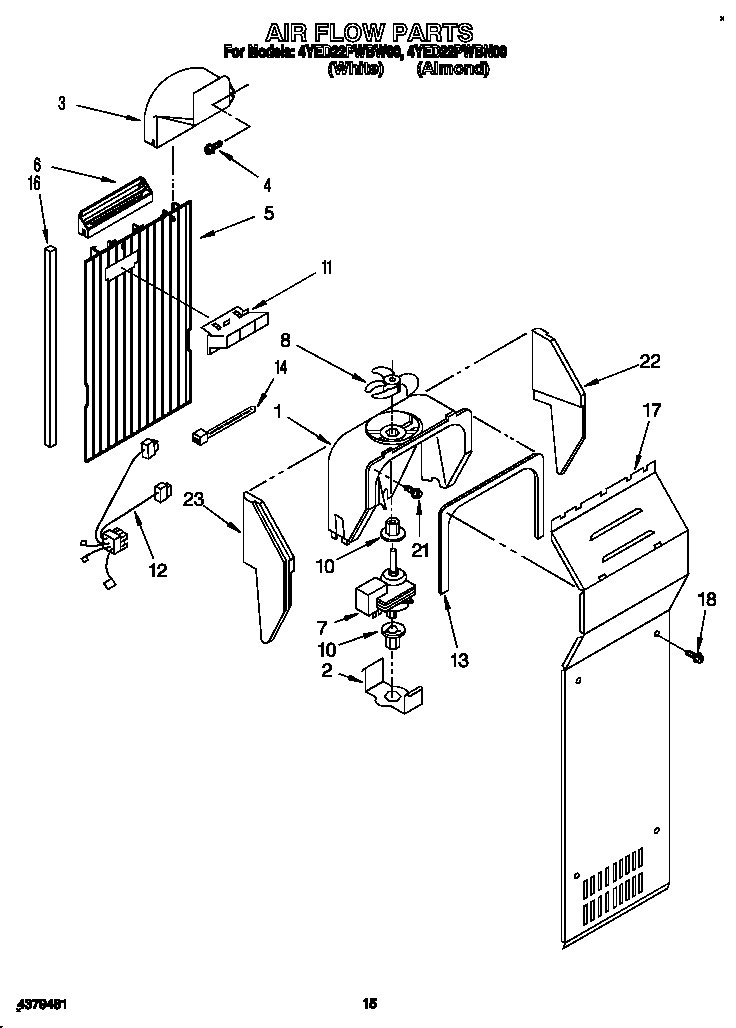

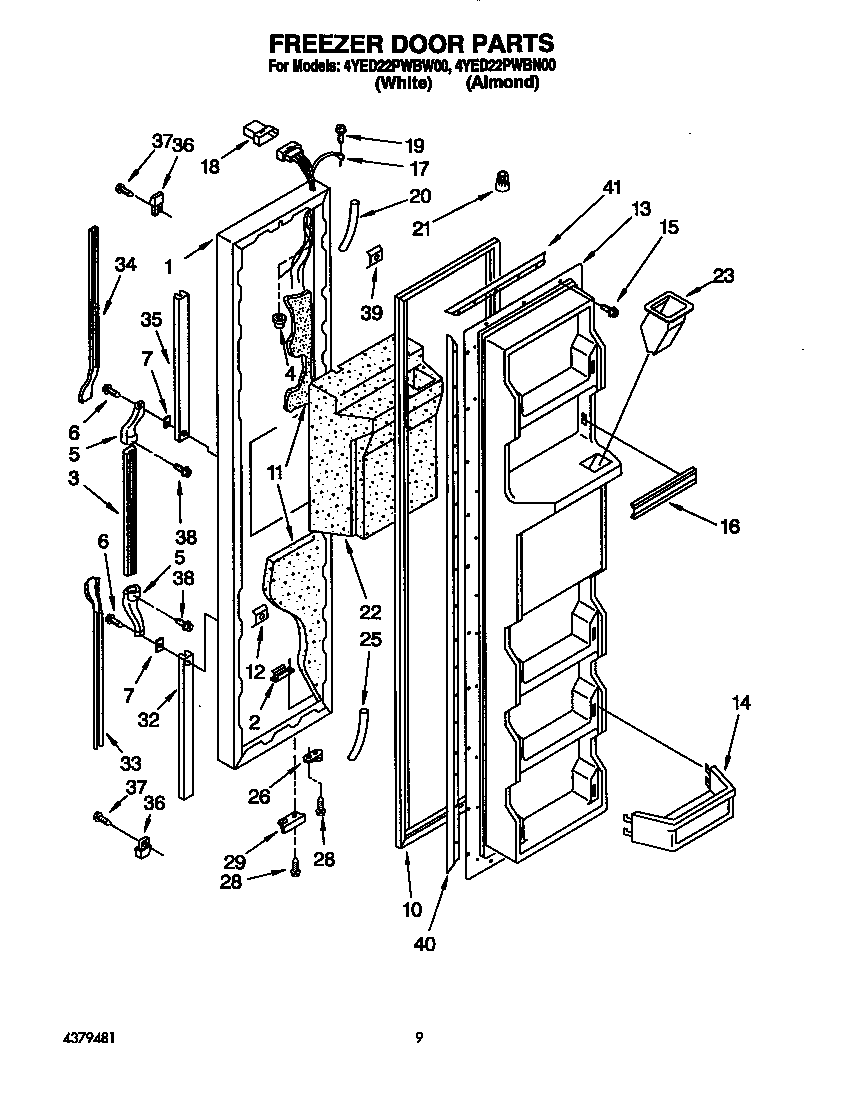

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 366 parts  |
Refrigerator Thermostat 2169113
#9

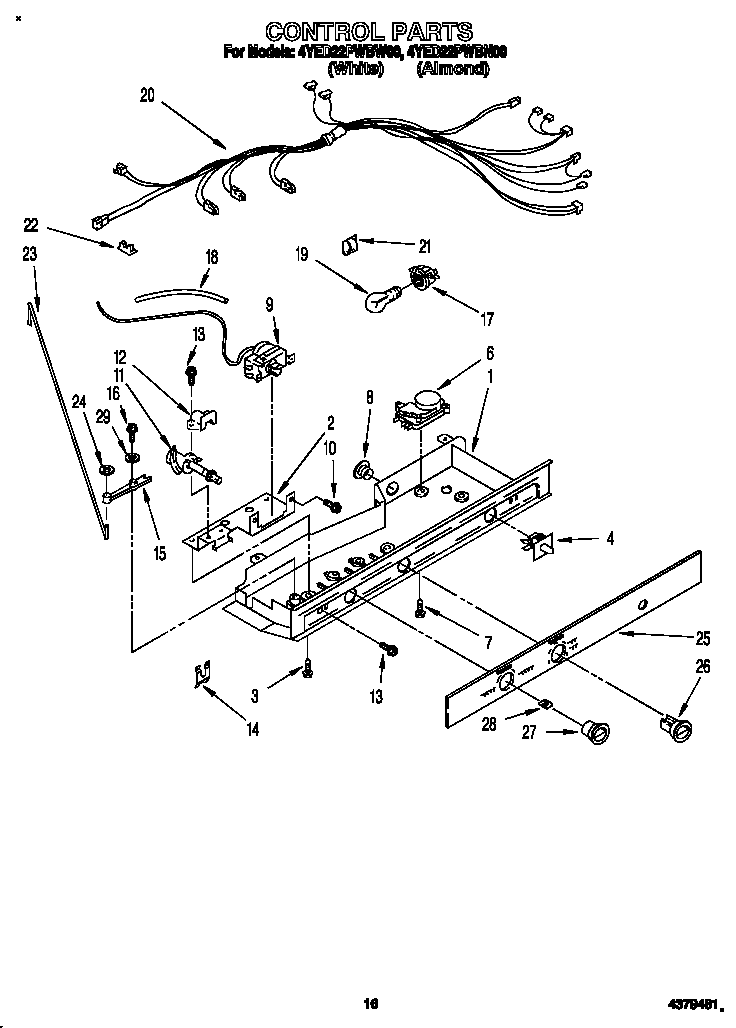

Control diagram

Refrigerator thermostat

Part #2169113

Replaced by #WP2198202

?
Manufacturer substitution
This part replaces 2169113. Substitute parts can look different from the original.
BEST SELLER
$67.73 |
8% OFF Phone Price : $73.73
In Stock
Refrigerator Defrost Bi-metal 2161331
#35

Unit diagram

Refrigerator defrost bi-metal

Part #2161331

Replaced by #WPW10225581

?
Manufacturer substitution
This part replaces 2161331. Substitute parts can look different from the original.
BEST SELLER
$31.46 |
16% OFF Phone Price : $37.46
In Stock
Refrigerator Door Cam (black) 2155309
#54

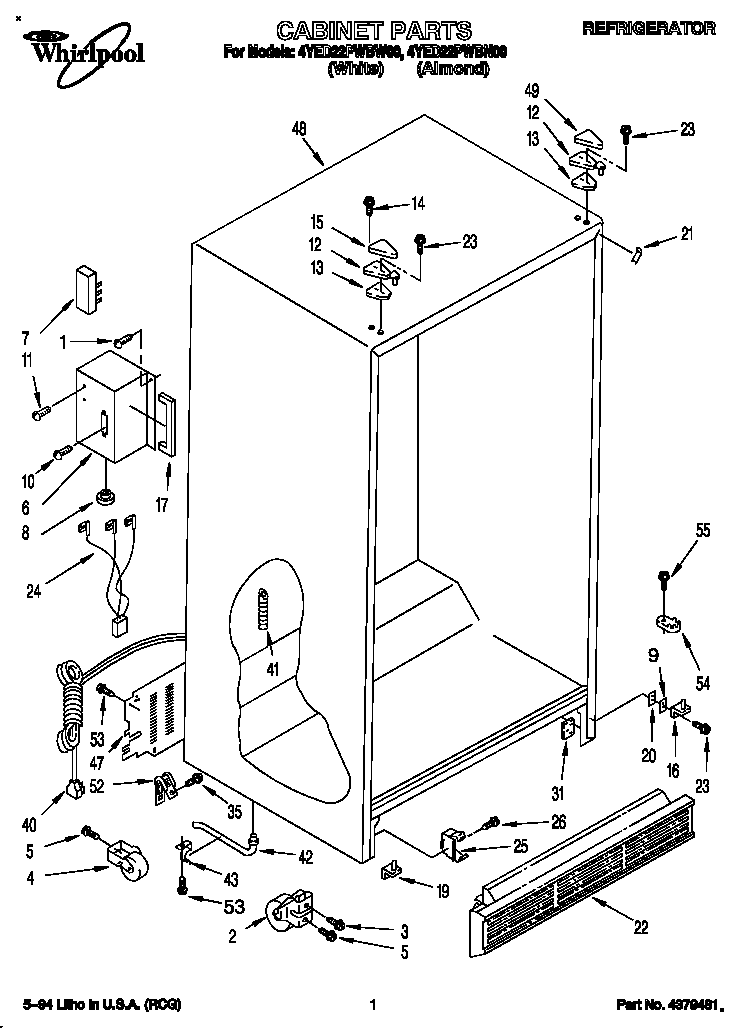

Cabinet diagram

Refrigerator door cam (black)

Part #2155309

Replaced by #WPW10329686

?
Manufacturer substitution
This part replaces 2155309. Substitute parts can look different from the original.
BEST SELLER
$10.54 |
16% OFF Phone Price : $12.54
In Stock
Drier Tube 2164409
#27

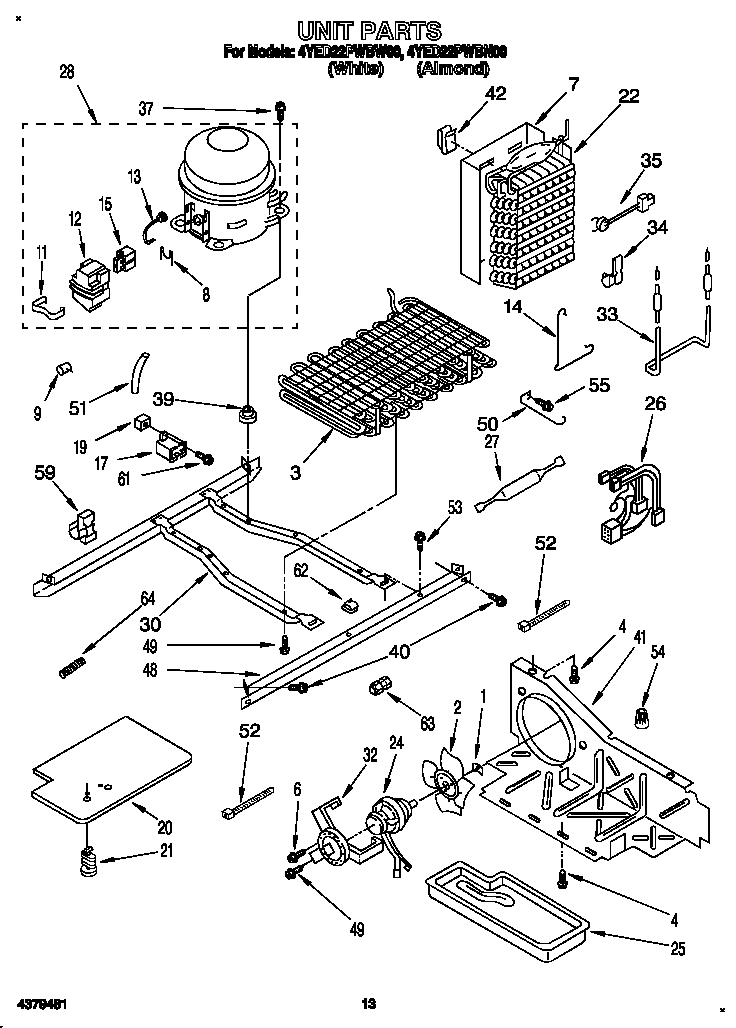

Unit diagram

Drier tube

Part #2164409

Replaced by #W10843121

?
Manufacturer substitution
This part replaces 2164409. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Water Tube 1108197
#7

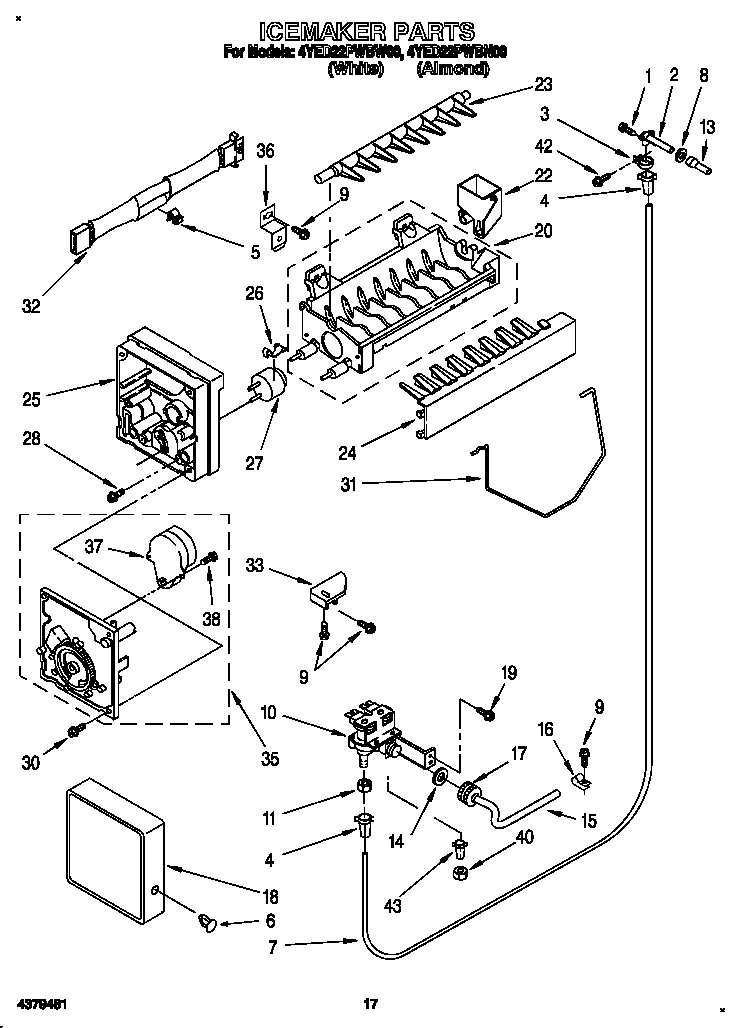

Icemaker diagram

Refrigerator water tube

Part #1108197

Replaced by #W10823511

?
Manufacturer substitution
This part replaces 1108197. Substitute parts can look different from the original.
BEST SELLER
$33.27 |
15% OFF Phone Price : $39.27
In Stock
Refrigerator Dispenser Switch 2162361
#31

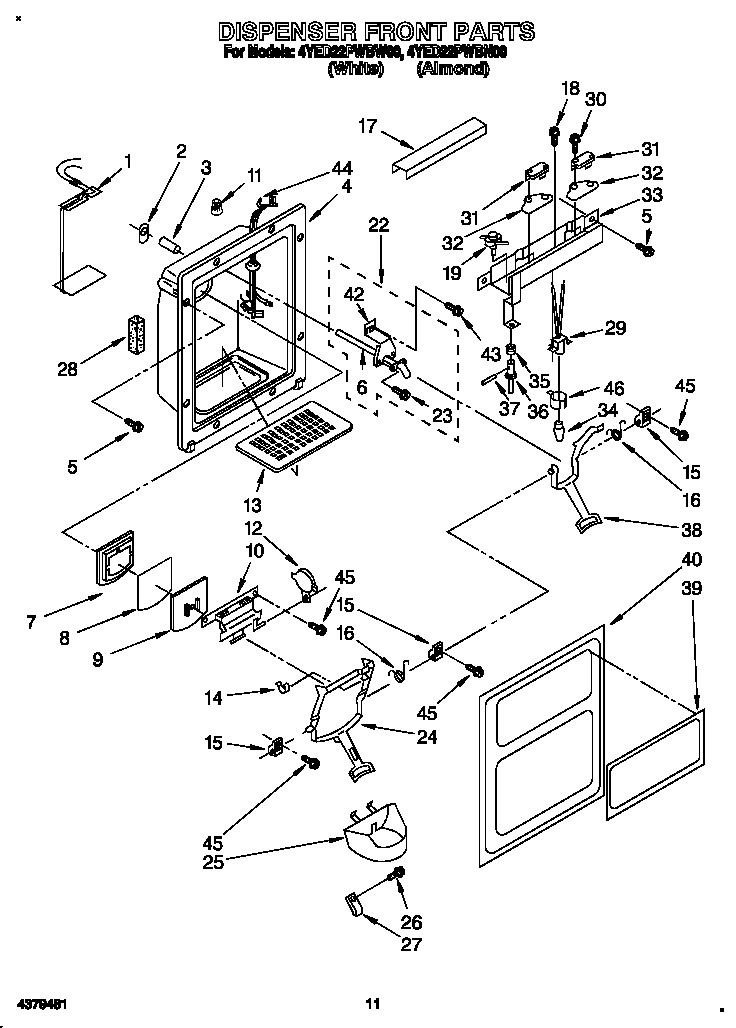

Dispenser front diagram

Refrigerator dispenser switch

Part #2162361

Replaced by #WP2162361

?
Manufacturer substitution
This part replaces 2162361. Substitute parts can look different from the original.
BEST SELLER
$19.03 |
10% OFF Phone Price : $21.03
In Stock
Refrigerator Water Reservoir 2155290
#31

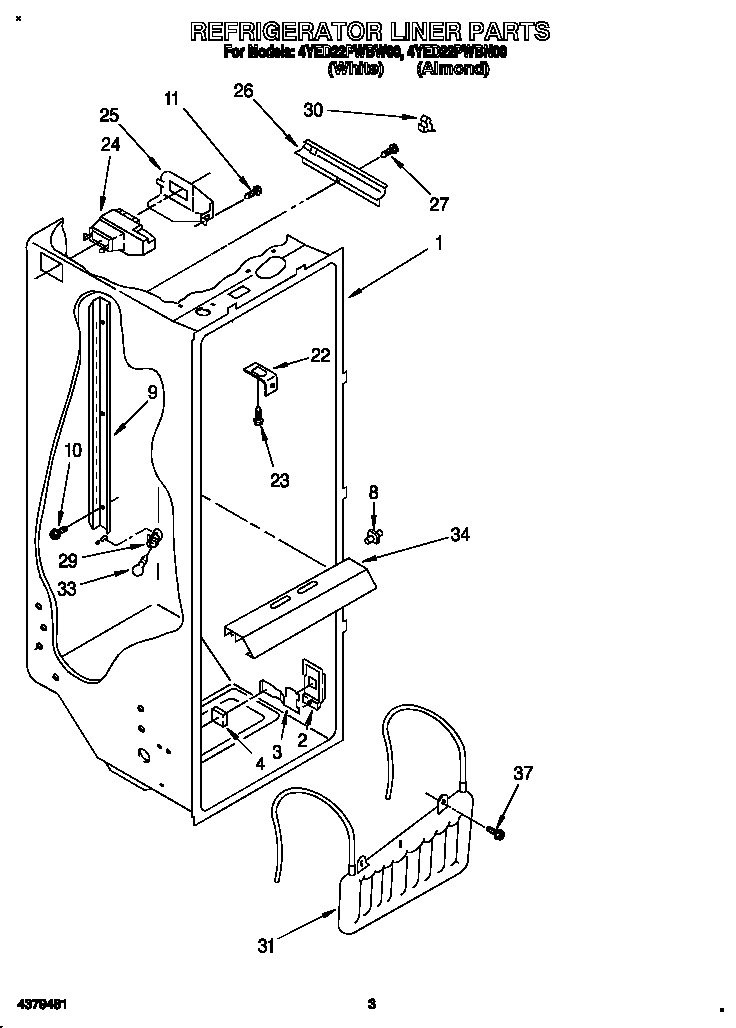

Refrigerator liner diagram

Refrigerator water reservoir

Part #2155290

Replaced by #WP2256126

?
Manufacturer substitution
This part replaces 2155290. Substitute parts can look different from the original.
BEST SELLER
$72.51 |
8% OFF Phone Price : $78.51
In Stock
Refrigerator Door Switch 2149705
#4

Control diagram

Refrigerator door switch

Part #2149705

Replaced by #WP2149705

?
Manufacturer substitution
This part replaces 2149705. Substitute parts can look different from the original.
BEST SELLER
$27.81 |
18% OFF Phone Price : $33.81
In Stock
Refrigerator Door Cam (black) 2155312
Refrigerator door cam (black)

Part #2155312

Replaced by #4318165

?
Manufacturer substitution
This part replaces 2155312. Substitute parts can look different from the original.
BEST SELLER
$13.51 |
13% OFF Phone Price : $15.51
In Stock
Refrigerator Freeer Door Switch 1115373
#19

Freezer liner diagram

Refrigerator freeer door switch

Part #1115373

Replaced by #W11457217

?
Manufacturer substitution
This part replaces 1115373. Substitute parts can look different from the original.
BEST SELLER
$24.79 |
19% OFF Phone Price : $30.79
In Stock
