Faucet Water Filter

Model # 625340250 Official Kenmore water filter

Here are the diagrams and repair parts for Official Kenmore 625340250 water filter, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Washer 900570
#12

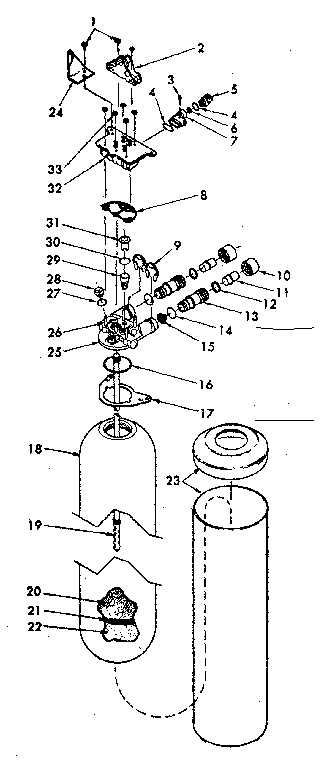

Tank filter diagram

Washer

Part #900570

Replaced by #7170335

?
Manufacturer substitution
This part replaces 900570. Substitute parts can look different from the original.
This item is not returnable
$9.39 |
10% OFF Phone Price : $10.39
In Stock
Water Filtration System Filtering Sand, 10-lb 501783
#21

Tank filter diagram

Water filtration system filtering sand, 10-lb

Part #501783

Replaced by #0501783

?
Manufacturer substitution
This part replaces 501783. Substitute parts can look different from the original.
$30.59 |
16% OFF Phone Price : $36.59
In Stock
Tube 507615
#11

Tank filter diagram

Tube

Part #507615

Replaced by #0507615

?
Manufacturer substitution
This part replaces 507615. Substitute parts can look different from the original.
This item is not returnable
$19.86 |
9% OFF Phone Price : $21.86
In Stock
Flow Washer 509537
#6

Tank filter diagram

Flow washer

Part #509537

Replaced by #0509537

?
Manufacturer substitution
This part replaces 509537. Substitute parts can look different from the original.
$15.71
In Stock
Icp Bearing 7011434
#47

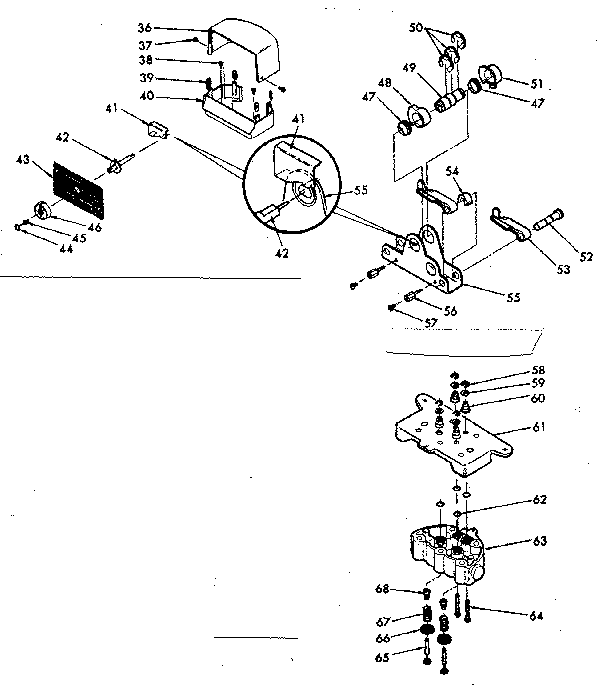

Covers, face place & connecting parts & cam nest/valve cap diagram

Icp bearing

Part #7011434

This item is not returnable
$2.99
In Stock
Spring (gray) 1219600
#67

Covers, face place & connecting parts & cam nest/valve cap diagram

Spring (gray)

Part #1219600

$7.86
In Stock
Screw 900300
#57

Covers, face place & connecting parts & cam nest/valve cap diagram

Screw

Part #900300

Replaced by #0900300

?
Manufacturer substitution
This part replaces 900300. Substitute parts can look different from the original.
$7.86
In Stock
Clip 1205500
#9

Tank filter diagram

Clip

Part #1205500

Replaced by #7116713

?
Manufacturer substitution
This part replaces 1205500. Substitute parts can look different from the original.
$19.86 |
9% OFF Phone Price : $21.86
In Stock
Gravel 501782
#22

Tank filter diagram

Gravel

Part #501782

Replaced by #7124415

?
Manufacturer substitution
This part replaces 501782. Substitute parts can look different from the original.
$30.58 |
16% OFF Phone Price : $36.58
In Stock
O-ring 900124
#62

Covers, face place & connecting parts & cam nest/valve cap diagram

O-ring

Part #900124

Replaced by #0900124

?
Manufacturer substitution
This part replaces 900124. Substitute parts can look different from the original.
$9.83
In Stock
