Model # 62413 Official Craftsman electric winch

Here are the diagrams and repair parts for Official Craftsman 62413 electric winch, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Lcknts 79712
#38

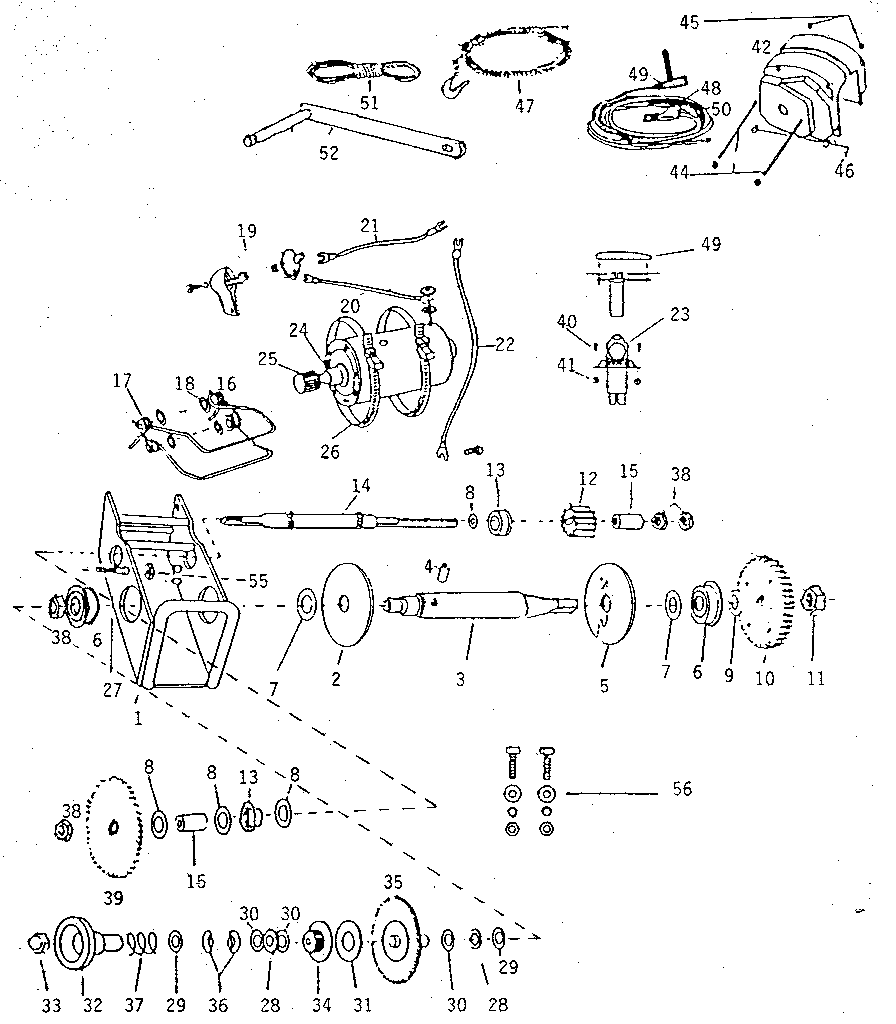

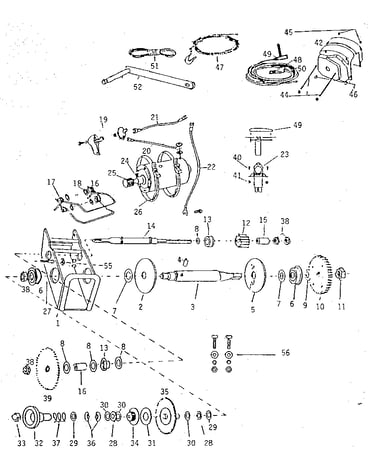

Electric winch diagram

Lcknts

Part #79712

The manufacturer no longer makes this part, and there's no substitute part

Socket 78103
#23

Electric winch diagram

Socket

Part #78103

The manufacturer no longer makes this part, and there's no substitute part

Frame 70133
#1

Electric winch diagram

Frame

Part #70133

The manufacturer no longer makes this part, and there's no substitute part

Screw 79584
#46

Electric winch diagram

Screw

Part #79584

The manufacturer no longer makes this part, and there's no substitute part

Plug 78105
#49

Electric winch diagram

Plug

Part #78105

The manufacturer no longer makes this part, and there's no substitute part

Spring Washer 79800
#36

Electric winch diagram

Spring washer

Part #79800

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual 712A

#NI

All parts diagram

Owner's manual

Part #712A

The manufacturer no longer makes this part, and there's no substitute part

Nut 79719
#45

Electric winch diagram

Nut

Part #79719

The manufacturer no longer makes this part, and there's no substitute part

Gear 71703
#39

Electric winch diagram

Gear

Part #71703

The manufacturer no longer makes this part, and there's no substitute part

Cable 71866
#47

Electric winch diagram

Cable

Part #71866

The manufacturer no longer makes this part, and there's no substitute part
