Model # 56561401 Official Kenmore blower-type side-discharge air cooler

Here are the diagrams and repair parts for Official Kenmore 56561401 blower-type side-discharge air cooler, as well as links to manuals and error code tables, if available.

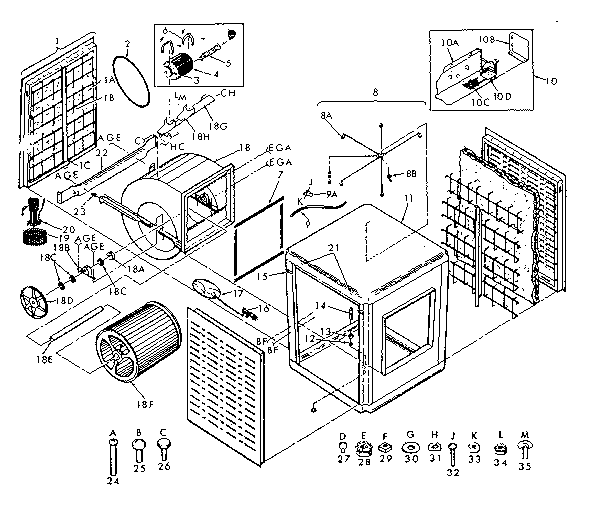

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for56561401 Blower-Type Side-Discharge Air Cooler

  • Latch Pad P9-785-114
    #15

    Functional replacement parts diagram

    Latch pad

    Part #P9-785-114

    The manufacturer no longer makes this part, and there's no substitute part

  • Pump A4-161
    #20

    Functional replacement parts diagram

    Pump

    Part #A4-161

    The manufacturer no longer makes this part, and there's no substitute part

  • Shaft M8-136-2
    #18EA

    Functional replacement parts diagram

    Shaft

    Part #M8-136-2

    The manufacturer no longer makes this part, and there's no substitute part

  • Pulley P5-229
    #18DA

    Functional replacement parts diagram

    Pulley

    Part #P5-229

    The manufacturer no longer makes this part, and there's no substitute part

  • Sheave P5-109
    #3A

    Functional replacement parts diagram

    Sheave

    Part #P5-109

    The manufacturer no longer makes this part, and there's no substitute part

  • Cabinet A1-1143-224
    #11B

    Functional replacement parts diagram

    Cabinet

    Part #A1-1143-224

    The manufacturer no longer makes this part, and there's no substitute part

  • Cradle M8-461
    #18H

    Functional replacement parts diagram

    Cradle

    Part #M8-461

    The manufacturer no longer makes this part, and there's no substitute part

  • Belt (68") 565.61431 565.61441 P3-109
    #2A

    Functional replacement parts diagram

    Belt (68") 565.61431 565.61441

    Part #P3-109

    The manufacturer no longer makes this part, and there's no substitute part

  • Standpipe P3-714-1
    #14

    Functional replacement parts diagram

    Standpipe

    Part #P3-714-1

    The manufacturer no longer makes this part, and there's no substitute part

  • Recptcle Bx A7-221-814
    #10

    Functional replacement parts diagram

    Recptcle bx

    Part #A7-221-814

    The manufacturer no longer makes this part, and there's no substitute part
