Kenmore
Refrigerator

Model # 2537677860 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 2537677860 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

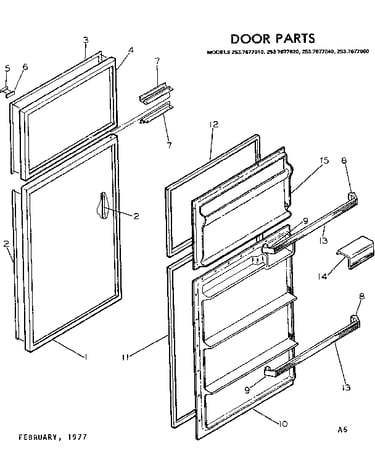

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 182 parts  |
Refrigerator Ice Maker 482394

#NI

All parts diagram

Refrigerator ice maker

Part #482394

Replaced by #4317943

?
Manufacturer substitution
This part replaces 482394. Substitute parts can look different from the original.
BEST SELLER
$93.89 |
6% OFF Phone Price : $99.89
In Stock
Drier 133132
#14

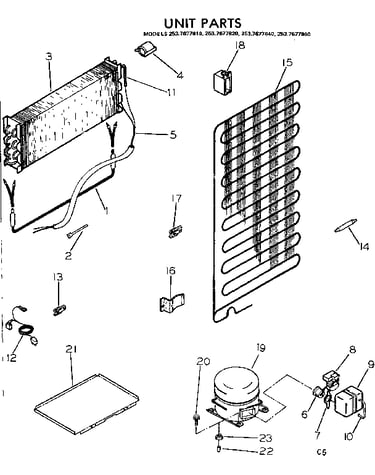

Unit parts diagram

Drier

Part #133132

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 133132. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Refrigerator Screw 163980
Refrigerator screw

Part #163980

Replaced by #5304455650

?
Manufacturer substitution
This part replaces 163980. Substitute parts can look different from the original.
This item is not returnable
$14.79 |
12% OFF Phone Price : $16.79
In Stock
Refrigerator Screw 167103
#2D

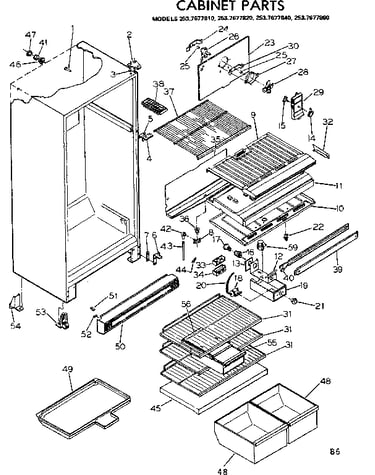

Cabinet parts diagram

Refrigerator screw

Part #167103

Replaced by #241710601

?
Manufacturer substitution
This part replaces 167103. Substitute parts can look different from the original.
This item is not returnable
$14.19 |
12% OFF Phone Price : $16.19
In Stock
Screw 99167
#6D

Cabinet parts diagram

Screw

Part #99167

Replaced by #241710601

?
Manufacturer substitution
This part replaces 99167. Substitute parts can look different from the original.
This item is not returnable
$14.19 |
12% OFF Phone Price : $16.19
In Stock
Grommet 126340
#23

Unit parts diagram

Grommet

Part #126340

Replaced by #218513300

?
Manufacturer substitution
This part replaces 126340. Substitute parts can look different from the original.
$36.56 |
14% OFF Phone Price : $42.56
In Stock
Washer 121403
#11

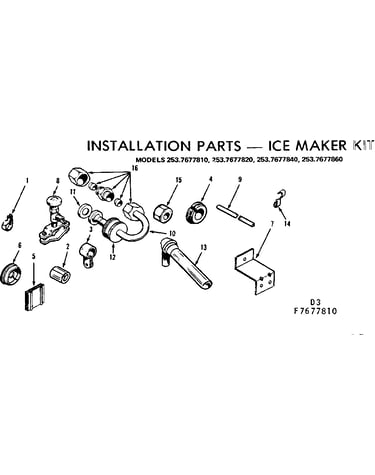

Installation parts-ice maker kit diagram

Washer

Part #121403

Replaced by #5303161296

?
Manufacturer substitution
This part replaces 121403. Substitute parts can look different from the original.
This item is not returnable
$10.44 |
16% OFF Phone Price : $12.44
In Stock
Refrigerator Strap 165546
#2

Unit parts diagram

Refrigerator strap

Part #165546

Replaced by #5308000110

?
Manufacturer substitution
This part replaces 165546. Substitute parts can look different from the original.
$52.30 |
10% OFF Phone Price : $58.30
In Stock
Refrigerator Screw 162585
Refrigerator screw

Part #162585

Replaced by #5304455651

?
Manufacturer substitution
This part replaces 162585. Substitute parts can look different from the original.
$13.26
In Stock
Refrigerator Union 154205
#16

Installation parts-ice maker kit diagram

Refrigerator union

Part #154205

Replaced by #08001463

?
Manufacturer substitution
This part replaces 154205. Substitute parts can look different from the original.
$21.49
In Stock
