Model # LC-15B6U-S Official Sharp lcd television

Here are the diagrams and repair parts for Official Sharp LC-15B6U-S lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 57 parts  |
Sheet PSHEP0281CEZZ
#5-8

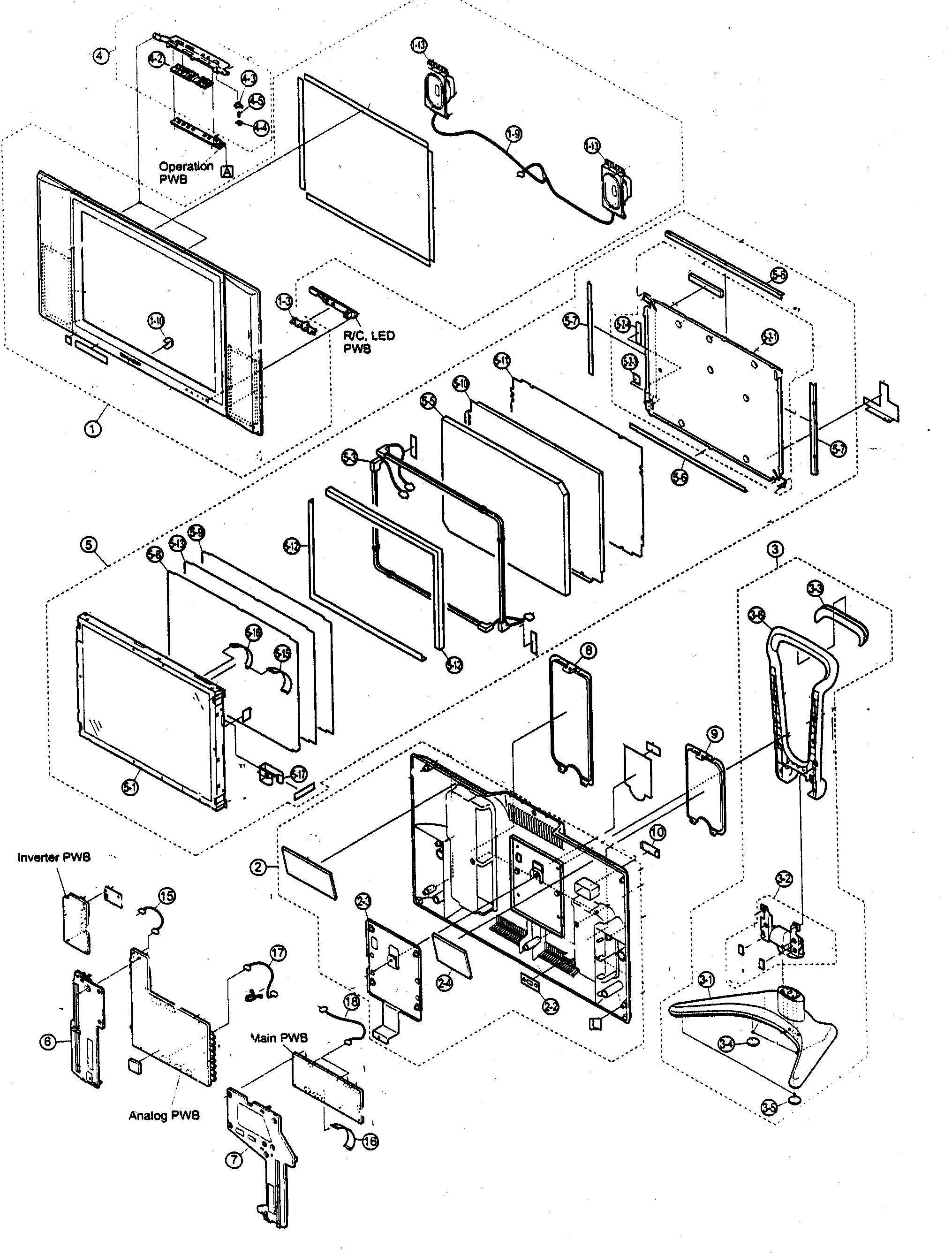

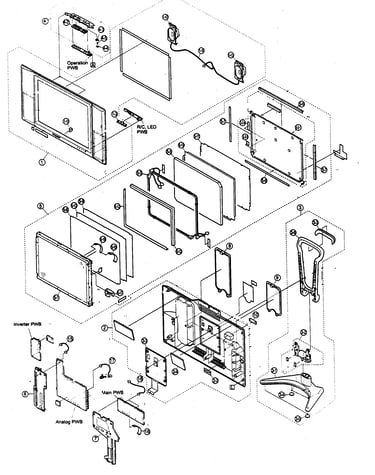

Cabinet parts diagram

Sheet

Part #PSHEP0281CEZZ

The manufacturer no longer makes this part, and there's no substitute part

Sharp Cover GCOVAA656WJKA
#9

Cabinet parts diagram

Sharp cover

Part #GCOVAA656WJKA

The manufacturer no longer makes this part, and there's no substitute part

Round Lock LANGFA085WJFW
#2-2

Cabinet parts diagram

Round lock

Part #LANGFA085WJFW

The manufacturer no longer makes this part, and there's no substitute part

Power Button JBTN-A088WJKC
#4-3

Cabinet parts diagram

Power button

Part #JBTN-A088WJKC

The manufacturer no longer makes this part, and there's no substitute part

Leg,x6 GLEGGA010WJZZ
#3-4

Cabinet parts diagram

Leg,x6

Part #GLEGGA010WJZZ

The manufacturer no longer makes this part, and there's no substitute part

Sharp Base Stand GDAI-A132WJSA
#3-1

Cabinet parts diagram

Sharp base stand

Part #GDAI-A132WJSA

The manufacturer no longer makes this part, and there's no substitute part

Reflection PSHEP0283CEZZ
#5-9

Cabinet parts diagram

Reflection

Part #PSHEP0283CEZZ

The manufacturer no longer makes this part, and there's no substitute part

Reflection Sheet PSHEP0307CEZZ
#5-12

Cabinet parts diagram

Reflection sheet

Part #PSHEP0307CEZZ

The manufacturer no longer makes this part, and there's no substitute part

Operation Button JBTN-A087WJKC
#4-2

Cabinet parts diagram

Operation button

Part #JBTN-A087WJKC

The manufacturer no longer makes this part, and there's no substitute part

Guide Light PGIDMA011WJZZ
#5-5

Cabinet parts diagram

Guide light

Part #PGIDMA011WJZZ

The manufacturer no longer makes this part, and there's no substitute part
