Hoover
Upright Vacuum

Model # U5751-900 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U5751-900 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |

Insert 34131019
#30

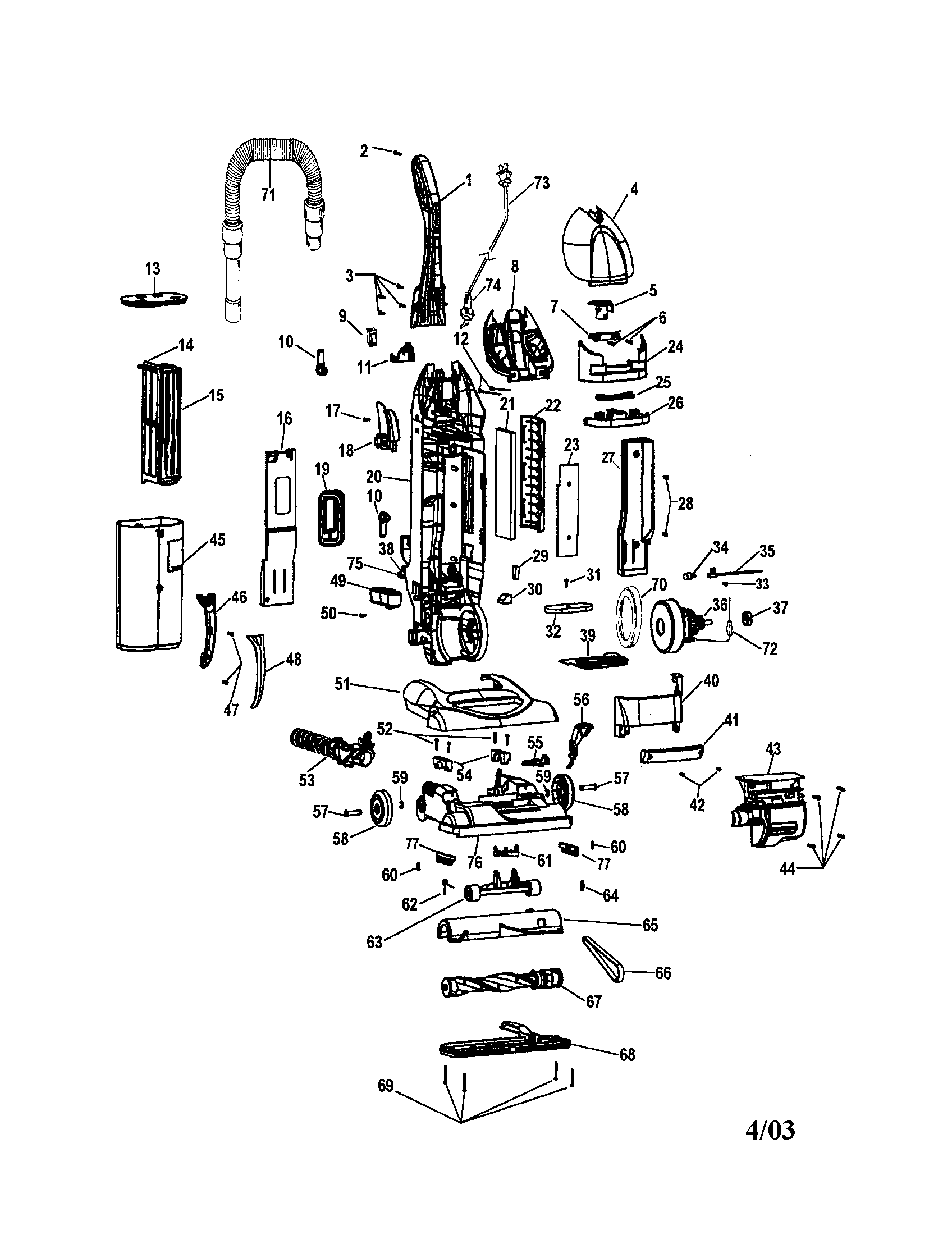

Windtunnel bagless diagram

Insert

Part #34131019

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Motor Mount 36322030
#37

Windtunnel bagless diagram

Vacuum motor mount

Part #36322030

The manufacturer no longer makes this part, and there's no substitute part

Regina Vacuum Screw 21447072
Regina vacuum screw

Part #21447072

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Power Cord Strain Relief 36215028
#74

Windtunnel bagless diagram

Vacuum power cord strain relief

Part #36215028

The manufacturer no longer makes this part, and there's no substitute part

Foam 34131009
#29

Windtunnel bagless diagram

Foam

Part #34131009

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447236
#2

Windtunnel bagless diagram

Vacuum screw

Part #21447236

The manufacturer no longer makes this part, and there's no substitute part

Regina Carpet Cleaner Screw 21447246
#12

Windtunnel bagless diagram

Regina carpet cleaner screw

Part #21447246

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Front Roller Torsion Spring 38355010
#62

Windtunnel bagless diagram

Vacuum front roller torsion spring

Part #38355010

The manufacturer no longer makes this part, and there's no substitute part

Cover 37259016
#27

Windtunnel bagless diagram

Cover

Part #37259016

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 36155013
#7

Windtunnel bagless diagram

Sleeve

Part #36155013

The manufacturer no longer makes this part, and there's no substitute part
