Model # 752SFR600S06 Official Kawasaki engine

Here are the diagrams and repair parts for Official Kawasaki 752SFR600S06 engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

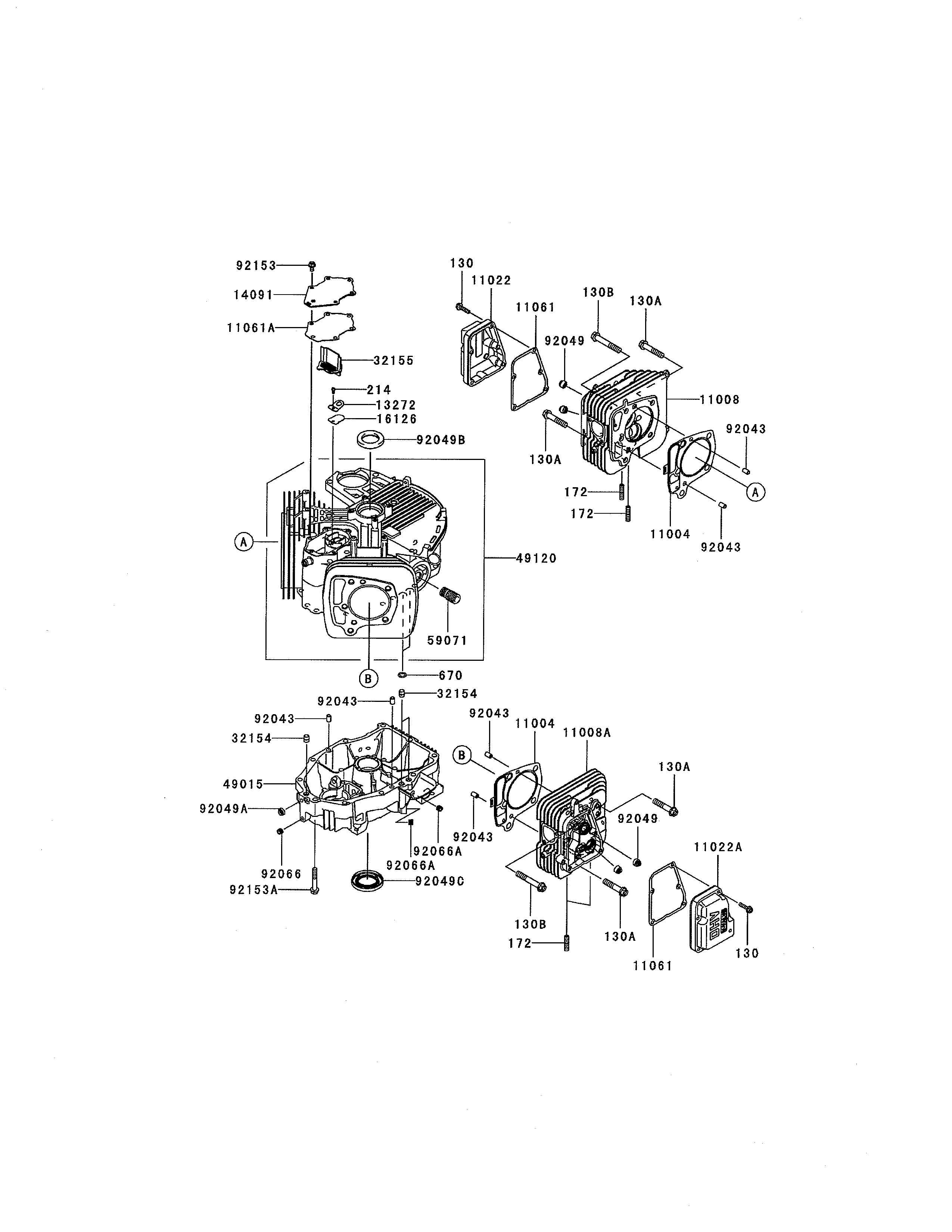

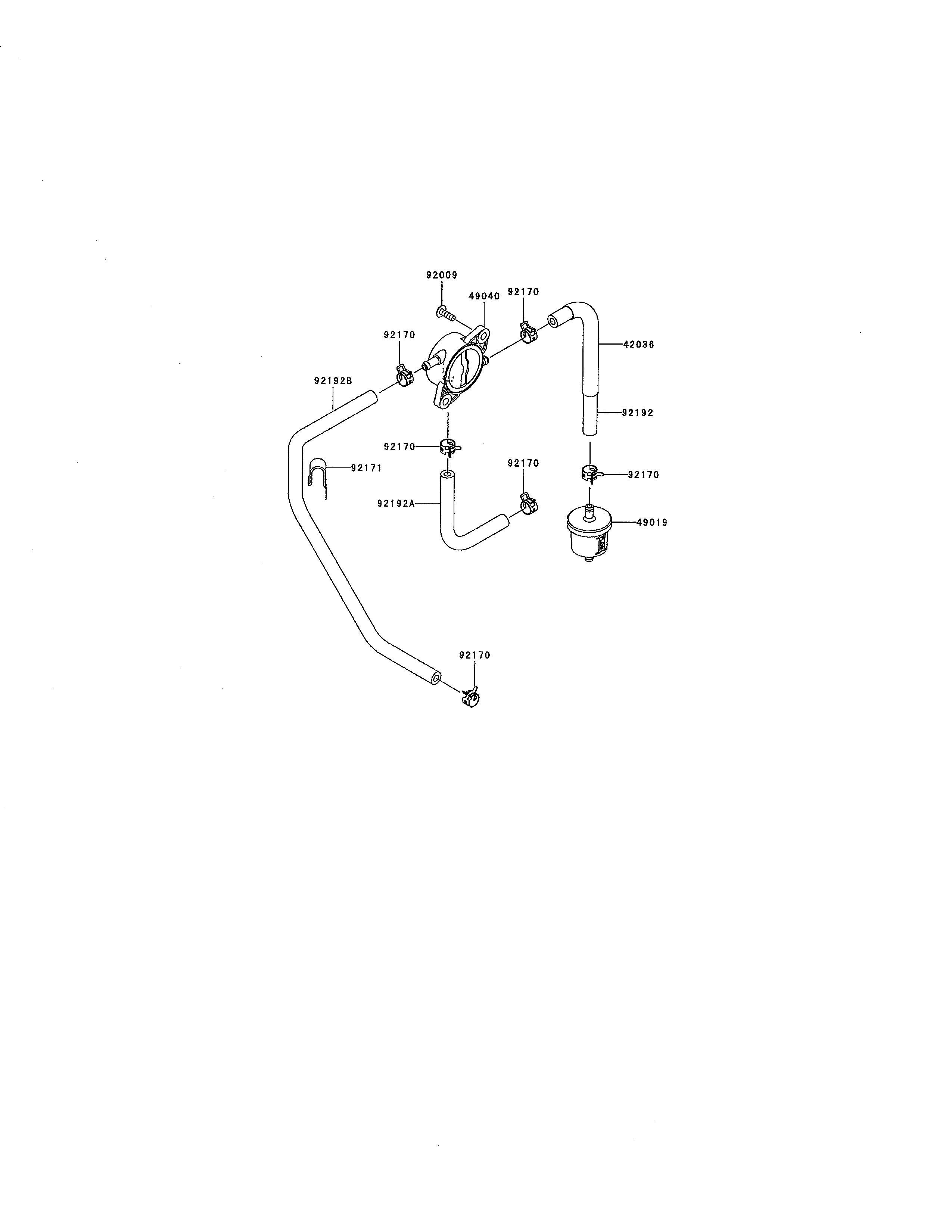

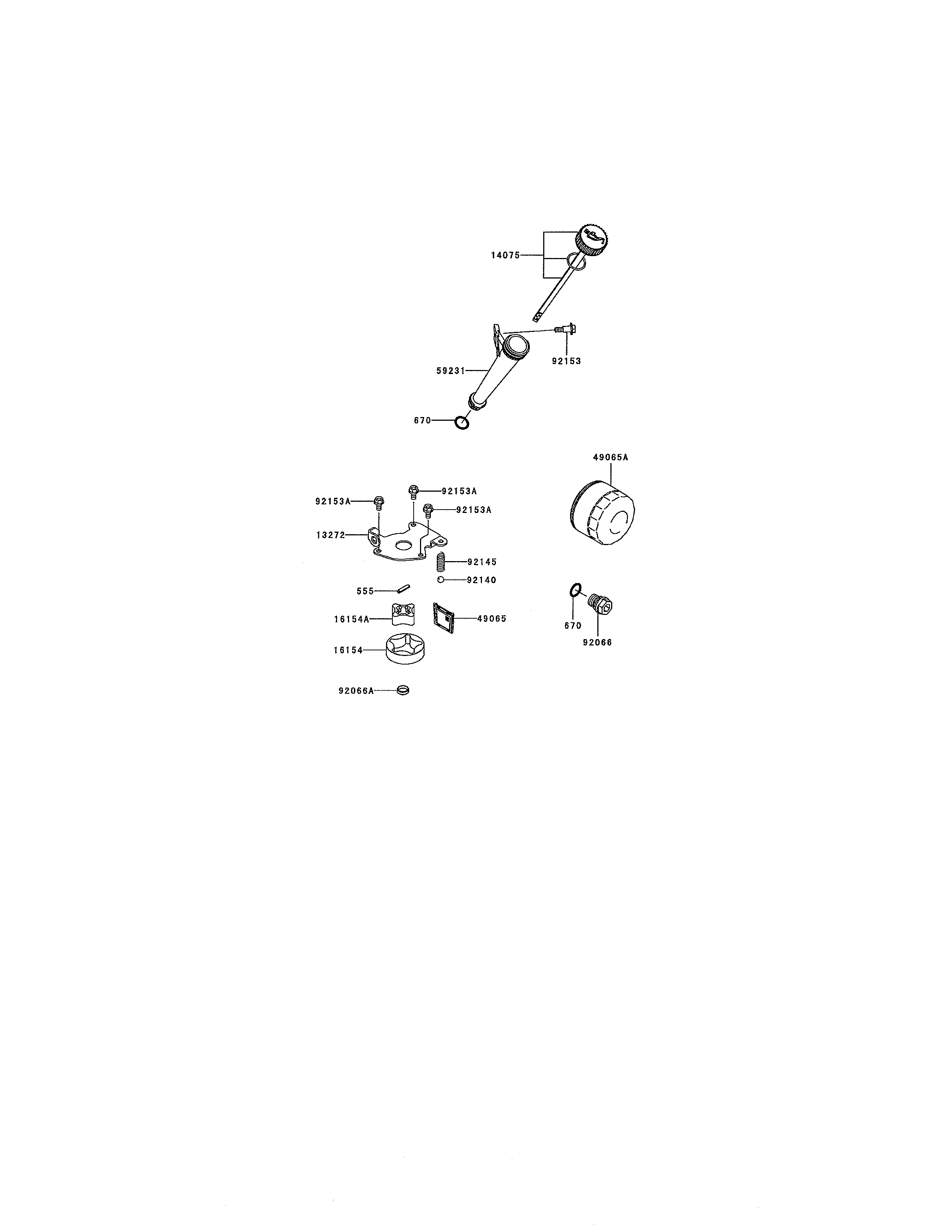

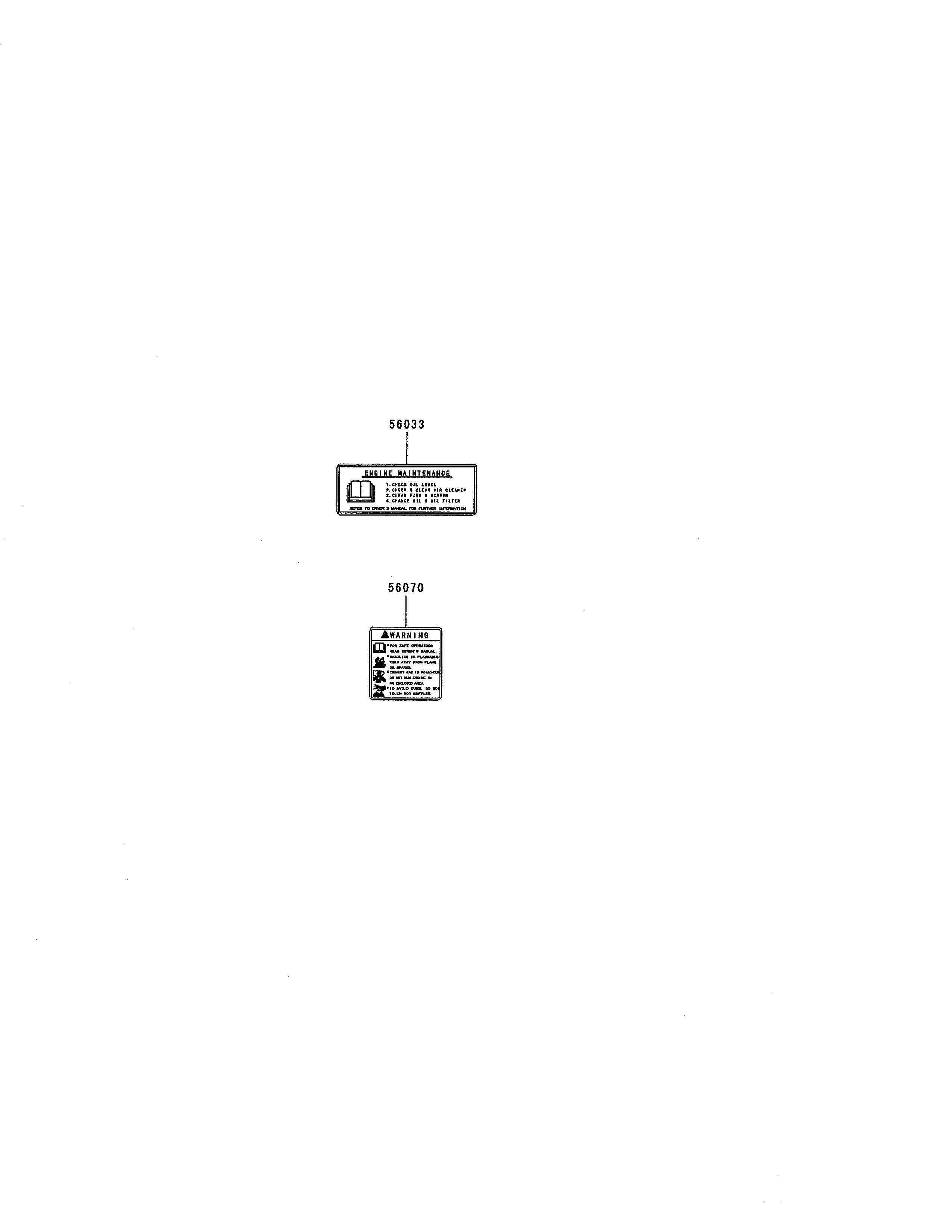

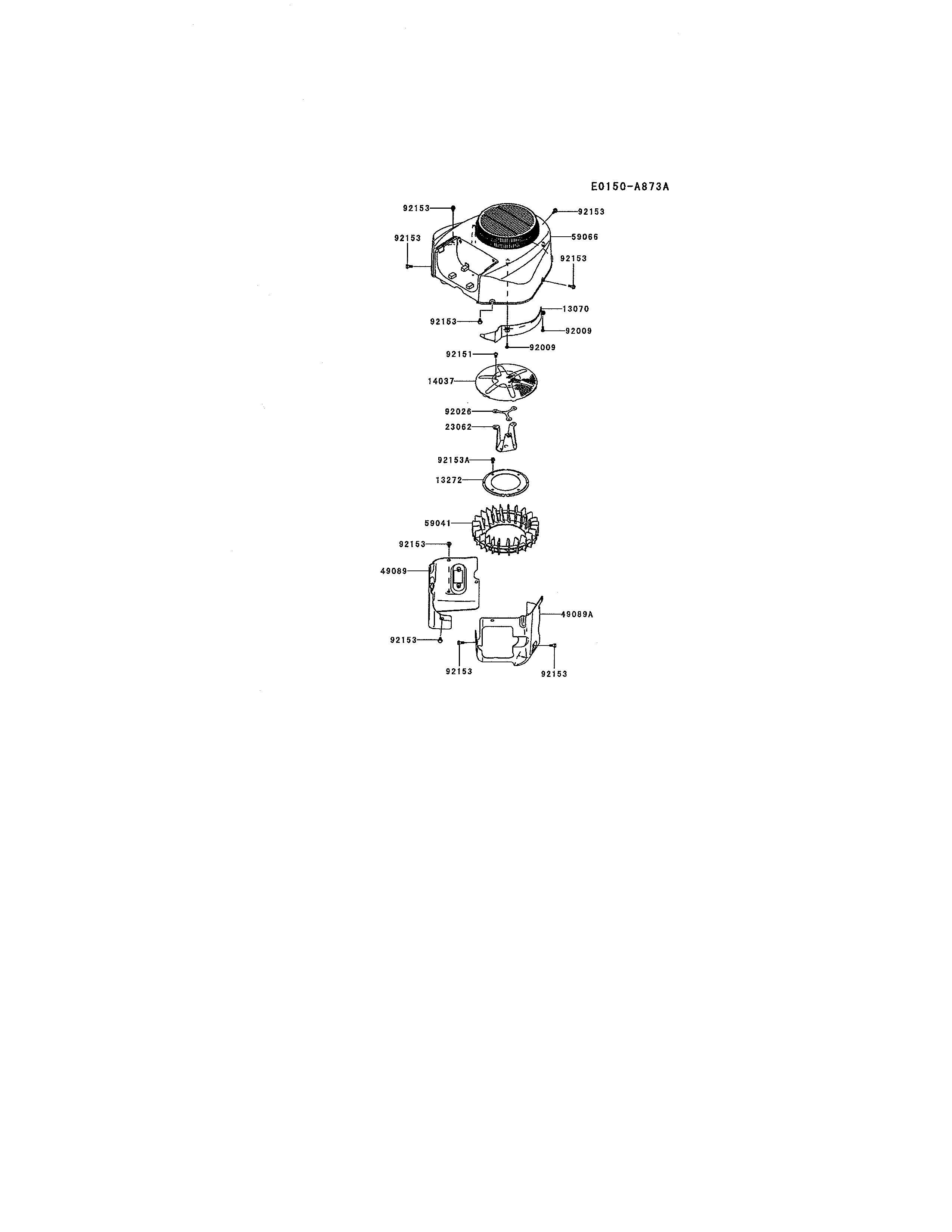

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 191 parts  |
Element 11013-7049
#11013

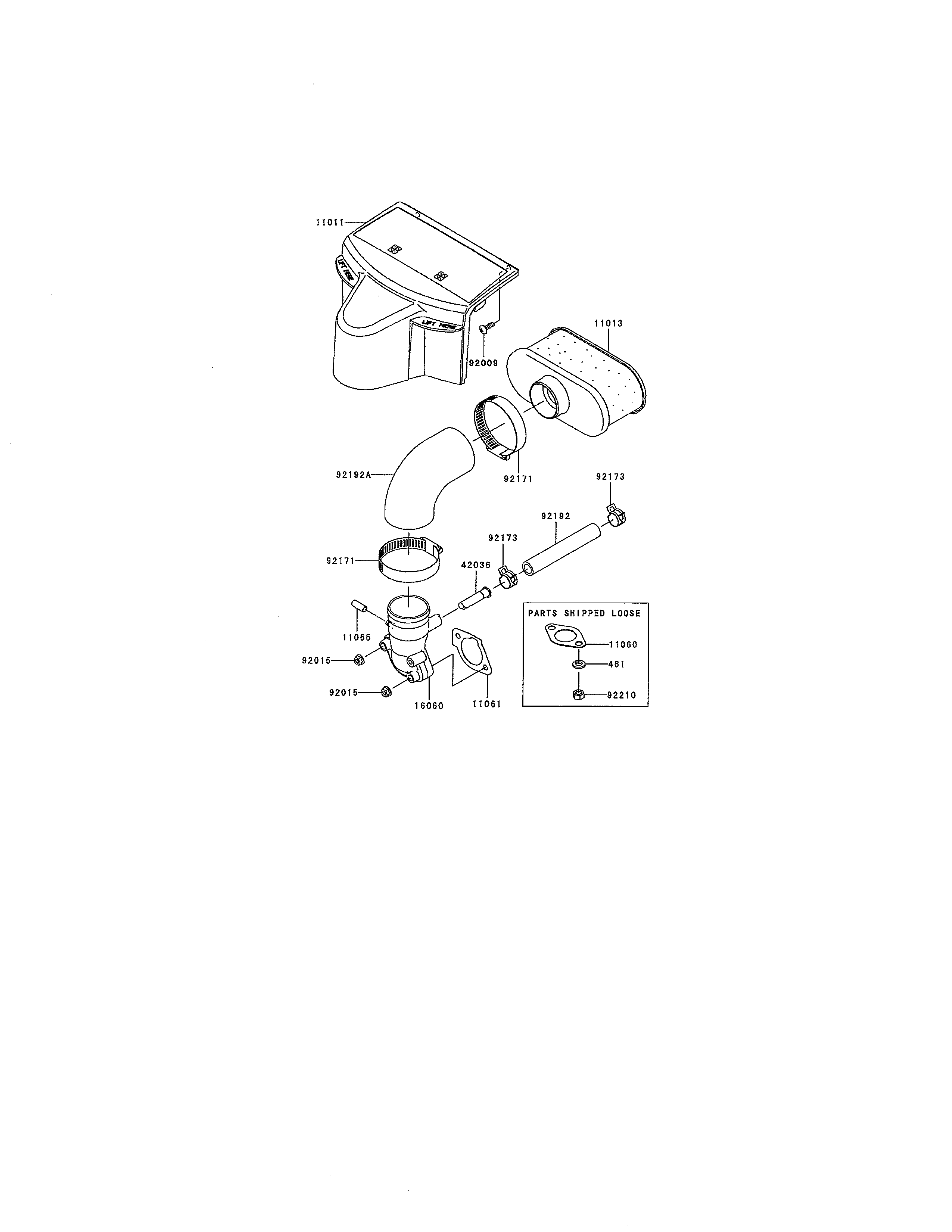

Air filter/muffler diagram

Element

Part #11013-7049

Replaced by #KM-11013-0752

?
Manufacturer substitution
This part replaces 11013-7049. Substitute parts can look different from the original.
$33.64
In Stock
Lawn & Garden Equipment Engine Spark Plug BPR4ES
#92070

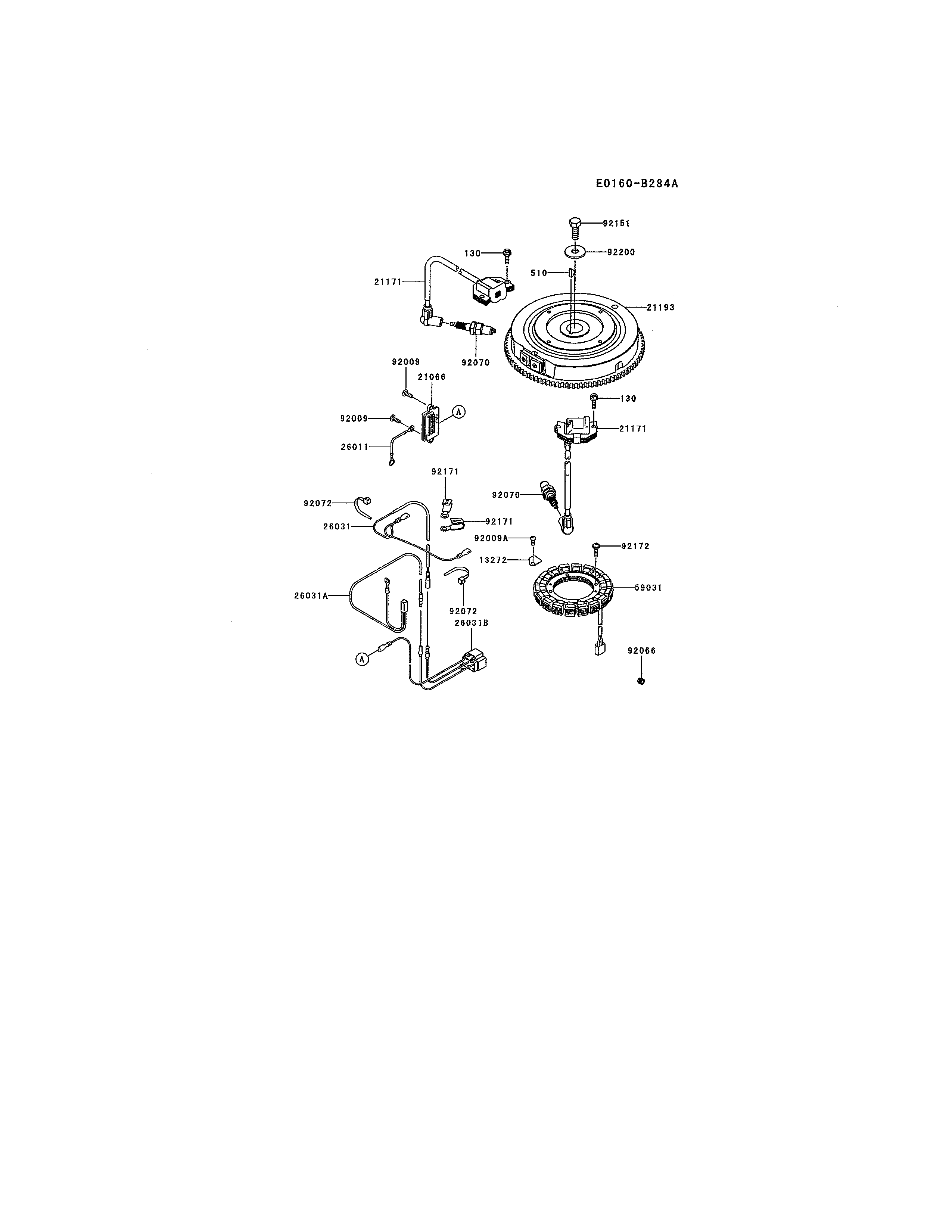

Electric equipment diagram

Lawn & garden equipment engine spark plug

Part #BPR4ES

Replaced by #6578

?
Manufacturer substitution
This part replaces BPR4ES. Substitute parts can look different from the original.
This item is not returnable
$5.60
In Stock
Starter 21163-0711
#21163

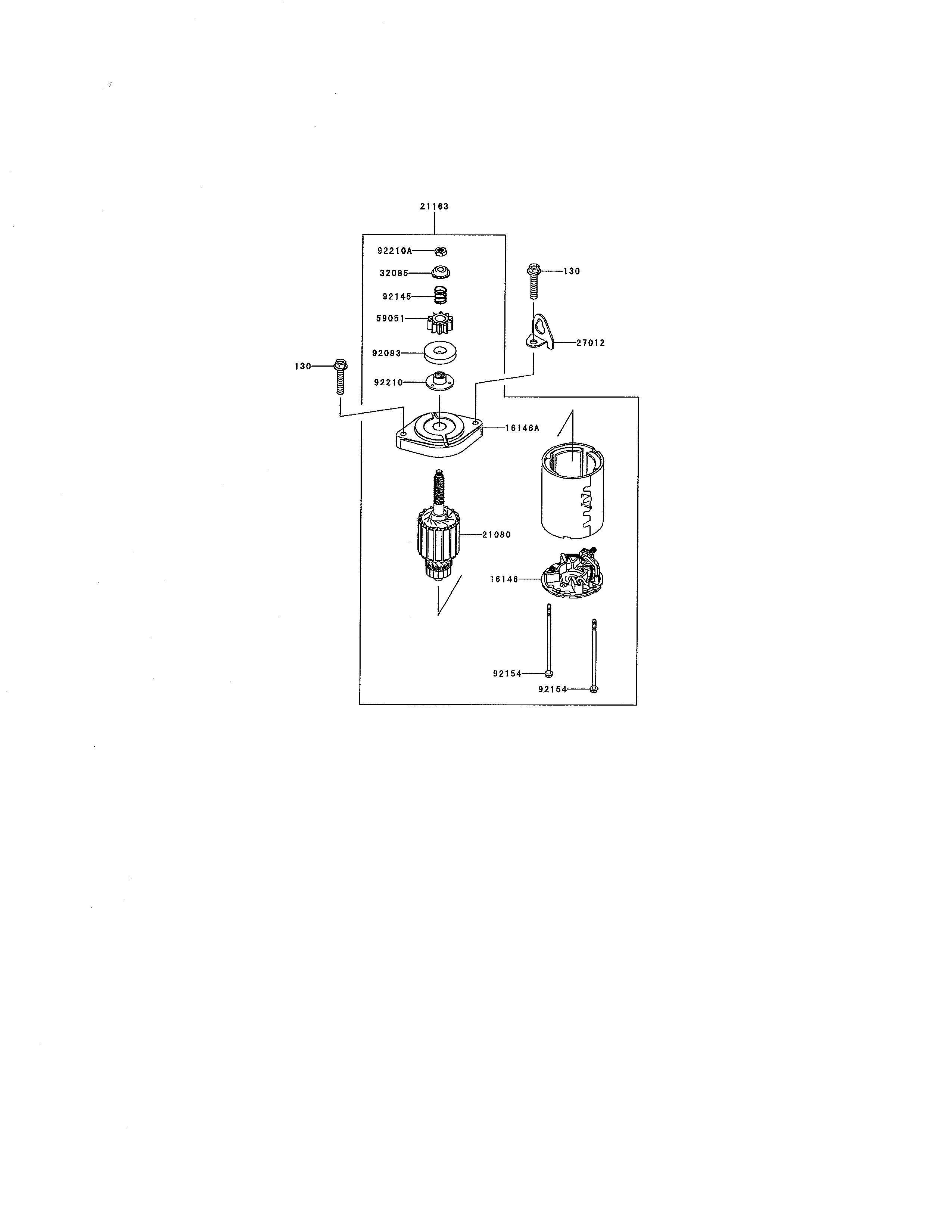

Starter diagram

Starter

Part #21163-0711

Replaced by #KM-21163-0804

?
Manufacturer substitution
This part replaces 21163-0711. Substitute parts can look different from the original.
$357.45
In Stock
Ring 13008-7005
#13008

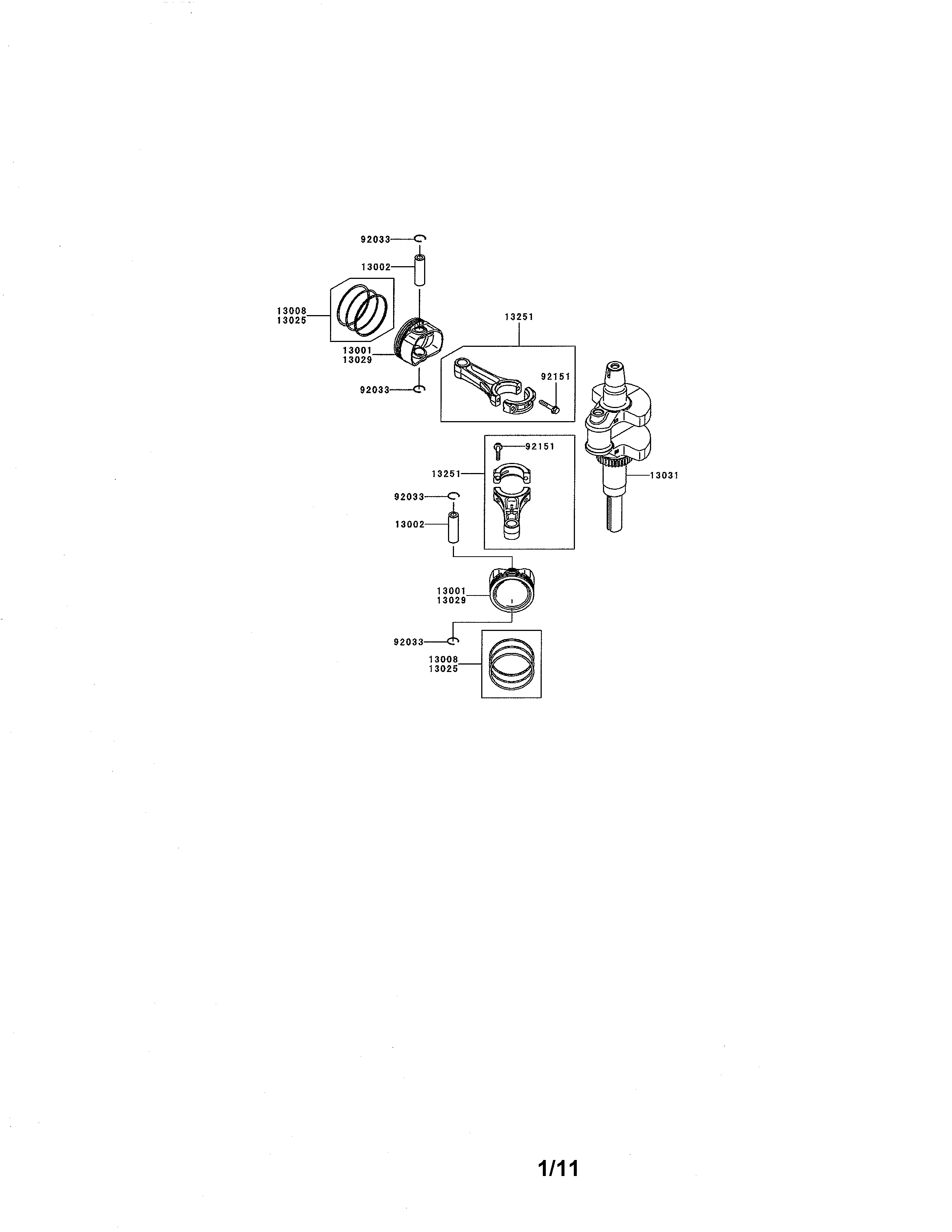

Piston/crankshaft diagram

Ring

Part #13008-7005

Replaced by #KM-13008-0569

?
Manufacturer substitution
This part replaces 13008-7005. Substitute parts can look different from the original.
$60.49
In Stock
Governor 13070-7017
#13070

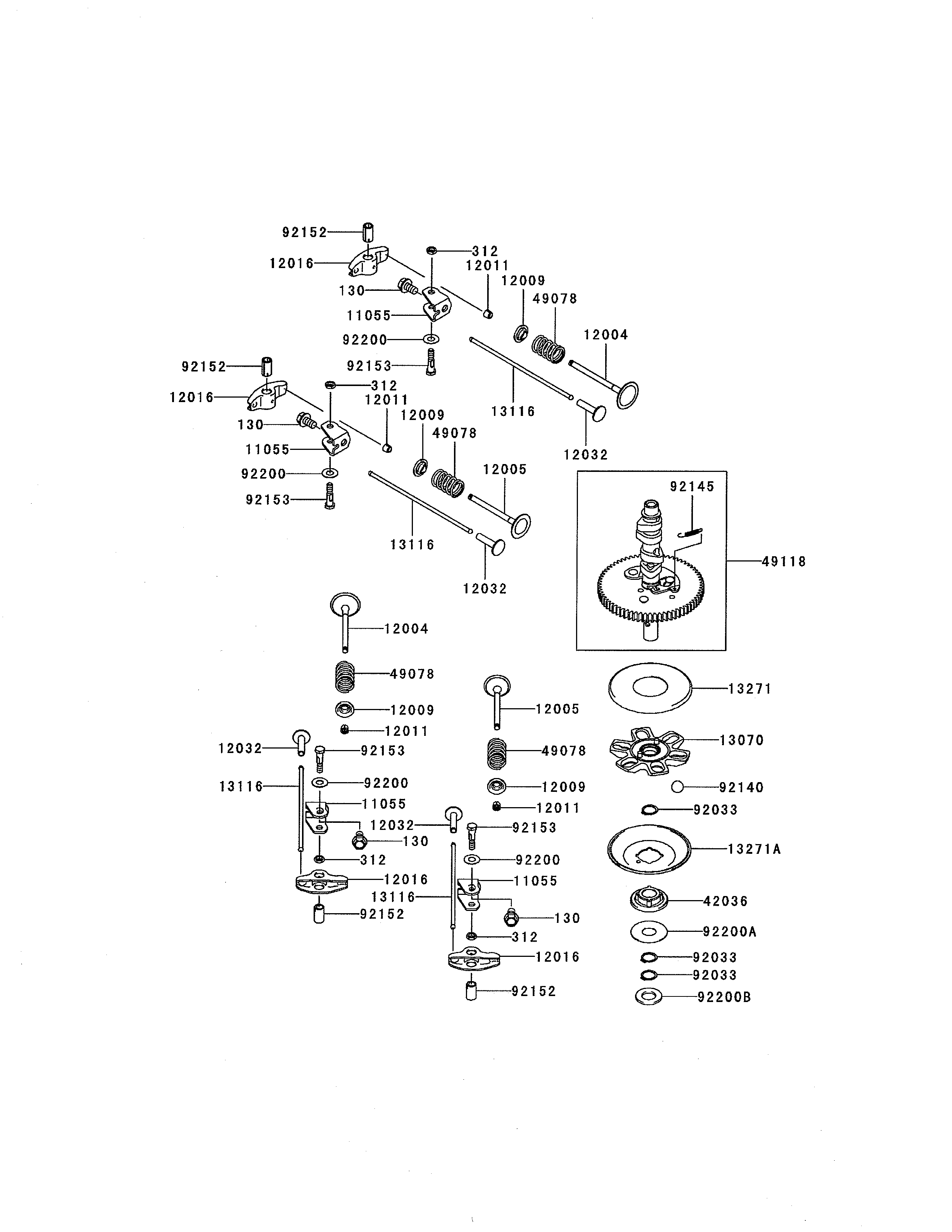

Valve/camshaft diagram

Governor

Part #13070-7017

Replaced by #KM-13070-7017

?
Manufacturer substitution
This part replaces 13070-7017. Substitute parts can look different from the original.
$9.54
In Stock
Shaft 16041-7050
#16041

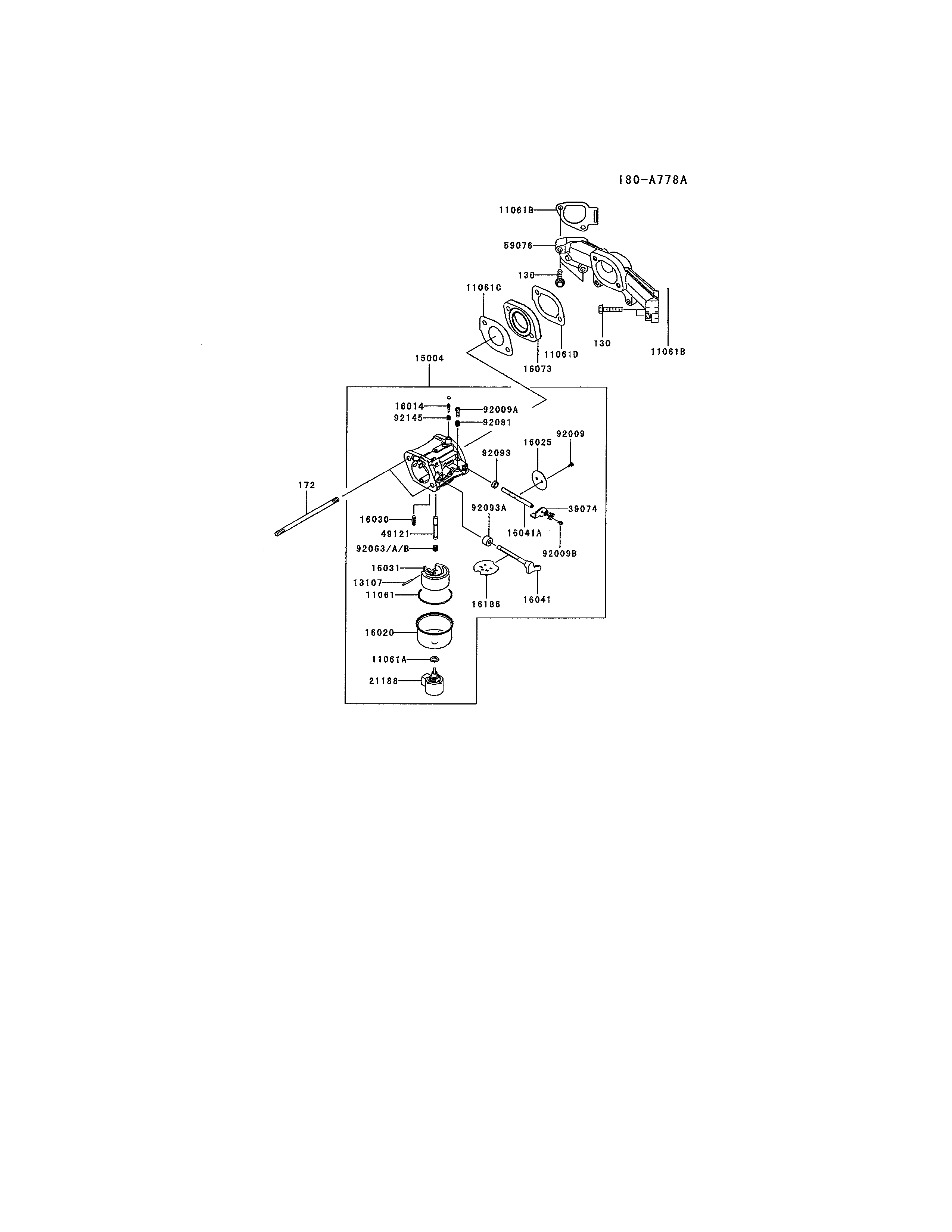

Carburetor diagram

Shaft

Part #16041-7050

Replaced by #KM-16041-0007

?
Manufacturer substitution
This part replaces 16041-7050. Substitute parts can look different from the original.
$30.73
In Stock
Spring 92081-2234
#92081

Carburetor diagram

Spring

Part #92081-2234

Replaced by #KM-92081-2234

?
Manufacturer substitution
This part replaces 92081-2234. Substitute parts can look different from the original.
This item is not returnable
$6.00
In Stock
Piston 13001-7027
#13001

Piston/crankshaft diagram

Piston

Part #13001-7027

Replaced by #KM-13001-7027

?
Manufacturer substitution
This part replaces 13001-7027. Substitute parts can look different from the original.
$111.09
In Stock
Plate 13272-7012
#13272

Electric equipment diagram

Plate

Part #13272-7012

Replaced by #KM-13272-7012

?
Manufacturer substitution
This part replaces 13272-7012. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Nut 312AA0500
#312

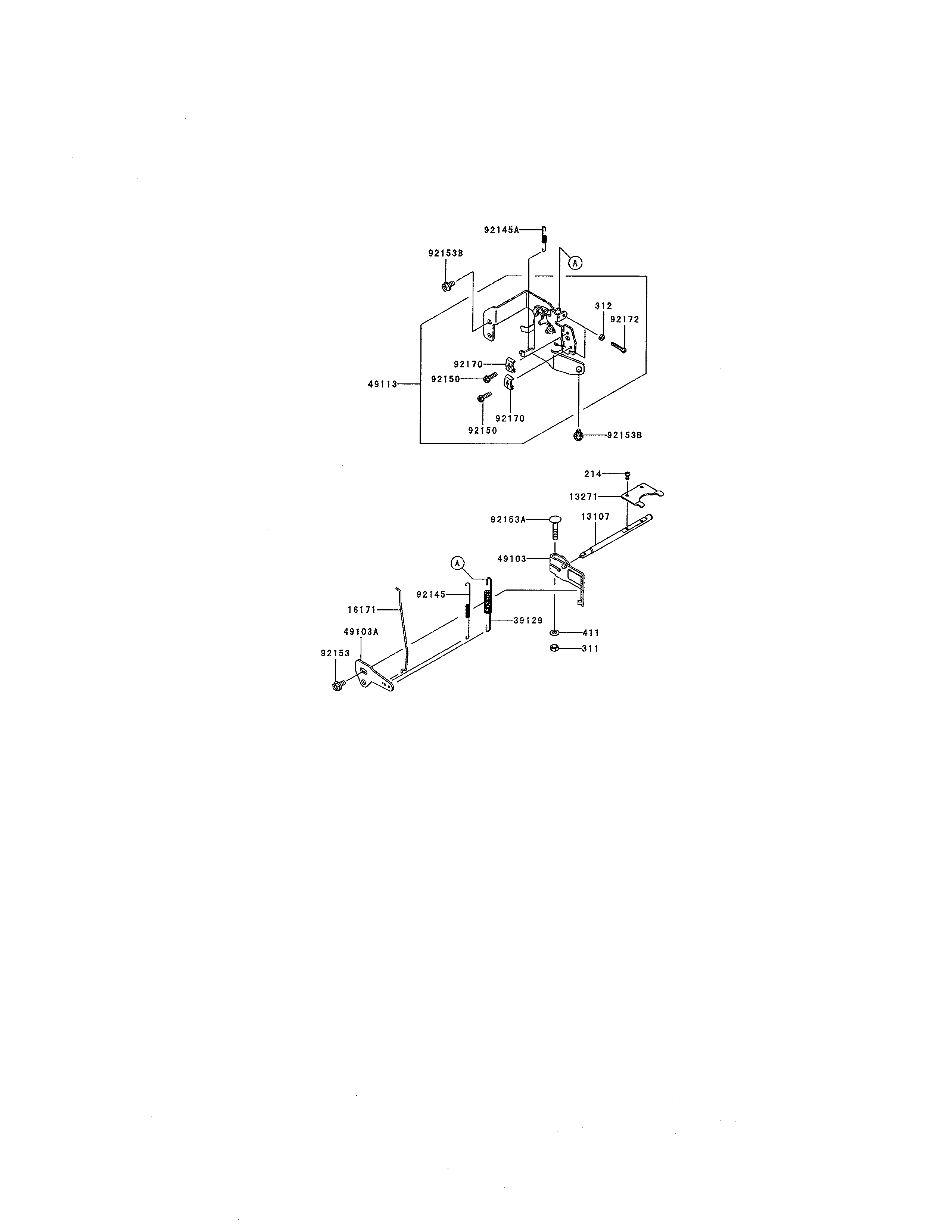

Control equipment diagram

Nut

Part #312AA0500

Replaced by #KM-312AA0500

?
Manufacturer substitution
This part replaces 312AA0500. Substitute parts can look different from the original.
This item is not returnable
$2.88
In Stock
