Model # ZIR36NMFRH Official GE refrigerator - m series

Here are the diagrams and repair parts for Official GE ZIR36NMFRH refrigerator - m series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 160 parts  |
Dryer Filter WR86X0096
#740

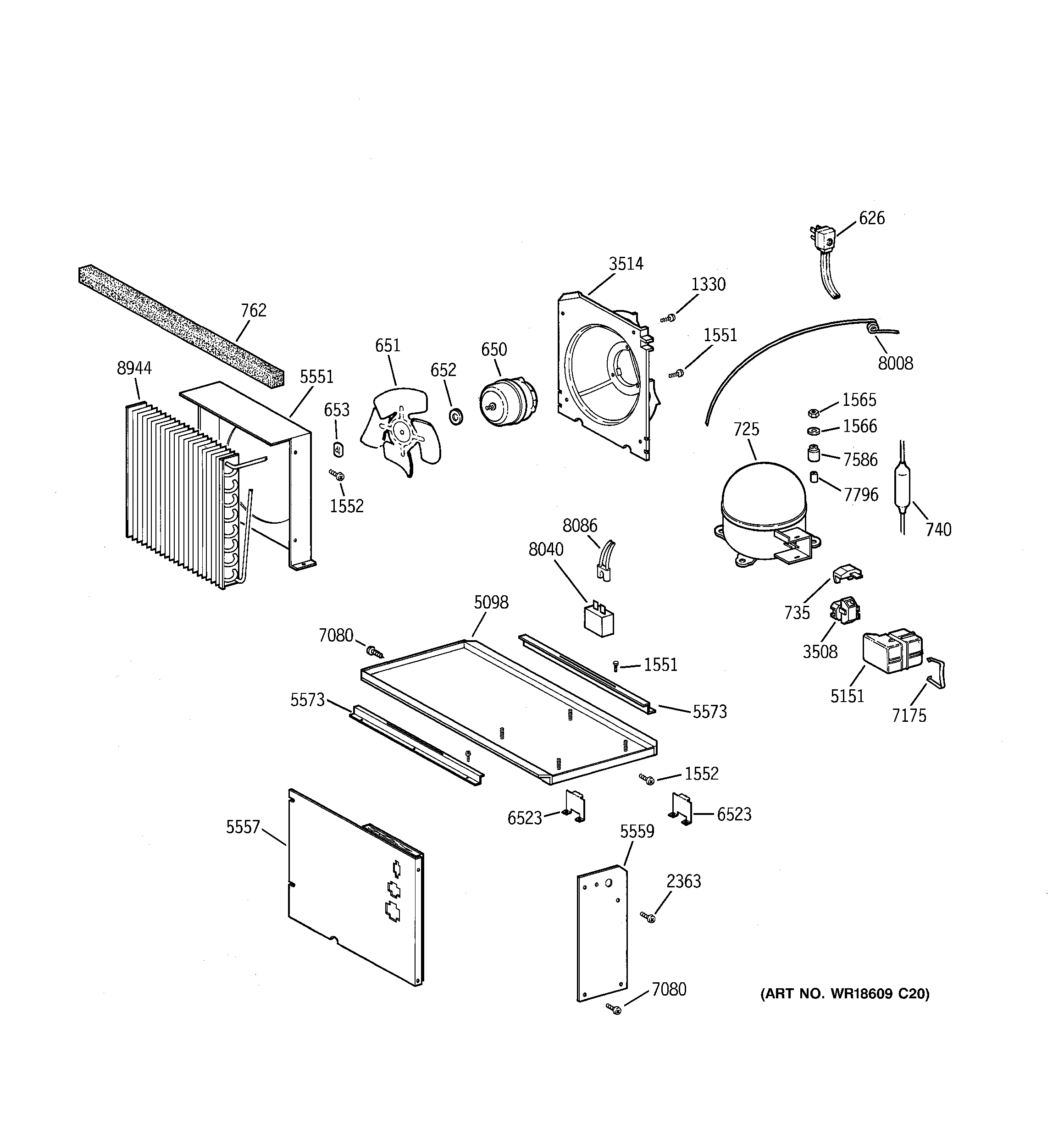

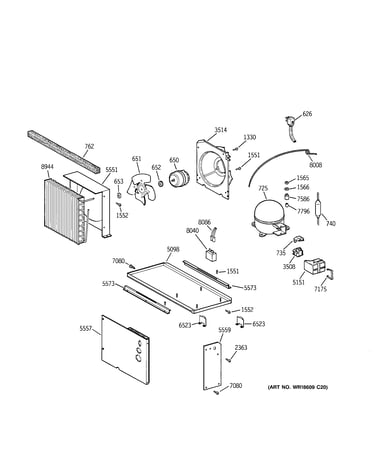

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Light Bulb 60A
#7692

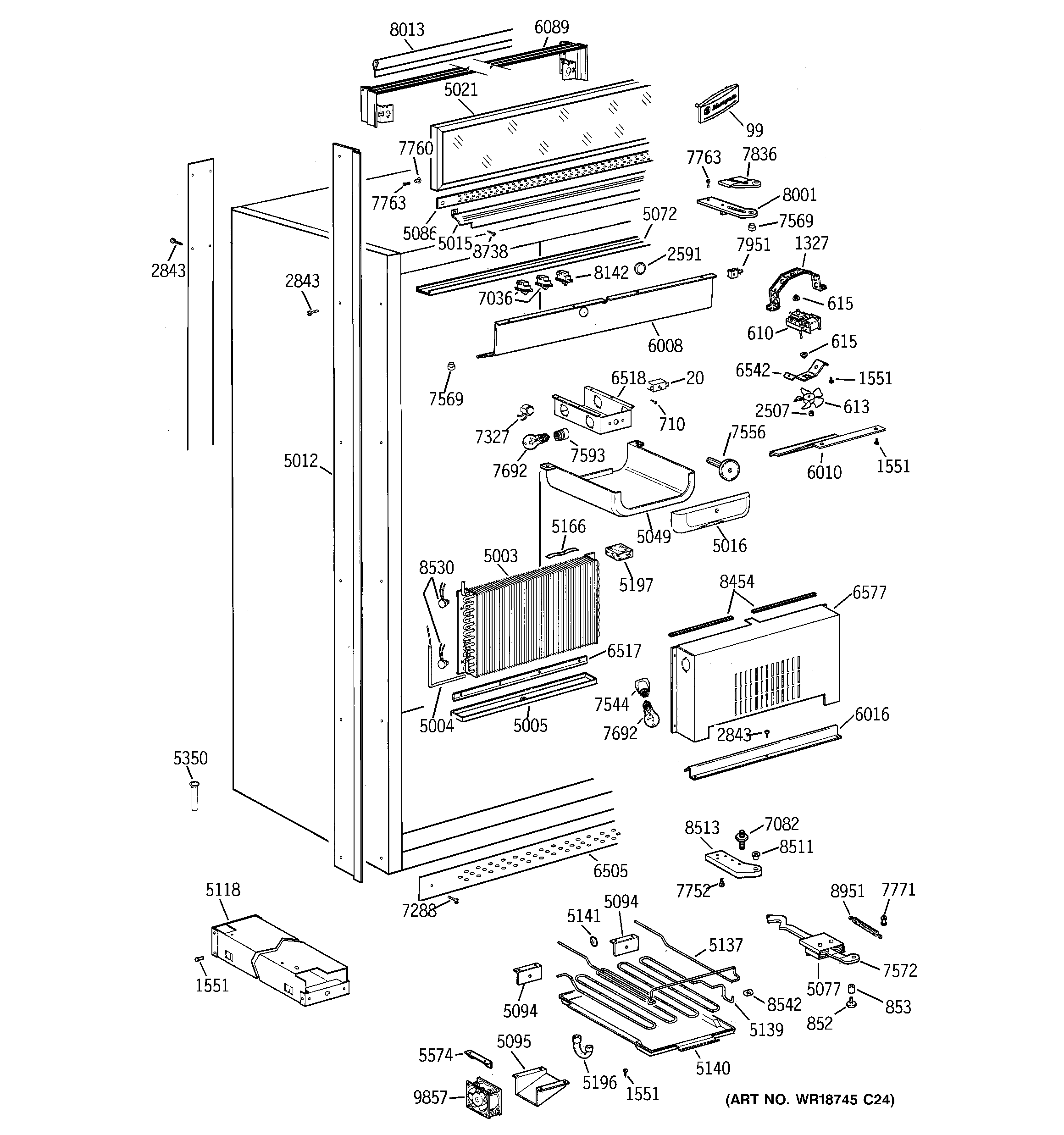

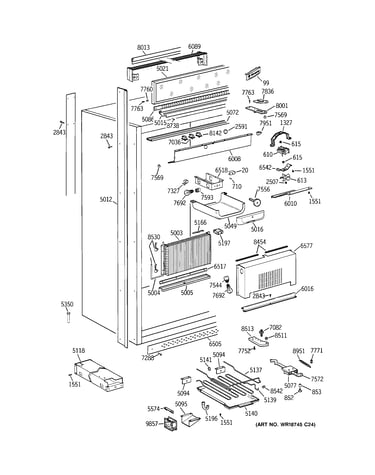

Cabinet diagram

Refrigerator light bulb

Part #60A

Replaced by #40A15

?
Manufacturer substitution
This part replaces 60A. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Comp Repl Kt WR87X10043
#725

Unit parts diagram

Comp repl kt

Part #WR87X10043

Replaced by #WR87X10224

?
Manufacturer substitution
This part replaces WR87X10043. Substitute parts can look different from the original.
BEST SELLER
$583.23 |
$12.00 OFF Phone Price : $595.23
In Stock
Refrigerator Door Bin WR71X10138
#5391

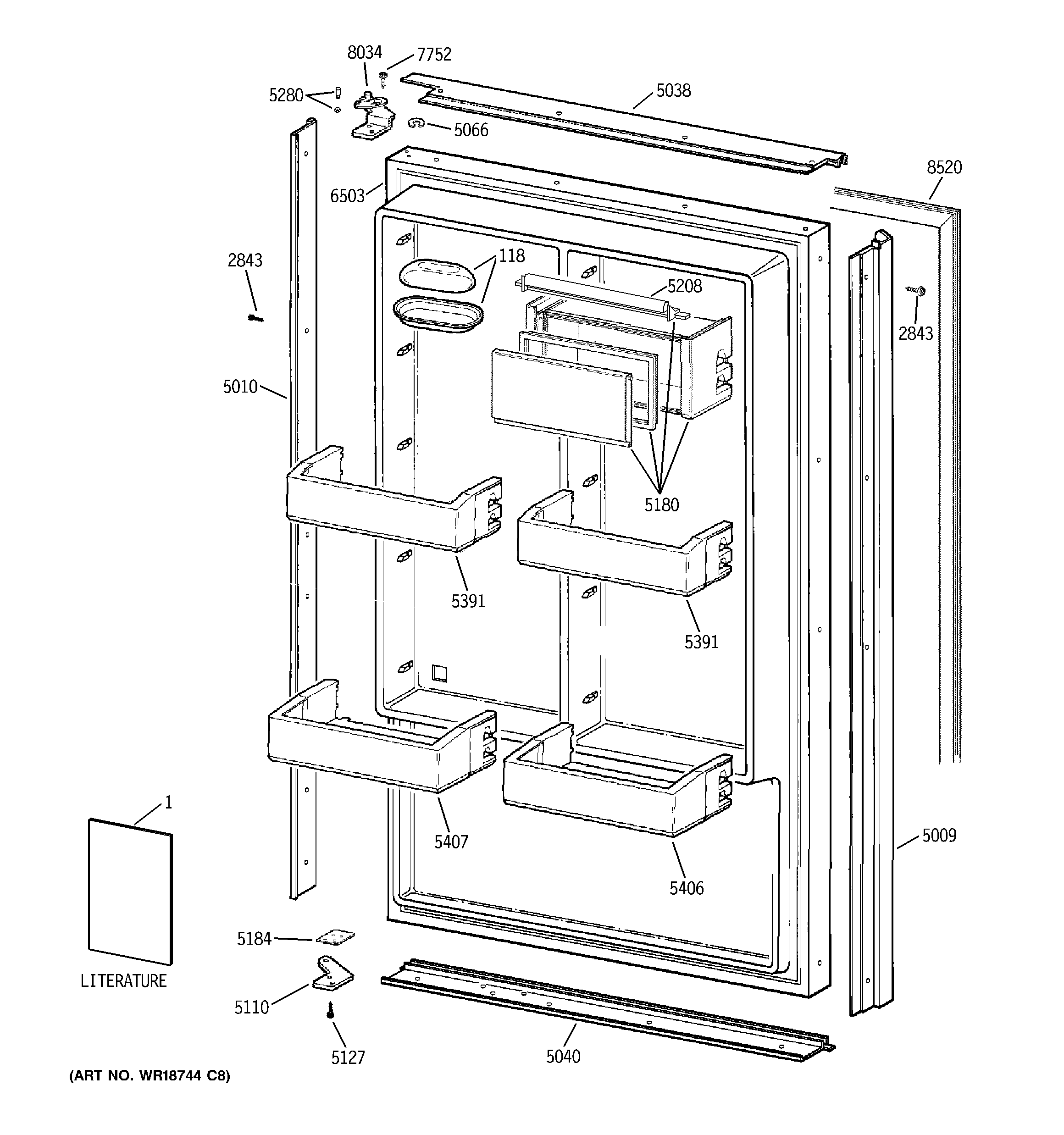

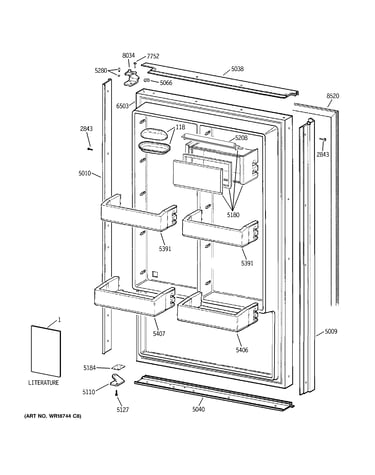

Door diagram

Refrigerator door bin

Part #WR71X10138

BEST SELLER
$74.87 |
7% OFF Phone Price : $80.87
In Stock
Motor Ac.dc WR60X10048
#650

Unit parts diagram

Motor ac.dc

Part #WR60X10048

Replaced by #WR60X10348

?
Manufacturer substitution
This part replaces WR60X10048. Substitute parts can look different from the original.
$81.44 |
7% OFF Phone Price : $87.44
In Stock
Ring/fan Bld WR02X3198
#2507

Cabinet diagram

Ring/fan bld

Part #WR02X3198

Replaced by #WR60X114

?
Manufacturer substitution
This part replaces WR02X3198. Substitute parts can look different from the original.
This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
Door Gasket WR24X10150
#8520

Door diagram

Door gasket

Part #WR24X10150

Replaced by #WR78X20986

?
Manufacturer substitution
This part replaces WR24X10150. Substitute parts can look different from the original.
$100.24 |
11% OFF Phone Price : $112.24
In Stock
Refrigerator Evaporator WR85X10017
#5003

Cabinet diagram

Refrigerator evaporator

Part #WR85X10017

$383.35 |
$12.00 OFF Phone Price : $395.35
In Stock
Refrigerator Crisper Drawer Lid (replaces Wr32x10076) WR32X10119
#5146

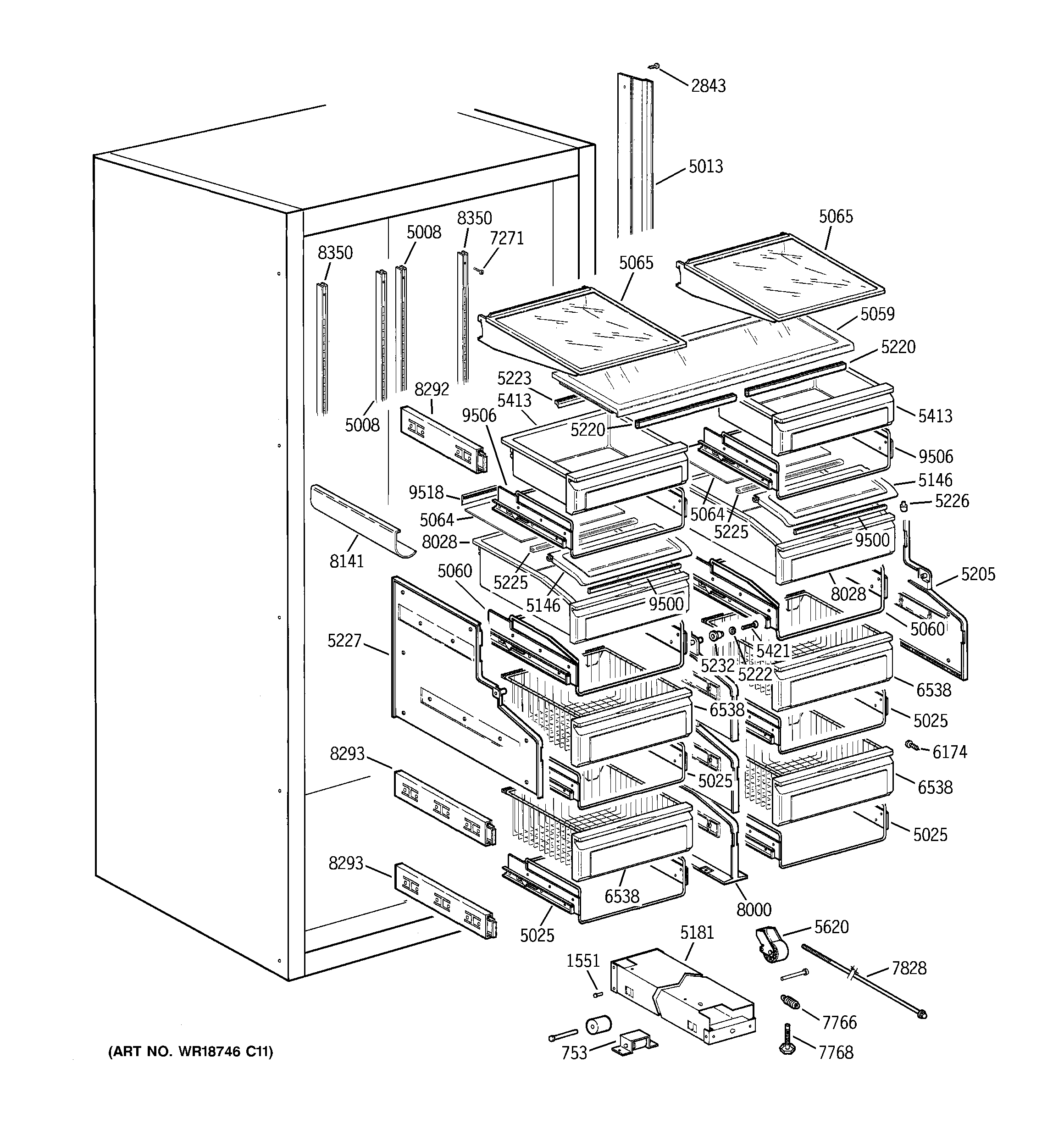

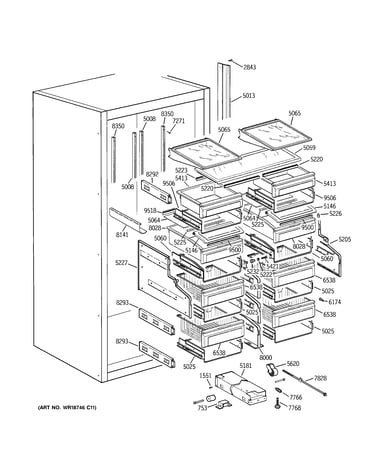

Shelves & drawers diagram
