Frigidaire
Gas Range

Model # FGF326WGSJ Official Frigidaire gas range

Here are the diagrams and repair parts for Official Frigidaire FGF326WGSJ gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

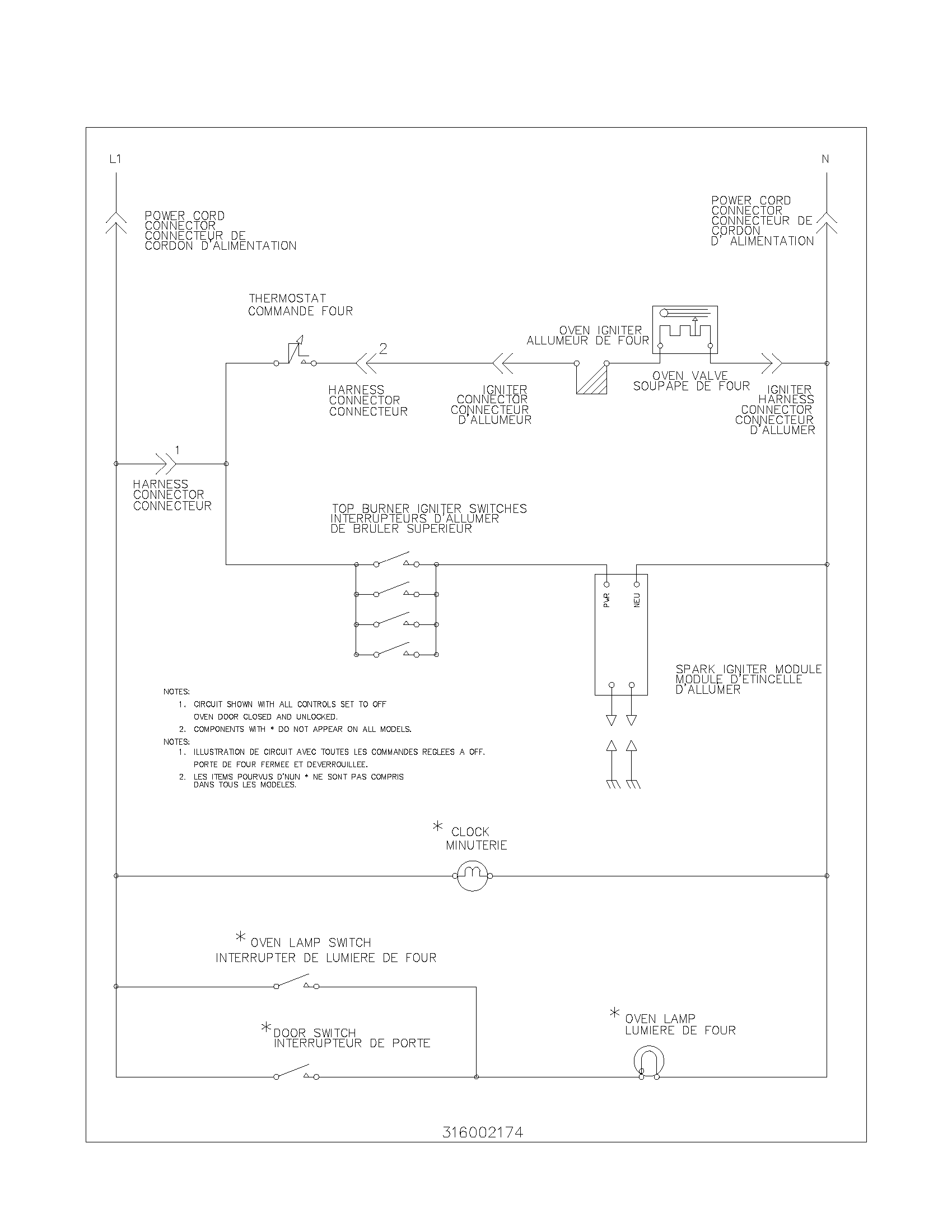

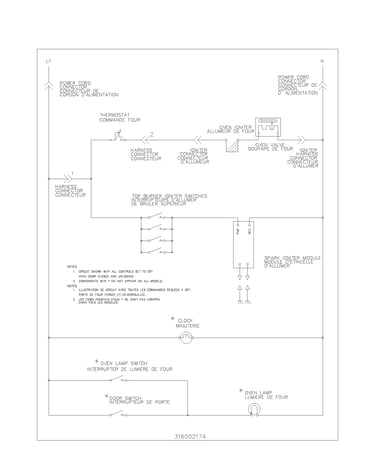

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 126 parts  |
Range Oven Burner Igniter (replaces 08013883, 316030600, 318177720, 3203706, 5303131300, 5303207520, 5303207521, 5303210788, 5303307577, 5308009420, Ap00205013, Ap205013, Ap205016, P205013, P205016, P205034) 5303935066
#19

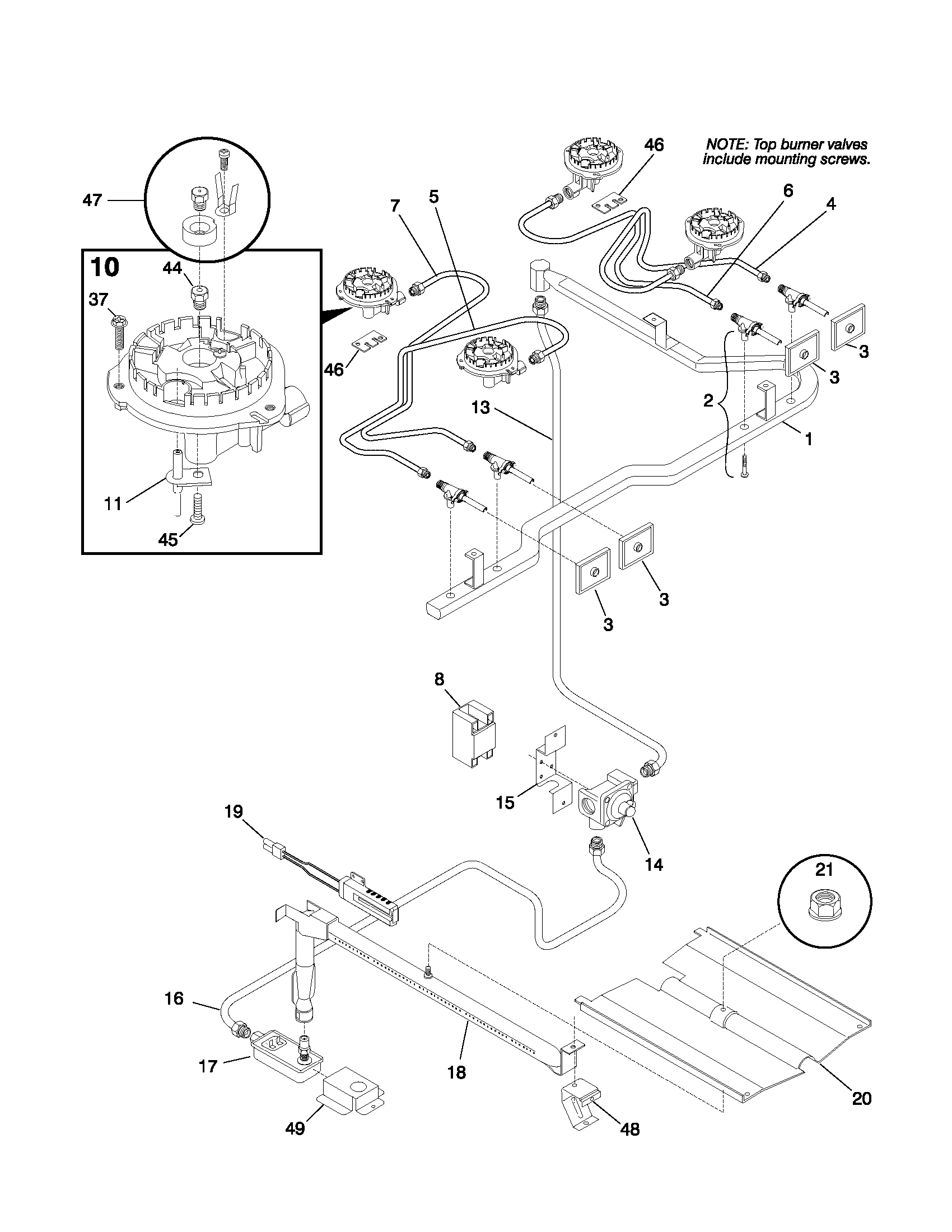

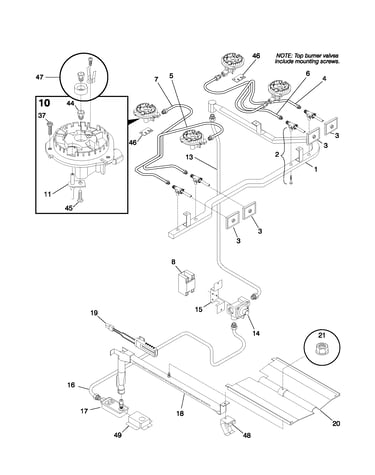

Burner diagram

Range oven burner igniter (replaces 08013883, 316030600, 318177720, 3203706, 5303131300, 5303207520, 5303207521, 5303210788, 5303307577, 5308009420, ap00205013, ap205013, ap205016, p205013, p205016, p205034)

Part #5303935066

BEST SELLER
$28.33 |
17% OFF Phone Price : $34.33
In Stock
Range Oven Light Bulb 5303013071
#15

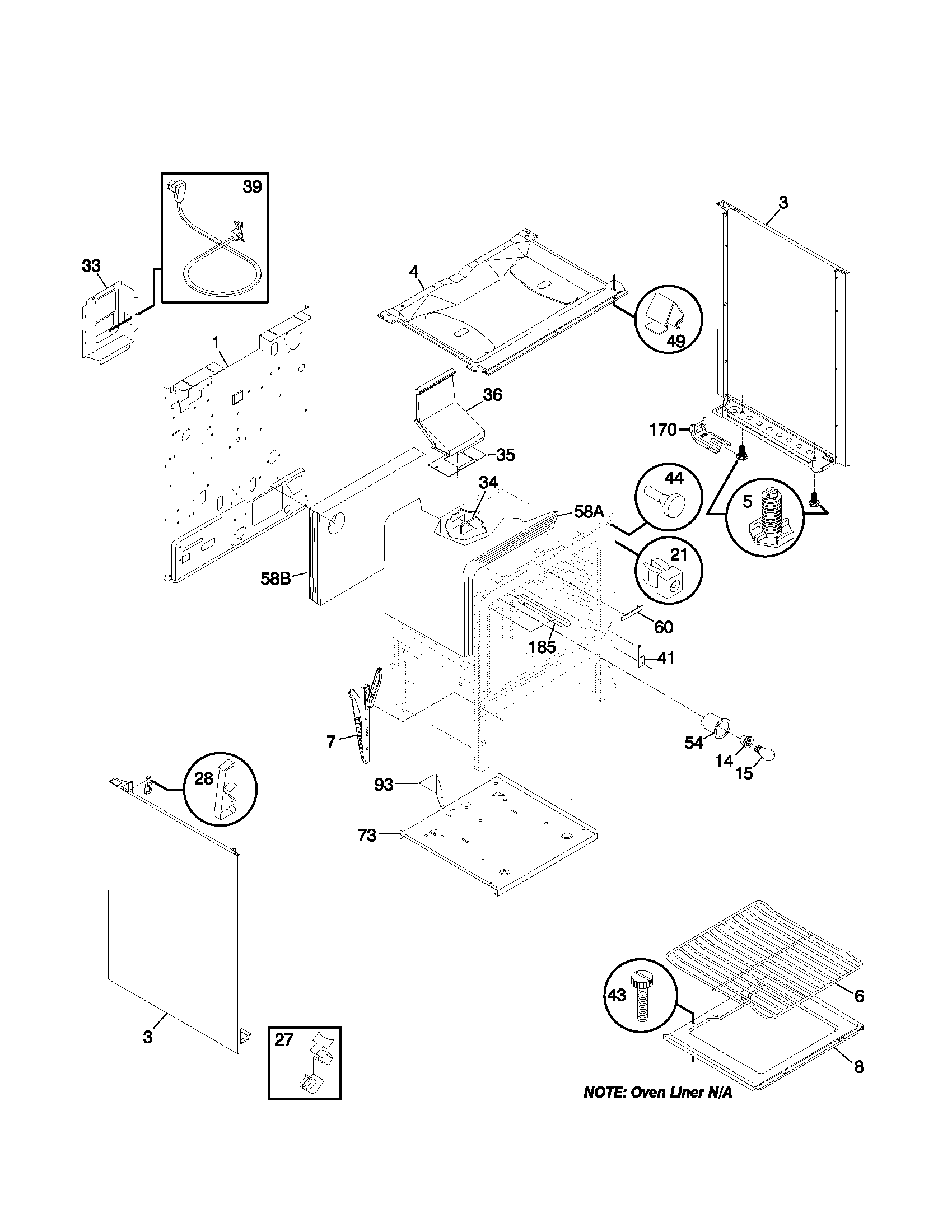

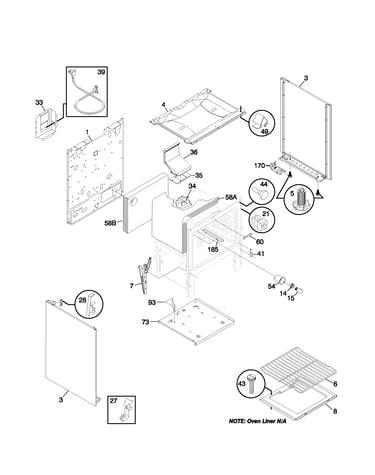

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Range Pressure Regulator 316091706
#14

Burner diagram

Range pressure regulator

Part #316091706

Replaced by #5304521339

?
Manufacturer substitution
This part replaces 316091706. Substitute parts can look different from the original.
BEST SELLER
$64.33 |
9% OFF Phone Price : $70.33
In Stock
Range Oven Gas Valve (replaces 316066400, 3201101, 5303131449) 3203459
#17

Burner diagram

Range oven gas valve (replaces 316066400, 3201101, 5303131449)

Part #3203459

BEST SELLER
$241.89 |
5% OFF Phone Price : $253.89
In Stock
Range Screw (replaces 316021105, 316021110, 316021112, 5303288571, 7316021109) 316021109
#NI

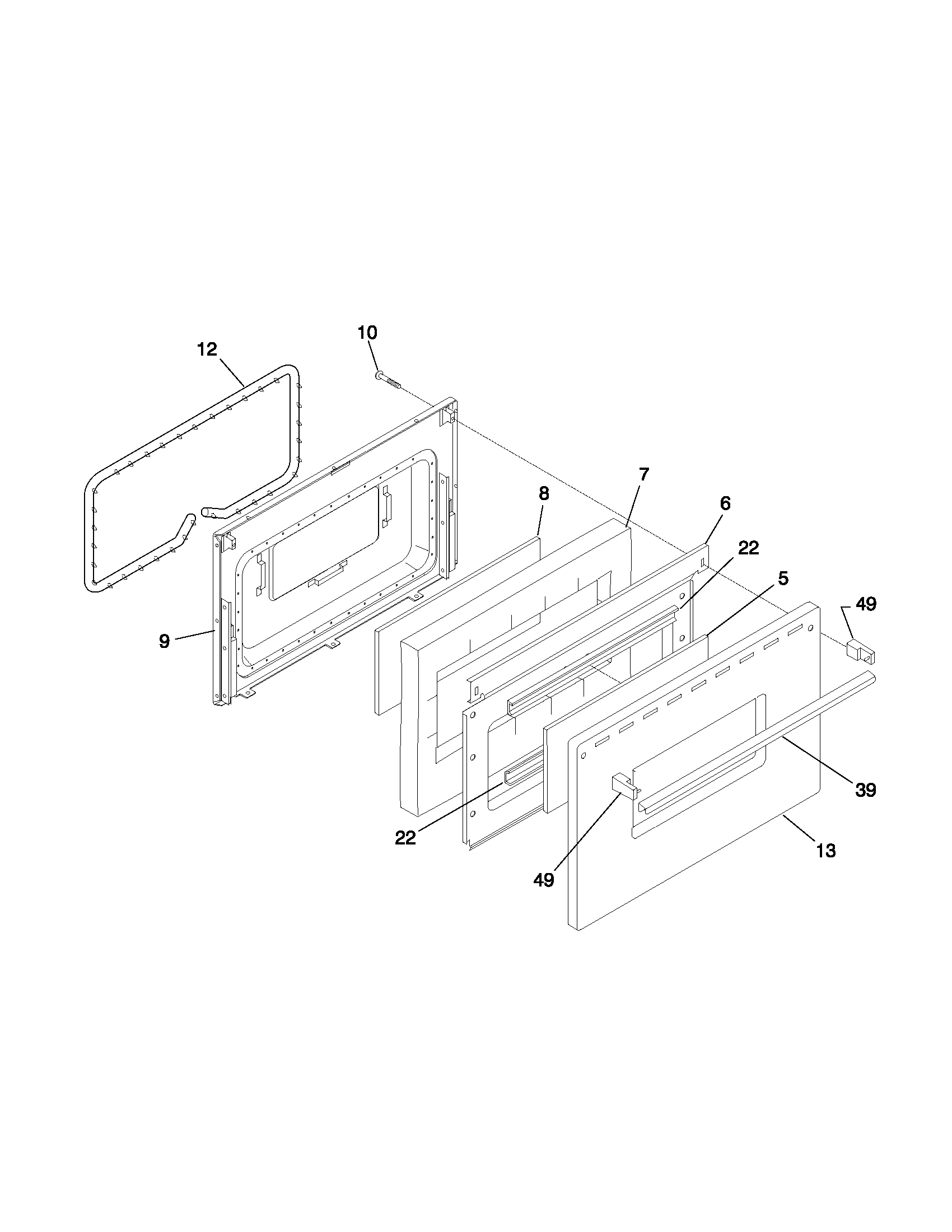

Door diagram

Range screw (replaces 316021105, 316021110, 316021112, 5303288571, 7316021109)

Part #316021109

$14.89 |
12% OFF Phone Price : $16.89
In Stock
Drawer Screw 316021112
#NI

Door diagram

Drawer screw

Part #316021112

Replaced by #316021109

?
Manufacturer substitution
This part replaces 316021112. Substitute parts can look different from the original.
$14.89 |
12% OFF Phone Price : $16.89
In Stock
Range Hex Head Screw, #8-18 X 3/8-in 316021105
Range hex head screw, #8-18 x 3/8-in

Part #316021105

Replaced by #316021109

?
Manufacturer substitution
This part replaces 316021105. Substitute parts can look different from the original.
$14.89 |
12% OFF Phone Price : $16.89
In Stock
Range Screw 316021110
Range screw

Part #316021110

Replaced by #316021109

?
Manufacturer substitution
This part replaces 316021110. Substitute parts can look different from the original.
$14.89 |
12% OFF Phone Price : $16.89
In Stock
Oven Light Switch 316118101
#24

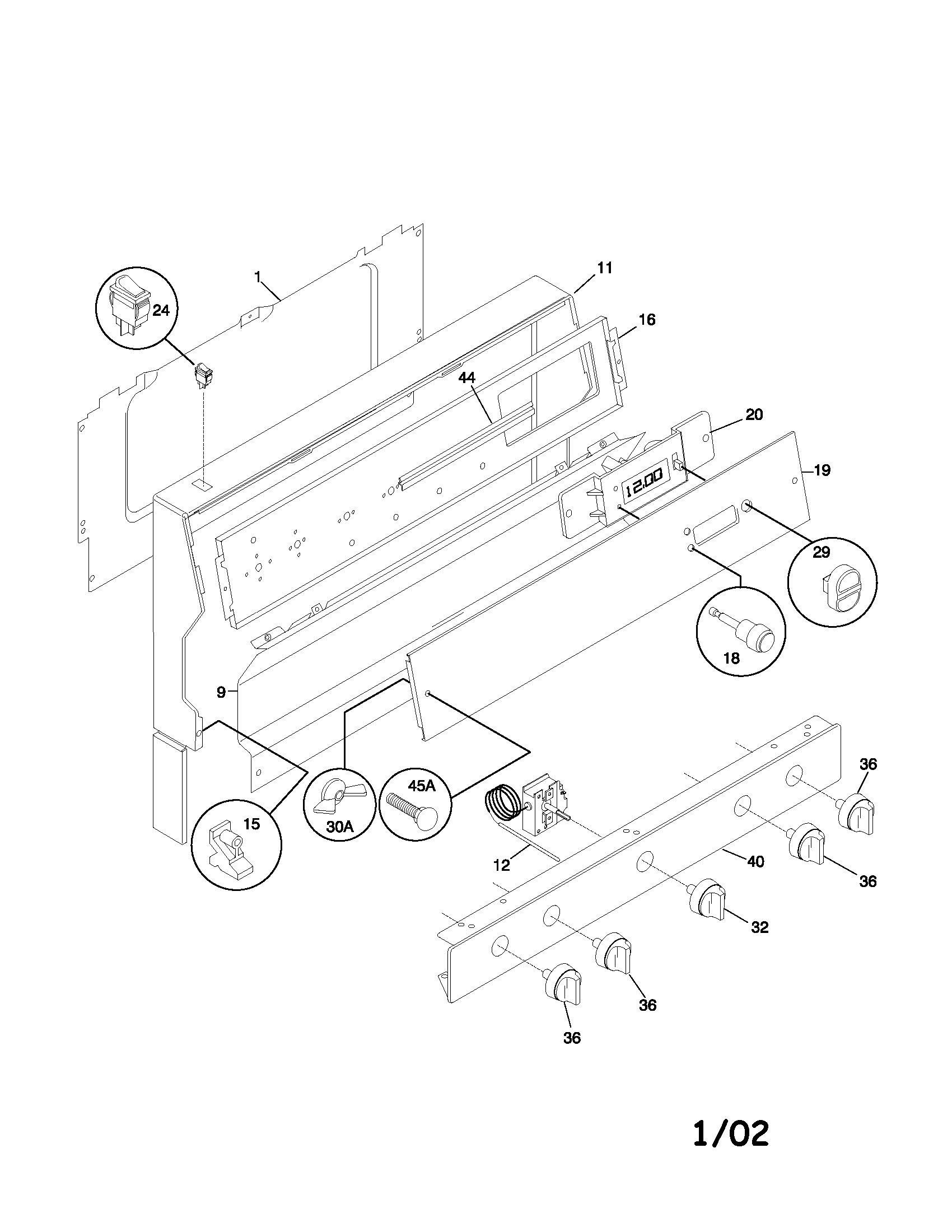

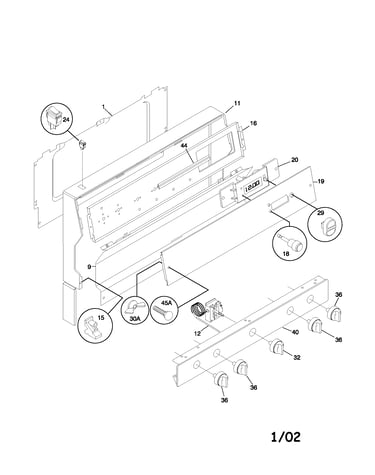

Backguard diagram

Oven light switch

Part #316118101

Replaced by #5304527842

?
Manufacturer substitution
This part replaces 316118101. Substitute parts can look different from the original.
This item is not returnable
$11.09 |
15% OFF Phone Price : $13.09
In Stock
Range Anti-tip Bracket 316107200
#170

Body diagram

Range anti-tip bracket

Part #316107200

Replaced by #316112005

?
Manufacturer substitution
This part replaces 316107200. Substitute parts can look different from the original.
$11.56 |
15% OFF Phone Price : $13.56
In Stock
