GE
Wine & Beverage Cooler

Model # GVS04BDWESS Official GE beverage center

Here are the diagrams and repair parts for Official GE GVS04BDWESS beverage center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Door Gasket WR24X20031
#6

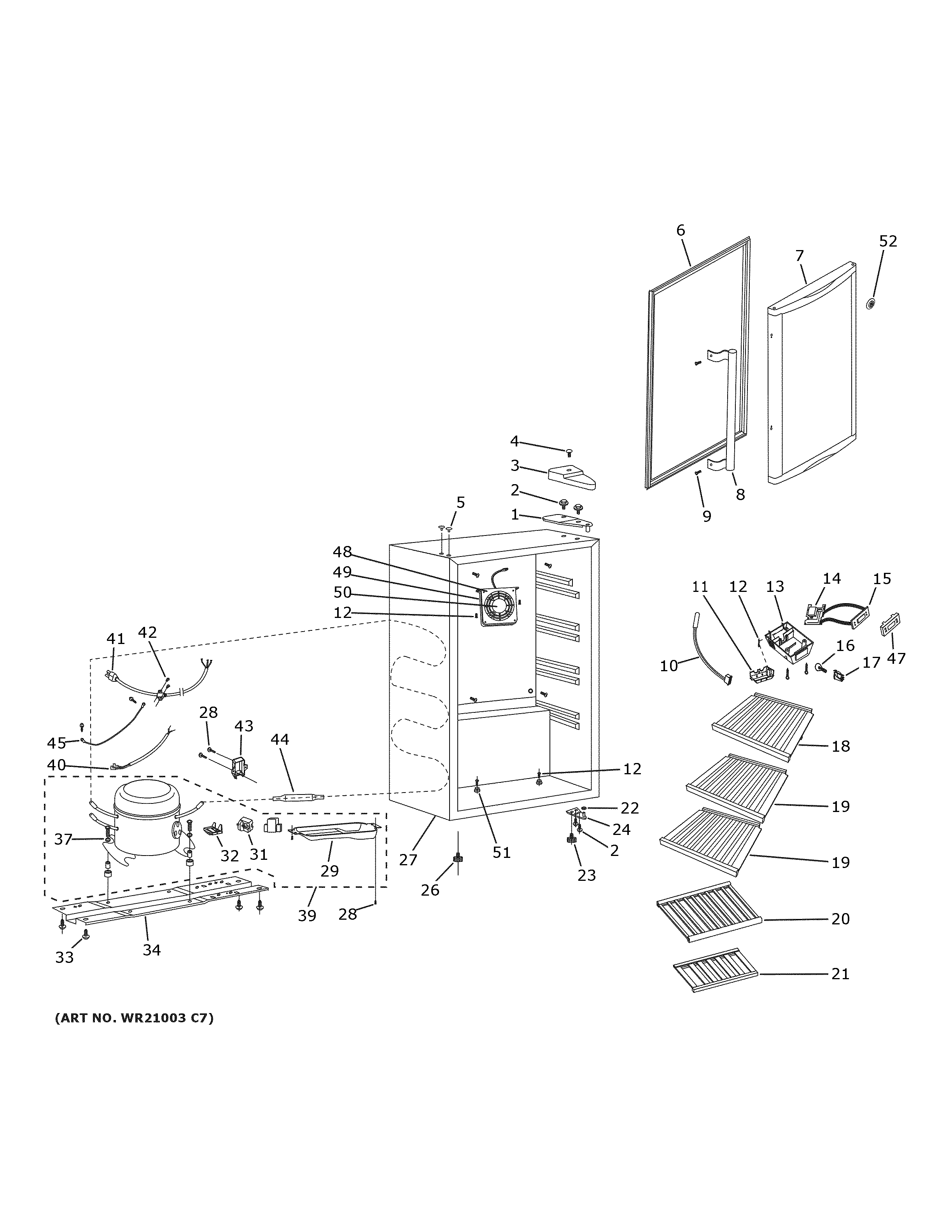

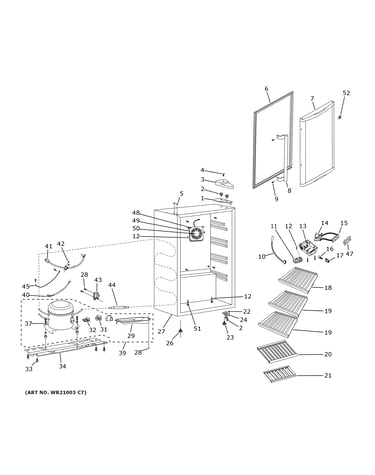

Beverage center diagram

Door gasket

Part #WR24X20031

$64.87 |
8% OFF Phone Price : $70.87
In Stock
Wire Box WR40X20017
#43

Beverage center diagram

Wire box

Part #WR40X20017

$11.71
In Stock
Compressor WR91X24391
#39

Beverage center diagram

Compressor

Part #WR91X24391

$315.64
In Stock
Screw WR01X20047
#12

Beverage center diagram

Screw

Part #WR01X20047

$11.43
In Stock
Compressor WR91X20043
#34

Beverage center diagram

Compressor

Part #WR91X20043

$38.46 |
13% OFF Phone Price : $44.46
In Stock
Fan Protect WR32X20035
#49

Beverage center diagram

Fan protect

Part #WR32X20035

$22.69 |
21% OFF Phone Price : $28.69
In Stock
Display Pcb WR55X24394
#15

Beverage center diagram

Display pcb

Part #WR55X24394

$216.99
In Stock
Screw WR01X20039
#42

Beverage center diagram

Screw

Part #WR01X20039

This item is not returnable
$5.49
In Stock
Appliance Nameplate WR04X10222
#52

Beverage center diagram

Appliance nameplate

Part #WR04X10222

$41.91 |
13% OFF Phone Price : $47.91
In Stock
Hinge WR13X20057
#24

Beverage center diagram

Hinge

Part #WR13X20057

$31.98 |
16% OFF Phone Price : $37.98
In Stock
