Kenmore
Dishwasher

Model # 58714633J01B Official Kenmore dishwasher

Here are the diagrams and repair parts for Official Kenmore 58714633J01B dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

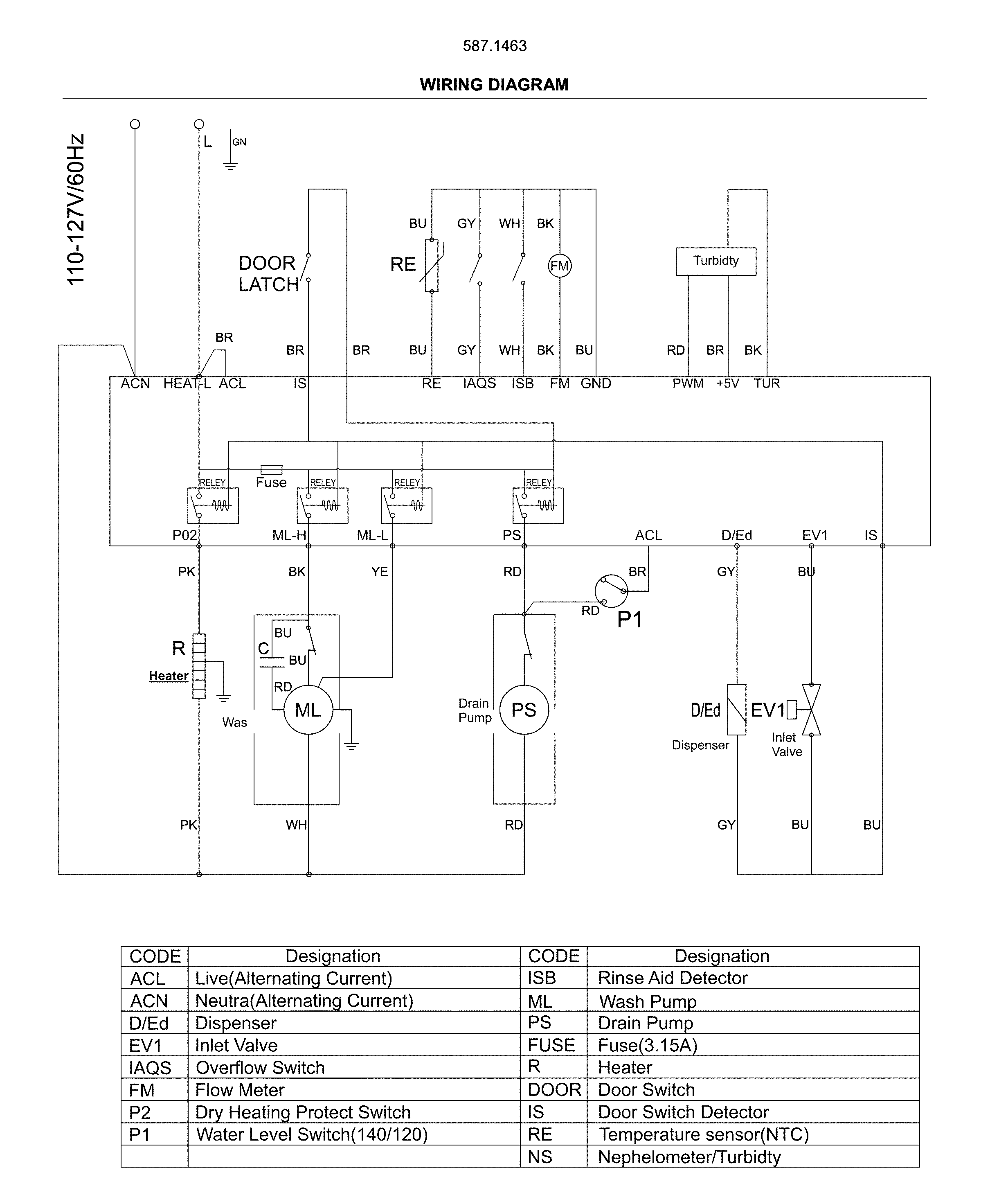

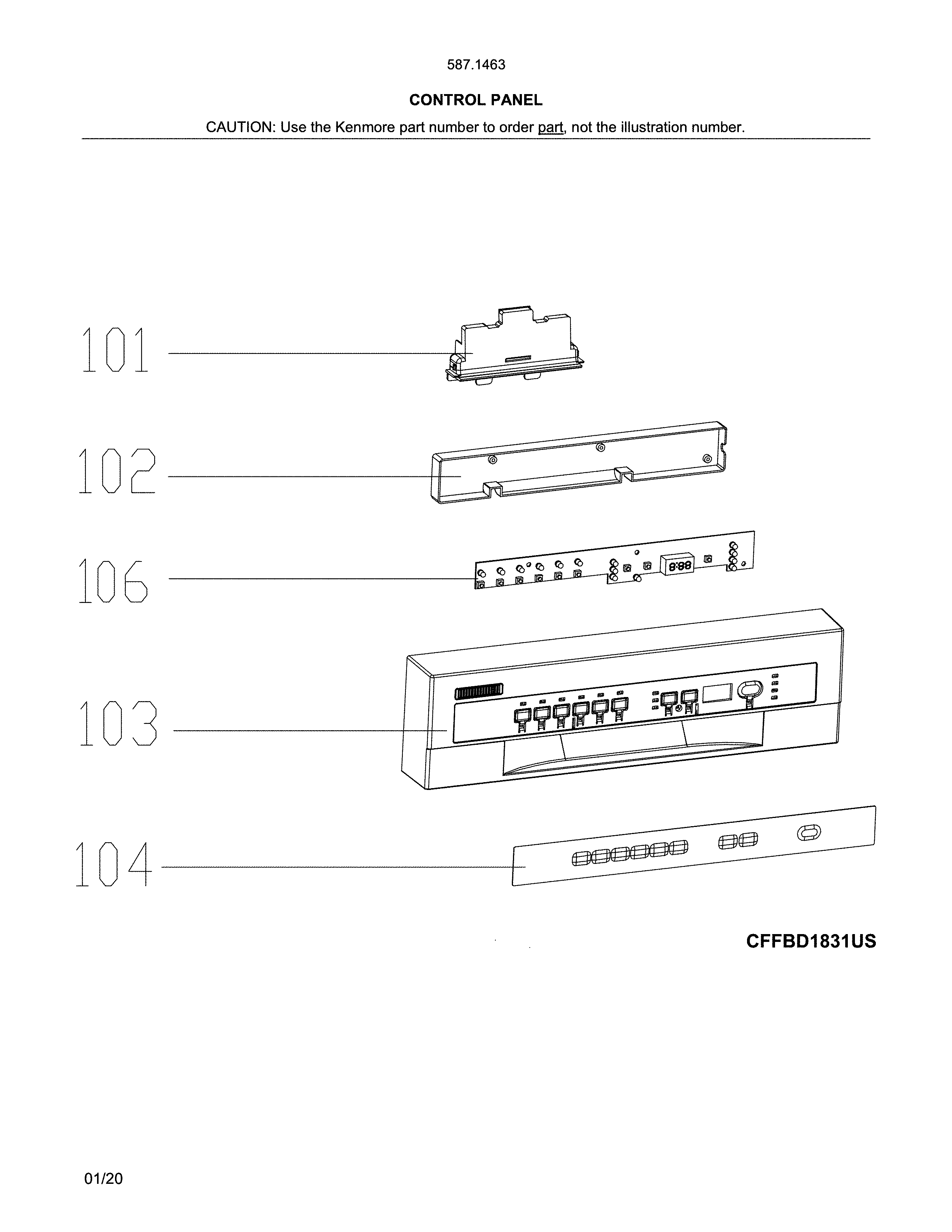

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |
Ikea Dishwasher Drain Pump 5304519271
#604

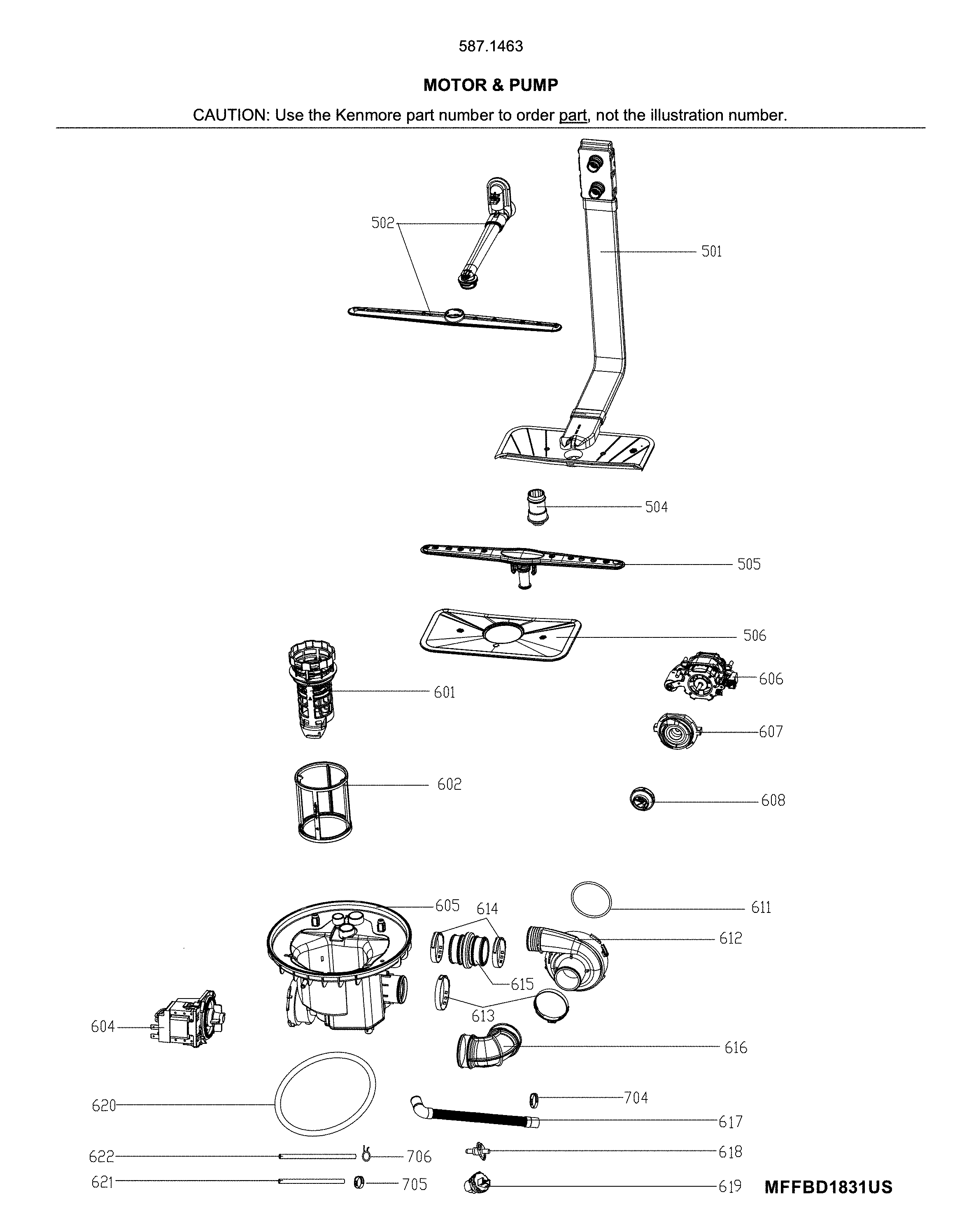

Motor & pump diagram

Ikea dishwasher drain pump

Part #5304519271

$151.85 |
7% OFF Phone Price : $163.85
In Stock
Electrolux Dishwasher Water Inlet Valve 5304519252
#411

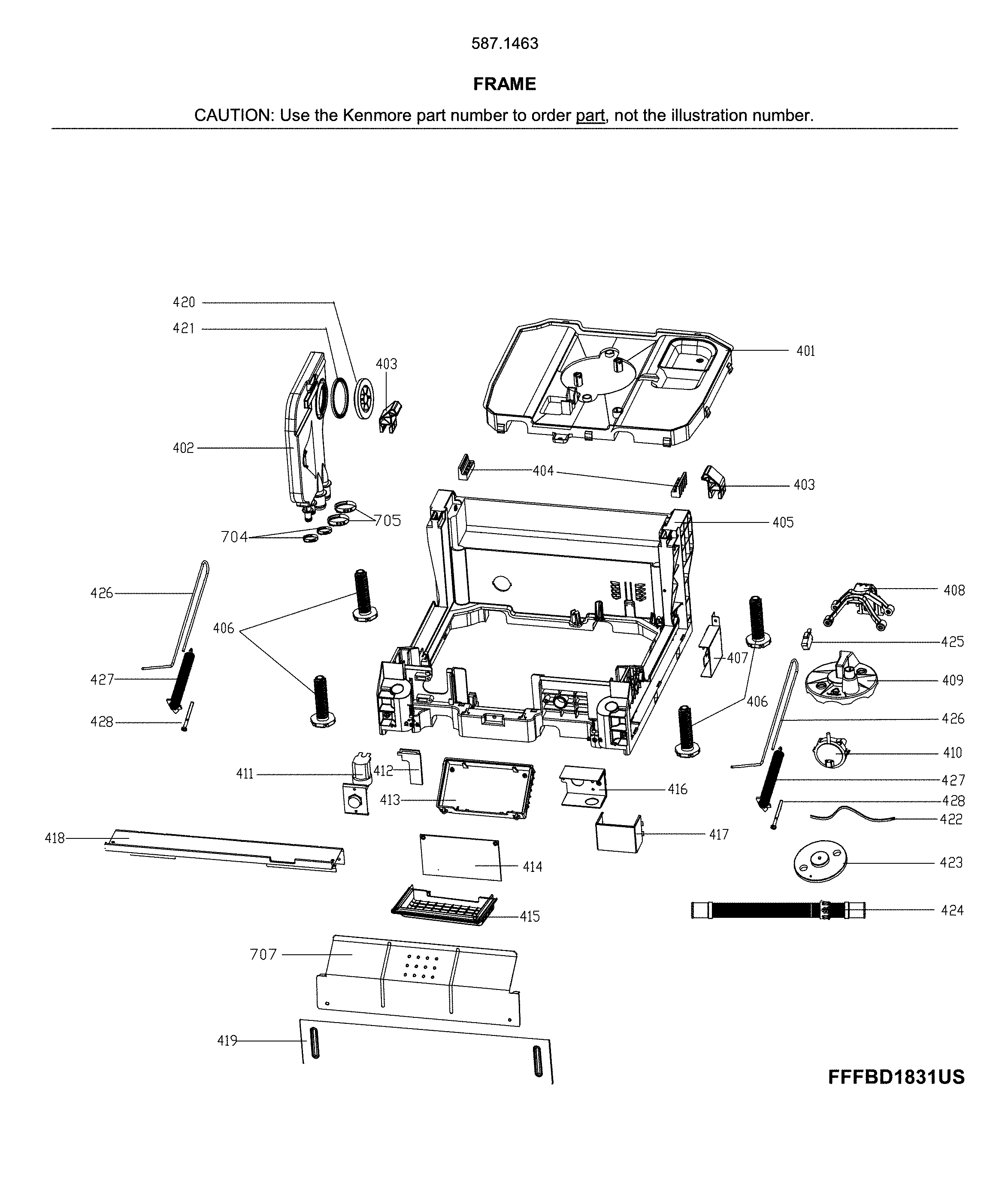

Frame diagram

Electrolux dishwasher water inlet valve

Part #5304519252

$71.84
In Stock
Ikea Filter 5304519270
#602

Motor & pump diagram

Ikea filter

Part #5304519270

$45.73
In Stock
Ikea Spreader-wat 5304519267
#505

Motor & pump diagram

Ikea spreader-wat

Part #5304519267

$62.60
In Stock
Ikea Support 5304519266
#504

Motor & pump diagram

Ikea support

Part #5304519266

$13.31
In Stock
Dishwasher Circulation Pump 5304519273
#606

Motor & pump diagram

Dishwasher circulation pump

Part #5304519273

$142.79 |
8% OFF Phone Price : $154.79
In Stock
Electrolux Roller 5304519235
#305

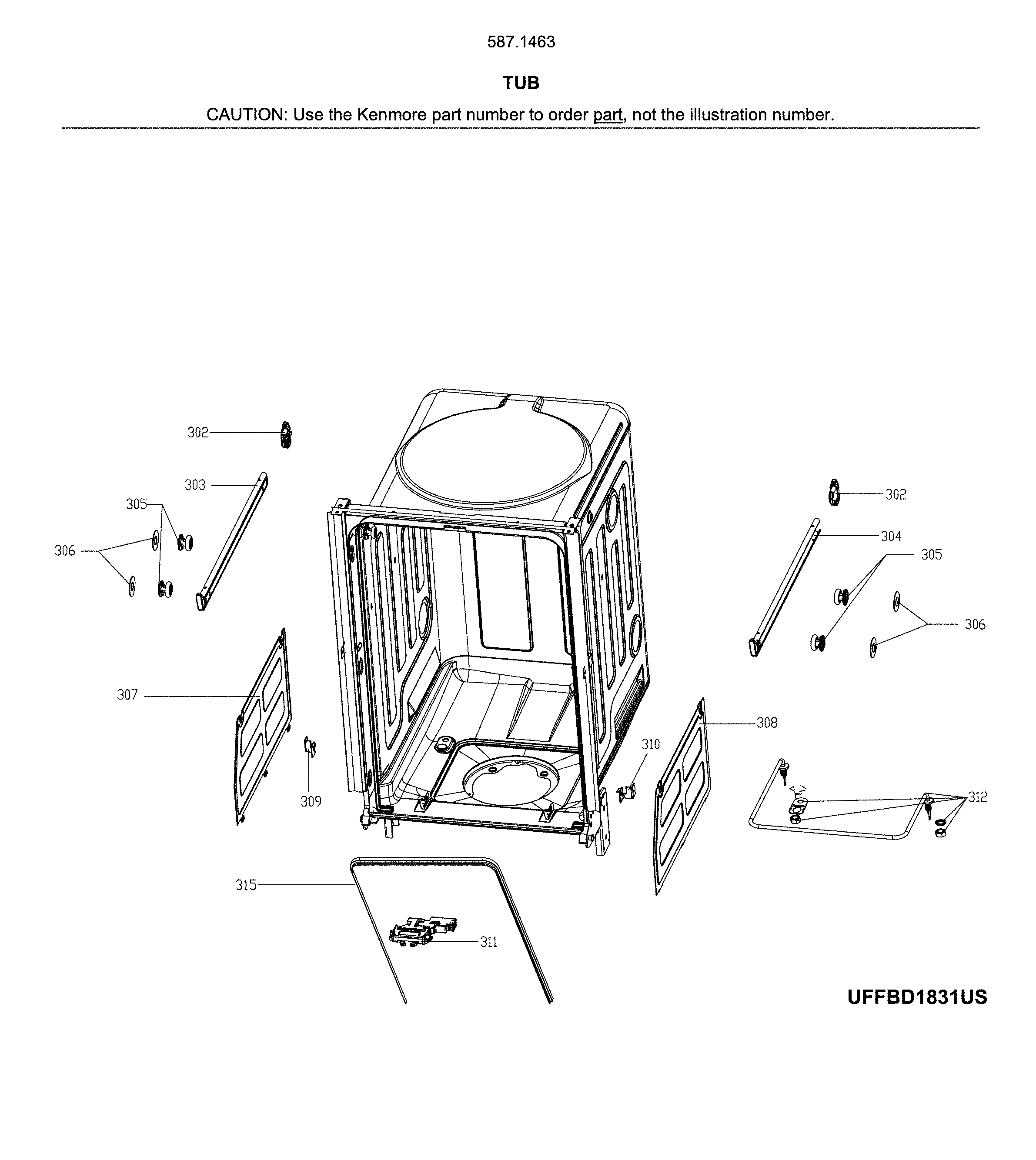

Tub diagram

Electrolux roller

Part #5304519235

$44.09
In Stock
Ikea Dishwasher Dishrack, Upper 5304519285
#701

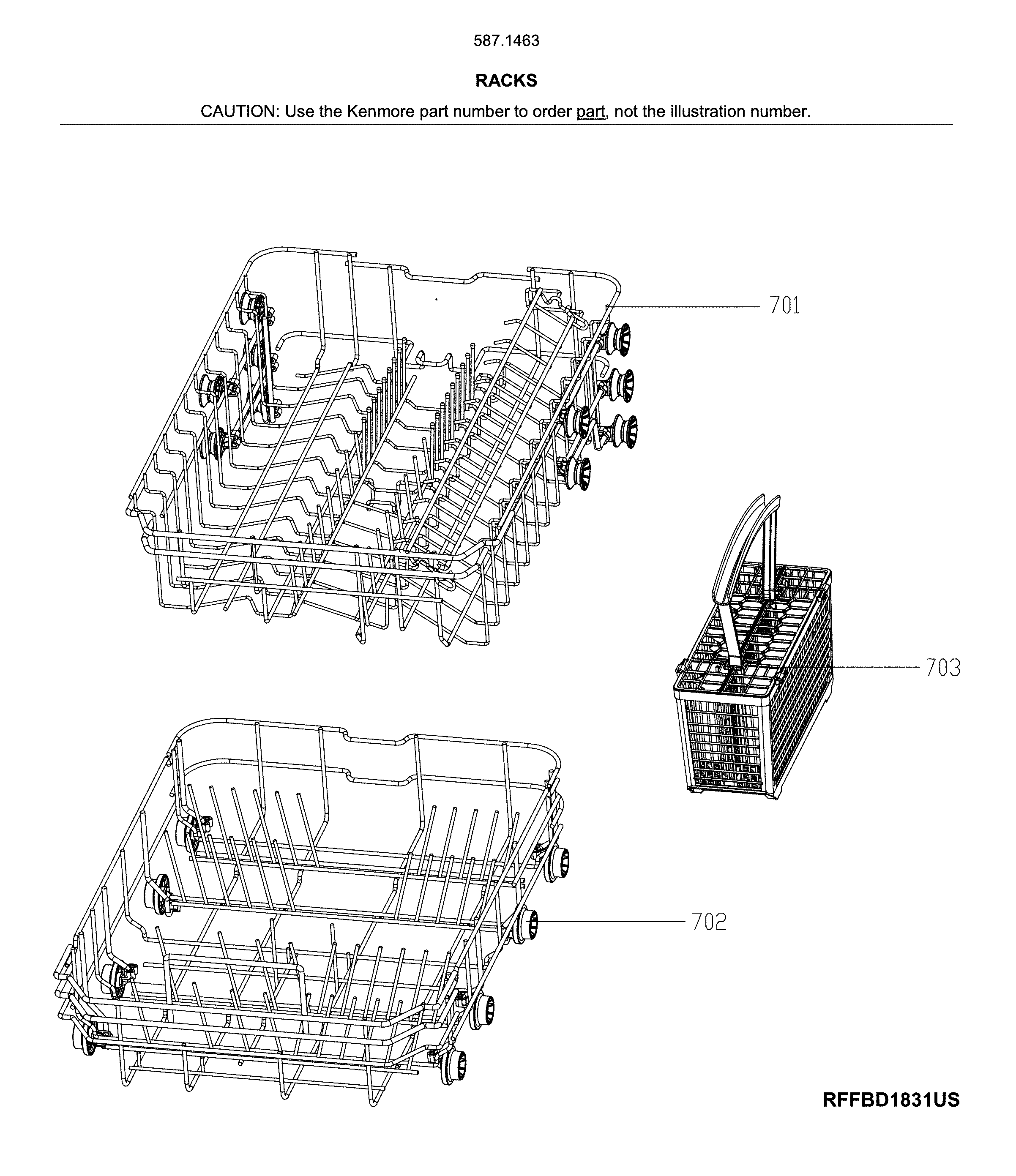

Racks diagram

Ikea dishwasher dishrack, upper

Part #5304519285

$191.81 |
6% OFF Phone Price : $203.81
In Stock
Ikea Seal 5304519283
#620

Motor & pump diagram

Ikea seal

Part #5304519283

$10.49
In Stock
Electrolux Seal 5304519231
#213

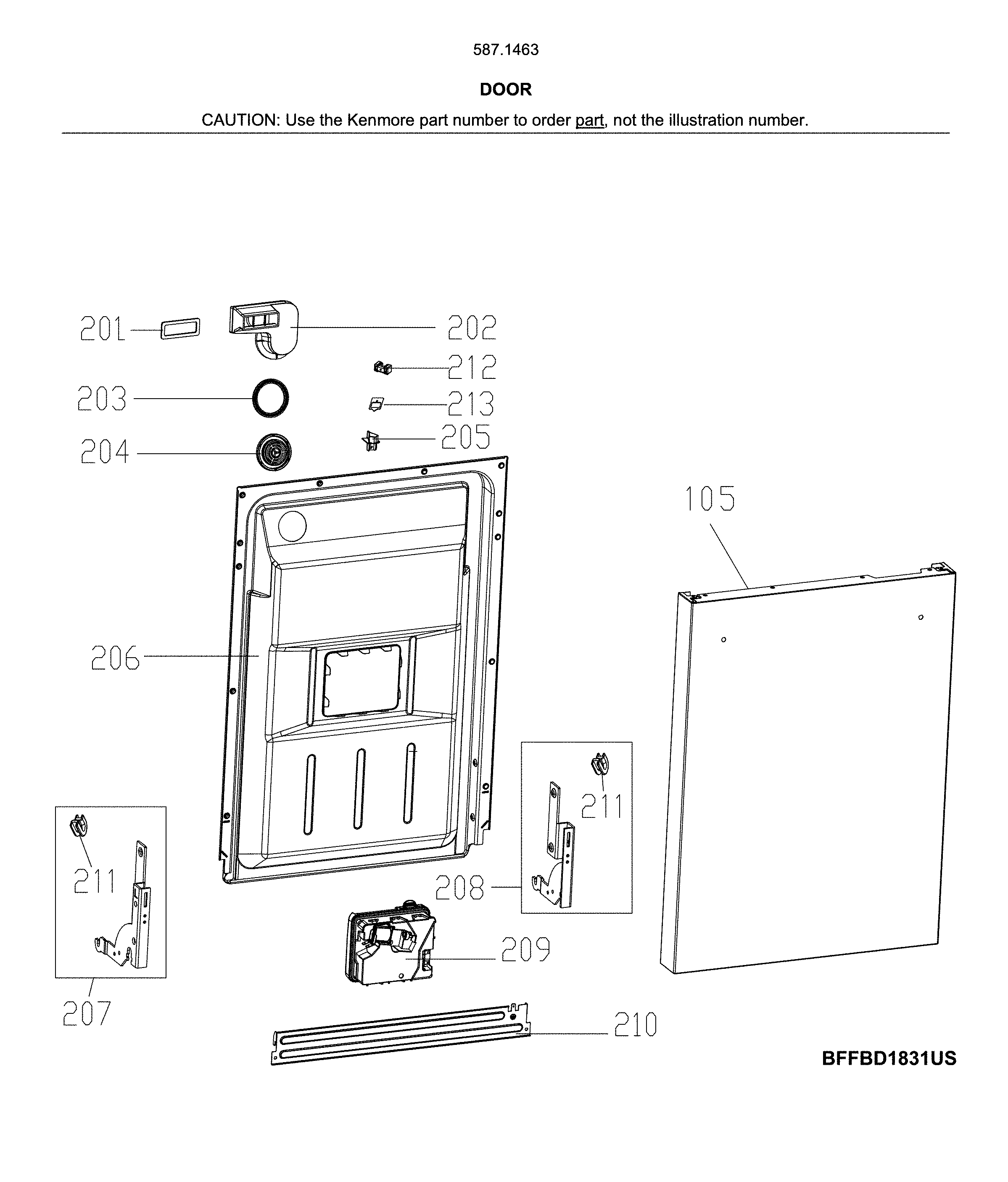

Door diagram

Electrolux seal

Part #5304519231

$10.49
In Stock

Most common symptoms to help you fix your dishwashers

Choose a symptom to see related dishwasher repairs.

View all

Why does my dishwasher door drop open too fast?

Main causes: broken door spring, damaged or broken door hinge…

Read more

Why don't my dishes get dry?

Main causes: not using rinse aid, rinse aid dispenser failure, broken heating element, malfunctioning vent, drying fan f…

Read more

Why won't my dishwasher fill?

Main causes: water supply problem, stuck overfill float, clogged water inlet valve screen, water inlet valve failure…

Read more

Why won't my dishwasher start?

Main causes: light switch beside the sink turned off, lack of power, bad dishwasher door switch, control system failure,…

Read more

Why isn't my dishwasher getting dishes clean?

Main causes: improper loading, low water temperature, improper detergent dosage, detergent dispenser failure, spray arm …

Read more

Why is my dishwasher noisy?

Main causes: glass or popcorn kernel stuck in the chopper blade, drain line vibrating against the cabinet, debris in was…

Read more

Why won't my dishwasher drain?

Main causes: clogged kitchen sink drain, clogged drain hose, drain check valve damaged, drain pump failure, control syst…

Read more

Why can't I adjust the dishwasher rack height?

Main cause: damaged rack height adjuster…

Read more

Why is my dishwasher leaking?

Main causes: damaged or stuck spray arm, leaking door seal, damaged door hinge, leaky heating element water seal, cracke…

Read more
