Maytag
Dryer

Model # YMEDC200XW1 Official Maytag electric dryer

Here are the diagrams and repair parts for Official Maytag YMEDC200XW1 electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 113 parts  |
Dryer Thermal Fuse 3392519
#7

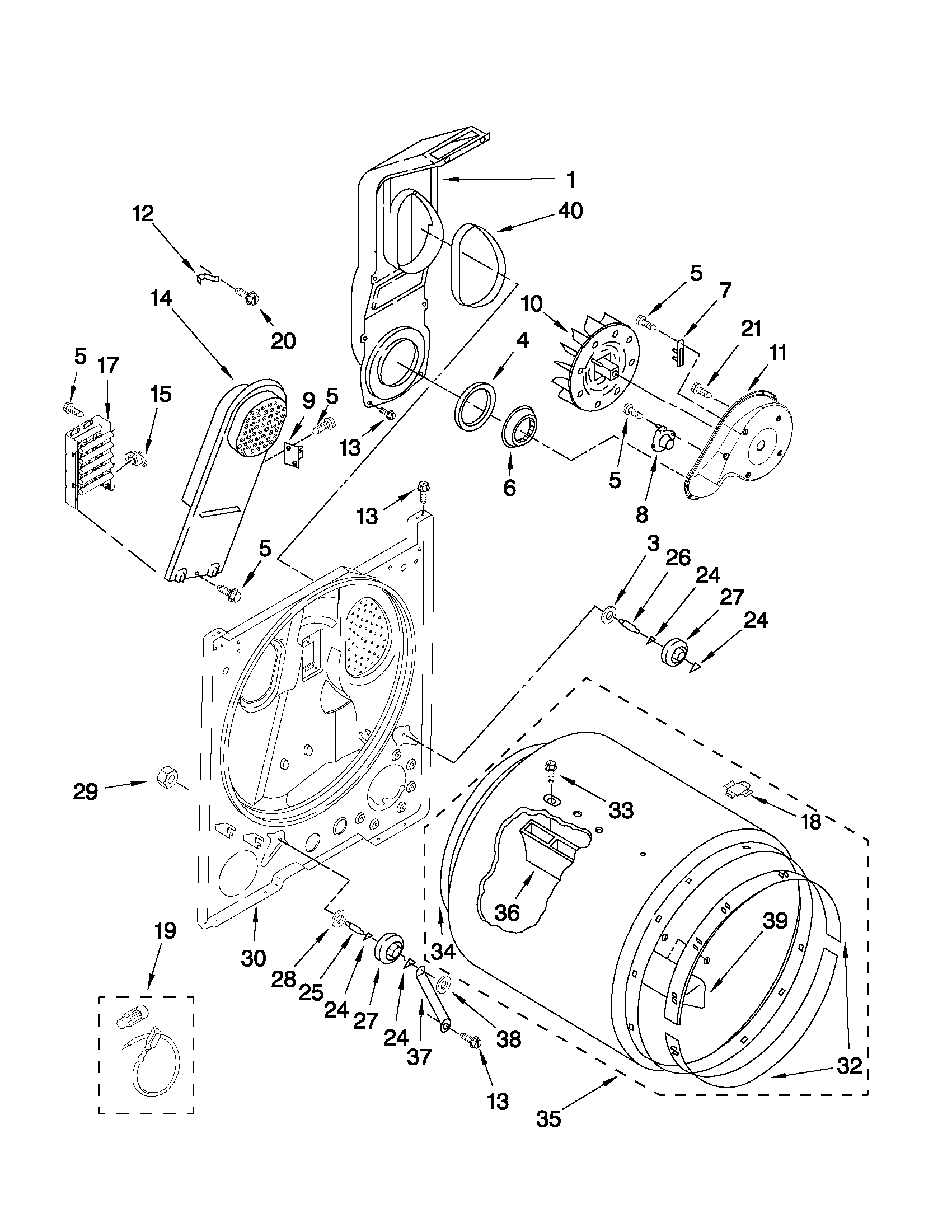

Bulkhead parts diagram

Dryer thermal fuse

Part #3392519

Replaced by #WP3392519

?
Manufacturer substitution
This part replaces 3392519. Substitute parts can look different from the original.
BEST SELLER
$18.56 |
10% OFF Phone Price : $20.56
In Stock
Dryer Drum Support Roller W10314171
#27

Bulkhead parts diagram

Dryer drum support roller

Part #W10314171

Replaced by #WPW10314173

?
Manufacturer substitution
This part replaces W10314171. Substitute parts can look different from the original.
BEST SELLER
$15.77 |
11% OFF Phone Price : $17.77
In Stock
Dryer Thermal Cut-off Fuse Kit 3977393
#9

Bulkhead parts diagram

Dryer thermal cut-off fuse kit

Part #3977393

Replaced by #279816

?
Manufacturer substitution
This part replaces 3977393. Substitute parts can look different from the original.
BEST SELLER
$40.59 |
13% OFF Phone Price : $46.59
In Stock
Dryer Repair Kit 279948
#NI

Optional parts (not included) diagram

Dryer repair kit

Part #279948

Replaced by #4392065

?
Manufacturer substitution
This part replaces 279948. Substitute parts can look different from the original.
BEST SELLER
$29.75 |
17% OFF Phone Price : $35.75
In Stock
Drive Motor 8066206
#34

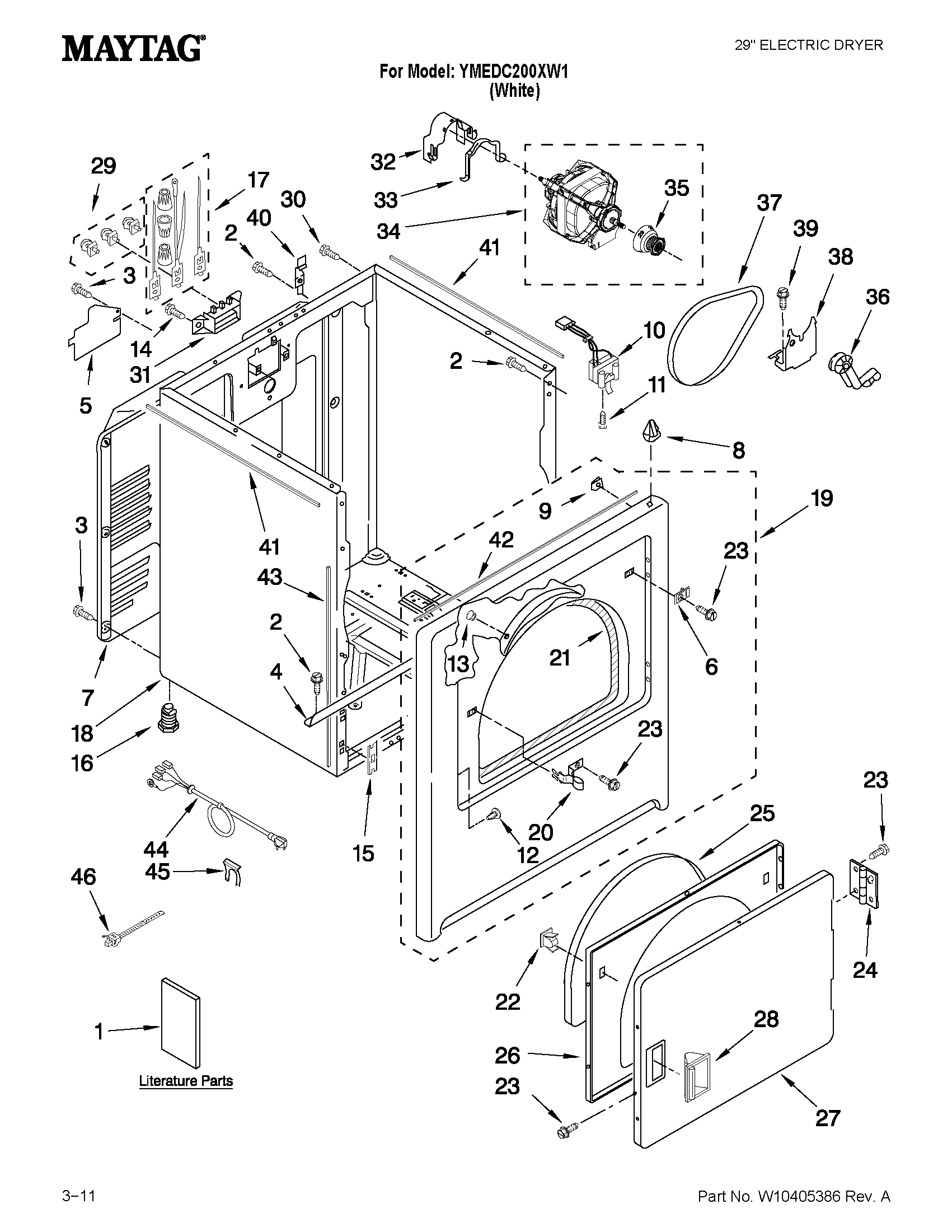

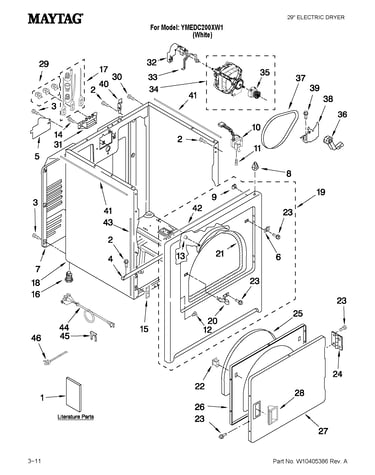

Cabinet parts diagram

Drive motor

Part #8066206

Replaced by #279827

?
Manufacturer substitution
This part replaces 8066206. Substitute parts can look different from the original.
BEST SELLER
$93.81 |
6% OFF Phone Price : $99.81
In Stock
Dryer Operating Thermostat 3387134
#8

Bulkhead parts diagram

Dryer operating thermostat

Part #3387134

Replaced by #WP3387134

?
Manufacturer substitution
This part replaces 3387134. Substitute parts can look different from the original.
BEST SELLER
$20.83 |
22% OFF Phone Price : $26.83
In Stock
Dryer Blower Wheel 694089
#10

Bulkhead parts diagram

Dryer blower wheel

Part #694089

Replaced by #WP694089

?
Manufacturer substitution
This part replaces 694089. Substitute parts can look different from the original.
BEST SELLER
$26.63 |
18% OFF Phone Price : $32.63
In Stock
Screen (white) 8565972
#12

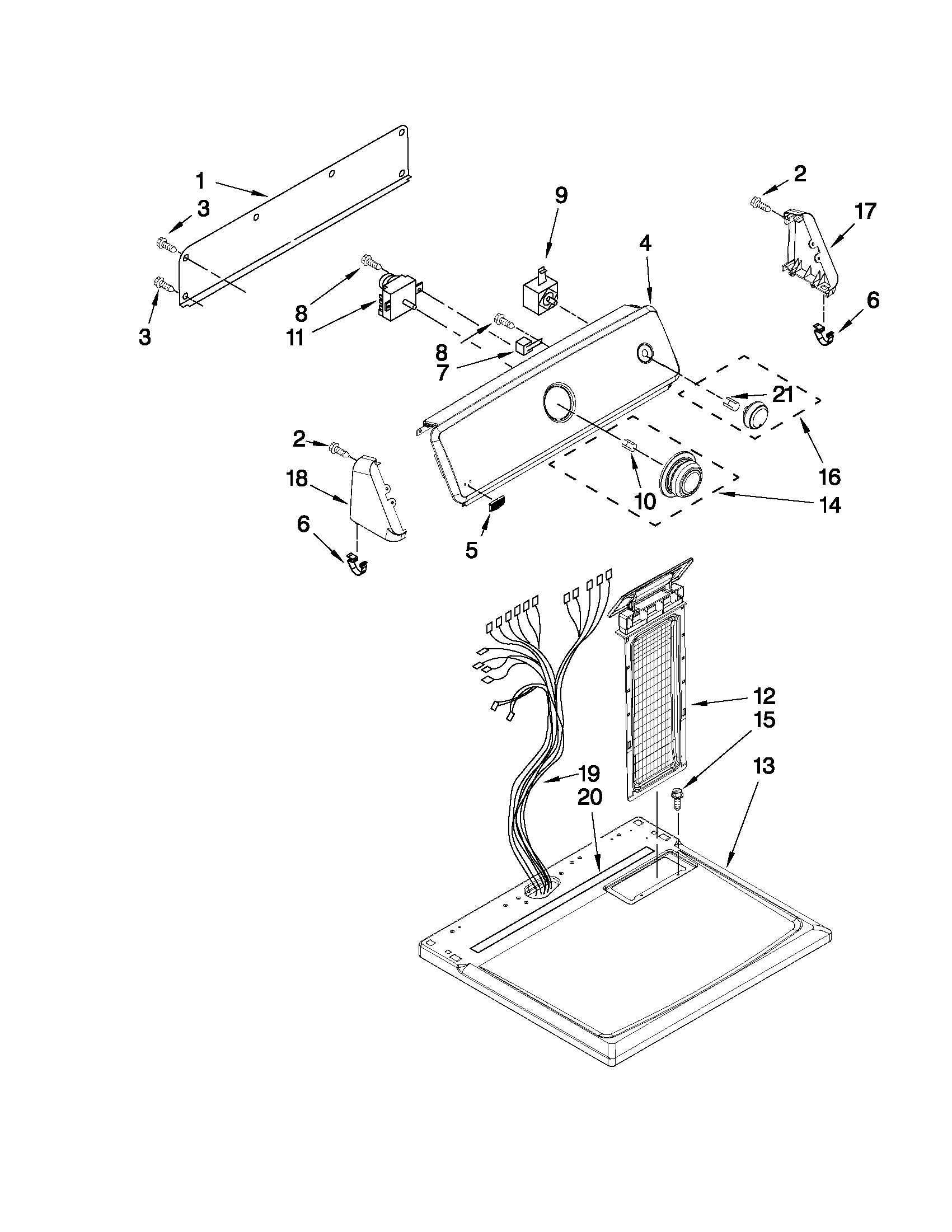

Top and console parts diagram

Screen (white)

Part #8565972

Replaced by #WPW10717210

?
Manufacturer substitution
This part replaces 8565972. Substitute parts can look different from the original.
BEST SELLER
$33.96 |
15% OFF Phone Price : $39.96
In Stock
Dryer High-limit Thermostat 3977767
#15

Bulkhead parts diagram

Dryer high-limit thermostat

Part #3977767

Replaced by #WP3977767

?
Manufacturer substitution
This part replaces 3977767. Substitute parts can look different from the original.
BEST SELLER
$17.27 |
10% OFF Phone Price : $19.27
In Stock
Dryer Motor Pulley 8066184
#35

Cabinet parts diagram

Dryer motor pulley

Part #8066184

Replaced by #WP8066184

?
Manufacturer substitution
This part replaces 8066184. Substitute parts can look different from the original.
BEST SELLER
$33.26 |
15% OFF Phone Price : $39.26
In Stock
