Model # 79036703500 Official Kenmore Elite gas range
Here are the diagrams and repair parts for Official Kenmore Elite 79036703500 gas range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual

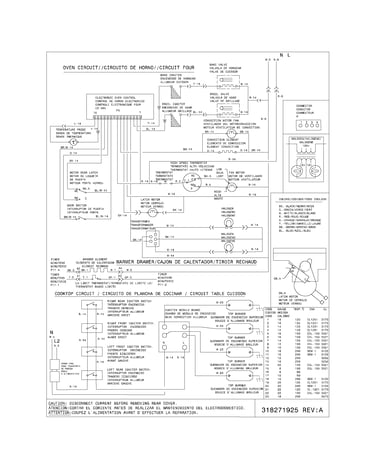

Error CodesBy Schematic
By Part

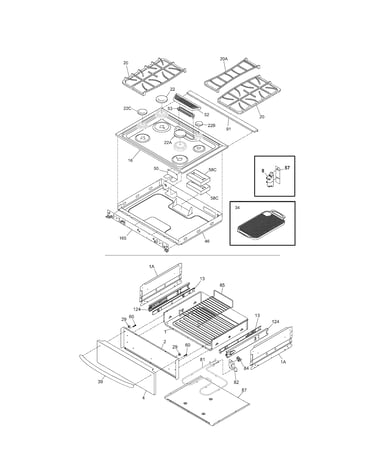

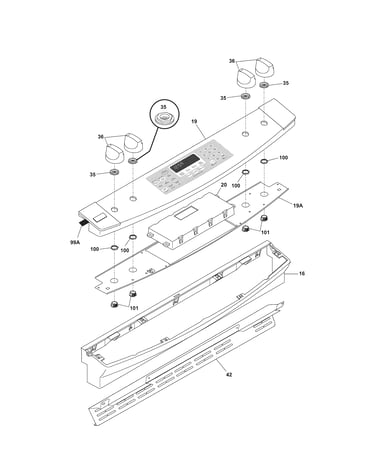

SELECT DIAGRAM
Browse Parts for
79036703500 Ranges
#26

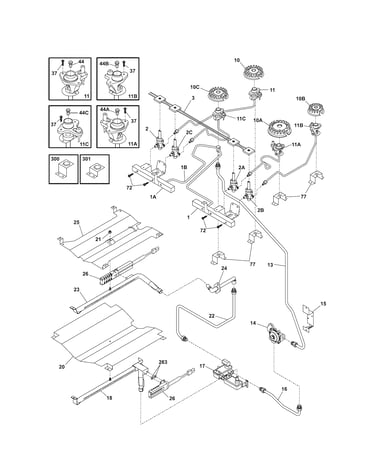

Burner diagram
Igniter
Part #316428600
Replaced by #5303935066
?
Manufacturer substitution
This part replaces 316428600. Substitute parts can look different from the original.
$33.33 |
15% OFF Phone Price : $39.33
In Stock
#37

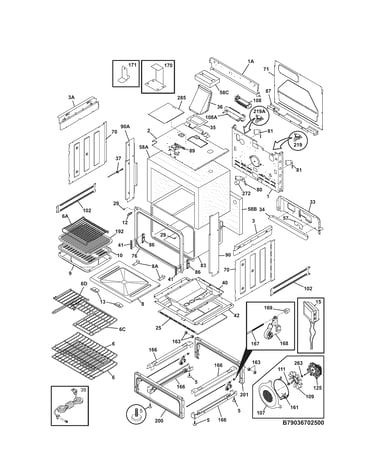

Body diagram
Frigidaire range oven temperature sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002)
Part #316217002
$46.01 |
12% OFF Phone Price : $52.01
In Stock
#111
Body diagram
Range convection fan blade nut (replaces 318399800, 5303311205, 7316136600)
Part #316136600
$20.44 |
23% OFF Phone Price : $26.44
In Stock
Washer
Part #316136500
Replaced by #316008401
?
Manufacturer substitution
This part replaces 316136500. Substitute parts can look different from the original.
$14.43 |
12% OFF Phone Price : $16.43
In Stock
#125
Body diagram
Motor
Part #316415800
Replaced by #5304467898
?
Manufacturer substitution
This part replaces 316415800. Substitute parts can look different from the original.
$122.36 |
9% OFF Phone Price : $134.36
In Stock
#219
Body diagram
Crosley range high-limit thermostat
Part #318003614
$64.84 |
8% OFF Phone Price : $70.84
In Stock
#219
Body diagram
Thermostat
Part #318003613
Replaced by #318003624
?
Manufacturer substitution
This part replaces 318003613. Substitute parts can look different from the original.
This item is not returnable
$25.99 |
19% OFF Phone Price : $31.99
In Stock
#39
Body diagram
Cord
Part #3202006
Replaced by #5304515659
?
Manufacturer substitution
This part replaces 3202006. Substitute parts can look different from the original.
$30.38 |
16% OFF Phone Price : $36.38
In Stock
#12

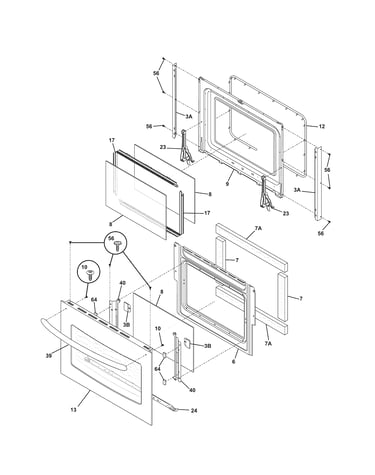

Door diagram
Oven seal
Part #318053130
Replaced by #318053120
?
Manufacturer substitution
This part replaces 318053130. Substitute parts can look different from the original.
$119.36 |
9% OFF Phone Price : $131.36
In Stock
#89
Body diagram
Motor
Part #318261202
Replaced by #318261230
?
Manufacturer substitution
This part replaces 318261202. Substitute parts can look different from the original.
$95.42 |
11% OFF Phone Price : $107.42
In Stock
RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES
- $90.58 |6% OFF Phone Price : $96.58
- $20.99 |22% OFF Phone Price : $26.99
Most common symptoms to help you fix your ranges
Choose a symptom to see related range repairs.
Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…
Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…
Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…
Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…
Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…
Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…
Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…
Most common repair guides to help fix your ranges
These step-by-step repair guides will help you safely fix what’s broken on your range.
