Model # LAT9634AAL Official Maytag washer/dryer
Here are the diagrams and repair parts for Official Maytag LAT9634AAL washer/dryer, as well as links to manuals and error code tables, if available.
By Schematic
By Part

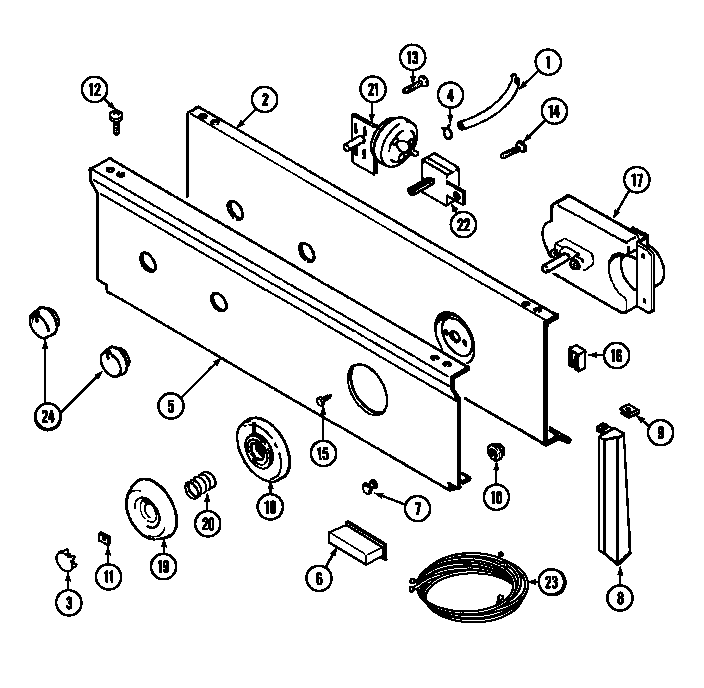

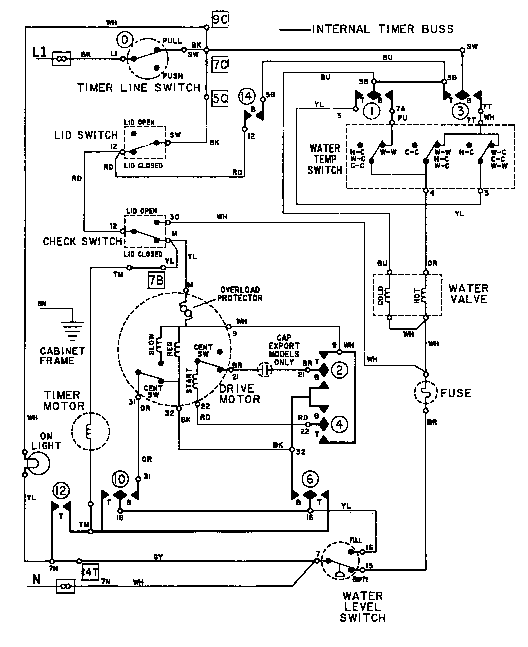

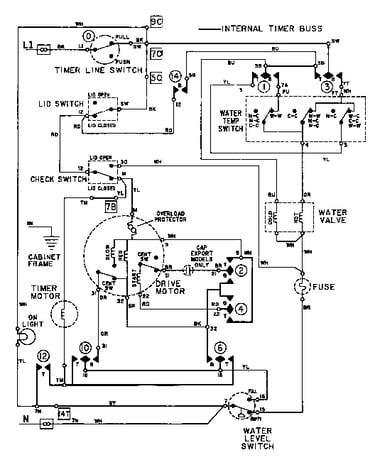

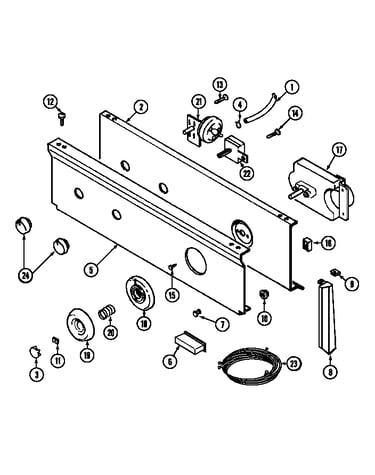

SELECT DIAGRAM
Browse Parts forLAT9634AAL Washer/Dryer
- #18

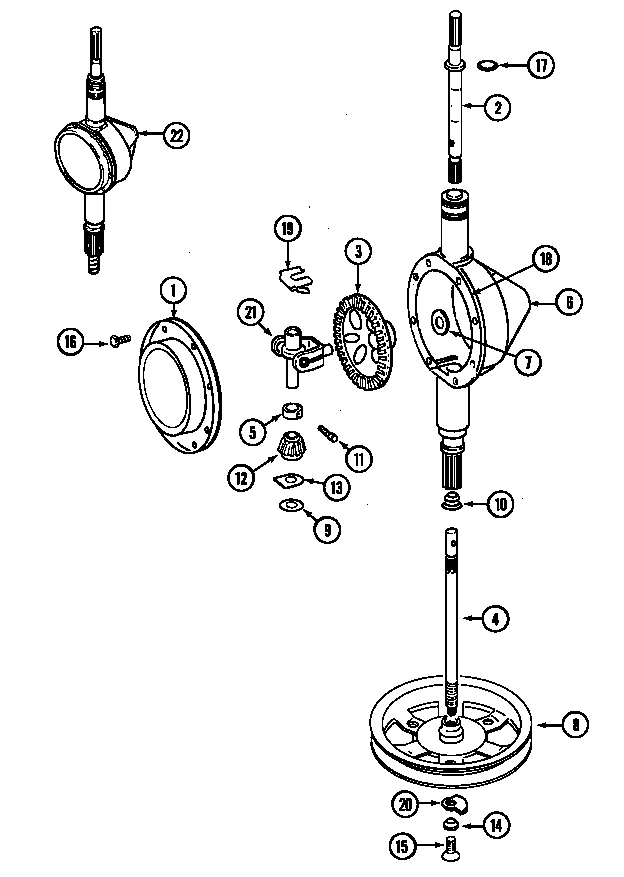

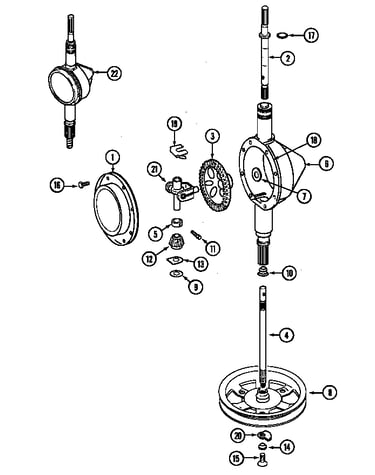

Transmission diagram
Silastic,adhPart #058700
Replaced by #W10841140
?Manufacturer substitutionThis part replaces 058700. Substitute parts can look different from the original.$14.24 |12% OFF Phone Price : $16.24In Stock - #16

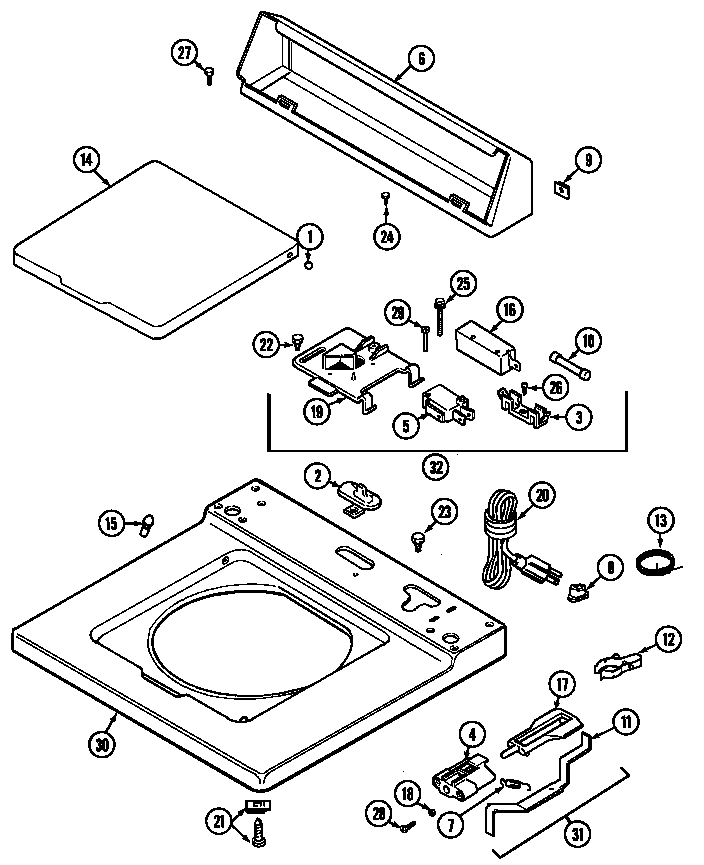

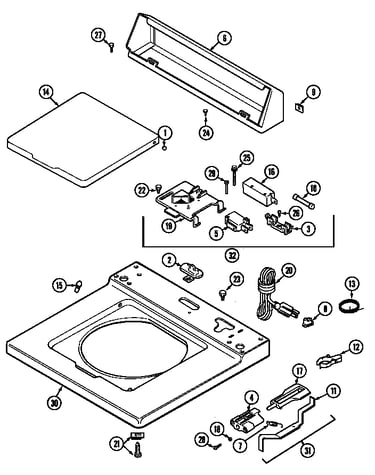

Top diagram
Lid switchPart #205415
Replaced by #W10820036
?Manufacturer substitutionThis part replaces 205415. Substitute parts can look different from the original.$21.44 |22% OFF Phone Price : $27.44In Stock - #25

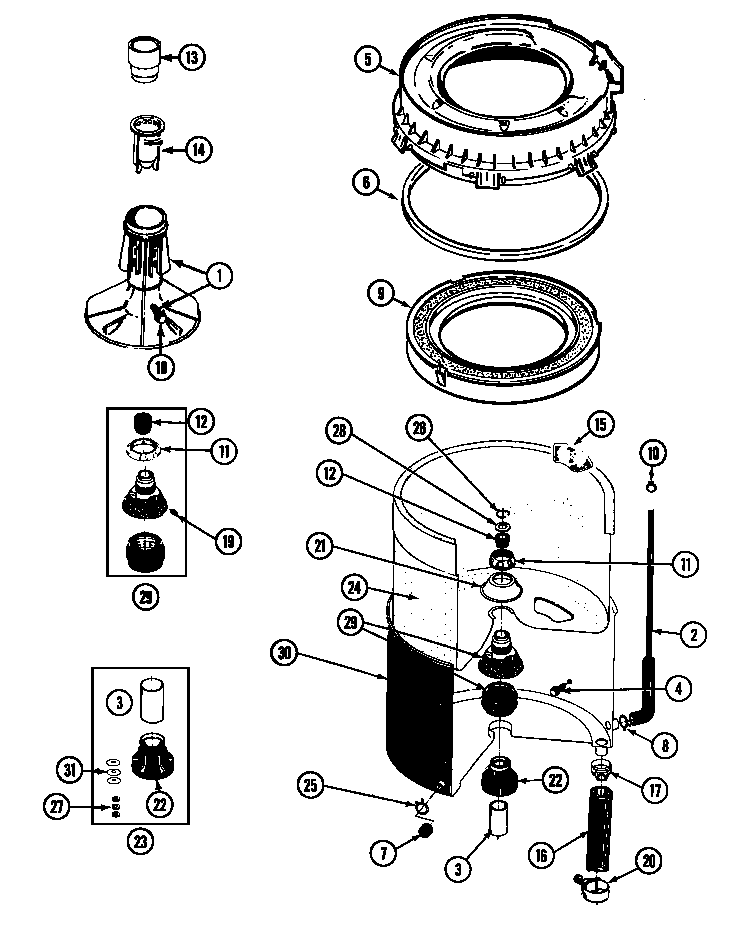

Tub diagram
Spring hosePart #214739
Replaced by #WP596669
?Manufacturer substitutionThis part replaces 214739. Substitute parts can look different from the original.This item is not returnable$4.31 |19% OFF Phone Price : $5.31In Stock - Water clamp
Part #410296
Replaced by #WP596669
?Manufacturer substitutionThis part replaces 410296. Substitute parts can look different from the original.This item is not returnable$4.31 |19% OFF Phone Price : $5.31In Stock - #14

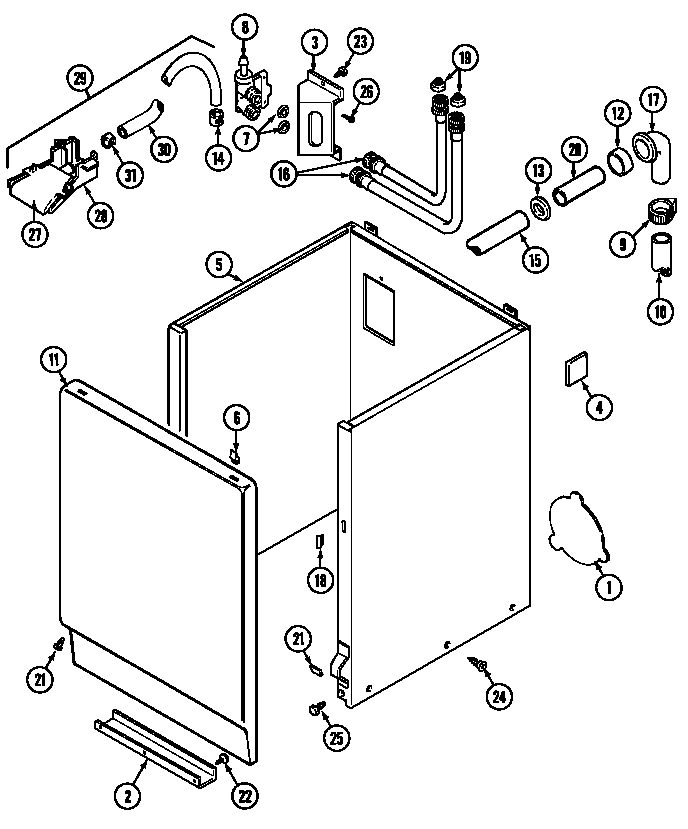

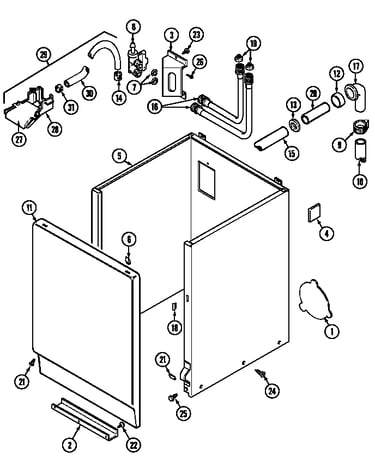

Cabinet diagram
Clamp,hose-iPart #216169
Replaced by #WP596669
?Manufacturer substitutionThis part replaces 216169. Substitute parts can look different from the original.This item is not returnable$4.31 |19% OFF Phone Price : $5.31In Stock - #17
Tub diagram
Hose clampPart #201011
Replaced by #WP285655
?Manufacturer substitutionThis part replaces 201011. Substitute parts can look different from the original.This item is not returnable$6.36 |14% OFF Phone Price : $7.36In Stock - #9
Cabinet diagram
Hose clampPart #200908
Replaced by #WP285655
?Manufacturer substitutionThis part replaces 200908. Substitute parts can look different from the original.This item is not returnable$6.36 |14% OFF Phone Price : $7.36In Stock - #8
Tub diagram
ClampPart #211641
Replaced by #WP285655
?Manufacturer substitutionThis part replaces 211641. Substitute parts can look different from the original.This item is not returnable$6.36 |14% OFF Phone Price : $7.36In Stock - #21

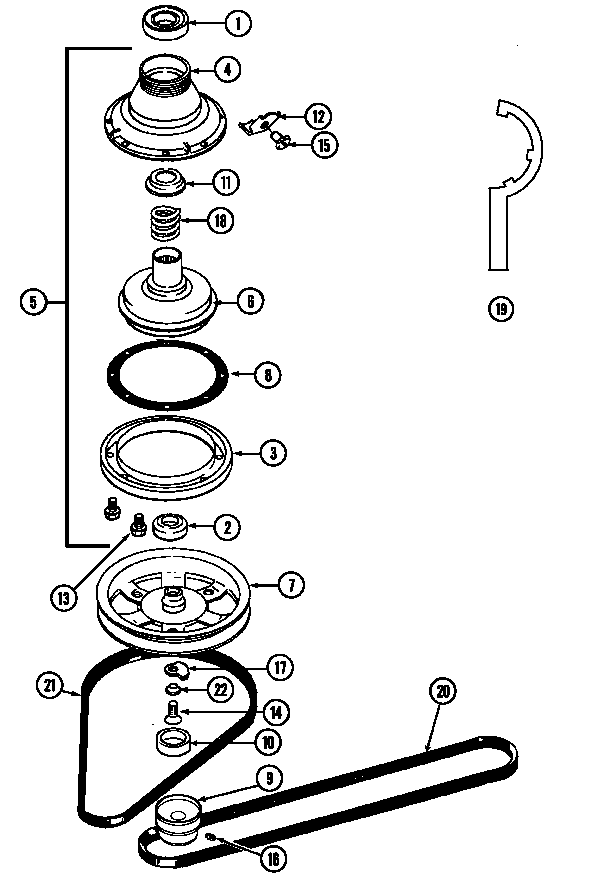

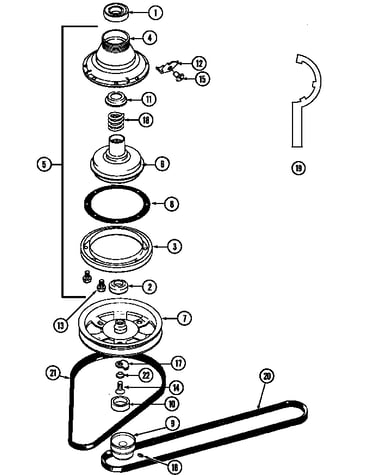

Clutch, brake & belts diagram
Washer drive beltPart #211125
Replaced by #12112425
?Manufacturer substitutionThis part replaces 211125. Substitute parts can look different from the original.$36.03 |14% OFF Phone Price : $42.03In Stock - #20
Clutch, brake & belts diagram
Washer pump drive beltPart #211124
Replaced by #12112425
?Manufacturer substitutionThis part replaces 211124. Substitute parts can look different from the original.$36.03 |14% OFF Phone Price : $42.03In Stock
