Frigidaire
Side-By-Side Refrigerator

Model # FRS23W3AQ1 Official Frigidaire side-by-side refrigerator

Here are the diagrams and repair parts for Official Frigidaire FRS23W3AQ1 side-by-side refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

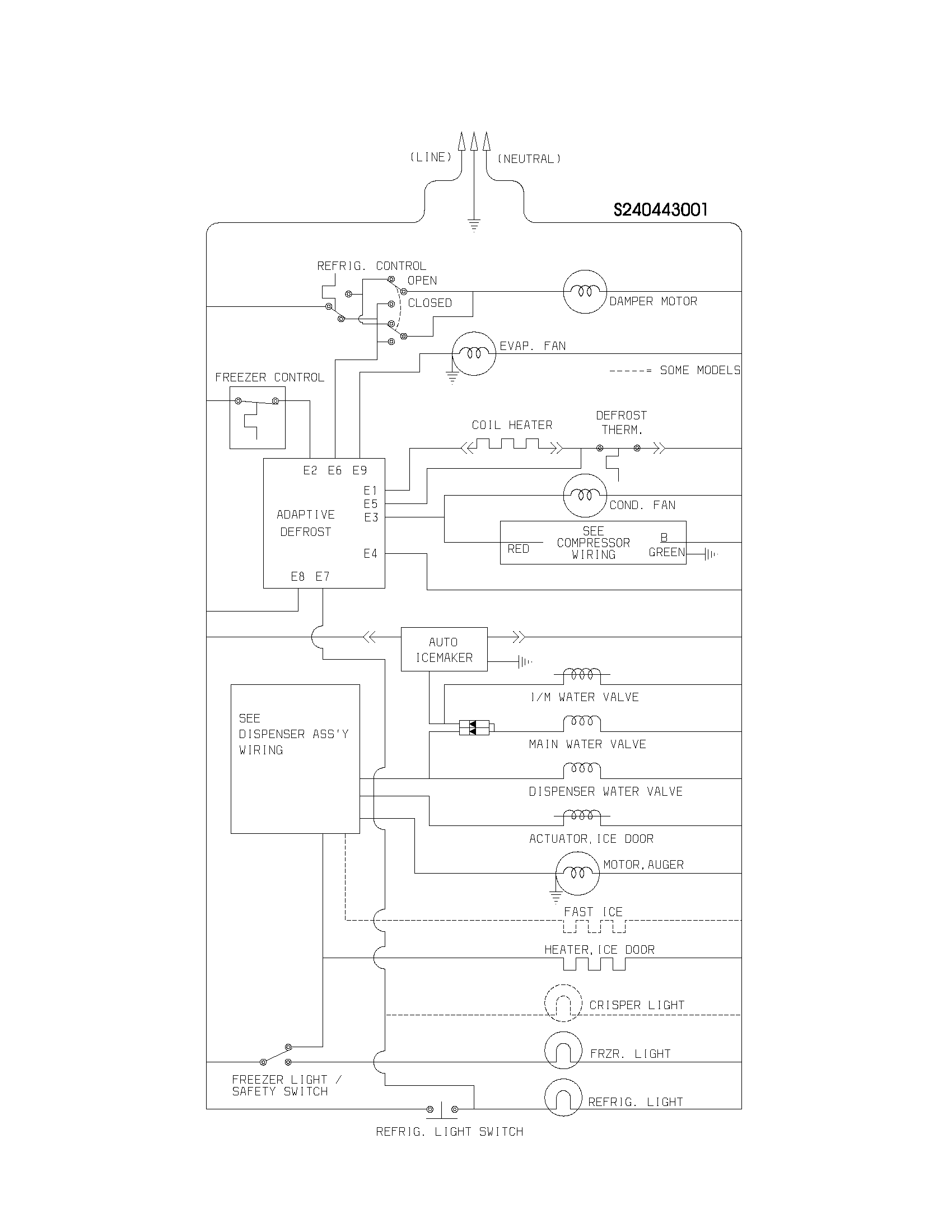

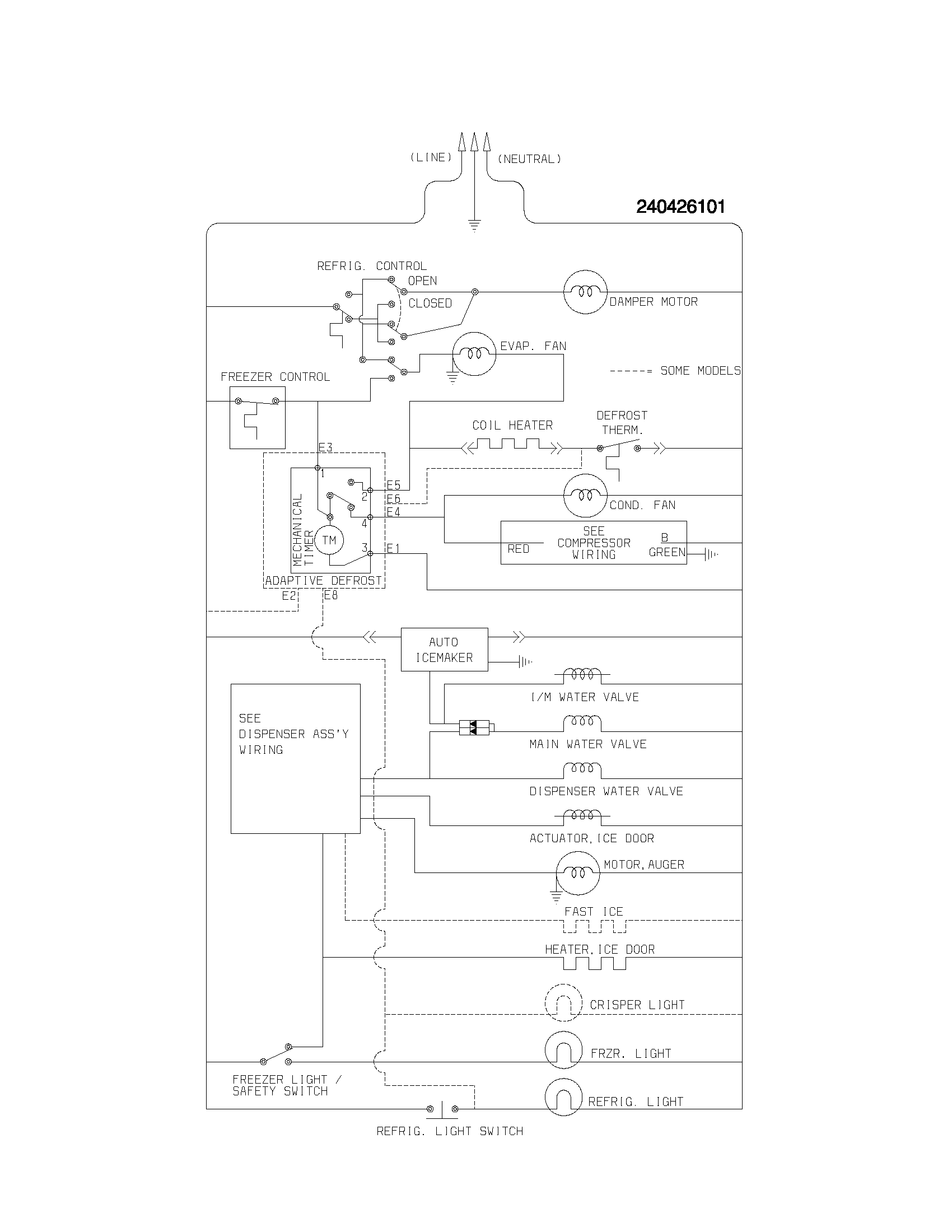

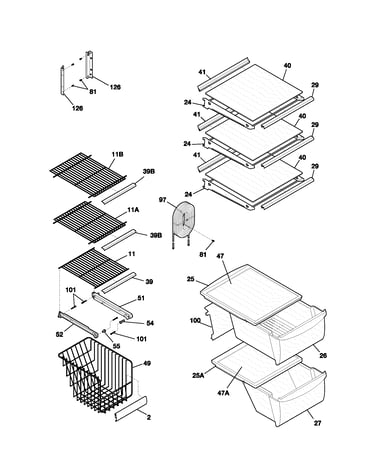

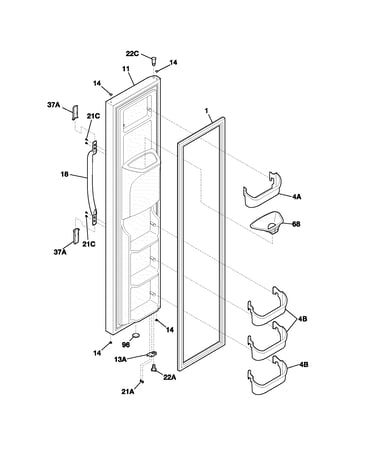

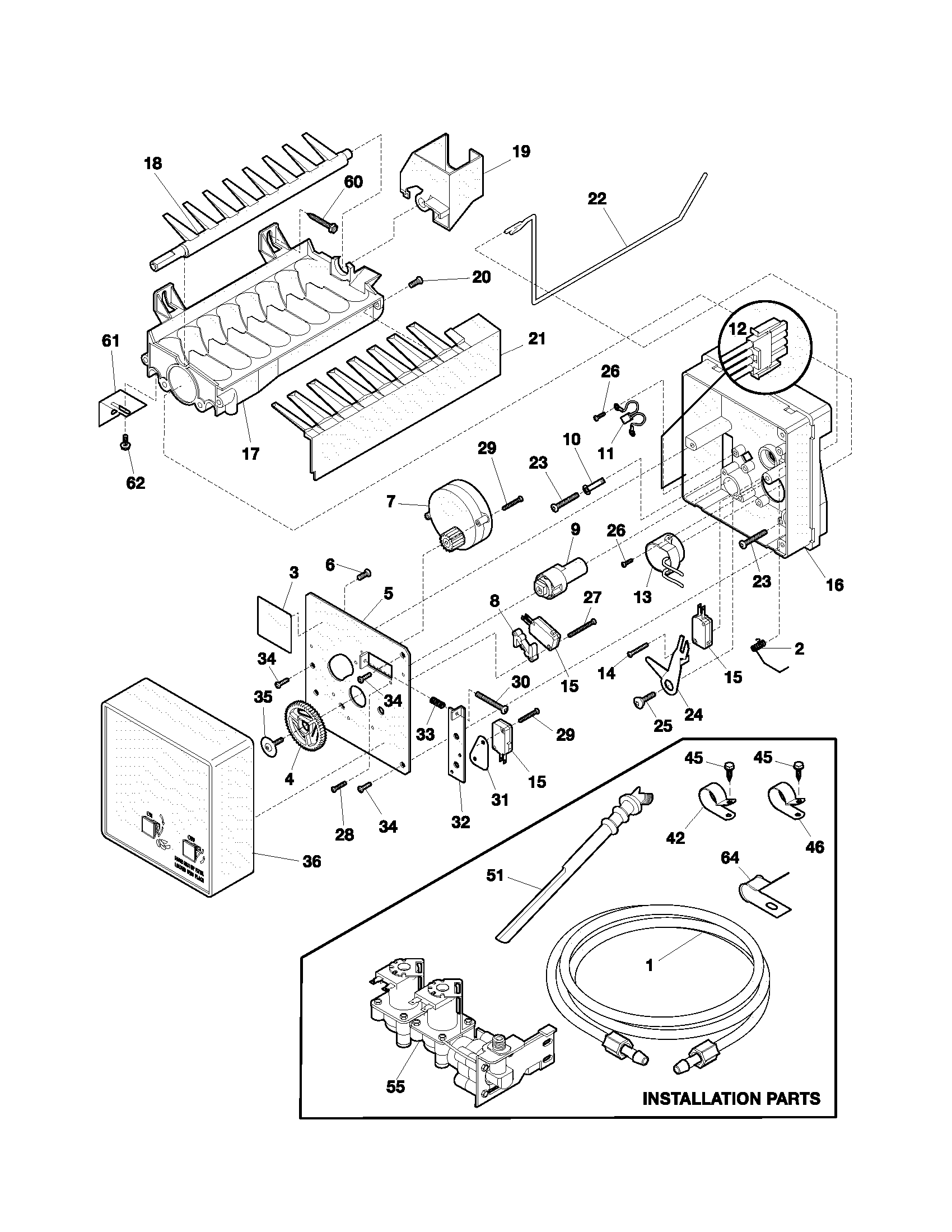

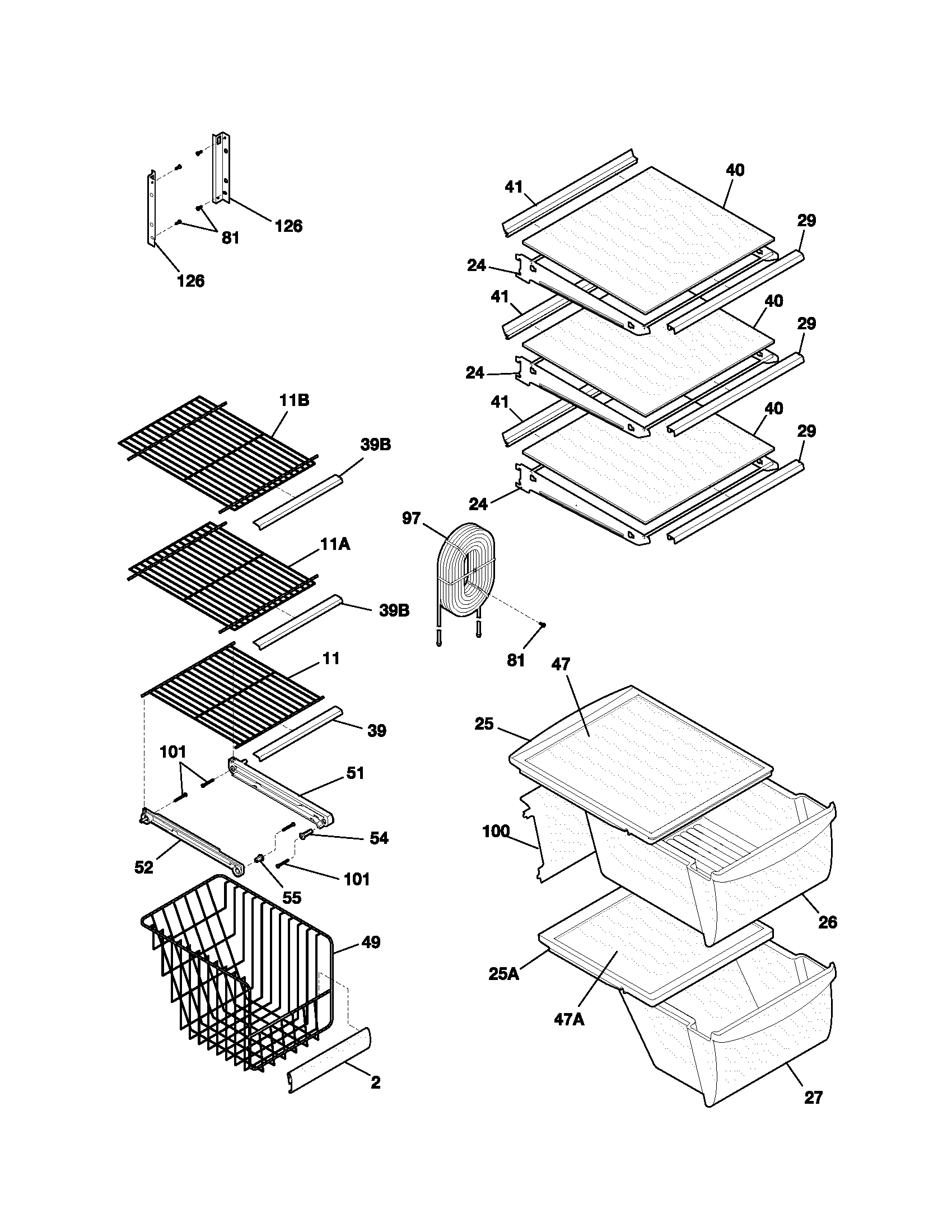

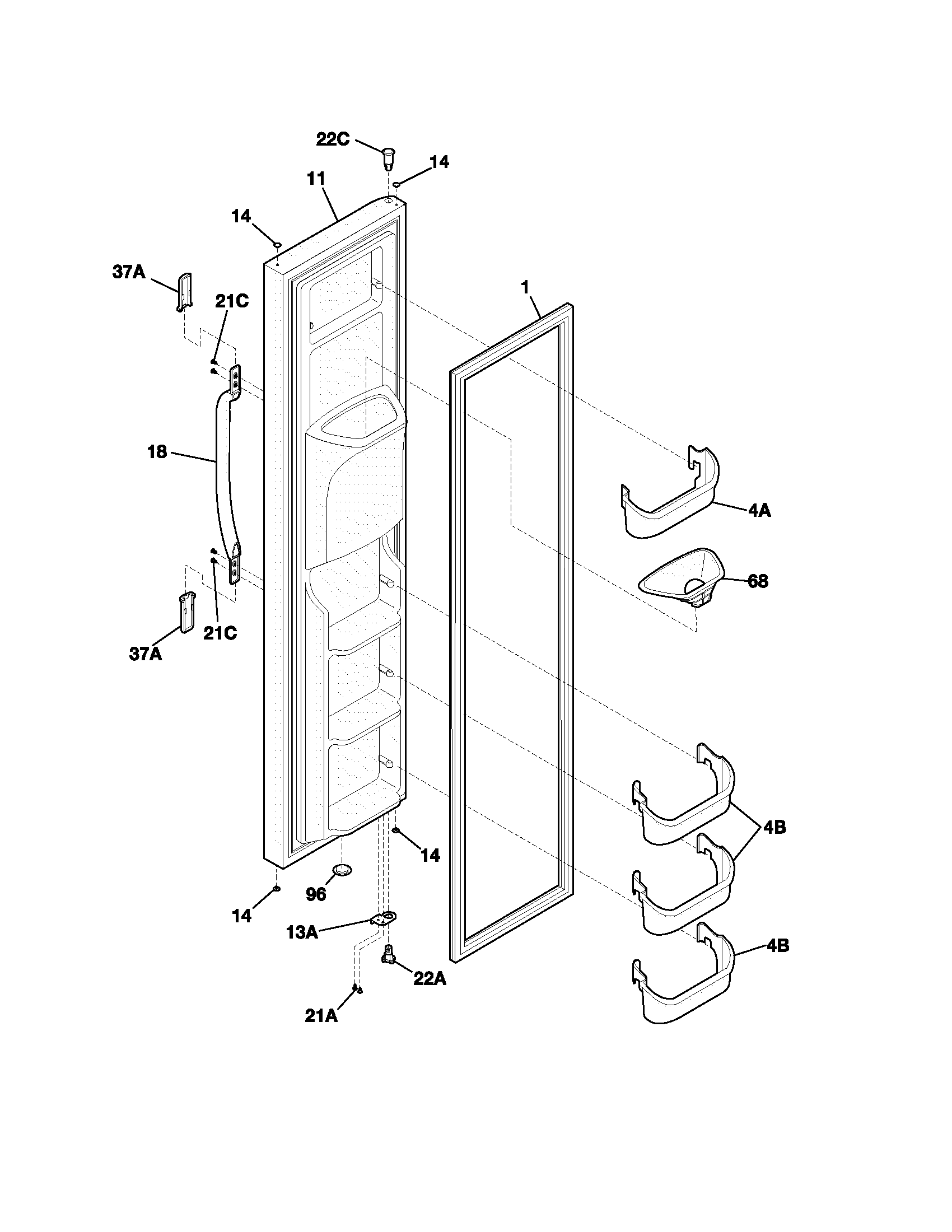

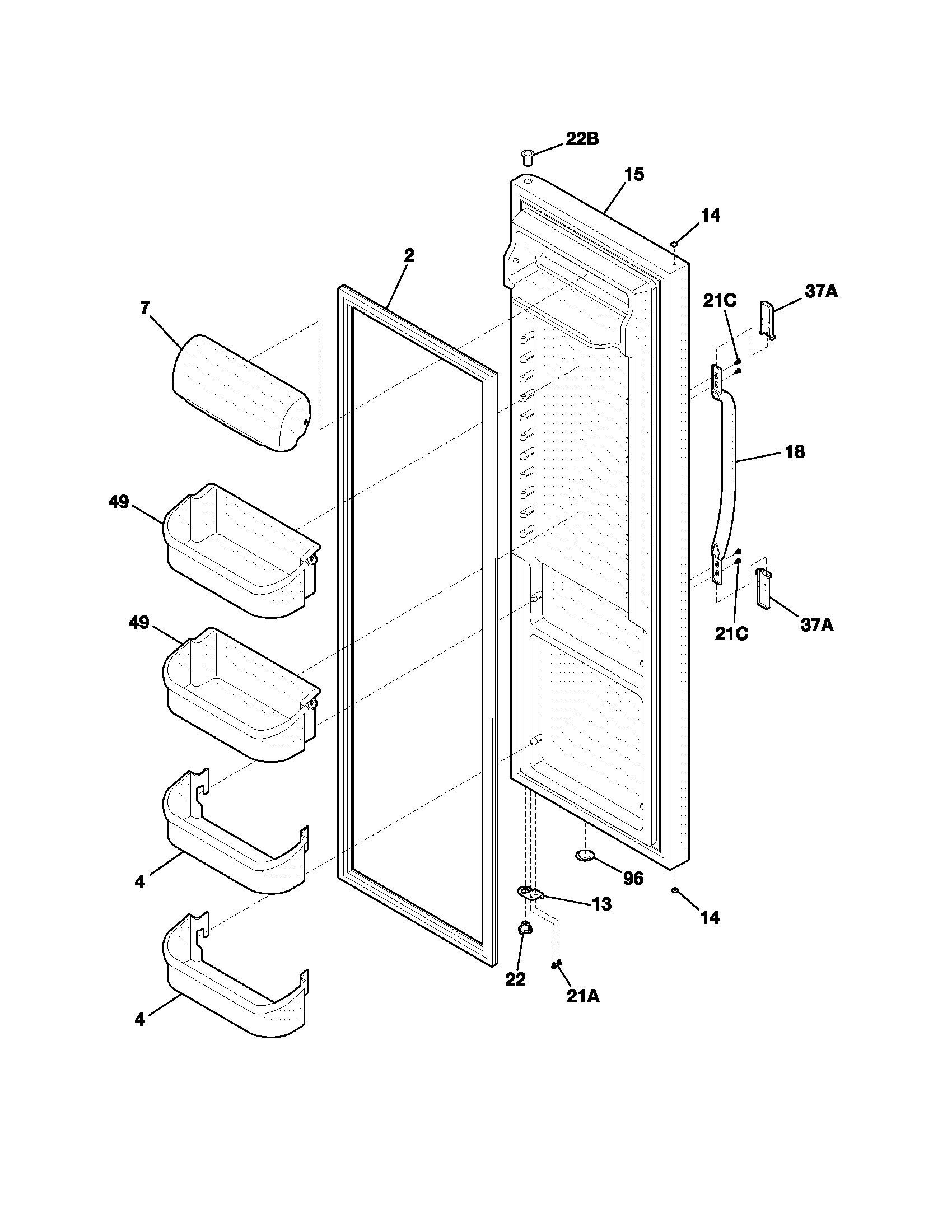

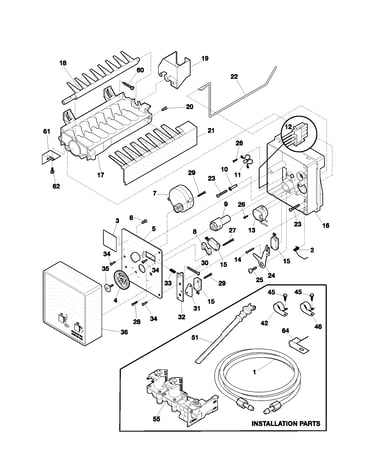

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 264 parts  |
Refrigerator Filter Drier 218944001
#4

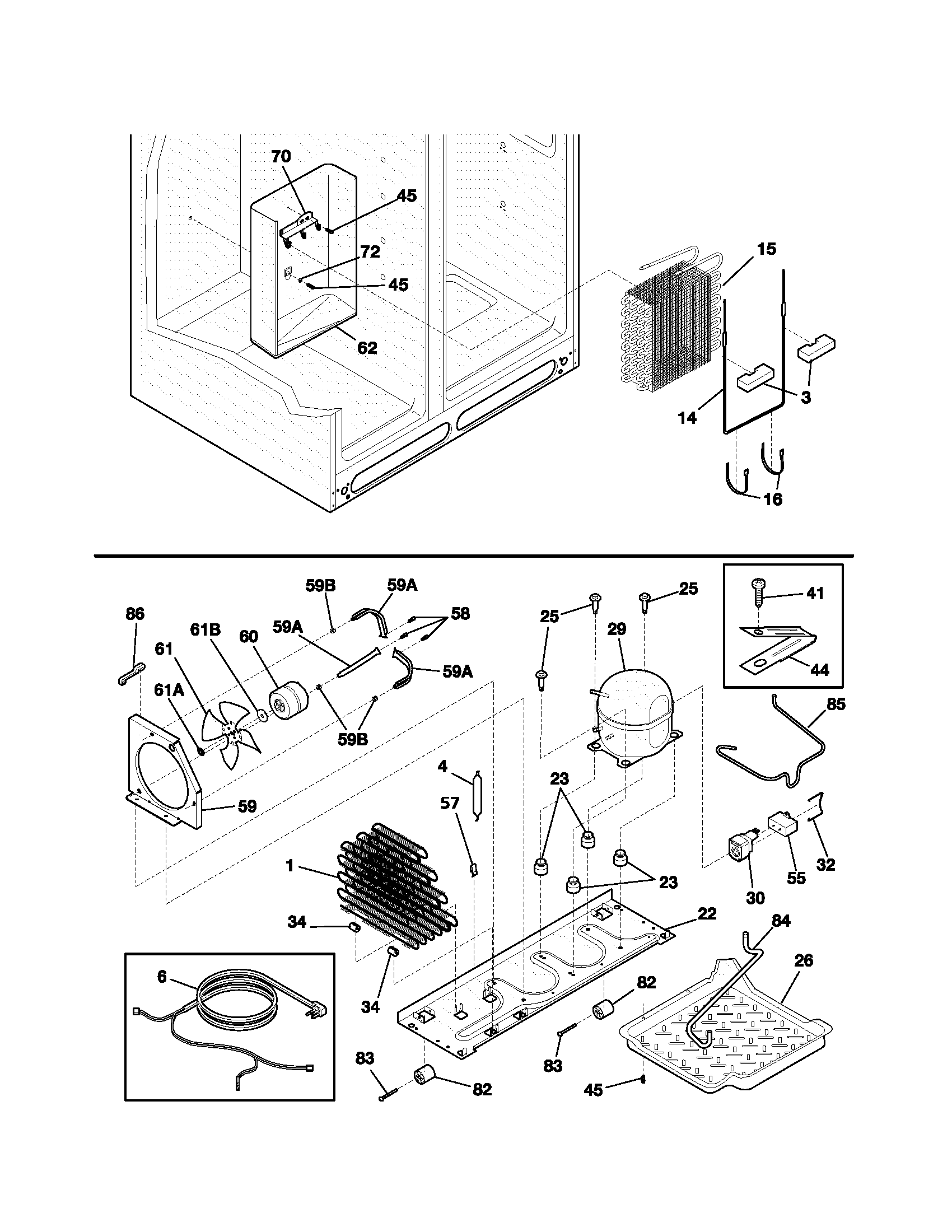

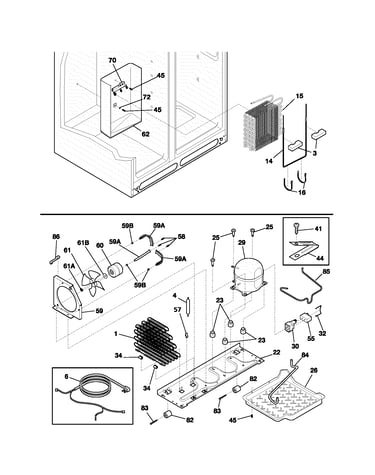

System diagram

Refrigerator filter drier

Part #218944001

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218944001. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Appliance Light Bulb, 40-watt 5303001179
Appliance light bulb, 40-watt

Part #5303001179

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303001179. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Motor-auge 240326906
#18

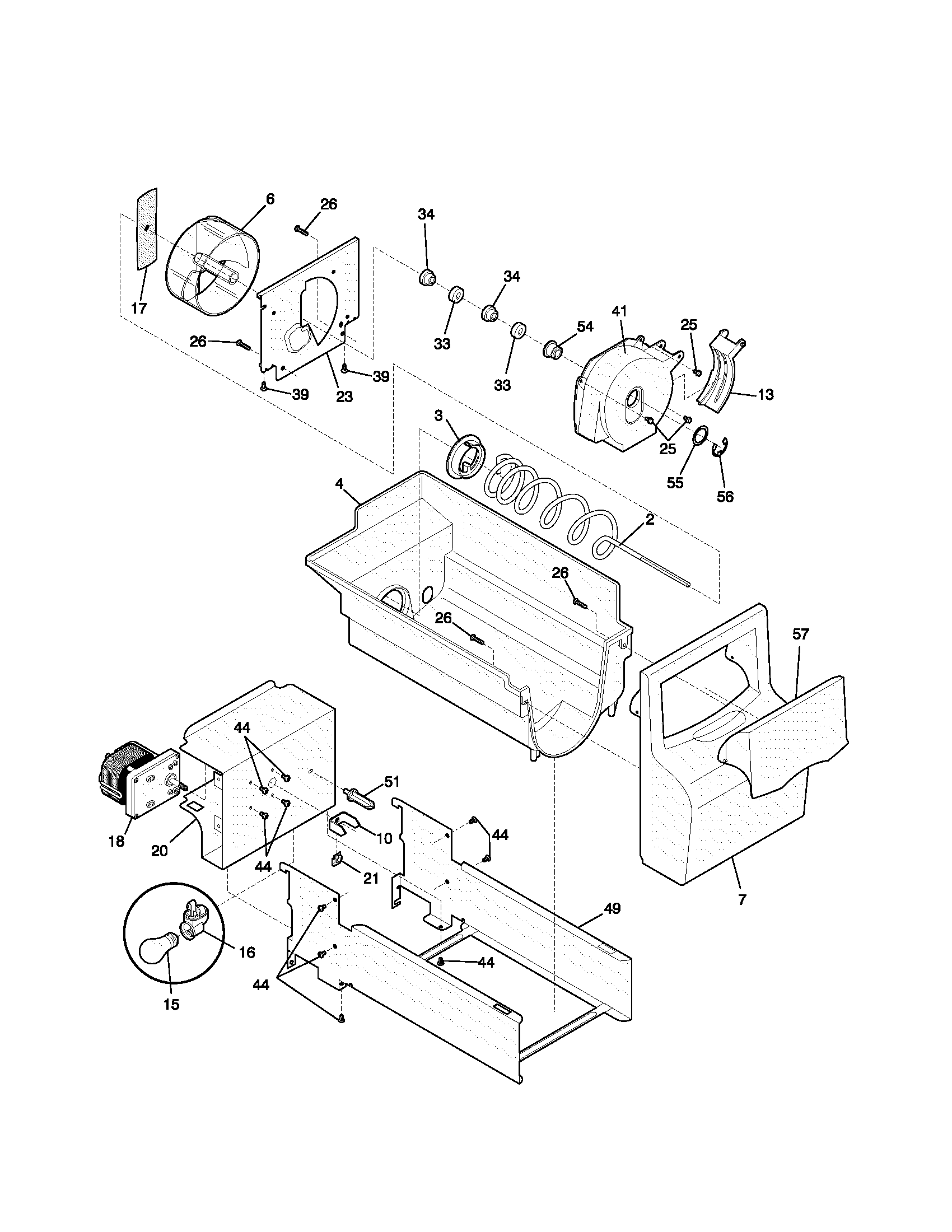

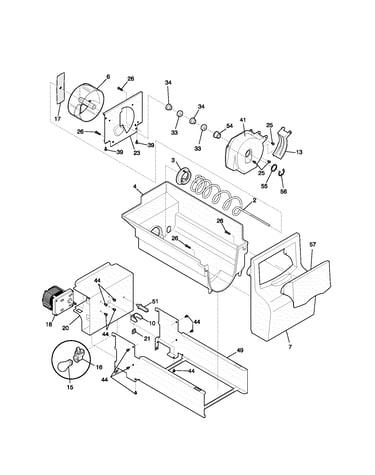

Ice container diagram

Motor-auge

Part #240326906

Replaced by #242221501

?
Manufacturer substitution
This part replaces 240326906. Substitute parts can look different from the original.
BEST SELLER
$189.96 |
6% OFF Phone Price : $201.96
In Stock
Refrigerator Door Assembly 5304421628
#30

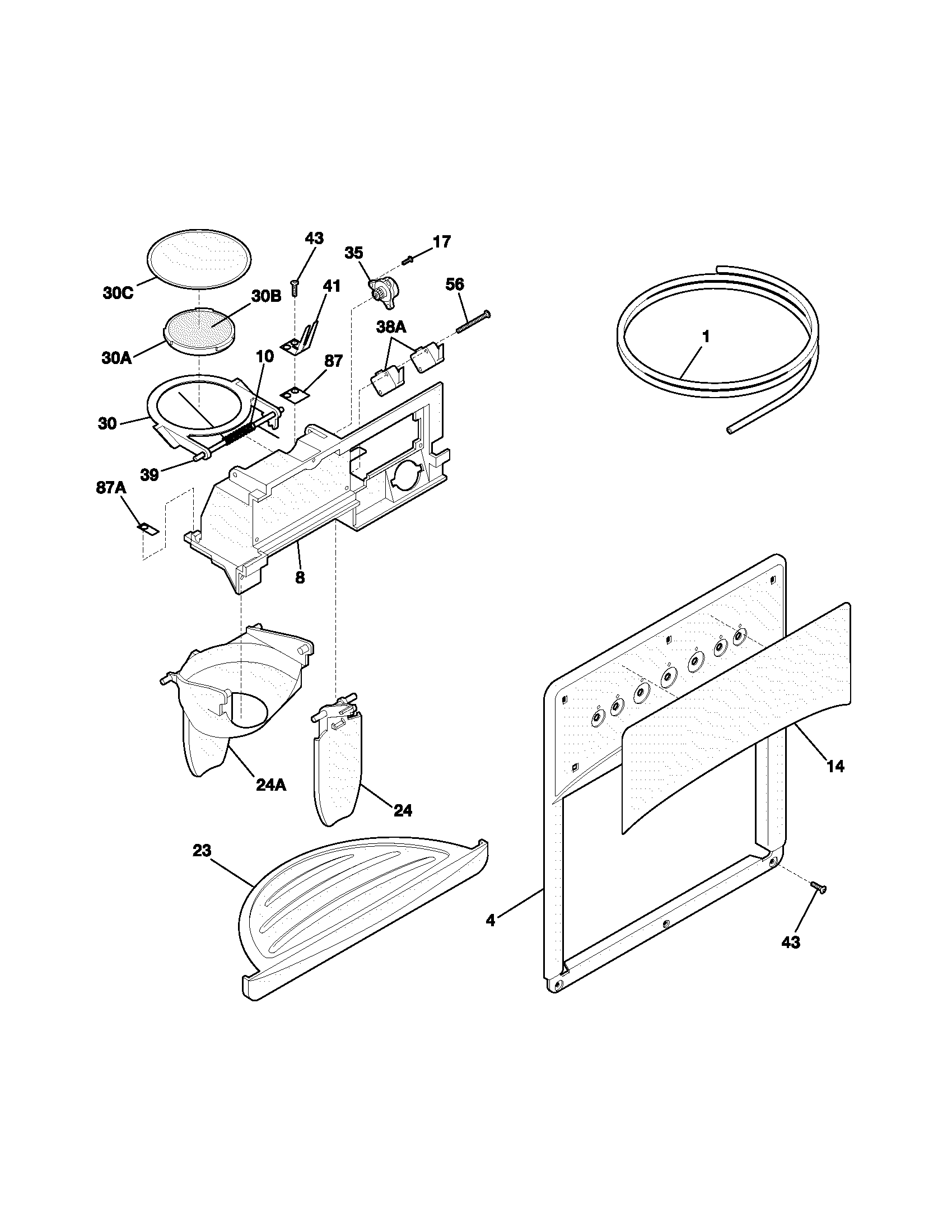

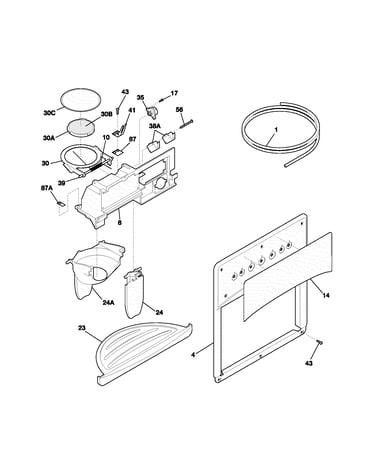

Ice & water dispenser diagram

Refrigerator door assembly

Part #5304421628

Replaced by #241688401

?
Manufacturer substitution
This part replaces 5304421628. Substitute parts can look different from the original.
BEST SELLER
$41.69 |
13% OFF Phone Price : $47.69
In Stock
Refrigerator Condenser Motor 240334001
#60

System diagram

Refrigerator condenser motor

Part #240334001

Replaced by #5303918774

?
Manufacturer substitution
This part replaces 240334001. Substitute parts can look different from the original.
BEST SELLER
$122.11 |
9% OFF Phone Price : $134.11
In Stock
Refrigerator Temperature Control 5304421067
#21A

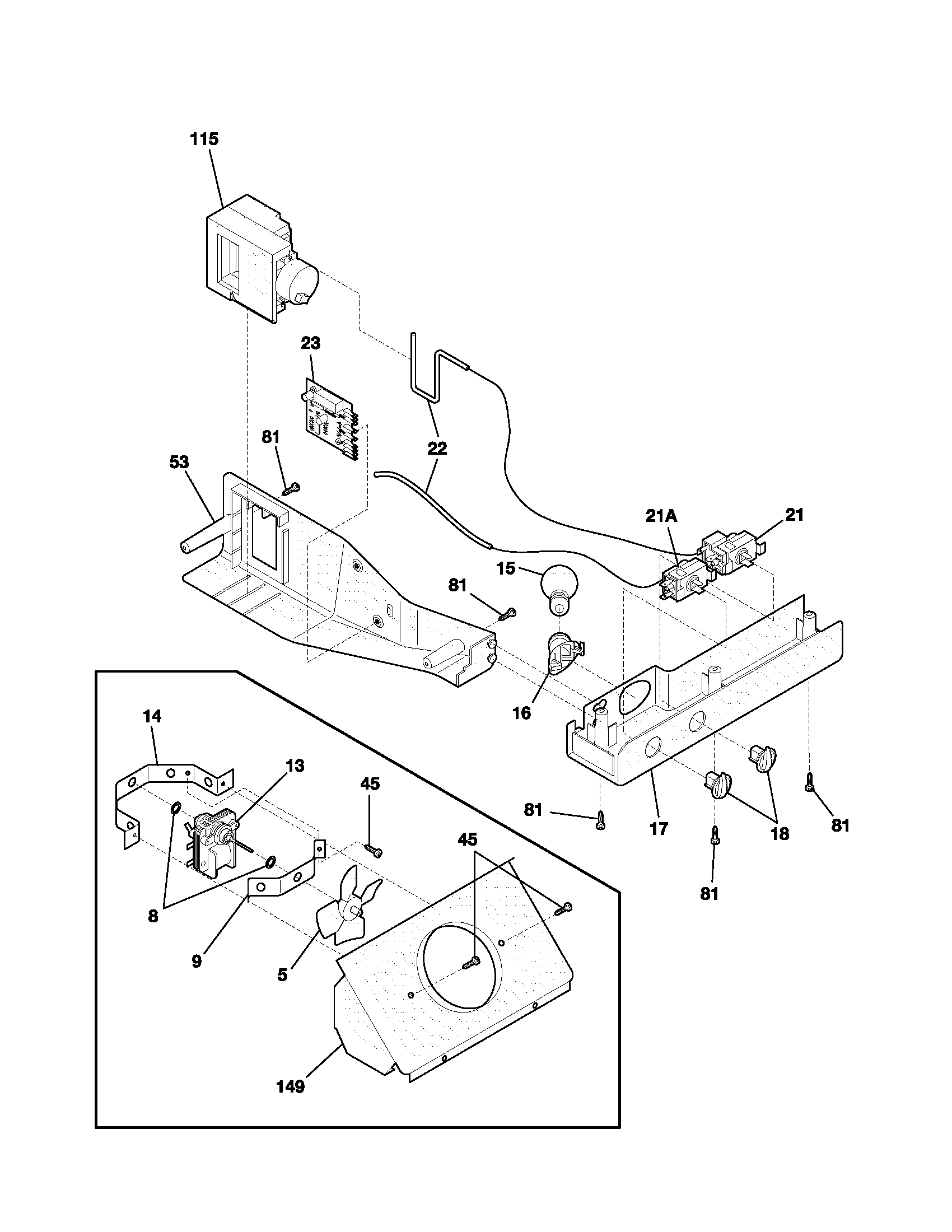

Controls diagram

Refrigerator temperature control

Part #5304421067

Replaced by #5304496561

?
Manufacturer substitution
This part replaces 5304421067. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$80.95 |
7% OFF Phone Price : $86.95
In Stock
Drive Nut 215285100
#21

Ice container diagram

Drive nut

Part #215285100

Replaced by #241726501

?
Manufacturer substitution
This part replaces 215285100. Substitute parts can look different from the original.
BEST SELLER
$49.31 |
11% OFF Phone Price : $55.31
In Stock
Drive Bar 5304404337
#10

Ice container diagram

Drive bar

Part #5304404337

Replaced by #241726501

?
Manufacturer substitution
This part replaces 5304404337. Substitute parts can look different from the original.
BEST SELLER
$49.31 |
11% OFF Phone Price : $55.31
In Stock
Door Cente 5304421624
#30A

Ice & water dispenser diagram

Door cente

Part #5304421624

Replaced by #241688501

?
Manufacturer substitution
This part replaces 5304421624. Substitute parts can look different from the original.
BEST SELLER
$42.20 |
12% OFF Phone Price : $48.20
In Stock
Support-cr 240423701
#100

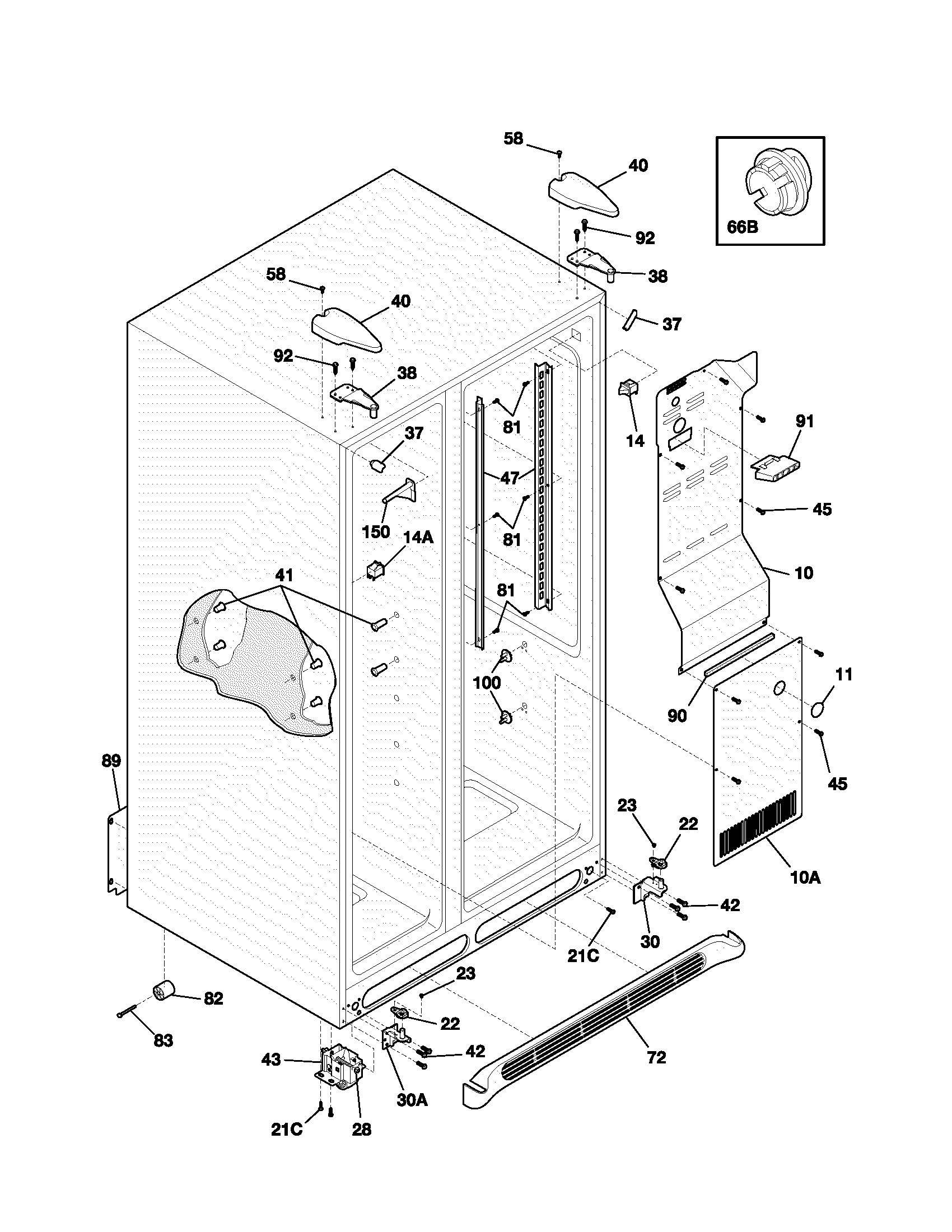

Cabinet diagram

Support-cr

Part #240423701

Replaced by #241993101

?
Manufacturer substitution
This part replaces 240423701. Substitute parts can look different from the original.
BEST SELLER
$8.76 |
10% OFF Phone Price : $9.76
In Stock
