Model # JBP28DR4WW Official GE electric range

Here are the diagrams and repair parts for Official GE JBP28DR4WW electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 135 parts  |
Range Oven Light Bulb WX12X1510
#257

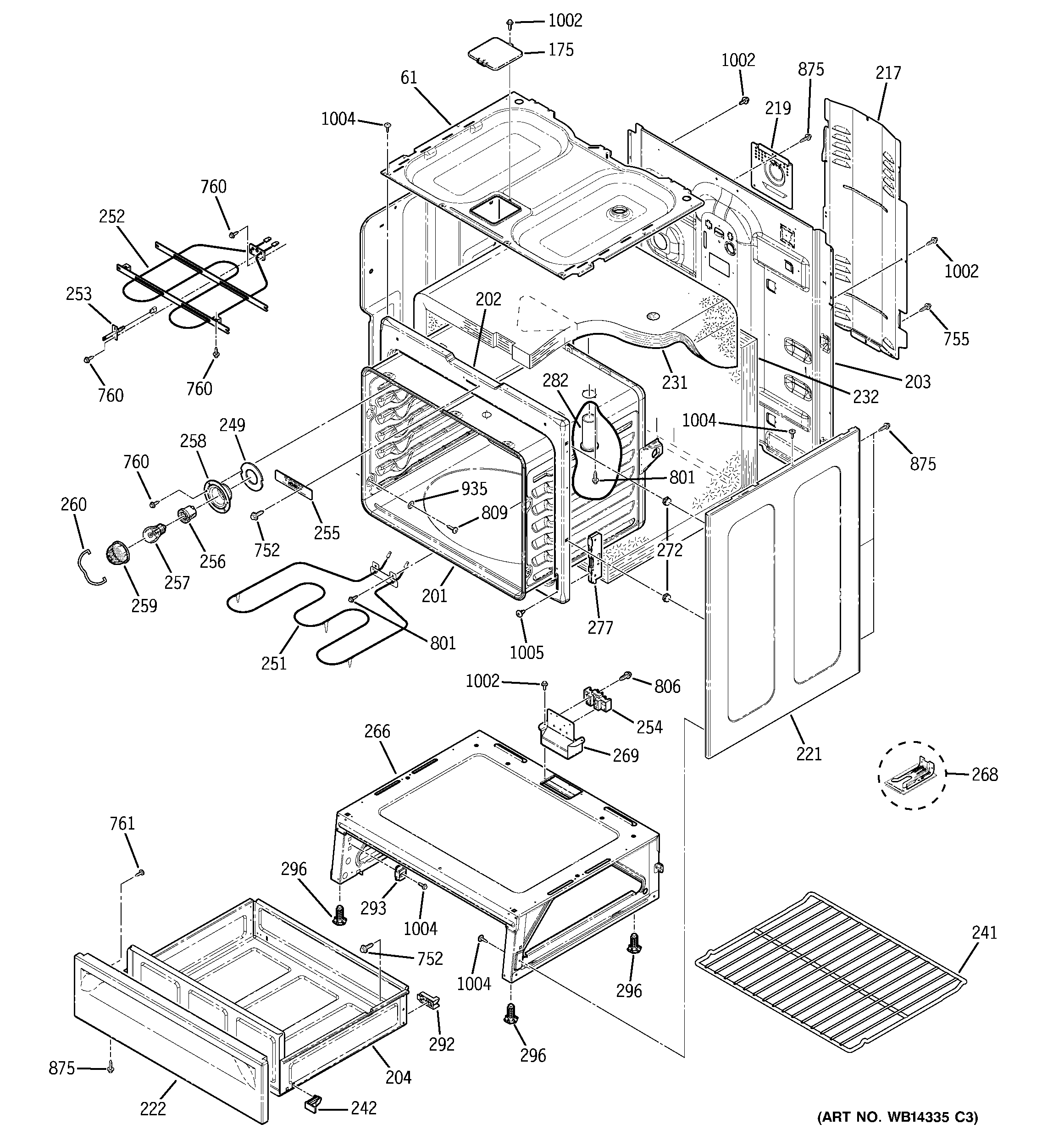

Body parts diagram

Range oven light bulb

Part #WX12X1510

Replaced by #40A15

?
Manufacturer substitution
This part replaces WX12X1510. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
Back Order
Range Surface Element Control Switch, 2,600-watt WB24T10025
#19

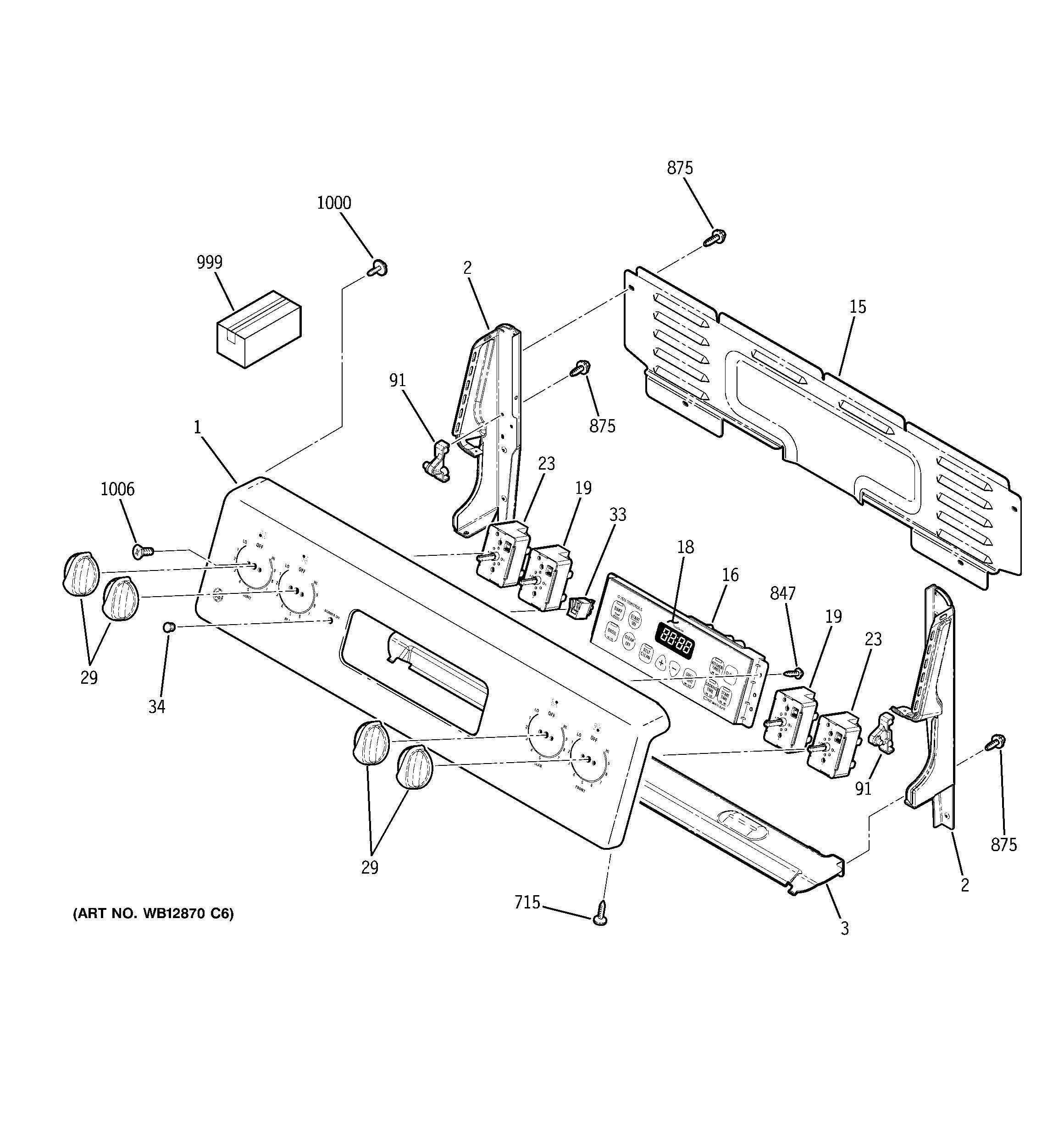

Control panel diagram

Range surface element control switch, 2,600-watt

Part #WB24T10025

BEST SELLER
$35.05 |
15% OFF Phone Price : $41.05
In Stock
Range Oven Control Board (replaces Wb27t11311) WB27T11273
#16

Control panel diagram

Range oven control board (replaces wb27t11311)

Part #WB27T11273

Replaced by #WB27X45466

?
Manufacturer substitution
This part replaces WB27T11273. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$139.52 |
8% OFF Phone Price : $151.52
In Stock
Range Bake Element WB44T10059
#251

Body parts diagram

Range bake element

Part #WB44T10059

Replaced by #WB44T10011

?
Manufacturer substitution
This part replaces WB44T10059. Substitute parts can look different from the original.
BEST SELLER
$77.17 |
7% OFF Phone Price : $83.17
In Stock
Range Drip Pan (replaces Wb32x10014) WB31T10011
#60

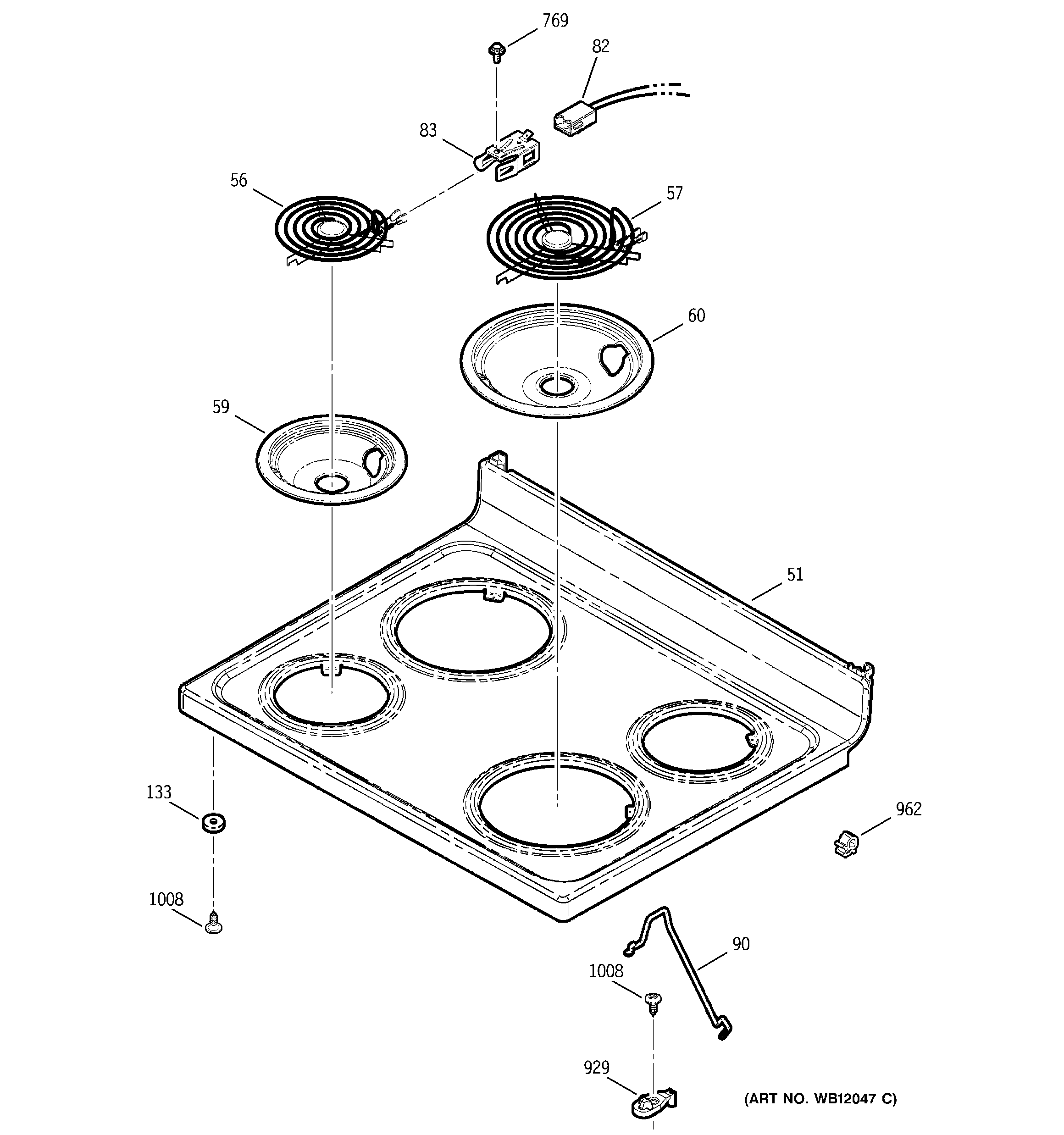

Cooktop diagram

Range drip pan (replaces wb32x10014)

Part #WB31T10011

BEST SELLER
$15.47 |
11% OFF Phone Price : $17.47
In Stock
Terminal Block Assembly WB17K5017
#254

Body parts diagram

Terminal block assembly

Part #WB17K5017

Replaced by #WB17X210

?
Manufacturer substitution
This part replaces WB17K5017. Substitute parts can look different from the original.
BEST SELLER
$22.97 |
21% OFF Phone Price : $28.97
In Stock
Pack Window WB55T10160
#338

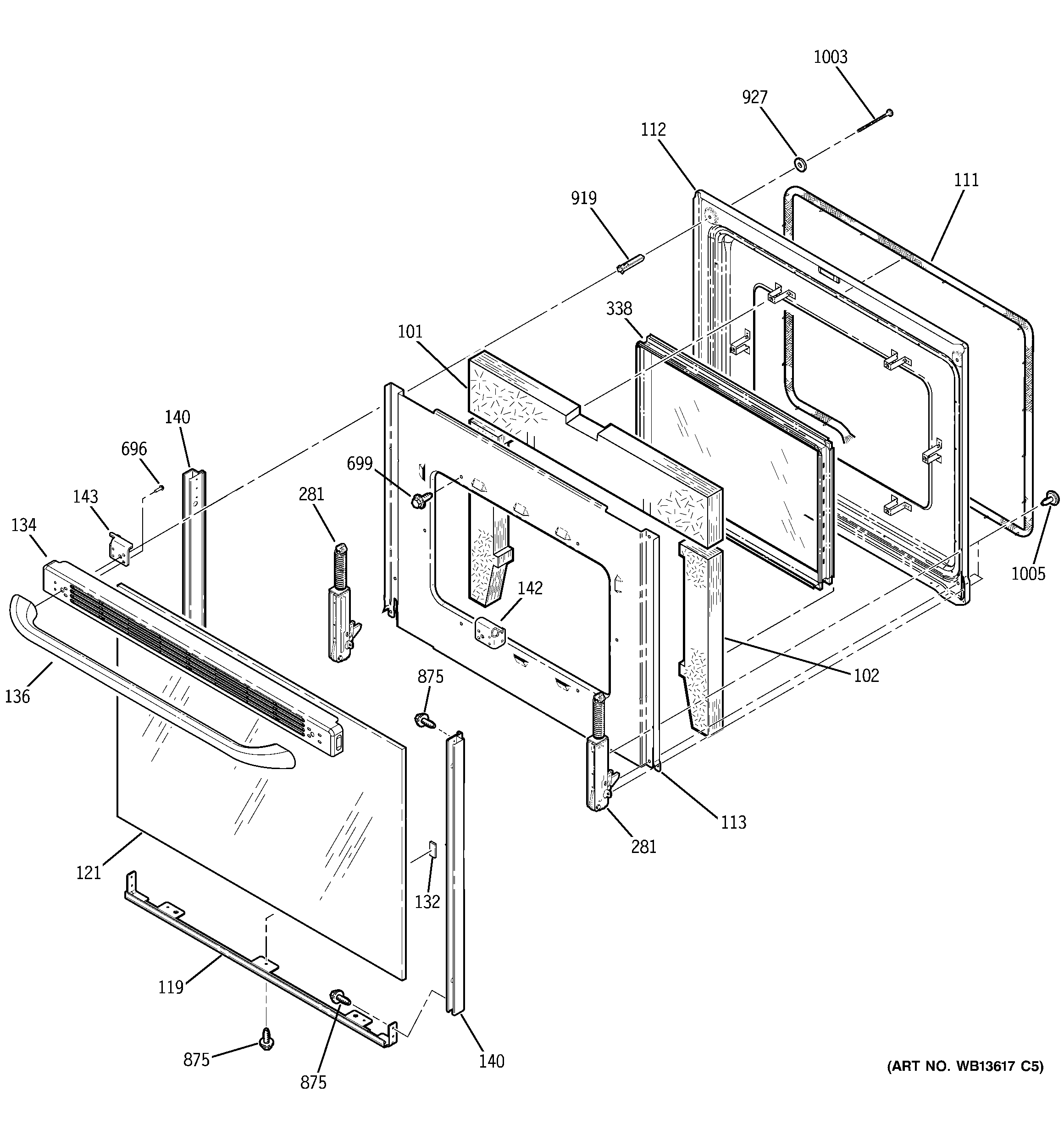

Door diagram

Pack window

Part #WB55T10160

Replaced by #WB56T10105

?
Manufacturer substitution
This part replaces WB55T10160. Substitute parts can look different from the original.
BEST SELLER
$98.87 |
11% OFF Phone Price : $110.87
In Stock
Surface Unit WB30T10110
#57

Cooktop diagram

Surface unit

Part #WB30T10110

Replaced by #WB30X24400

?
Manufacturer substitution
This part replaces WB30T10110. Substitute parts can look different from the original.
BEST SELLER
$55.75 |
10% OFF Phone Price : $61.75
In Stock
Range Oven Door Lock Handle And Latch Assembly WB14T10092
#150

Door lock diagram

Range oven door lock handle and latch assembly

Part #WB14T10092

Replaced by #WB14X41386

?
Manufacturer substitution
This part replaces WB14T10092. Substitute parts can look different from the original.
$53.71
In Stock
Cooking Appliance Screw, #10-32 (replaces Wb1t10008) WB01T10008
Cooking appliance screw, #10-32 (replaces wb1t10008)

Part #WB01T10008

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
