Model # 7218923190 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 7218923190 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

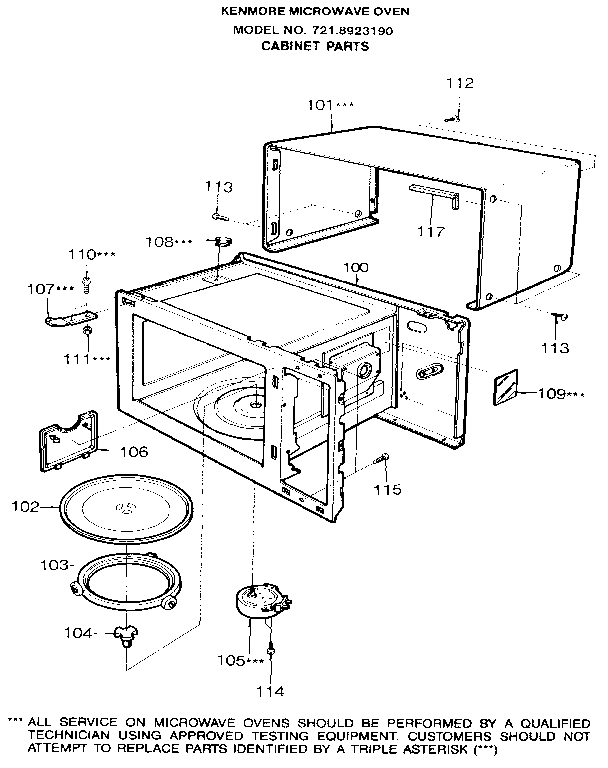

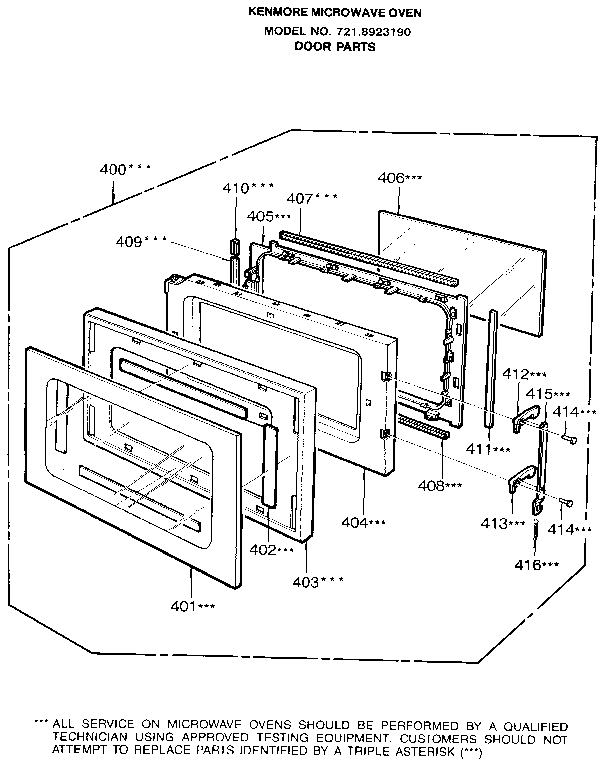

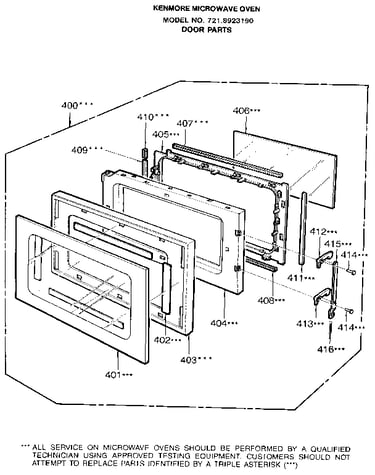

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 143 parts  |
Switch 503499
#323

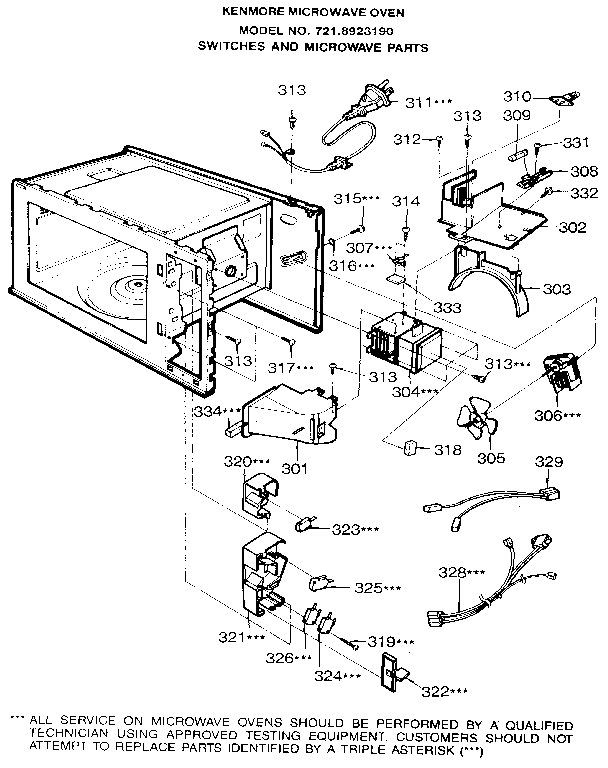

Switches and microwave diagram

Switch

Part #503499

Replaced by #3B73362F

?
Manufacturer substitution
This part replaces 503499. Substitute parts can look different from the original.
BEST SELLER
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Screw 501098
Screw

Part #501098

Replaced by #1SBF0402418

?
Manufacturer substitution
This part replaces 501098. Substitute parts can look different from the original.
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Spring 500359
#509

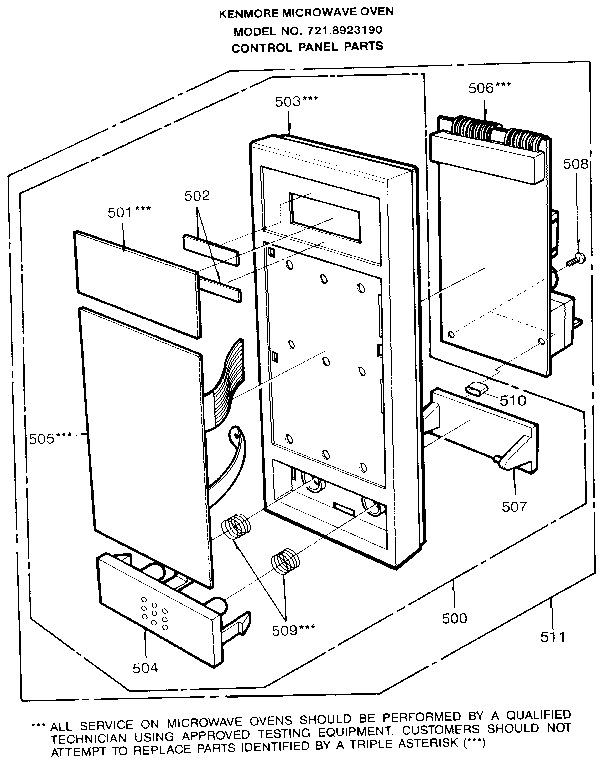

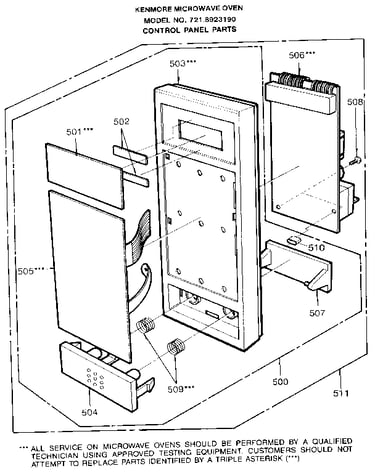

Control panel diagram

Spring

Part #500359

Replaced by #4B72023A

?
Manufacturer substitution
This part replaces 500359. Substitute parts can look different from the original.
This item is not returnable
$5.76 |
15% OFF Phone Price : $6.76
In Stock
Propeller 502418
#305

Switches and microwave diagram

Propeller

Part #502418

Replaced by #5900W1A004C

?
Manufacturer substitution
This part replaces 502418. Substitute parts can look different from the original.
This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Bracket 504908
#210

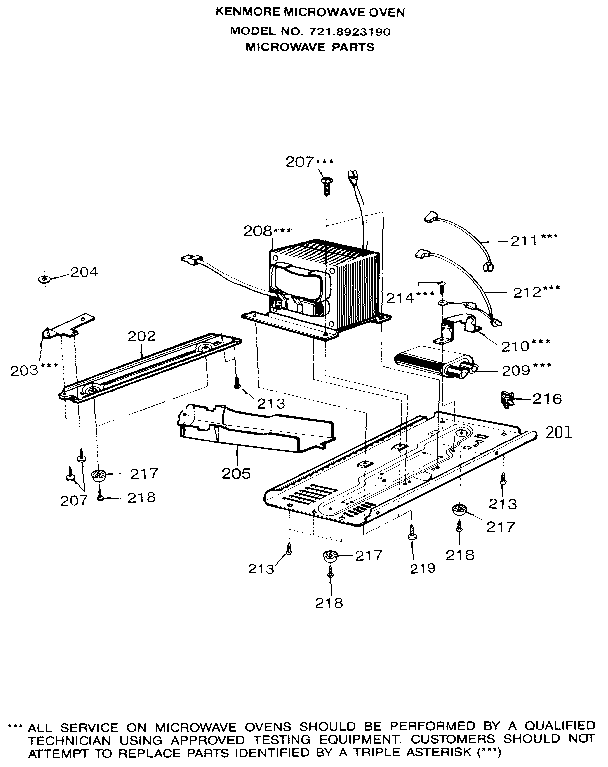

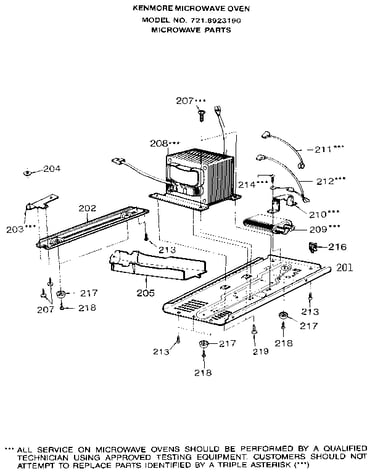

Microwave diagram

Bracket

Part #504908

Replaced by #4B75596A

?
Manufacturer substitution
This part replaces 504908. Substitute parts can look different from the original.
This item is not returnable
$7.03
In Stock
Transistor 503854
Transistor

Part #503854

The manufacturer no longer makes this part, and there's no substitute part

Resistor 504914
Resistor

Part #504914

The manufacturer no longer makes this part, and there's no substitute part

Screw 500218
Screw

Part #500218

Replaced by #1TTL0402818

?
Manufacturer substitution
This part replaces 500218. Substitute parts can look different from the original.
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
220pf 50v 503851
220pf 50v

Part #503851

The manufacturer no longer makes this part, and there's no substitute part

680mfd 35v M 504465
#5

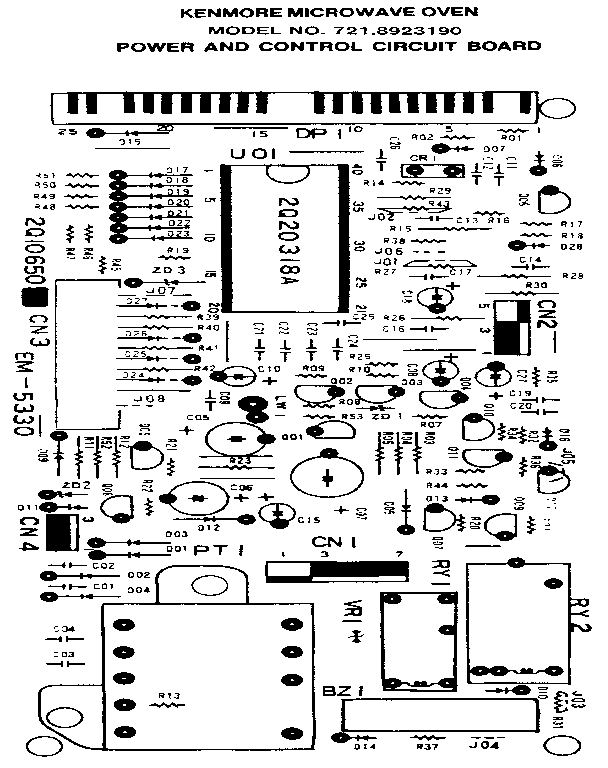

Power and control circuit board diagram

680mfd 35v m

Part #504465

The manufacturer no longer makes this part, and there's no substitute part
