GE
Electric Range

Model # PB978DP2BB Official GE electric range

Here are the diagrams and repair parts for Official GE PB978DP2BB electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

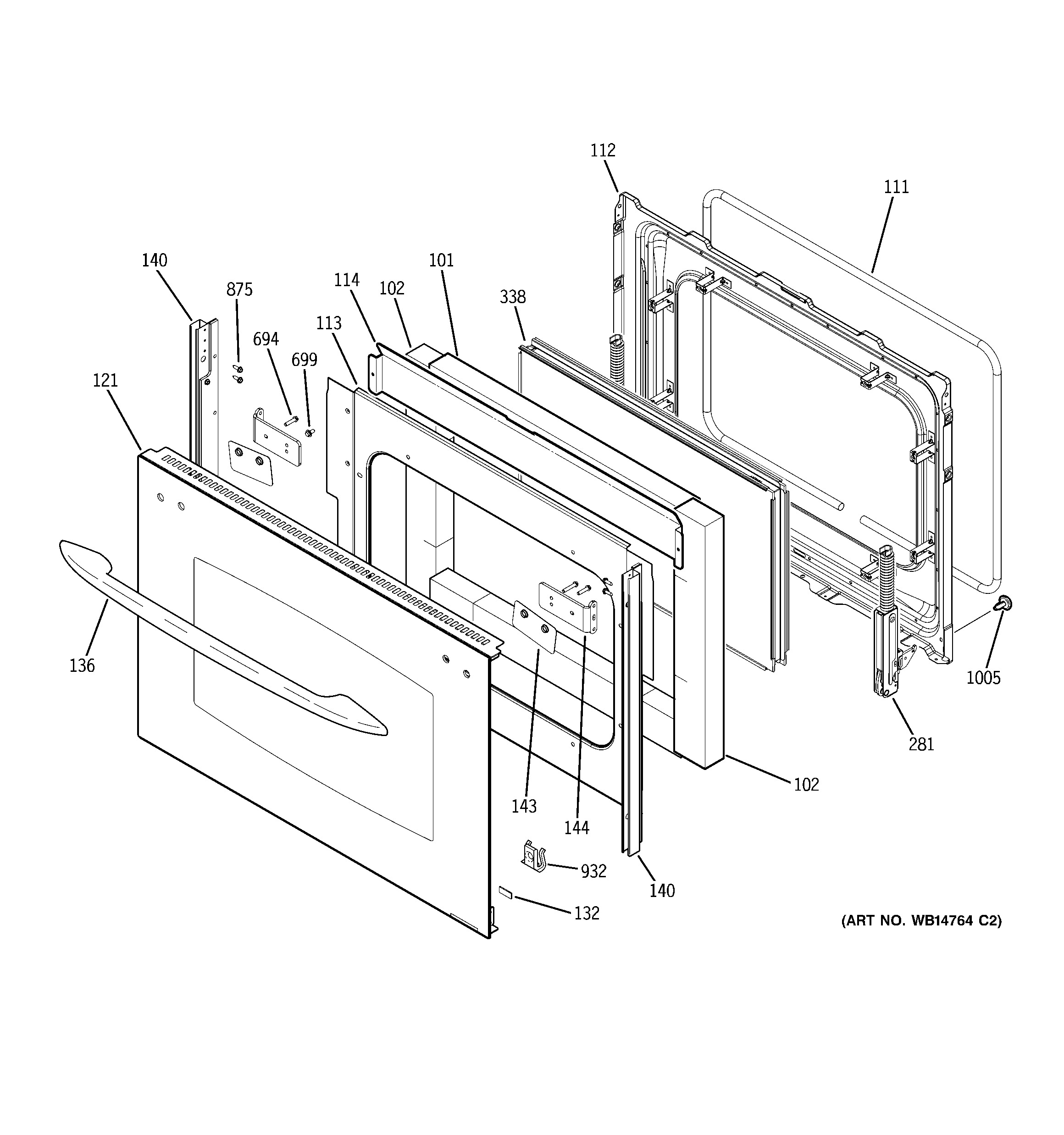

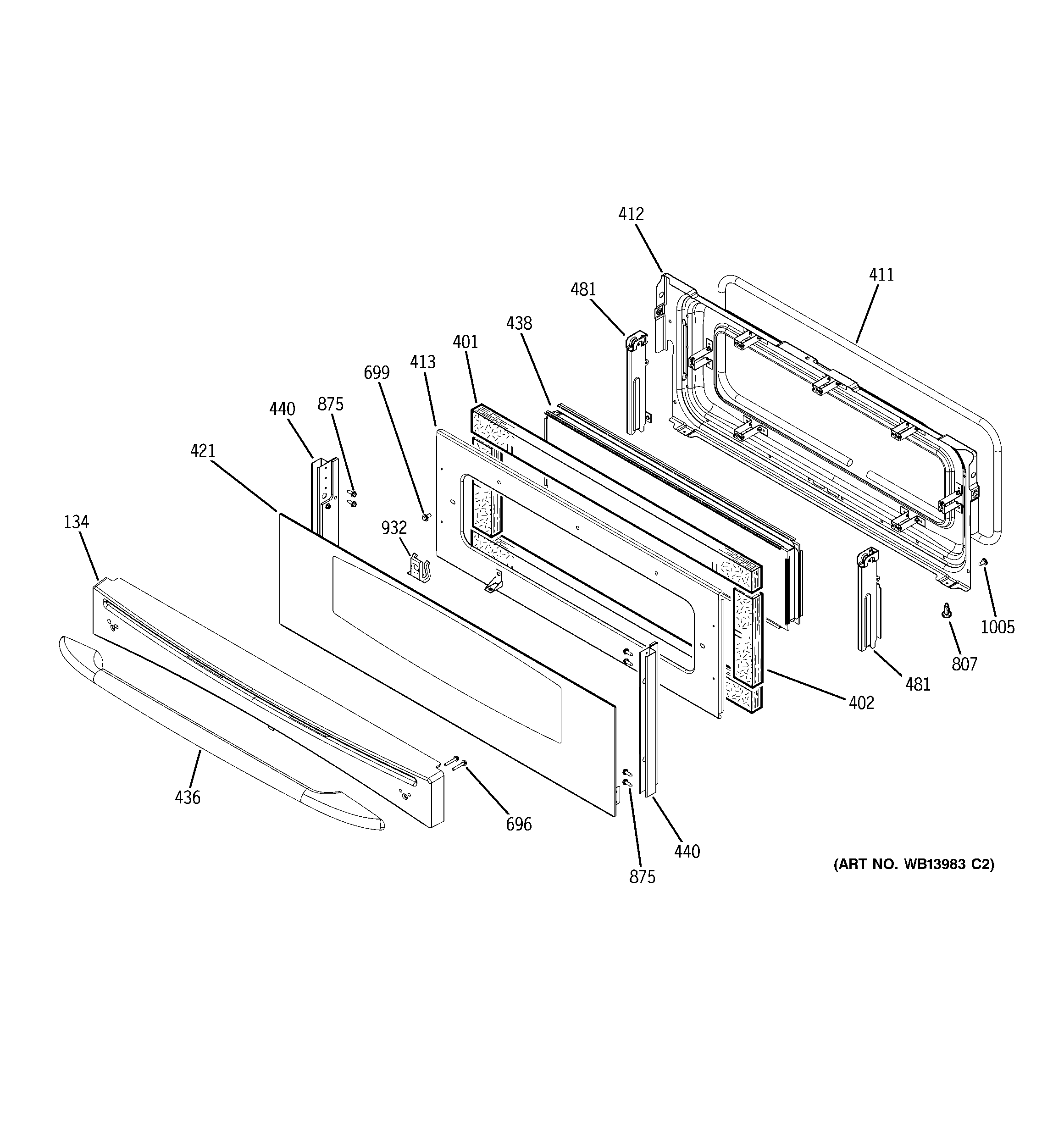

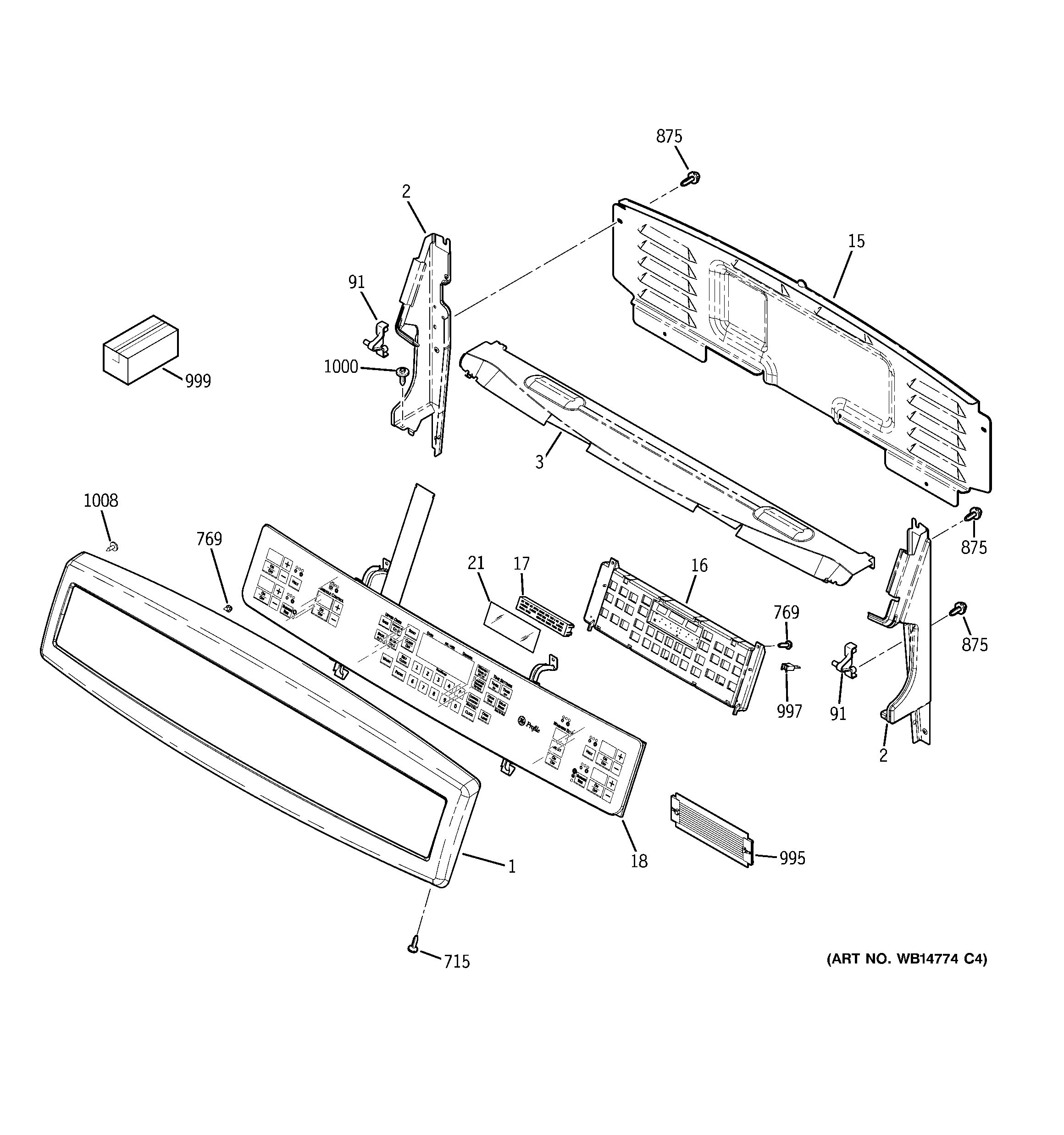

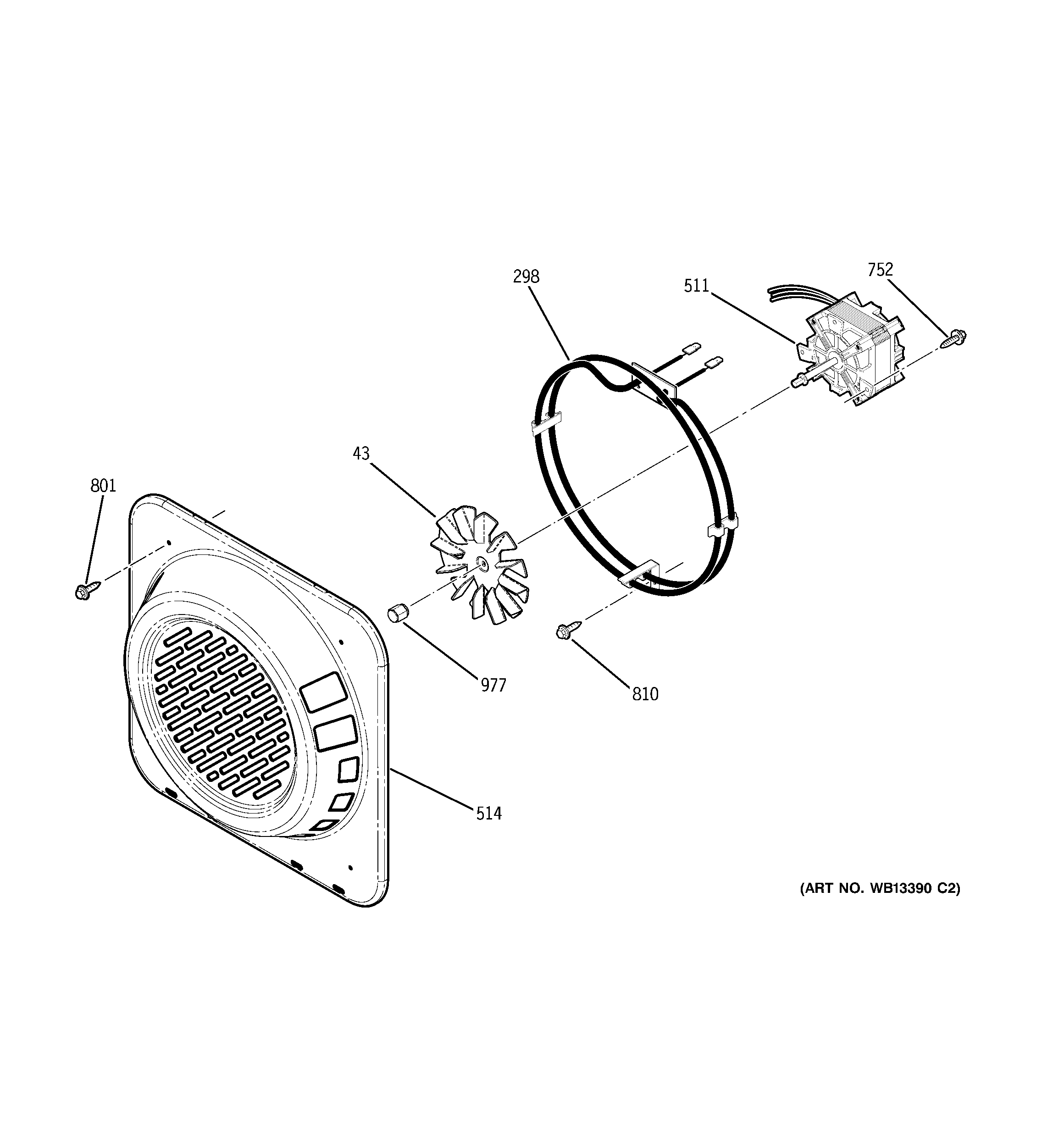

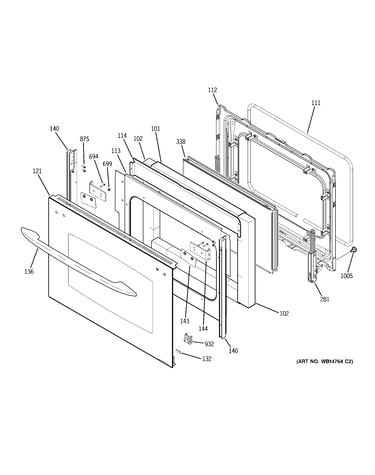

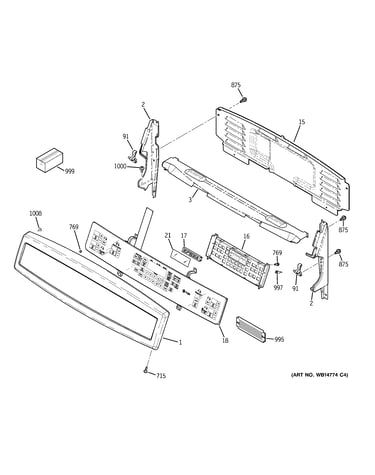

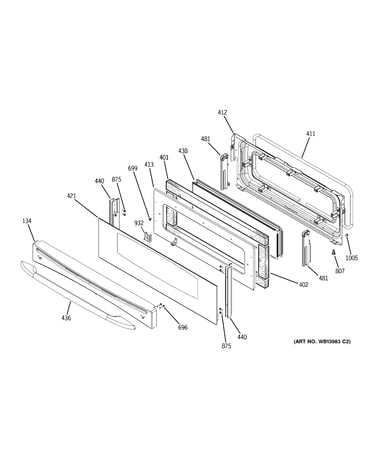

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 172 parts  |
Oven Lamp WB08T10022
#457

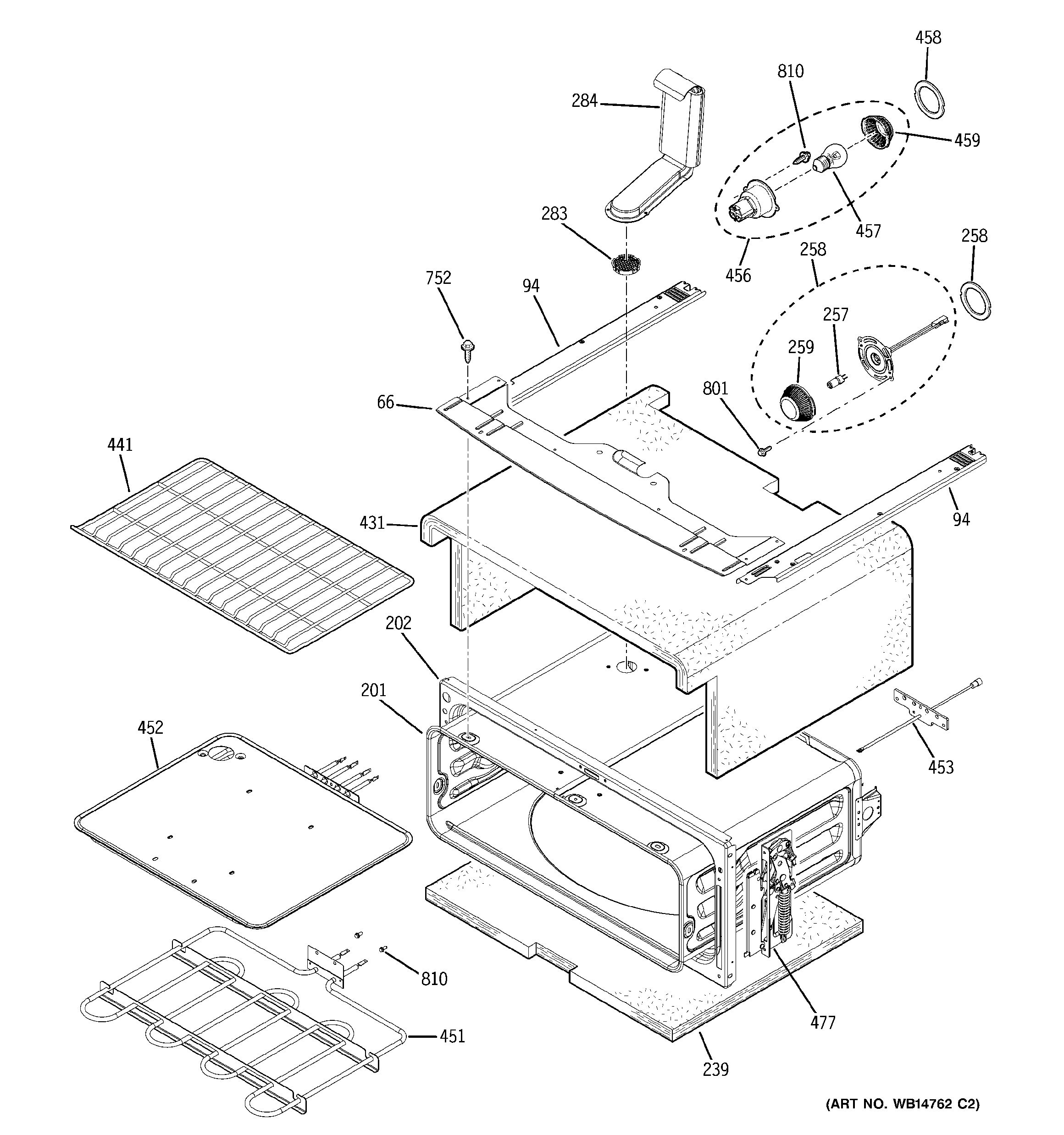

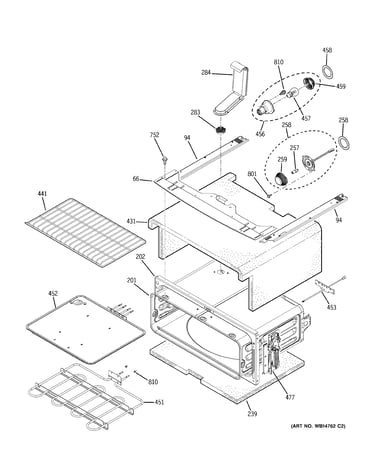

Upper oven diagram

Oven lamp

Part #WB08T10022

Replaced by #40A15

?
Manufacturer substitution
This part replaces WB08T10022. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Wall Oven Temperature Sensor WB21T10007
#253

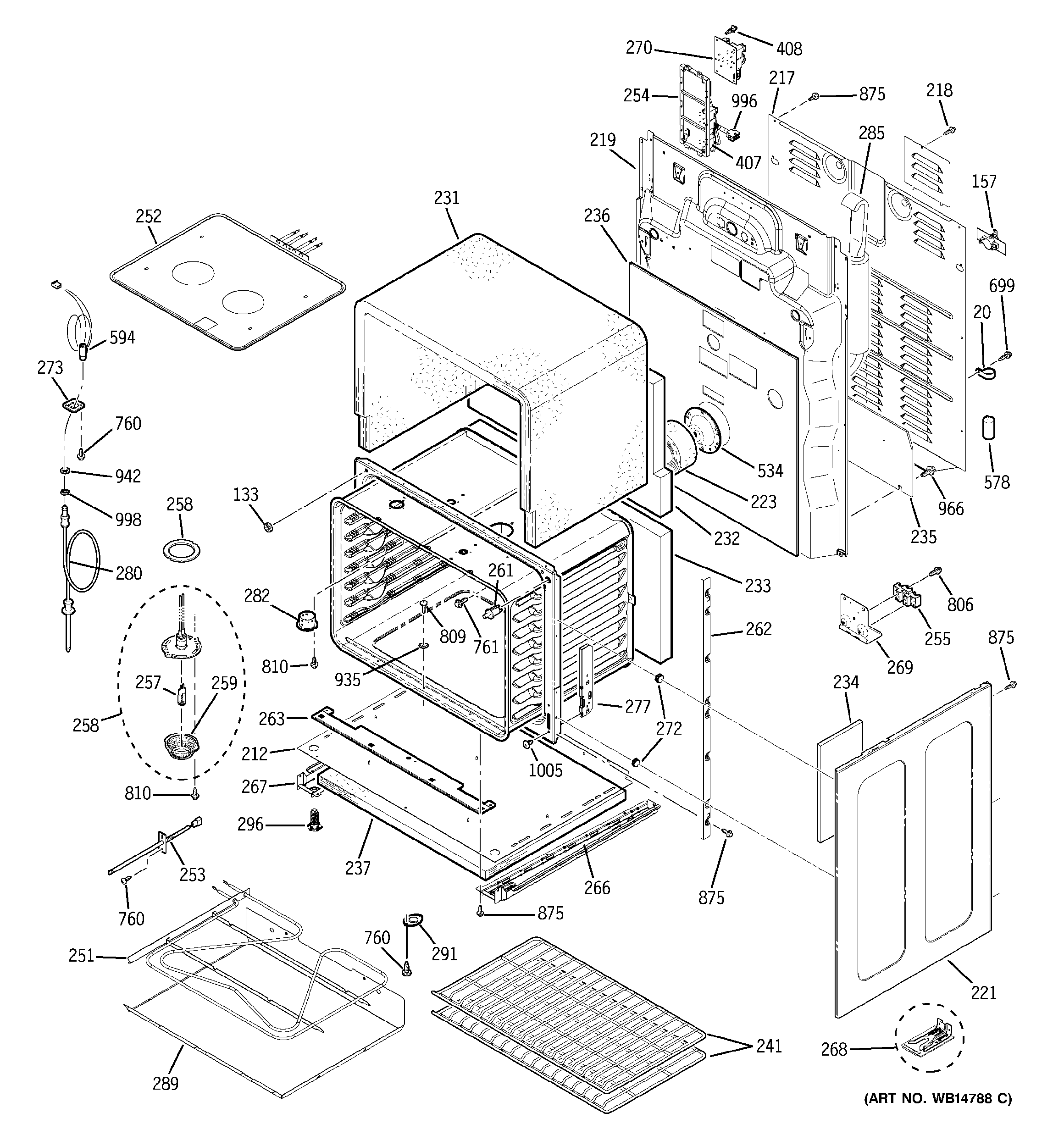

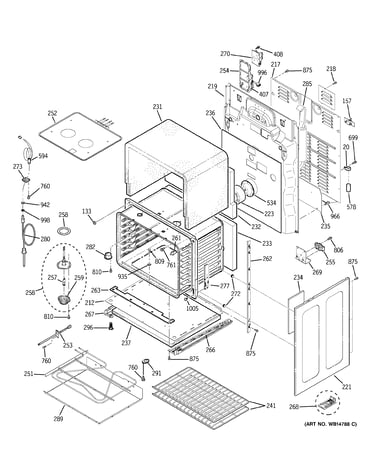

Lower oven diagram

Wall oven temperature sensor

Part #WB21T10007

Replaced by #WB21X22134

?
Manufacturer substitution
This part replaces WB21T10007. Substitute parts can look different from the original.
BEST SELLER
$23.33 |
20% OFF Phone Price : $29.33
In Stock
Wall Oven Temperature Sensor WB23T10015
#453

Upper oven diagram

Wall oven temperature sensor

Part #WB23T10015

BEST SELLER
$26.19 |
19% OFF Phone Price : $32.19
In Stock
Range Surface Element, Right Front WB30T10126
#57

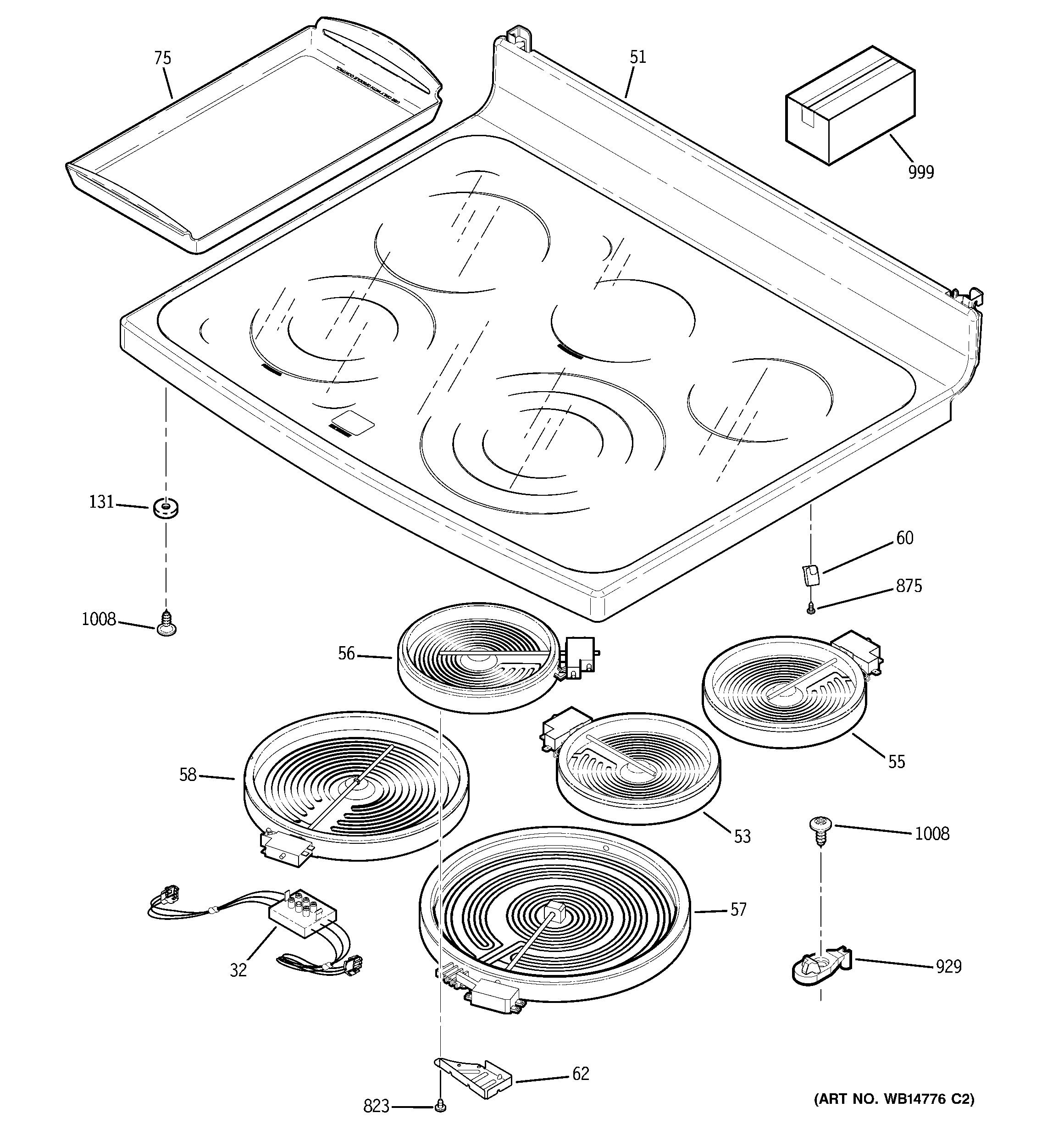

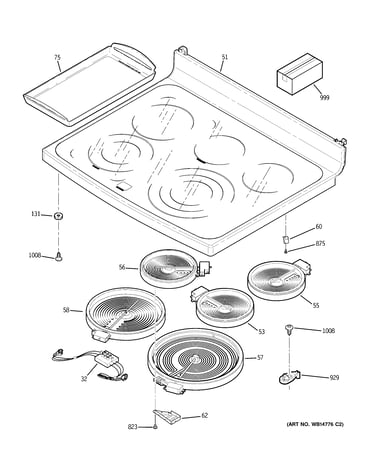

Cooktop diagram

Range surface element, right front

Part #WB30T10126

BEST SELLER
$175.49 |
6% OFF Phone Price : $187.49
In Stock
Oven Lamp Holder WB08T10002
#456

Upper oven diagram

Oven lamp holder

Part #WB08T10002

Replaced by #WB08T10002

?
Manufacturer substitution
This part replaces WB08T10002. Substitute parts can look different from the original.
BEST SELLER
$34.45 |
15% OFF Phone Price : $40.45
In Stock
Terminal Block WB17T10012
#255

Lower oven diagram

Terminal block

Part #WB17T10012

Replaced by #WB17T10011

?
Manufacturer substitution
This part replaces WB17T10012. Substitute parts can look different from the original.
BEST SELLER
$40.67 |
13% OFF Phone Price : $46.67
In Stock
Range Radiant Surface Element, 6-in (replaces Wb30t10125) WB30T10129
#55

Cooktop diagram

Range radiant surface element, 6-in (replaces wb30t10125)

Part #WB30T10129

BEST SELLER
$112.74 |
10% OFF Phone Price : $124.74
In Stock
Cooking Appliance Screw, #10-32 (replaces Wb1t10008) WB01T10008
Cooking appliance screw, #10-32 (replaces wb1t10008)

Part #WB01T10008

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw WB01M0001
Screw

Part #WB01M0001

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01M0001. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Screw, #10-32 X 17/32-in WB01X1253
Screw, #10-32 x 17/32-in

Part #WB01X1253

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces WB01X1253. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
