Whirlpool
Top-Mount Refrigerator

Model # TT22AKXEN00 Official Whirlpool refrigerator

Here are the diagrams and repair parts for Official Whirlpool TT22AKXEN00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

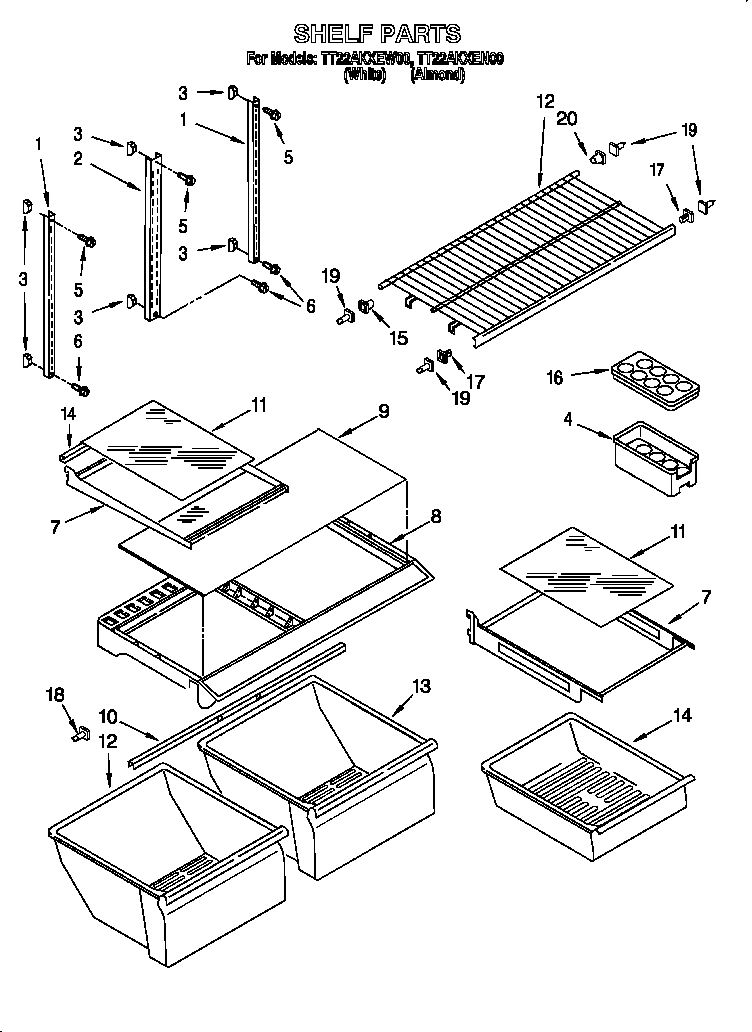

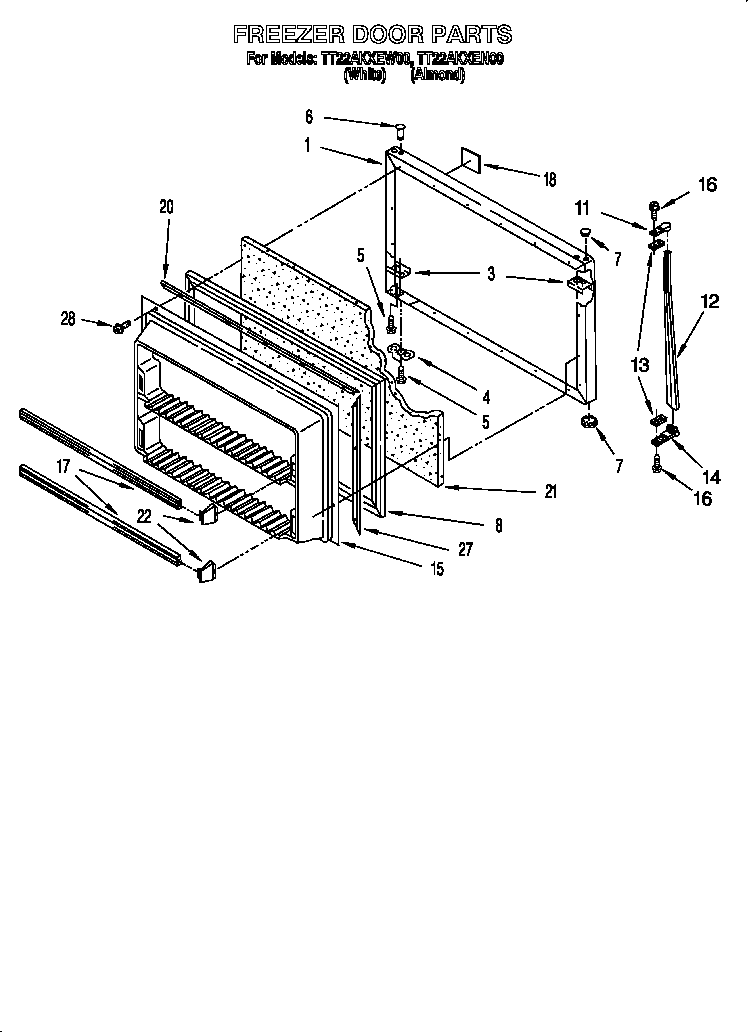

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 241 parts  |
Refrigerator Compressor 2169426
#28

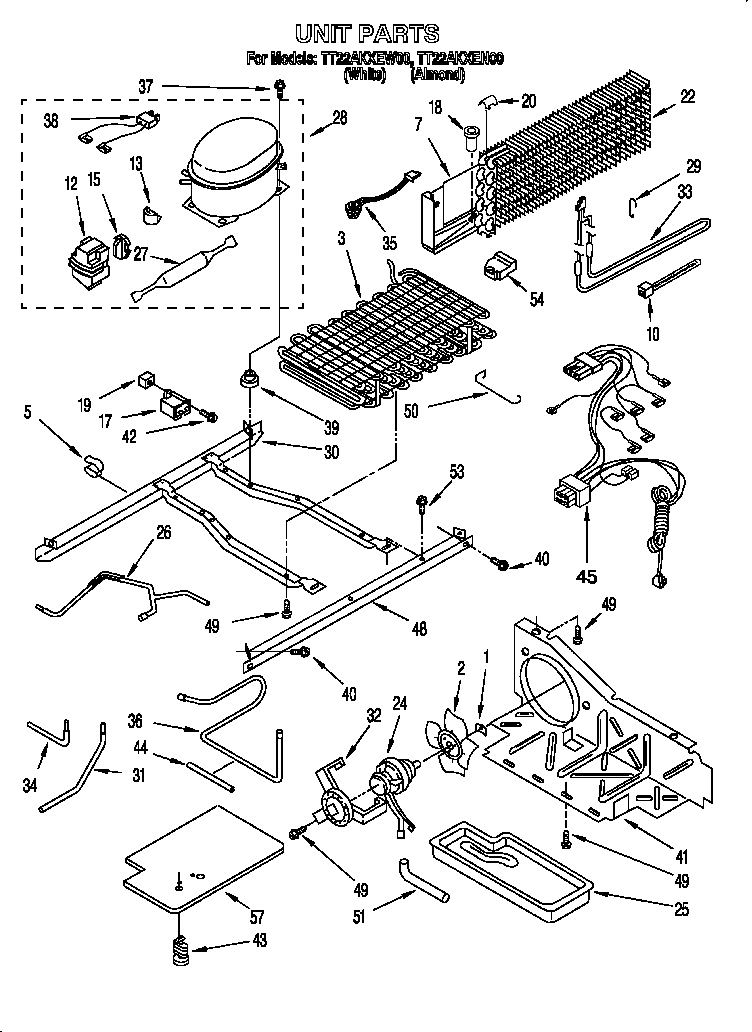

Unit diagram

Refrigerator compressor

Part #2169426

Replaced by #W10309990

?
Manufacturer substitution
This part replaces 2169426. Substitute parts can look different from the original.
BEST SELLER
$317.27 |
6% OFF Was : $338.61
In Stock
Condenser Motor 2162431
#24

Unit diagram

Condenser motor

Part #2162431

Replaced by #833697

?
Manufacturer substitution
This part replaces 2162431. Substitute parts can look different from the original.
BEST SELLER
$62.30 |
9% OFF Phone Price : $68.30
In Stock
Refrigerator Door Switch 2149705
#3

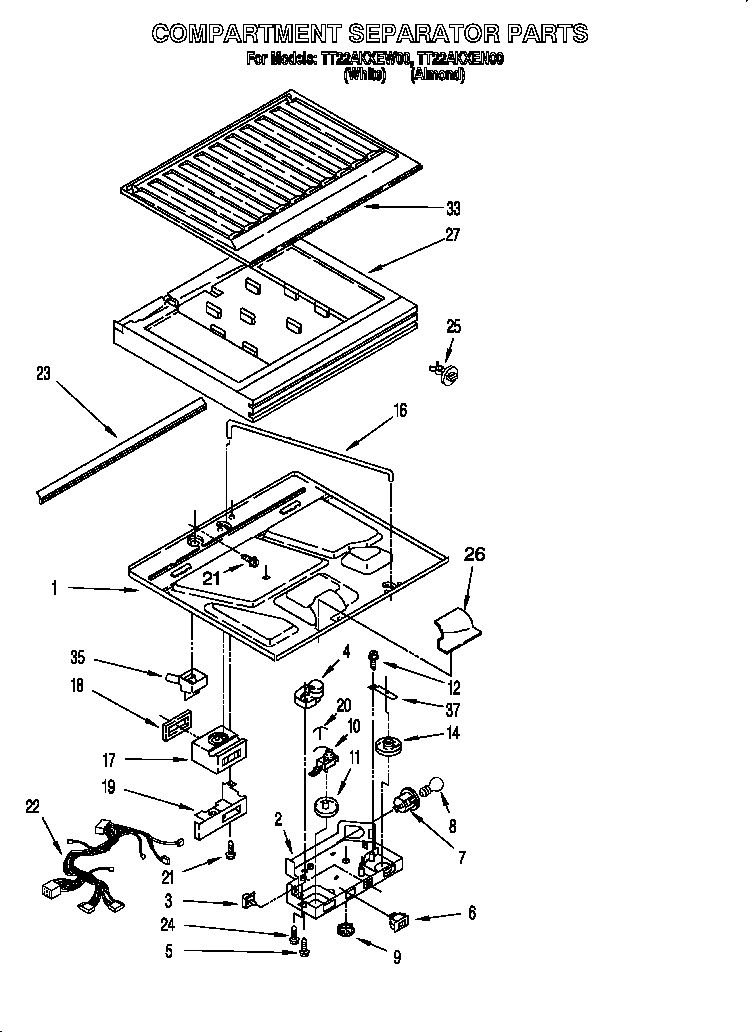

Compartment separator diagram

Refrigerator door switch

Part #2149705

Replaced by #WP2149705

?
Manufacturer substitution
This part replaces 2149705. Substitute parts can look different from the original.
BEST SELLER
$27.00 |
18% OFF Phone Price : $33.00
In Stock
Screw 487909
#17

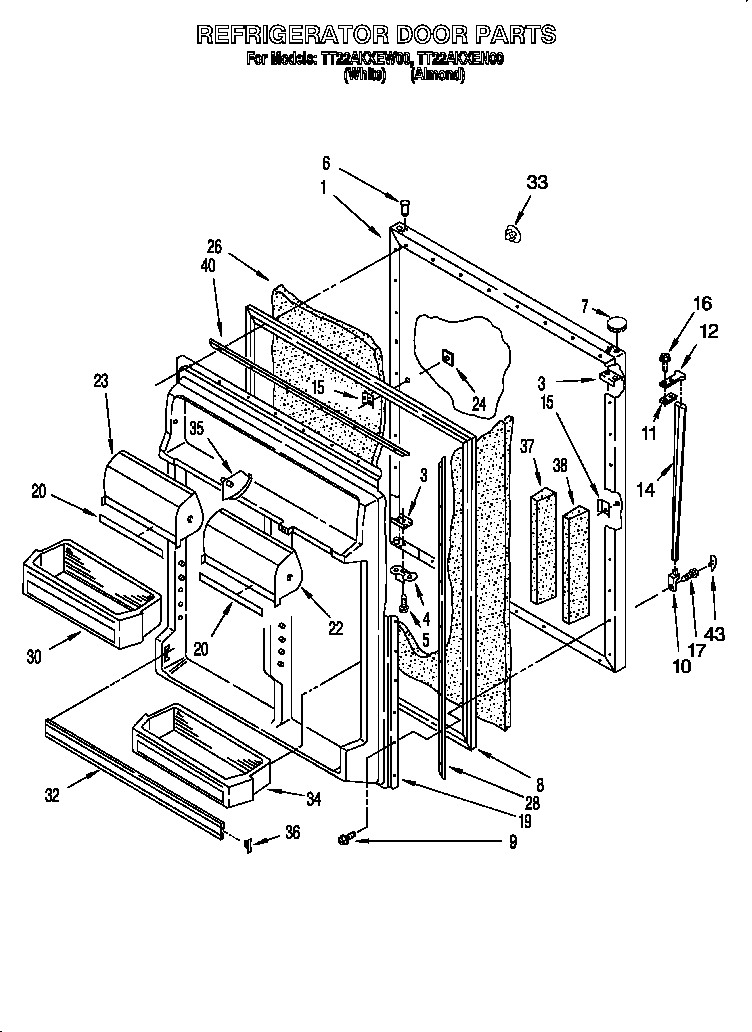

Refrigerator door diagram

Screw

Part #487909

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 487909. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw 489084
#53

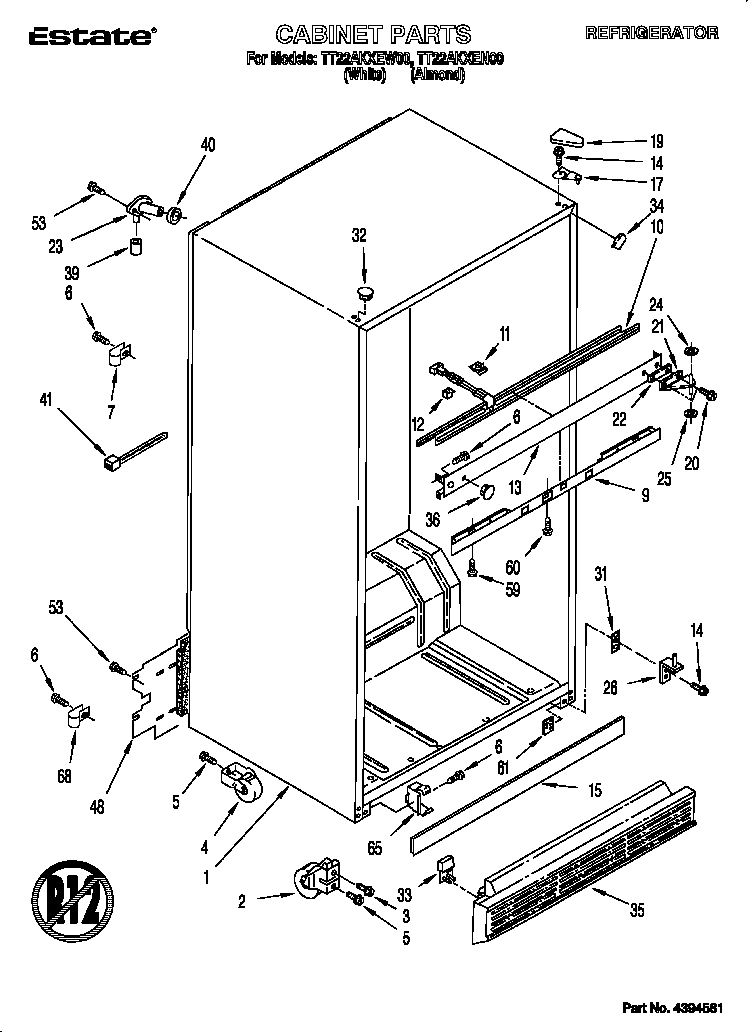

Cabinet diagram

Screw

Part #489084

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 489084. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Sears Refrigerator Service Valve (replaces 876620) 876764

#NI

All parts diagram

Sears refrigerator service valve (replaces 876620)

Part #876764

BEST SELLER
$26.12 |
19% OFF Phone Price : $32.12
In Stock
Appliance Silicone Lubricant 542638

#NI

All parts diagram

Appliance silicone lubricant

Part #542638

Replaced by #WP542638

?
Manufacturer substitution
This part replaces 542638. Substitute parts can look different from the original.
BEST SELLER
$26.69 |
18% OFF Phone Price : $32.69
In Stock
Evaporator Motor 2169116
#16

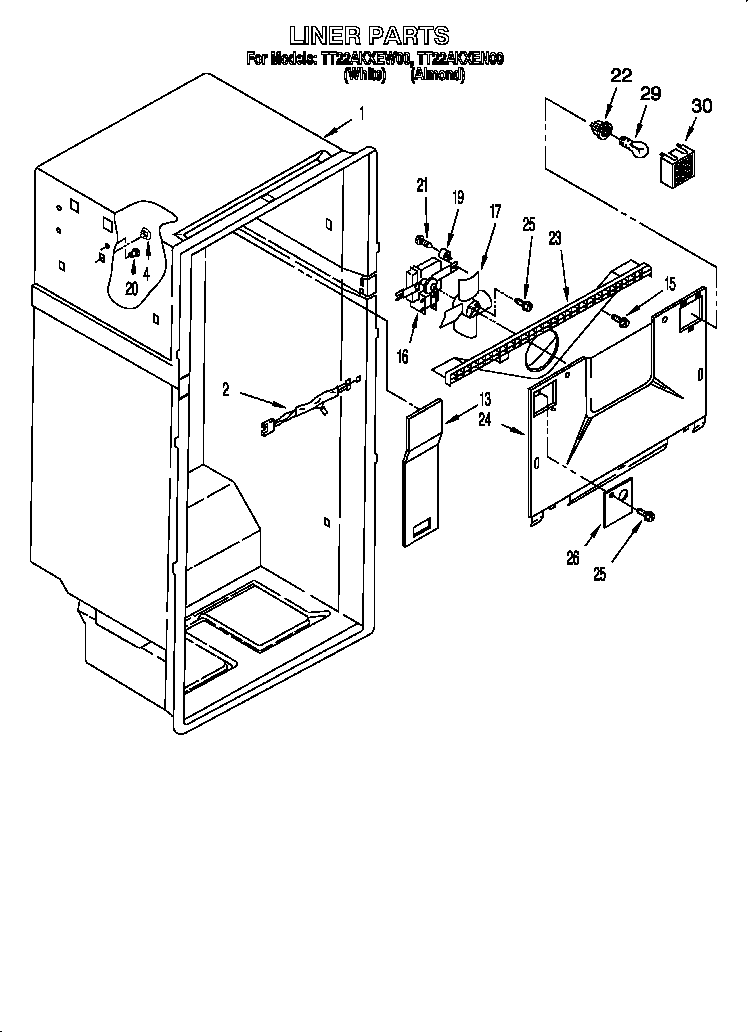

Liner diagram

Evaporator motor

Part #2169116

Replaced by #482731

?
Manufacturer substitution
This part replaces 2169116. Substitute parts can look different from the original.
BEST SELLER
$57.45 |
9% OFF Phone Price : $63.45
In Stock
Appliance Touch-up Paint, 0.6-oz (black) (replaces 20001009, 72032p, 72032r, W10831982) 72032

#NI

All parts diagram

Appliance touch-up paint, 0.6-oz (black) (replaces 20001009, 72032p, 72032r, w10831982)

Part #72032

BEST SELLER
This item is not returnable
$9.02 |
10% OFF Phone Price : $10.02
In Stock
Defrost Timer 2162044
#4

Compartment separator diagram

Defrost timer

Part #2162044

Replaced by #WP2183400

?
Manufacturer substitution
This part replaces 2162044. Substitute parts can look different from the original.
$51.09 |
11% OFF Phone Price : $57.09
In Stock
